fully automated exhaust silencer
#1
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
fully automated exhaust silencer
so th fd is too loud, right...
and i'm thinking of all sorts of ways to quiet it down without robbing power.
it's impossible to find a 3 1/2" muffler or pre-silencer that does a good job of knocking the noise down, but still fits in the tight fd chassis, so scratch that idea.
smaller exhaust is out of the question. i likes me powa
silencers are such a pain in the ***... i don't want to have to get out of the car and unbolt the thing every time i wanna step on the gas.
cutouts are the ****, but no room, and i'm not gonna redo the entire exhaust just to use one.
so what do we got???
a cheap silencer, some brake line, vacuum line, and a pre-spool thingamajiggy from that set of cosmo twins i couldn't sell in the moving sale.

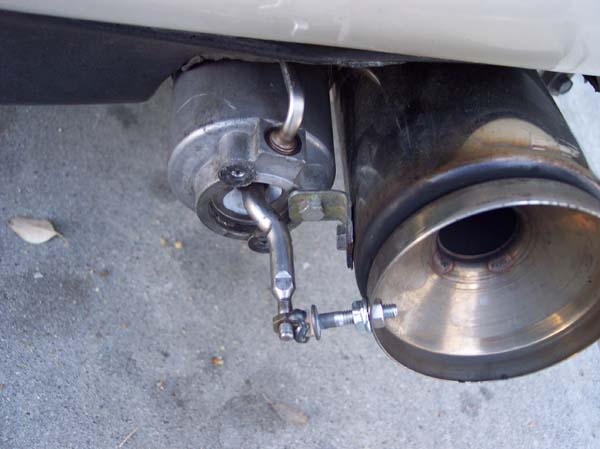

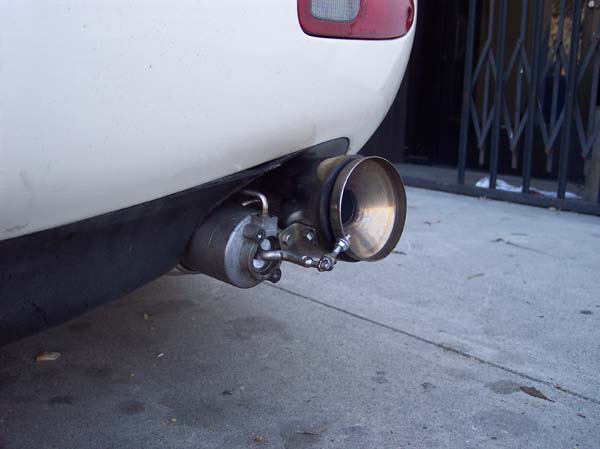

so a little welding, little tweaking, couple holes, a line from the intake manifold to the back of the car and here's what we got:

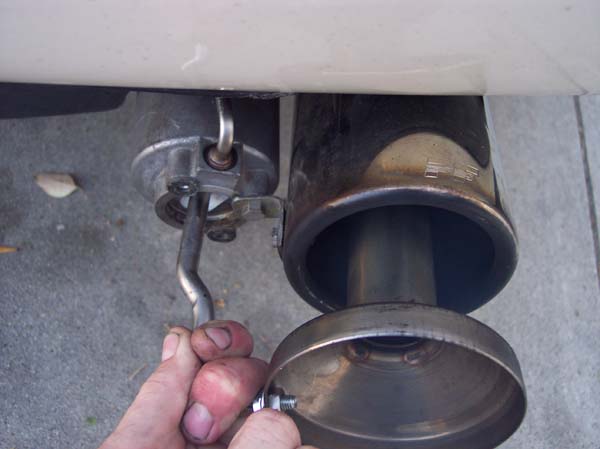

a fully-automated silencer that opens up when you're under boost!!
goddamn, i need to start sleeping!
and i'm thinking of all sorts of ways to quiet it down without robbing power.
it's impossible to find a 3 1/2" muffler or pre-silencer that does a good job of knocking the noise down, but still fits in the tight fd chassis, so scratch that idea.
smaller exhaust is out of the question. i likes me powa
silencers are such a pain in the ***... i don't want to have to get out of the car and unbolt the thing every time i wanna step on the gas.
cutouts are the ****, but no room, and i'm not gonna redo the entire exhaust just to use one.
so what do we got???
a cheap silencer, some brake line, vacuum line, and a pre-spool thingamajiggy from that set of cosmo twins i couldn't sell in the moving sale.
so a little welding, little tweaking, couple holes, a line from the intake manifold to the back of the car and here's what we got:
a fully-automated silencer that opens up when you're under boost!!
goddamn, i need to start sleeping!
#4
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by eo2am
Well that not petty but it should be alot cheaper the the apexi's active exhaust.
not pretty? that's some straight robocop ****!
Trending Topics
#8
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i just did some running around town and it works perfectly
only flaw is it doesn't return exactly square to the tip, so i'll get some junk to make alignment brackets tomorrow--that way it'll seal up nice and tight every time it closes.
next pj: 3-rotor side exhaust port/side/peripheral aux intake renesis motor.
only flaw is it doesn't return exactly square to the tip, so i'll get some junk to make alignment brackets tomorrow--that way it'll seal up nice and tight every time it closes.
next pj: 3-rotor side exhaust port/side/peripheral aux intake renesis motor.
#11
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
because the 3 rotor e-shaft kit is a few $k cheaper.
fuzzball--i looked into those last year, but as i understand, it opens via backpressure....so there's always x amount of backpressure robbing power. mine opens with a manifold reference and doesn't rob anything.
fuzzball--i looked into those last year, but as i understand, it opens via backpressure....so there's always x amount of backpressure robbing power. mine opens with a manifold reference and doesn't rob anything.
#15
SOME SAY....
Join Date: Oct 2005
Location: ON THE OTHER SIDE OF THE 15FWY, NEAR THE 215
Posts: 2,099
Likes: 0
Received 0 Likes
on
0 Posts
dave u are likeme, u tend to make things taht work with a hammer 2 toilet paper rolls, and an avocado to make a turbo spool faster at idle. lol, but like u and i know, they work better than **** in the stores. keep up the good work
#16
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
No need for a custom E shaft, just put 2 13b's together with a custom housing in the center like grannys did. After seeing your garage, I think you could do it.
My car may never be as powerfull as yours, but your exhaust will never be as quiet as mine.
My car may never be as powerfull as yours, but your exhaust will never be as quiet as mine.
#18
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
wait'll ya see what i do with a newspaper, a pair of needle nose, some broken glass, and some blue masking tape
imma go macgyver on yo ***!
imma go macgyver on yo ***!
#19
Mod Powers...gone!
Join Date: Apr 2001
Location: SoCal
Posts: 1,522
Likes: 0
Received 0 Likes
on
0 Posts
I do admire your McGyver abilities...
would this be easier though? http://phase2motorsports.stores.yaho...p3excovan.html
While not this product isn't all that cheap for what it is...you can certainly fab something really similar.
Just have settings on the cable so you know how far to pull the valve.
would this be easier though? http://phase2motorsports.stores.yaho...p3excovan.html
While not this product isn't all that cheap for what it is...you can certainly fab something really similar.
Just have settings on the cable so you know how far to pull the valve.
#21
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
nope. there's some pretension holding the silencer to the tip.
and we already covered cutouts. i don't want any extra levers or switches in the car.
and we already covered cutouts. i don't want any extra levers or switches in the car.
#24
He who smokes bitches
Originally Posted by GUITARJUNKIE28
nope. there's some pretension holding the silencer to the tip.
and we already covered cutouts. i don't want any extra levers or switches in the car.
and we already covered cutouts. i don't want any extra levers or switches in the car.
#25
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by cool_as_crap
just run the cable to a sunroof motor by the exuast, then put the sunroof switch in the center consol
still wouldn't open instantly
