My V8 northstar project
#101
My Bick is Digger
iTrader: (3)
I drive like an ******* on streets. I wonder if I will need completely custom manifolds to turbo this thing. I am definitely going this route. Barry, we need to get up again at some point and I would like to see this thing installed. Also can you give me a call, 252.363.4943 because I seemed to lose your number. I never saved it to memory.
#102
Senior Member
Join Date: Oct 2005
Location: High Point North carolina
Posts: 417
Likes: 0
Received 0 Likes
on
0 Posts
Wow that suprises me ...everything else is legal in Tenn,fireworks and all. learn something everyday. I dont drive like a *** either just use it on road trips when passing etc etc.
#103
Junior Member
Join Date: Jul 2006
Location: san marcos, texas
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
im sorry if this has been said, but ive searched your thread to no avail, why not use the tranny that comes with the engine? Im assuming it doesnt come with a manual as to why you want to swap the tranny, but could you theoretically use the stock ECU with the auto tranny it comes with? If you could, it would be a lot easier and cheaper just to go that route.
#104
Senior Member
Join Date: Nov 2004
Location: Fallston, MD
Posts: 627
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by stuffy236
im sorry if this has been said, but ive searched your thread to no avail, why not use the tranny that comes with the engine? Im assuming it doesnt come with a manual as to why you want to swap the tranny, but could you theoretically use the stock ECU with the auto tranny it comes with? If you could, it would be a lot easier and cheaper just to go that route.
I think you may be able to use the auto with the stock ECU, but I'm almost sure that you can't use the stock ECU without the auto.
#105
Mechanical Engineering
Thread Starter
Originally Posted by stuffy236
im sorry if this has been said, but ive searched your thread to no avail, why not use the tranny that comes with the engine? Im assuming it doesnt come with a manual as to why you want to swap the tranny, but could you theoretically use the stock ECU with the auto tranny it comes with? If you could, it would be a lot easier and cheaper just to go that route.
#106
Wouldn't Go If U Paid Me
Join Date: Nov 2003
Location: Clayton, NC
Posts: 3,036
Likes: 0
Received 0 Likes
on
0 Posts
A LEXUS V8 IN A RX7?!?! sacrilege! o wait, nevermind, that was the old me. looks like it is coming along nicely, bro. much more exciting that my LS1 swap.
#107
Full Member
Join Date: Mar 2006
Location: People's Republic of Maryland
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts
Well, keep up the good work. I'm watching this closely while I work on my 1UZ/'63 Comet project (which is stopped for the moment while I build a new, larger garage to do the work in).
I just have to get a flywheel/clutch setup before bolting the Supra 5 speed to the engine. The adaptor I got is a nice bit of work.
I just have to get a flywheel/clutch setup before bolting the Supra 5 speed to the engine. The adaptor I got is a nice bit of work.
#108
Mechanical Engineering
Thread Starter

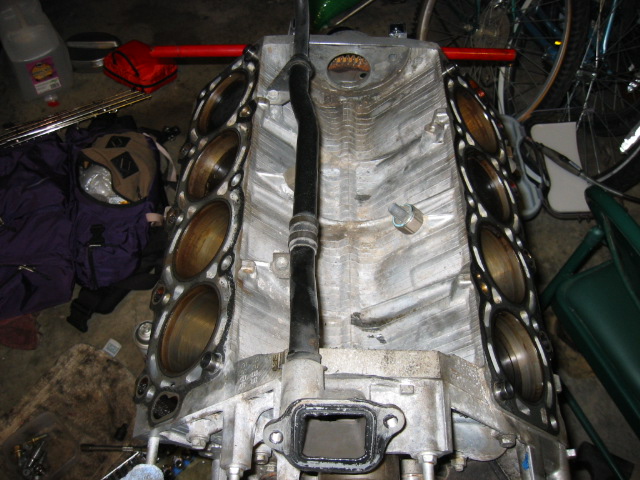

ok, so I went to crank my engine over to see if I was getting oil pressure and low and behold my engine only wanted to make a about 180 degrees of revolution be for halting to a stop. So I decided that I would not try to force it and maybe break a ringland, but my guess was a ring of rust in the cylinder causing it to stop a piston. After taking the heads off I notice a couple of the cylinders contained small amounts off rust, but it was the number 6 cylinder that had a noticable amount of rust that actually stopped the motor from turning. So after a nice massage from some steel wool the cylinder was freed; and then sprayed with some wd-40 to prevent more rust.

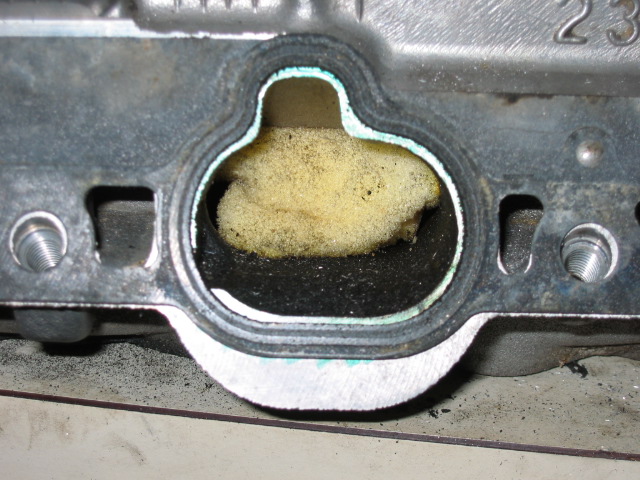

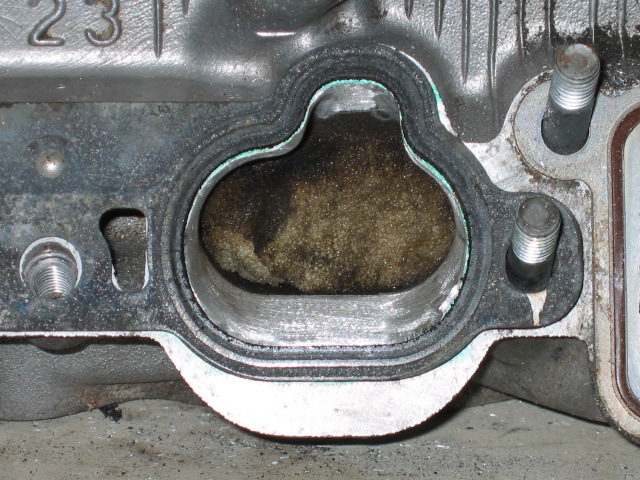

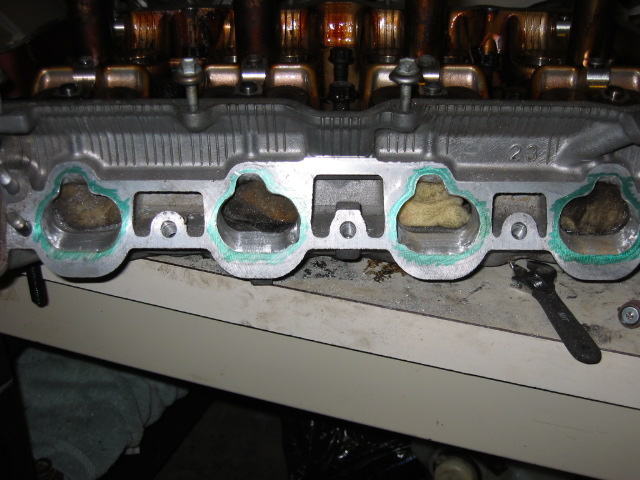

But with the heads off it gave me an oppurtunity to port match the heads and deshroud the valve area a little. This also gives me a reason/chance to get some new high compression pistones for my NA build. Also with no ratating assembly in the block I will be able to hone the block and even make it easier to mount it in the bay.
But here are some pictures for the ones with A.D.D
New pistons coming soon!
But with the heads off it gave me an oppurtunity to port match the heads and deshroud the valve area a little. This also gives me a reason/chance to get some new high compression pistones for my NA build. Also with no ratating assembly in the block I will be able to hone the block and even make it easier to mount it in the bay.
But here are some pictures for the ones with A.D.D
New pistons coming soon!
#109
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts

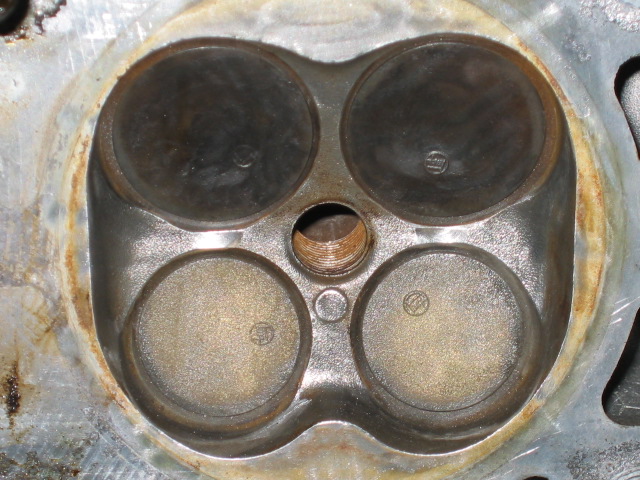

That block looks mysteriously similar to the 4.6 dohc ford. Those heads look great, same design as the SHO engine combustion chamber it seems, the so-called "pent-roof" 4 valve arrangement.
#111
Wouldn't Go If U Paid Me
Join Date: Nov 2003
Location: Clayton, NC
Posts: 3,036
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 88IntegraLS
That block looks mysteriously similar to the 4.6 dohc ford. Those heads look great, same design as the SHO engine combustion chamber it seems, the so-called "pent-roof" 4 valve arrangement.
hell when i saw one of the first pictures i thought it was a DOHC 4.6 for a sec, LOL.
#112
Mechanical Engineering
Thread Starter
Originally Posted by 88IntegraLS
That block looks mysteriously similar to the 4.6 dohc ford. Those heads look great, same design as the SHO engine combustion chamber it seems, the so-called "pent-roof" 4 valve arrangement.
Originally Posted by rarson
Sleeve that bitch, bore it out to 97mm or so, and throw some oversized Supra valves in it!
#114
Senior Member
Join Date: Nov 2004
Location: Fallston, MD
Posts: 627
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by capn
It is already sleeved, but I think I am going to stay same bore size for a while seeing as money isn't exactly flowinf right now.
#115
Mechanical Engineering
Thread Starter
Originally Posted by digitalsolo
Make sure you have a machine shop check those cylinders well, rust in the liners can be a real problem.
Originally Posted by rarson
Yeah, I know it's got sleeves, but those aren't big enough to bore out that big. There's still a lot of space though for some aftermarket sleeves.
#116
RX-347
iTrader: (2)
Originally Posted by capn
it was just surface rust, not like cancerous or anything. I would be concerned if it left a visable scoring or craters.
If you don't do it right the first time, it'll cost more money. Not trying to to be an *** here, just offer some good advice.
#118
Mechanical Engineering
Thread Starter
Originally Posted by digitalsolo
If it was enough to stop you from turning the engine over, it likely pitted the walls. A heavy hone is going to be necessary at the very least to resolve that, but without checking you won't know.
If you don't do it right the first time, it'll cost more money. Not trying to to be an *** here, just offer some good advice.
If you don't do it right the first time, it'll cost more money. Not trying to to be an *** here, just offer some good advice.
#119
Senior Member
Join Date: Nov 2004
Location: Fallston, MD
Posts: 627
Likes: 0
Received 0 Likes
on
0 Posts
You should be able to go 1mm over on the bore with the stock sleeves. I know .5mm is definitely possible. I don't think the thin part of the sleeve is really that high to where it's part of the "combustion container" (for complete and utter lack of a better term) to make 1mm over a problem.
Only mentioning this in case you need to bore out the rust, but I doubt it'll be a problem.
Only mentioning this in case you need to bore out the rust, but I doubt it'll be a problem.
#120
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
I'd just hone it off, measure the bore, measure the pistons, consult the factory overhaul tolerance if it is within the spec, get new rings, bearings, gaskets and seals and have some fun.
#121
RX-347
iTrader: (2)
Originally Posted by capn
I know where you are coming from, and I appreciate the advice. I will double check that the walls are not pitted, and if so whats a little more money? I will most likely ignore the problem until I get my mounts better scienced and find out what works best for repeatability and hopefully a kit for those interested.
It's something I'd have done just for peace of mind, but to me a couple hundred dollars is worth the peace of mind; same reason I have braided lines and AN fittings throughout my fuel system; rubber works fine, but I want the peace of mind. If you're fine with it as is, it'll probably run fine, and even if it was a little pitted, it should still run, just not as well as a proper spec'd motor will. Definitely put a good hone on it regardless.
#122
Mechanical Engineering
Thread Starter
h0WnED!!
hehe, sorry I couldn't help but to use the h0Wned title.

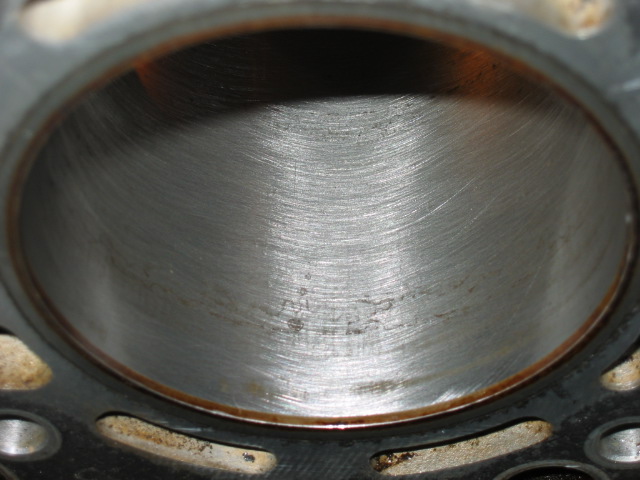

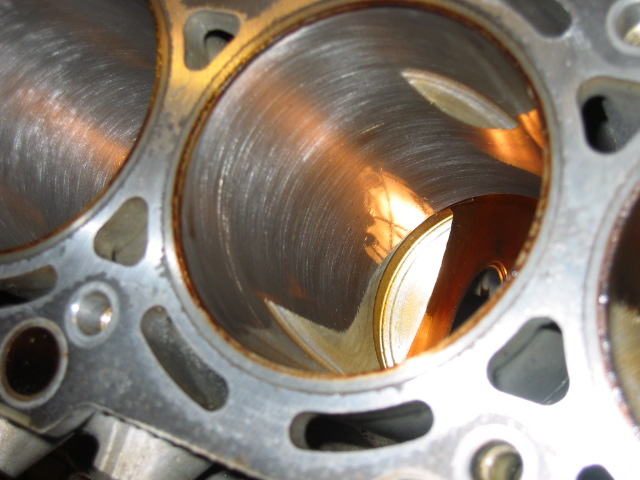

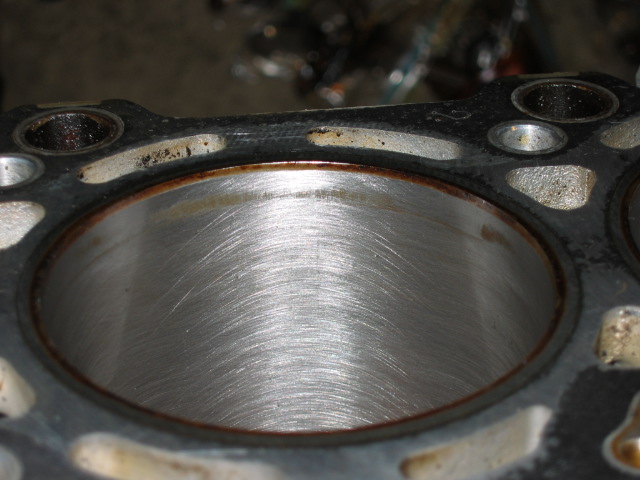

OK so I honed the cylinders with a 220 grit and it looks fairly decent except I am just not happy with it. I used my .002" feeler gauge to see if any of the "pits" and "grooves" would catch but they didn't yet I can still see some discolorization and faint outlines of where the rings were rusting into the walls .

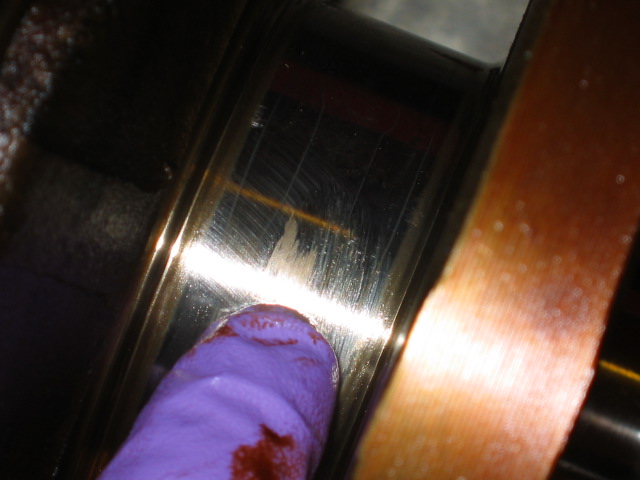

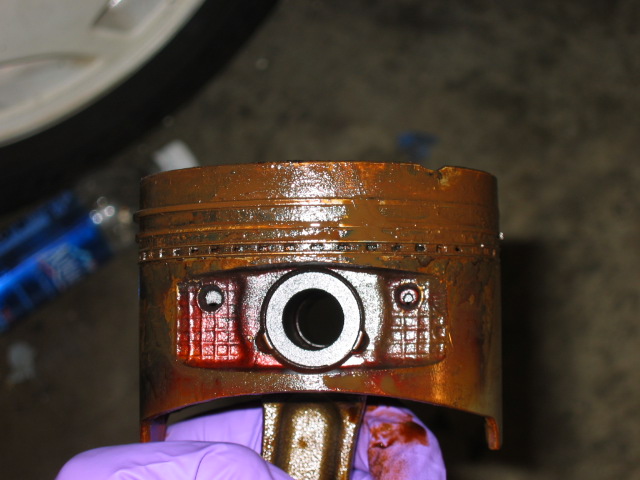

And as my luck is prevailing with this motor when I took the bottum end apart the center main bearing had a small copper spot on it, so time to get a new polished crank and new bearings.:sigh:: Although I do not care about spending money on my engine for my "peace of mind" as you call it I do find it hard to believe that this engine keeps taking a dump on my schedule. But I am not done yet I thought that, "hey the pistons will be alright at least" ; Yeah right at least 4 of the pistons had the rings rusted in and filled with carbon and looked like crap. So new pistons ::KA CHING:: theres goes more money it just never stops; and as with new pistons I am thinking about new rods. But hopefully my NA goals will be modest enough so I do not have to use a set of upgraded rods.
But WHO knows.
here are some pictures to show the little imperfections that make car projects fun and expensive.
OK so I honed the cylinders with a 220 grit and it looks fairly decent except I am just not happy with it. I used my .002" feeler gauge to see if any of the "pits" and "grooves" would catch but they didn't yet I can still see some discolorization and faint outlines of where the rings were rusting into the walls .
And as my luck is prevailing with this motor when I took the bottum end apart the center main bearing had a small copper spot on it, so time to get a new polished crank and new bearings.:sigh:: Although I do not care about spending money on my engine for my "peace of mind" as you call it I do find it hard to believe that this engine keeps taking a dump on my schedule. But I am not done yet I thought that, "hey the pistons will be alright at least" ; Yeah right at least 4 of the pistons had the rings rusted in and filled with carbon and looked like crap. So new pistons ::KA CHING:: theres goes more money it just never stops; and as with new pistons I am thinking about new rods. But hopefully my NA goals will be modest enough so I do not have to use a set of upgraded rods.
But WHO knows.
here are some pictures to show the little imperfections that make car projects fun and expensive.
#123
RX-347
iTrader: (2)
Sorry to see the problems there. Hopefully a good shop can get that out without going over more then rings can gap. You'll -probably- be fine as it is, but with the work you're putting into this, I can't imagine you'd be very pleased to hear your compression took a dump on account of the condition of the walls.
Here's hoping for a happy post next.
Here's hoping for a happy post next.
