Tire Stretch OD comparison
A 245/45/16 tires gives OD of about 24.6" (Example Yoko ES 100)
A 245/50/16 tires gives OD of about 25.8" (Example Yoko ES 100)
I believe these measurement valid when they are mounted on 8" width rim. Which gives them normal profile.
Now the question is,
Would the 245/50/16 mounted on 9.5" width rim results in smaller OD?
Perhaps down to about 25" or less
A 245/50/16 tires gives OD of about 25.8" (Example Yoko ES 100)
I believe these measurement valid when they are mounted on 8" width rim. Which gives them normal profile.
Now the question is,
Would the 245/50/16 mounted on 9.5" width rim results in smaller OD?
Perhaps down to about 25" or less
![Confused](https://www.rx7club.com/images/smilies/confused.gif)
#2
Lives on the Forum
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Originally Posted by reza
A 245/45/16 tires gives OD of about 24.6" (Example Yoko ES 100)
A 245/50/16 tires gives OD of about 25.8" (Example Yoko ES 100)
I believe these measurement valid when they are mounted on 8" width rim. Which gives them normal profile.
Now the question is,
Would the 245/50/16 mounted on 9.5" width rim results in smaller OD?
Perhaps down to about 25" or less
![Confused](https://www.rx7club.com/images/smilies/confused.gif)
A 245/50/16 tires gives OD of about 25.8" (Example Yoko ES 100)
I believe these measurement valid when they are mounted on 8" width rim. Which gives them normal profile.
Now the question is,
Would the 245/50/16 mounted on 9.5" width rim results in smaller OD?
Perhaps down to about 25" or less
![Confused](https://www.rx7club.com/images/smilies/confused.gif)
#3
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Dec 2001
Location: Sunnyvale, CA
Posts: 1,252
Likes: 0
Received 0 Likes
on
0 Posts
The problem is with 25.8" OD. it will rub the fender. 24.6 on 9.5" width rim is okay.
So I am hoping that stretching the sidewall will make the OD smaller. Is this correct?
So I am hoping that stretching the sidewall will make the OD smaller. Is this correct?
#4
Lives on the Forum
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Originally Posted by reza
So I am hoping that stretching the sidewall will make the OD smaller. Is this correct?
Why bother with a 245 on a 9.5 inch wheel anyway???
#7
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Dec 2001
Location: Sunnyvale, CA
Posts: 1,252
Likes: 0
Received 0 Likes
on
0 Posts

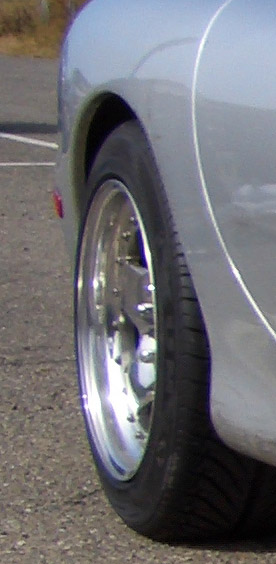

I have 16x9.5" rim on the back with about +44 offset. As you can see in photo below, if fits fine without rubbing to the fender lip in hard turns. The tire mounted is 245/45/16.
With 245/50/16, it will be about 0.8" taller OD, or 0.4" taller on top. My fear is it will catch the lip during corners.
So having the tire mounted on the 16x9.5", would it actually be 0.4" taller or just 0.1/0.2" taller on top.
artowar: I have this rim currently, and are autocrossing with it. I am not going with suggested rim width of 8". I am wanting to know if I could make it work.
Pricewise, 245/50/16 is cheaper than 245/45/16 too.
Reza
With 245/50/16, it will be about 0.8" taller OD, or 0.4" taller on top. My fear is it will catch the lip during corners.
So having the tire mounted on the 16x9.5", would it actually be 0.4" taller or just 0.1/0.2" taller on top.
artowar: I have this rim currently, and are autocrossing with it. I am not going with suggested rim width of 8". I am wanting to know if I could make it work.
Pricewise, 245/50/16 is cheaper than 245/45/16 too.
Reza
Originally Posted by maxcooper
25.8" will probably fit in the back, but it won't fit in the front.
What is your dilemma? Maybe we can help you come up with more ideas for resolving it.
-Max
What is your dilemma? Maybe we can help you come up with more ideas for resolving it.
-Max
![](https://www.rx7club.com/attachments/suspension-wheels-tires-brakes-20/124292-tire-stretch-od-comparison-backrim.jpg)
Last edited by reza; 07-31-05 at 01:00 AM.
Trending Topics
#8
Hmmm, if it was me, I'd roll the fender lip. I suppose you could check the clearance by mounting one of the bigger tires, puting the back of the car up on stands and articulating the suspension from full droop to full compression.
If you don't end up with a comfortable clearance, then you can try another tire in the same size, shave the tires, or roll the fenders.
Of course, you can always shave the tires yourself with a few smoky burnouts
If you don't end up with a comfortable clearance, then you can try another tire in the same size, shave the tires, or roll the fenders.
Of course, you can always shave the tires yourself with a few smoky burnouts
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#9
Lives on the Forum
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Originally Posted by reza
With 245/50/16, it will be about 0.8" taller OD, or 0.4" taller on top. My fear is it will catch the lip during corners.
