Suspension/Wheels/Tires/Brakes

The Official FC Wheel Fitment Thread

Thread Tools

Search this Thread

Old 08-16-07, 12:21 AM
  #2276
Lives on the Forum


RETed's Avatar

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 18 Likes on 16 Posts
Gee, people get their panties in a bunch, and they call me uptight?

Calling me out now and insulting me?

Look who needs to take the chill pill and take this **** with some humor?

Talk about the pot calling the kettle black...

Dude, get a life.
You're back on ignore now.


-Ted
Old 08-16-07, 01:47 AM
  #2277
Senior Member


wiL87's Avatar

Join Date: Oct 2005
Location: norcal
Posts: 529
Likes: 0
Received 0 Likes on 0 Posts
ZIIIING. less bickering, more wheel fitments WITH PICS!!! =D
Old 08-16-07, 11:13 AM
  #2278
Banned. I got OWNED!!!
iTrader: (17)

Renton's Avatar

Join Date: May 2007
Location: CA
Posts: 1,684
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Wezzmo
whats your definition of flush?

imo anything greater that +32ish will not fit on the front... my 17x8 +35s i used to run on the front required a 5mm slip on spacer to clear the coilies...

i have a set of cusco camber tops floating around if you want them ... moved up to supernow tops myself
Free camber tops? Because Maczpyne offered me a set for $160 (with a 100% return policy lol)



Originally Posted by Black91n/a
My 17x8's are a 30mm offset, and with 225/45/17's there's not much room at all between them and the stock suspension, and the coilovers didn't really gain me anything either. They're pretty flush, and don't ever rub on stock unrolled fenders. Go closer in and you risk rubbing the spring, go further out and you risk rubbing the fender.
well, i'll need spacers, and maybe those camber plates.


Get wheels that fit.
Too late for that now. I've got too much time/ money into these already.
Old 08-16-07, 02:46 PM
  #2279
Banned. I got OWNED!!!
iTrader: (17)

Renton's Avatar

Join Date: May 2007
Location: CA
Posts: 1,684
Likes: 0
Received 0 Likes on 0 Posts

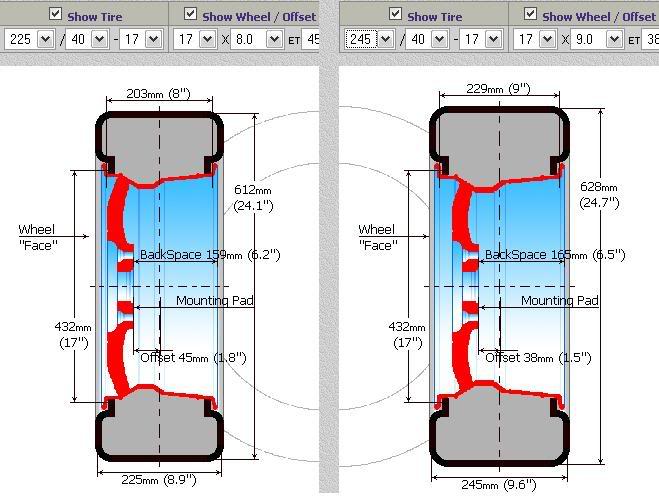

heres what i have in mind:

Name:  AdvansTires.jpg
Views: 553
Size:  56.0 KB

and according to http://fc3spro.com/TECH/MODS/RT/rims.htm i'll need a 10mm spacer on the front.

hows that sound?
Old 08-16-07, 03:44 PM
  #2280
Crazy88


chozenfc3s's Avatar

Join Date: Nov 2005
Location: OC, FL
Posts: 182
Likes: 0
Received 0 Likes on 0 Posts
I am going for a LUX/VIP style with my vert and I need to know if could fit a set of 19x10 +20 w/245-35-19 all around. here's what i have done

I have Tein S-tech springs (I hope soon to be Stance GR+) and +25mm F Origin fenders and rolled and pulled rear fenders (will get +30mm if needed to make these fit) will this fit on my fc?
Old 08-16-07, 05:35 PM
  #2281
Rotary Freak

iTrader: (3)

Josh18_2k's Avatar

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 1 Like on 1 Post
you shouldnt need a spacer with 17x8 +30 with 225's. i had 245/40/17 up front on the same wheel (with tein flexs) for a couple years. the fender needed rolling of course, but there was no rubbage on the inside.
there is a possibility flex's have more clearance than other coilovers, but i dont know anything about that.
Old 08-16-07, 07:59 PM
  #2282
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 5 Likes on 5 Posts
Mine are +30mm, the ones he's looking at were +45mm, so yes, a spacer is needed.

Be careful, those S-Tech springs have even less clearance than stock due to the shape of the spring.

My Tein Flex didn't seem to offer much more wheel and tire clearance than I had before, but I've never gone beyond 225's yet.
Old 08-17-07, 01:46 PM
  #2283
Hot Line

iTrader: (13)

J.T.P.'s Avatar

Join Date: Jun 2005
Location: Covina, CA
Posts: 1,520
Likes: 0
Received 1 Like on 1 Post
Originally Posted by BoostinmyS5
post a pic, or just acknowledge that you're just another homo that talks **** on people with nothing to back it up with...
i quess you acknowledge it...
Old 08-17-07, 02:55 PM
  #2284
Red and Gold


red_s5_fc3s's Avatar

Join Date: Sep 2006
Location: Irvine, CA
Posts: 1,256
Likes: 0
Received 0 Likes on 0 Posts
First of all, you shouldn't define a word with the word you are defining. Second, you shouldn't trust all Internet sites for accurate research or definitions. Third, leave all the bullshit at the door and let's just stick with the facts of whats RECOMMENDED and what has BEEN DONE. If it works, it works. Whatever happened to the "to each his own" thing? With that said, I've got a question:

I want to run 17" wheels. I'm looking at running 30mm fenders in the rear and 30mm in the front. What width and offset combo would yield the fattest lip. Yes, this is for style purposes. As of right now I'm on stock struts with Tien S-tech springs.

I'd like to run about 17x10 up front and 17x11 in the rear. Possibly might go with 50mm rear fenders.

Last edited by red_s5_fc3s; 08-17-07 at 03:05 PM.
Old 08-17-07, 03:57 PM
  #2285
Hot Line

iTrader: (13)

J.T.P.'s Avatar

Join Date: Jun 2005
Location: Covina, CA
Posts: 1,520
Likes: 0
Received 1 Like on 1 Post
depending on what size tires you want to run...

you could get away with a 0 to -5 offset front on a 10"

and +5 to +15 offset rear... with running a stretch you can go towards the NEG of both of these options...

this is going off of what i'm running 25mm front and 50mm rear fenders...
Old 08-18-07, 01:13 AM
  #2286
TIME ATTACK FD

iTrader: (8)

06fc3s's Avatar

Join Date: Feb 2006
Location: Silicon Valley, CA
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
would a 17x 8.5 +30 fit properly up front with 225-45-17 tires?.. would a fender roll be needed?.
Old 08-18-07, 12:07 PM
  #2287
Rotary Freak

iTrader: (3)

Josh18_2k's Avatar

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 06fc3s
would a 17x 8.5 +30 fit properly up front with 225-45-17 tires?.. would a fender roll be needed?.
those fit fine, no rolling required.
Old 08-19-07, 06:00 PM
  #2288
Senior Member


USS CJ's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 598
Likes: 0
Received 1 Like on 1 Post
JTP > REted.

thanks internet.
Old 08-20-07, 04:01 AM
  #2289
Full Member

odeezy's Avatar

Join Date: Apr 2007
Location: rowland heights
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by USS CJ
JTP > REted.

thanks internet.


jtp ftw!


post some pics of your car reted i want to see it
Old 08-20-07, 03:45 PM
  #2290
Full Member

odeezy's Avatar

Join Date: Apr 2007
Location: rowland heights
Posts: 80
Likes: 0
Received 0 Likes on 0 Posts
i had some 18x9.5 +15 all around fitment was good with some 245 40 in the rear and the front with some 235 or 225. hella flush
Old 08-21-07, 11:17 PM
  #2291
Insane Burning Diarrhea


SayNoToPistons's Avatar

Join Date: Apr 2005
Location: Noo Yawk City / San Diego
Posts: 1,796
Likes: 0
Received 0 Likes on 0 Posts
Someone should really sticky this ...
Old 08-24-07, 10:38 PM
  #2292
Junior Member

wwgenius's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
i want to move up to 18" on my 86.

Im thinking 18x7.5 rims and 225/40/18 tires. What offset should i look for in order to have it not stick in or out too much from the fender?
Old 08-25-07, 07:40 PM
  #2293
40k worth of fail

iTrader: (3)

goreify's Avatar

Join Date: May 2006
Location: SoCal
Posts: 414
Likes: 0
Received 0 Likes on 0 Posts
hahah JTP givin RETed the icy ice.
i dont think ive ever seen anyone get put in their place so badly.

jtp your car = hottest fc on the planet
and its probably driven harder then any car on this forum.
Old 08-27-07, 09:08 PM
  #2294
Junior Member

wwgenius's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
will these work? 18x9 +25 front and 18x10 +30 fit with 225/40/18
Old 08-28-07, 08:10 AM
  #2295
Rotary Enthusiast


iTrader: (4)

RussTII's Avatar

Join Date: Sep 2005
Location: Texas
Posts: 786
Likes: 0
Received 0 Likes on 0 Posts
can i fit a 275 tire on a 9in rim?

is there anyway to get a 275 tire to somewhat fit under stock (or rolled) rear fenders?
Old 08-28-07, 02:49 PM
  #2296
Pobody's Nerfect

iTrader: (3)

willub and company's Avatar

Join Date: Sep 2005
Location: Worcester Massachusetts
Posts: 2,326
Likes: 0
Received 0 Likes on 0 Posts
17x8.5 +40 Front w/ 225/40/17
17x9.5 +40 Rear w/ 255/40/17

will these fit? i assume i would need spacers and some fender rolling. any suggestions? they came off of an fd.
Old 08-28-07, 10:29 PM
  #2297
Rotary Freak


owen is fat's Avatar

Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RussTII
can i fit a 275 tire on a 9in rim?

is there anyway to get a 275 tire to somewhat fit under stock (or rolled) rear fenders?
it fits the wheel width perfectly IMHO but some zilvian would rather see that wide a tire stretched over a 11.5 wide wheel, oh well.

you can fit a 275 on a 17x10 or a 17x9 out back with a+35 offset.
a+30 offset works on the 17x9 but will rub with a 17x10 unless you also roll/pull the fender out a little.

a 255 up front on a 17x9 +15 fits really nicely under a set of wide fenders and keeps the FCs handling all nicely balanced.
Old 08-28-07, 10:31 PM
  #2298
Rotary Freak


owen is fat's Avatar

Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by willub and company
17x8.5 +40 Front w/ 225/40/17
17x9.5 +40 Rear w/ 255/40/17

will these fit? i assume i would need spacers and some fender rolling. any suggestions? they came off of an fd.
those widths would fit well if the offsets were closer to +25 front and rear
(+30 will work if you run with enough negative camber to clear the fender lips)

15mm spacers are your friends! I bet Rishie can get some for you as he sources similar sized hubcentric spacers for people wanting to get stock FD wheels to fit FCs.
Old 08-28-07, 10:33 PM
  #2299
Rotary Freak


owen is fat's Avatar

Join Date: Apr 2004
Location: Rochester, NY
Posts: 1,579
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wwgenius
will these work? 18x9 +25 front and 18x10 +30 fit with 225/40/18
on an FC?
hells yeah.
might be tight up front unless you run a wider fender OR use a 235 wide tire.
Old 08-29-07, 11:03 PM
  #2300
Pobody's Nerfect

iTrader: (3)

willub and company's Avatar

Join Date: Sep 2005
Location: Worcester Massachusetts
Posts: 2,326
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by owen is fat
those widths would fit well if the offsets were closer to +25 front and rear
(+30 will work if you run with enough negative camber to clear the fender lips)

15mm spacers are your friends! I bet Rishie can get some for you as he sources similar sized hubcentric spacers for people wanting to get stock FD wheels to fit FCs.
Thanks! so do you think i would have to do some major fender rolling?
