i have an fc with 17x7 wheel with 40mm offset.
225/45/17 front
255/40/17 rear.
the car is lowered with tanabe gf210 springs.
the front tires rub the spring and the wheel well,i grinded out the fenders and the is no more rub there,but it still rubs on the spring?
i'm thinking a 215/40/17 on the front.
the care looks awesome though. i just want o be able to drive it hard without worrying about blowing a tire.
225/45/17 front
255/40/17 rear.
the car is lowered with tanabe gf210 springs.
the front tires rub the spring and the wheel well,i grinded out the fenders and the is no more rub there,but it still rubs on the spring?
i'm thinking a 215/40/17 on the front.
the care looks awesome though. i just want o be able to drive it hard without worrying about blowing a tire.
#2155
Lives on the Forum
#2156
Junior Member
Join Date: Jun 2006
Location: edmonton,alberta
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts

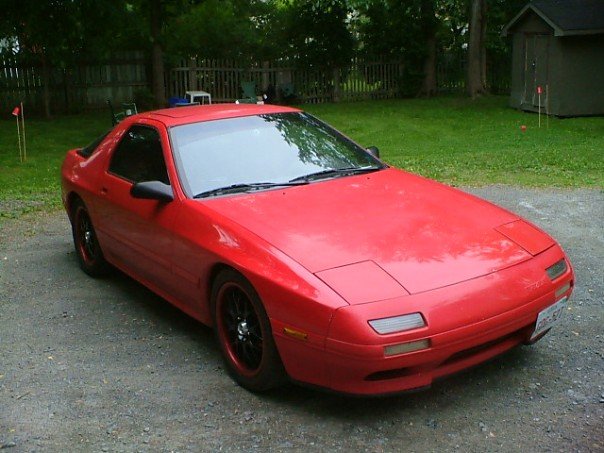

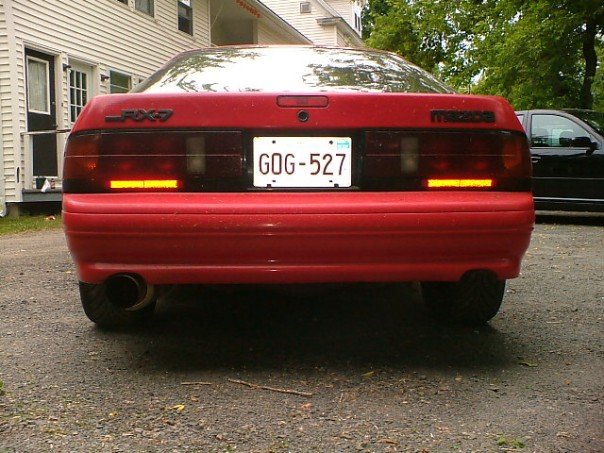

a 1/4 spacer is perfect.no more rub on my springs. the ******* tanabe springs did lower the car but the springs are wider than stock,thats why the rub. soon i'll post some pics.thanks for the input.
#2157
Junior Member
Join Date: Jun 2006
Location: edmonton,alberta
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
#2160
Senior Member
Join Date: Oct 2006
Location: Colorado
Posts: 415
Likes: 0
Received 0 Likes
on
0 Posts
and fyi, 225 on a 8.5 is actually 'proper' fitment. within the manufacturers reccomended range, and it won't really look stretched at all.
Last edited by unicorn_squad; 06-25-07 at 11:03 AM.
#2162
Lives on the Forum
#2168
Rotary Freak
iTrader: (1)
I got a free set of OEM take offs I am trying to set up cheap on my Fc. The offset is high which I know is going to be a problem. Size is 17x8 with a 45 offset. I want to run them on a s5 with some aftermarket springs I cant identifiy,(light blue in color, just a bit darker than cusco blue) and furture tokinco blues. What is everyones recomendation on spacers (size and brand maybe) and max tire widths I can go with. Thanks in advance for any help. If nothing else I will try to sell them. (05 acura TL wheels)
#2169
Lives on the Forum
You can runs wheels like that in the rears with no spacers.
Running spacers that wide will require longer studs, since the stock studs are not safe anything over a 1/4" spacer.
-Ted
#2170
Rotary Freak
iTrader: (1)
Thanks alot for the info, I hope to run 225/40's in the front and 245/40's in the rear. Is it save to run a spacer that is so big? I understand I will need longer studs, but 1/2 inch spacer seems scary. Is a bolt on spacer the safest one to use? Any recomendations on where to find the spacers? Thanks again bro!
#2172
Lives on the Forum
Overfenders probably an easier way to get them covered?
I'd estimate you need to pull those front fenders like 1/2" outward.
The rears are going to be too tight on the inside with that wide of a tire.
If you drop down to a 245 or a 255 tire, it will be tight but it should clear the insides.
Why would you want to go wider than 275's in the back?
You making like 500 hp?
With the 8.0" up front and that offset, you can step up to a 235 or 245 wide no problem.
-Ted
#2174
Junior Member
Join Date: Jun 2007
Location: Montreal, Canada
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
18" wheels fitment fc gxl
Well here is what I found if it can help someone.
I purchased mags as follows
18 X 8 at 38 offset
with a 3mm spacer front so 35 offset (18 x 8.5 DOES NOT FIT UNDER WHEEL WELL ON STOCK SUSPENSION AT 35 OFFSET)
With these mags the largest tire that fits UNDER WHEEL WELL is a P225/40R18 in the front and a 235 with a 18 x 8 will be on top of wheel well or flush meaning you Will hit the inside fender on heavy compression.
18 X 9 at 35 offset
The rear at 35 offset I fit a 255/35R18. This is pretty tight on fender side.You MAY be able to fit a 265/35R18 inside of the wheel well at 38 offset with stock suspension(have not tested this).
And there is my two cents.
I purchased mags as follows
18 X 8 at 38 offset
with a 3mm spacer front so 35 offset (18 x 8.5 DOES NOT FIT UNDER WHEEL WELL ON STOCK SUSPENSION AT 35 OFFSET)
With these mags the largest tire that fits UNDER WHEEL WELL is a P225/40R18 in the front and a 235 with a 18 x 8 will be on top of wheel well or flush meaning you Will hit the inside fender on heavy compression.
18 X 9 at 35 offset
The rear at 35 offset I fit a 255/35R18. This is pretty tight on fender side.You MAY be able to fit a 265/35R18 inside of the wheel well at 38 offset with stock suspension(have not tested this).
And there is my two cents.
