The Official FC Wheel Fitment Thread
#1426
Thank you for the input, fwiw, the fronts are already rolled about as much as can be done. I could still pull them of course, and it would seem to me that about 2- 2.5 degrees of negative camber would be the best for front grip on the more agressive street tires as it is for most macpherson strut cars. Unless of course there is something peculiar to the chassis.... I don't know as this is my first FC and I have not been able to do much research at this point, but I defer to those with more experience. Which of course leads me here and for starters at least, to this post.
I have searched on this specific fitment and those close to it btw. But this is a multi part question and it was made with a few specific golas in mind and with a willingness to make things work to some extent.
I have searched on this specific fitment and those close to it btw. But this is a multi part question and it was made with a few specific golas in mind and with a willingness to make things work to some extent.
#1427
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2004
Location: Italy, Rimini
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
16"x8JJ +50
Again need spacers for sure I think ...but how much would it be safe, since atm cannot find spacers with builtin struds so I would rely only on the stock struds and mounting the wheels on the remaining lenght of them...
And besides that, what would be the best tire size to mount ?? I was thinking of 225/40.... your suggestions?
#1428
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally Posted by Cody Mamak
What about this setup?
Again need spacers for sure I think ...but how much would it be safe, since atm cannot find spacers with builtin struds so I would rely only on the stock struds and mounting the wheels on the remaining lenght of them...
And besides that, what would be the best tire size to mount ?? I was thinking of 225/40.... your suggestions?
Again need spacers for sure I think ...but how much would it be safe, since atm cannot find spacers with builtin struds so I would rely only on the stock struds and mounting the wheels on the remaining lenght of them...
And besides that, what would be the best tire size to mount ?? I was thinking of 225/40.... your suggestions?
Thus, you need at least a 20mm or close to 1" spacer to fit up front.
You cannot run a spacer this big on the stock wheel studs - front or back.
![Frown](https://www.rx7club.com/images/smilies/frown.gif)
-Ted
#1429
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2004
Location: Italy, Rimini
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Damn Ted
OK, I'm doomed
Well then, I'll keep an eye out for the spacers + studs ...
I was so happy I had sourced another set of nice wheels... oh well...fell like this icon now :
My luck-->
<--- me
![Wallbash](https://www.rx7club.com/images/smilies/wallbash.gif)
OK, I'm doomed
![Wallbash](https://www.rx7club.com/images/smilies/wallbash.gif)
Well then, I'll keep an eye out for the spacers + studs ...
![Anger](https://www.rx7club.com/images/smilies/anger.gif)
I was so happy I had sourced another set of nice wheels... oh well...fell like this icon now :
My luck-->
![*****](https://www.rx7club.com/images/smilies/*****.gif)
![Wallbash](https://www.rx7club.com/images/smilies/wallbash.gif)
#1430
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2004
Location: Italy, Rimini
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
Uhm...maybe I have found something??
How does this sound? A good solution?
![](http://www.performancealloys.com/images/hr_drm_kit.jpg)
How does this sound? A good solution?
![](http://www.performancealloys.com/images/hr_drm_kit.jpg)
DRM = Wheel Spacer/Adapter
A DRM type wheel spacer.
This is fitted to the hub with special nuts and it carries new wheel studs for the existing wheel-nuts. The system DRM is available for vehicles following car producers: Alfa, BMW, Chevrolet, Chrysler, Daihatsu, Ford, Honda, Hyundai, Isuzu, Jaguar, Kia, Lotus, Mazda, Mercedes, MG, Mitsubishi, Nissan, Opel, Porsche, Proton, Rover, Ssang-Yong, Subaru, Suzuki, Toyota, Volvo, VW.
A DRM type wheel spacer.
This is fitted to the hub with special nuts and it carries new wheel studs for the existing wheel-nuts. The system DRM is available for vehicles following car producers: Alfa, BMW, Chevrolet, Chrysler, Daihatsu, Ford, Honda, Hyundai, Isuzu, Jaguar, Kia, Lotus, Mazda, Mercedes, MG, Mitsubishi, Nissan, Opel, Porsche, Proton, Rover, Ssang-Yong, Subaru, Suzuki, Toyota, Volvo, VW.
H&R 5065595 SPACER (PAIR): FORD/MAZDA (5:114.3/59.5) 25MM
H&R Wheel Spacers 25mm Bolt Pattern 5/114.3 Center Bore 59.5 Stud / 12x1.5 Thread Type DRM Style for Ford Probe T22, and Mazda 626 GD/GV, 929 MCI.
HR5065595 $120.00
H&R Wheel Spacers 25mm Bolt Pattern 5/114.3 Center Bore 59.5 Stud / 12x1.5 Thread Type DRM Style for Ford Probe T22, and Mazda 626 GD/GV, 929 MCI.
HR5065595 $120.00
#1432
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
hey guys, need an answer. will 235/40/17 fit with 30-32 offset in the front with stock suspension and fenders? what about 225/45/17? are the ratio correct becasue i think im too tall. im already stuck with 245/45/17 for the rears. i know they are about an inch or two too tall but they do fit, i think... thanks
Last edited by darksider; 06-26-06 at 01:03 AM.
#1435
Boost in..Apex seals out.
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
Ok. With a 17x8 on the front, and 17x9 on the rear..stock fenders, stock suspension...
What offset should I get? And..whats the biggest tire I can fit without any rub?
What offset should I get? And..whats the biggest tire I can fit without any rub?
#1436
Drift SE3P
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2006
Location: Arizona City, AZ
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
17x8 minimum +25 w/ a max of +35 with a 225 wide tire.
17x9 minimum of +20 w/ a max of +40 w/ a 255 wide tire.
I'll be running 17x9 fronts w/ a +22 offset and a 245 wide tire and in the rear I'm running a set of 17x10s +45 w/ spacer and 255s now but will switch to 315s when they wear out.
17x9 minimum of +20 w/ a max of +40 w/ a 255 wide tire.
I'll be running 17x9 fronts w/ a +22 offset and a 245 wide tire and in the rear I'm running a set of 17x10s +45 w/ spacer and 255s now but will switch to 315s when they wear out.
#1437
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2005
Location: Minneapolis, MN
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
custom wheels
Hey, everyone - need some help. I have a 1986 base with the phone dial wheels. I just installed tokico adjustables and RB springs. I love the suspension set up, but am shredding the 14" rain tires currently on it. Time for some wheels/tires. Looks like the set up listed below is the way to go.
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
Assuming i want to keep my 4 lug set up, can someone list for me manufacturers i could go to for this set up? so far the only one i can find with this level of customization is 5Zigen....
ultimately i would like to find some mesh type wheels, but what is most important to me is fit, performance, and price.
Thanks for all your help.
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
Assuming i want to keep my 4 lug set up, can someone list for me manufacturers i could go to for this set up? so far the only one i can find with this level of customization is 5Zigen....
ultimately i would like to find some mesh type wheels, but what is most important to me is fit, performance, and price.
Thanks for all your help.
Originally Posted by DigitalSynthesis
Amen brother, about time.
Here's what I've learned:
Per RETed:
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
I'm particularly interested in the 5Zigen FN01R-C wheels which I think just match these values.
Note: after further research, I have learned that RETed's wisdom of matching the tire width with the rim width is actually considered a very good theory on handling improvement and is recommended by some guy who wrote some book that I am too lazy to re-research right now. Let's not digress the thread with who it was, but just to say that, yes, it appears to be very solid advice indeed.![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Per RETed:
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
I'm particularly interested in the 5Zigen FN01R-C wheels which I think just match these values.
Note: after further research, I have learned that RETed's wisdom of matching the tire width with the rim width is actually considered a very good theory on handling improvement and is recommended by some guy who wrote some book that I am too lazy to re-research right now. Let's not digress the thread with who it was, but just to say that, yes, it appears to be very solid advice indeed.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#1438
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2005
Location: Minneapolis, MN
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
anyone?
lets say i go to a 5 lug set up...anyone know of some good brands that i get this set up for cheap?
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
17" x 8" +27mm offset (+30 to +25 should work) with 225/45/17 up front
17" x 9" +20mm offset (+15 to +30 will work) with 255/40/17 in back
#1439
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
will 245/40/17 fit the stock front with a 30 offet? wheels are 17x8 30 offset. also does anyone have a chart of the correct diameter tires size for 17x8 inch wheels? thanks
#1440
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
I doubt a 245/40/17 will fit in the front fenders with 17x8's and a 30mm offset. Maybe if you have coilovers that add clearance and your willing to roll your fenders, then you might be able to get them to fit. I've got 17x8's with a 30mm offset and I run 225/45/17's currently and they fit fine, there's even a small amount of room to spare, so I'll try some 235/40/17's next (in a year or so) and see how it is, but I don't think there's enough room to fit anything larger without mods. Some 245's might work if they're particularly narrow (tires vary in size a fair bit).
Although, looking at tire specs, the section width increase from a 235/40 to a 245/40 is smaller than from a 225/45 to a 235/40. The 225's seem to have a section width of about 8.9" on average, the 235 is 9.5" on average and the 245 is 2.8" on average (from what I've seen).
I'd say you'd be better off to play it safe for now and get a really sticky 235 and then see if you think there's room after that.
Correct tire sizes would be 205/50, 215/45, 225/45, 235/40, 245/40, and you can probably squeeze a 255/40 on there.
Although, looking at tire specs, the section width increase from a 235/40 to a 245/40 is smaller than from a 225/45 to a 235/40. The 225's seem to have a section width of about 8.9" on average, the 235 is 9.5" on average and the 245 is 2.8" on average (from what I've seen).
I'd say you'd be better off to play it safe for now and get a really sticky 235 and then see if you think there's room after that.
Correct tire sizes would be 205/50, 215/45, 225/45, 235/40, 245/40, and you can probably squeeze a 255/40 on there.
#1441
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
thank a lot man that helped me a lot. i did the math and it looks like the average diameter for the fc is around 102cm?
how did you get 2.8" for the 245's? im guessing you meant 12.8? thanks again.
Originally Posted by Black91n/a
Although, looking at tire specs, the section width increase from a 235/40 to a 245/40 is smaller than from a 225/45 to a 235/40. The 225's seem to have a section width of about 8.9" on average, the 235 is 9.5" on average and the 245 is 2.8" on average (from what I've seen).
#1442
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
I have a listing of common tire sizes and differences versus the stock FC turbo tire size...
http://fc3spro.com/TECH/MODS/RT/tires.htm
-Ted
http://fc3spro.com/TECH/MODS/RT/tires.htm
-Ted
#1444
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Originally Posted by darksider
nice! thanks REted. do you knoe what the notes on the right side stands for?
Since stock is 16", the +1 is the equivalent size but in 17" wheel diameter.
+2 = 18"
+3 = 19"
The "wide" means the rolling circumference is close to stock, but the width is significantly wider than stock.
Try and stick with the tire sizes that are marked +1, +2, and +3.
-Ted
#1445
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
daym i just got a set of tires for the fronts 245/40 and i already had 245/45 for my 17x8 gt wheels. i was about to put them on, until my friend told me i can have his cobra wheels. 18x9 26-24 offset all the way around. they are the 2000 y2k cobras but i dont know if they are real ones or if they are replicas. the real ones are 24 offset and i think the fakes are the same, if not they should be 26. do you think it will fit? im planning on putting the tires i just bought on them. stock everything. thanks
#1446
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Mar 2001
Location: Rivervale, NJ, USA
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts

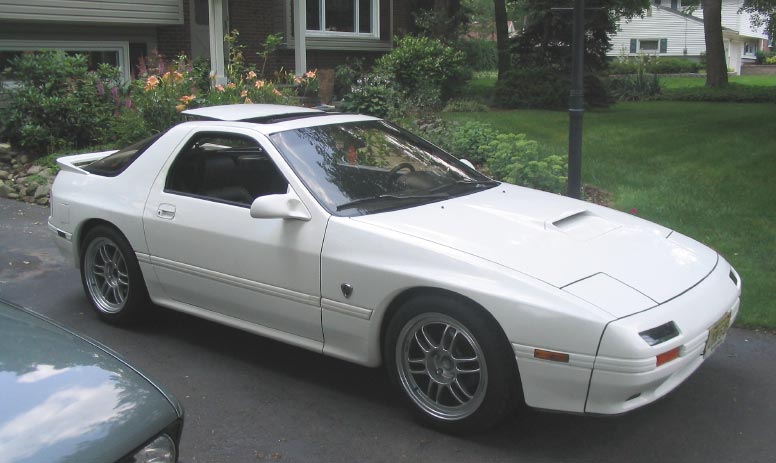

Got the Enkei RPF1's at my local ETD today.
17*8 front, 35 offset with 225/45-17, 17*9 & 35 rear with 255/40-17.
Tires are BFGoodrich KDW's.
No clearance problems of any kind that I have seen, can't give an honest report on the handling as the tires are so new. If my initial observations are anything close, it doesn't push like a pig though ;-)
Thanks to RETed & all for the reams of helpful information in this thread.
17*8 front, 35 offset with 225/45-17, 17*9 & 35 rear with 255/40-17.
Tires are BFGoodrich KDW's.
No clearance problems of any kind that I have seen, can't give an honest report on the handling as the tires are so new. If my initial observations are anything close, it doesn't push like a pig though ;-)
Thanks to RETed & all for the reams of helpful information in this thread.
#1447
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by darksider
daym i just got a set of tires for the fronts 245/40 and i already had 245/45 for my 17x8 gt wheels. i was about to put them on, until my friend told me i can have his cobra wheels. 18x9 26-24 offset all the way around. they are the 2000 y2k cobras but i dont know if they are real ones or if they are replicas. the real ones are 24 offset and i think the fakes are the same, if not they should be 26. do you think it will fit? im planning on putting the tires i just bought on them. stock everything. thanks
wow stupid question. dun 17 wont fit one 18. is that offset ok for the fc? what tires do you think i should run? thanks
#1448
Originally Posted by vhold
Got the Enkei RPF1's at my local ETD today.
17*8 front, 35 offset with 225/45-17, 17*9 & 35 rear with 255/40-17.
Tires are BFGoodrich KDW's.
No clearance problems of any kind that I have seen, can't give an honest report on the handling as the tires are so new. If my initial observations are anything close, it doesn't push like a pig though ;-)
Thanks to RETed & all for the reams of helpful information in this thread.
17*8 front, 35 offset with 225/45-17, 17*9 & 35 rear with 255/40-17.
Tires are BFGoodrich KDW's.
No clearance problems of any kind that I have seen, can't give an honest report on the handling as the tires are so new. If my initial observations are anything close, it doesn't push like a pig though ;-)
Thanks to RETed & all for the reams of helpful information in this thread.
#1449
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Aug 2005
Location: OH
Posts: 1,103
Likes: 0
Received 0 Likes
on
0 Posts
i have a stock fc, wheels are 18x9 24 offset. on the chart it looks like i the smallest i should run 235/40. will that clear? can i run 225/45 or 40 stretched on the front? what about 245/40 in the rears? thanks.
