Suspension/Wheels/Tires/Brakes

The Official FC Wheel Fitment Thread

Thread Tools

Search this Thread

Old 06-04-12, 06:29 AM
  #5501
Eats, Sleeps, Dreams Rotary
Tenured Member 15 Years

Valkyrie's Avatar

Join Date: Oct 2004
Location: Japanabama
Posts: 4,864
Received 110 Likes on 79 Posts
Originally Posted by RTY PWR
https://www.rx7club.com/members/rty-pwr-103218-albums-finally-fitted-5541/

This is my current setup
-saleen sc replicas 17x10 +20
-15mm adapters up front
-5mm spacer out back
-federal tires
-215/40 up front
-235/40 out back

Work equips on the way, 17x9.5/10.5, but currently deployed so when i get home they'll be on, stay tuned!

595SS or RS-R?

I just wore out my first set (well, just the rear really) so I'm upgrading to RS-R. I'm getting them installed tomorrow.
Old 06-06-12, 04:14 AM
  #5502
Senior Member

iTrader: (4)

RTY PWR's Avatar

Join Date: Jul 2007
Location: simpsonville, sc
Posts: 447
Likes: 0
Received 0 Likes on 0 Posts
595SS. I love them. RS-R's any better? because id love to stick with feddis when i get my equips
Old 06-06-12, 05:59 AM
  #5503
Eats, Sleeps, Dreams Rotary
Tenured Member 15 Years

Valkyrie's Avatar

Join Date: Oct 2004
Location: Japanabama
Posts: 4,864
Received 110 Likes on 79 Posts
I liked the 595's for drifting but in terms of track days they're awful. Too squishy and not enough grip. They're fine on the street though.

I got my RS-R's installed and they're way, way stiffer and they seem to have as much grip when cold as the SS's do when hot.

But they only last half as long and cost more...

Also, you can't store them in near-zero temperatures.

On another note, they don't have rim protectors so you have *just* that extra bit of clearance for fitting sizes. My front's used to stick out just a bit (a no-no in Japan) and now they fit in the fenders.
Old 06-06-12, 06:26 AM
  #5504
Senior Member

iTrader: (4)

RTY PWR's Avatar

Join Date: Jul 2007
Location: simpsonville, sc
Posts: 447
Likes: 0
Received 0 Likes on 0 Posts
ah i got ya. i need em to last a little longer and this is my street/slide car anyways so i guess its perfect. if i persue my high power build ill look into them for grip
Old 06-06-12, 12:19 PM
  #5505
Rotary Motoring
Tenured Member 20 Years
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 8,305
Received 819 Likes on 543 Posts
My 595 RS-R do kinda have rim protector flange.

Its not the "hanging way out there flange" like the old Trampio V-mode but the sidewall is built up flush to the rim lip where it comes down to the bead.

Its not the old "bubble" sidewall like an Hankook RS-3, which is what I think of if someone says it has no rim protector flange.
Old 06-06-12, 04:50 PM
  #5506
Eats, Sleeps, Dreams Rotary
Tenured Member 15 Years

Valkyrie's Avatar

Join Date: Oct 2004
Location: Japanabama
Posts: 4,864
Received 110 Likes on 79 Posts
It has nothing compared to the 595SS... which sticks out over half an inch.
Old 06-15-12, 01:59 PM
  #5507
X MARKS THE SPOT

iTrader: (7)

RadioX7's Avatar

Join Date: Feb 2009
Location: south gate
Posts: 734
Likes: 0
Received 0 Likes on 0 Posts

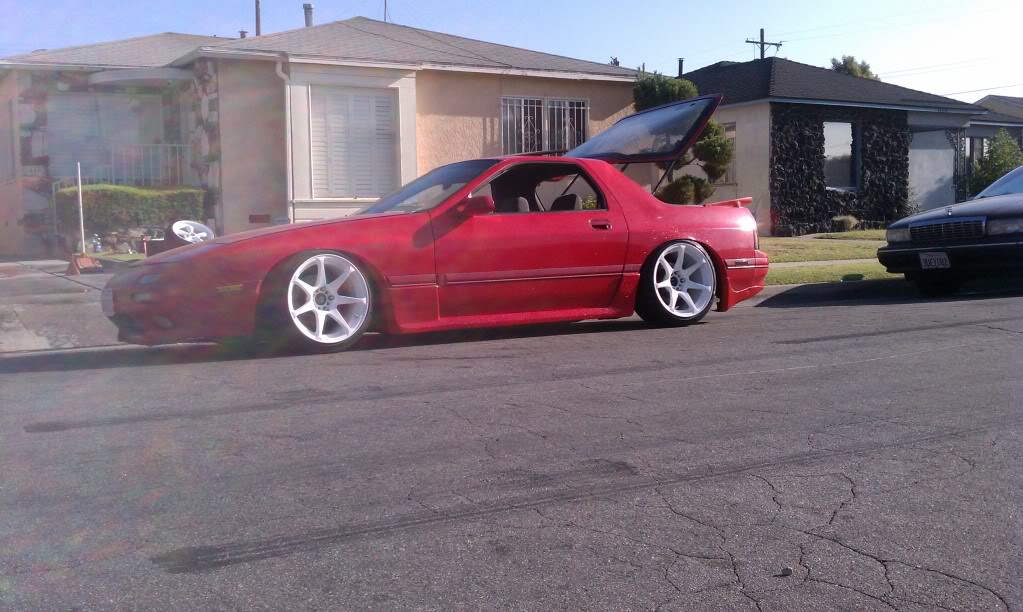

Name:  IMAG1232-1.jpg
Views: 805
Size:  122.9 KB

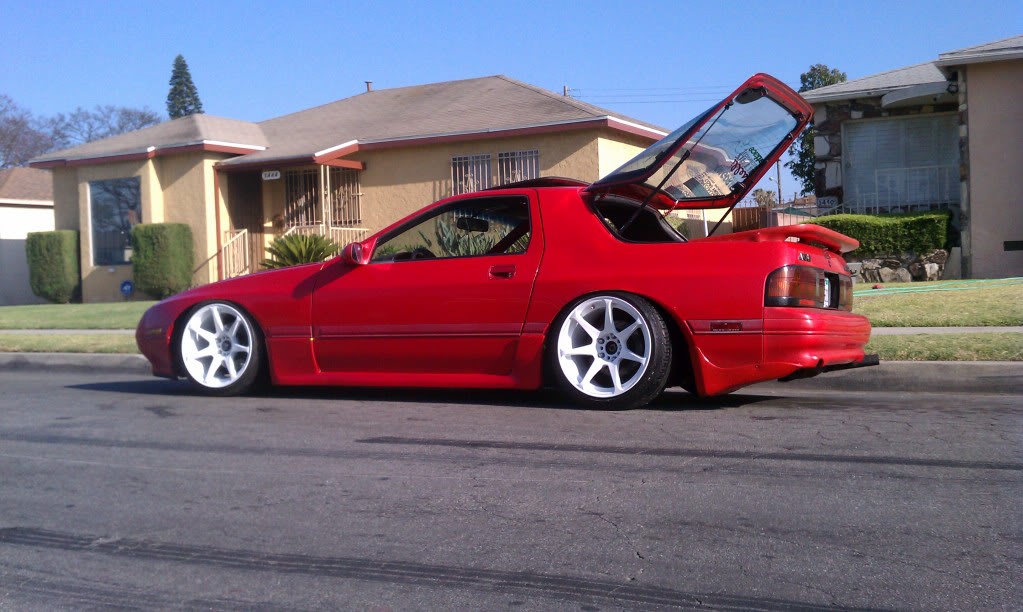

Name:  IMAG1233-1.jpg
Views: 877
Size:  117.2 KB
17x9.5 +15 215/40 all around 3m spacer up front and 5mm spacer in the rear.....

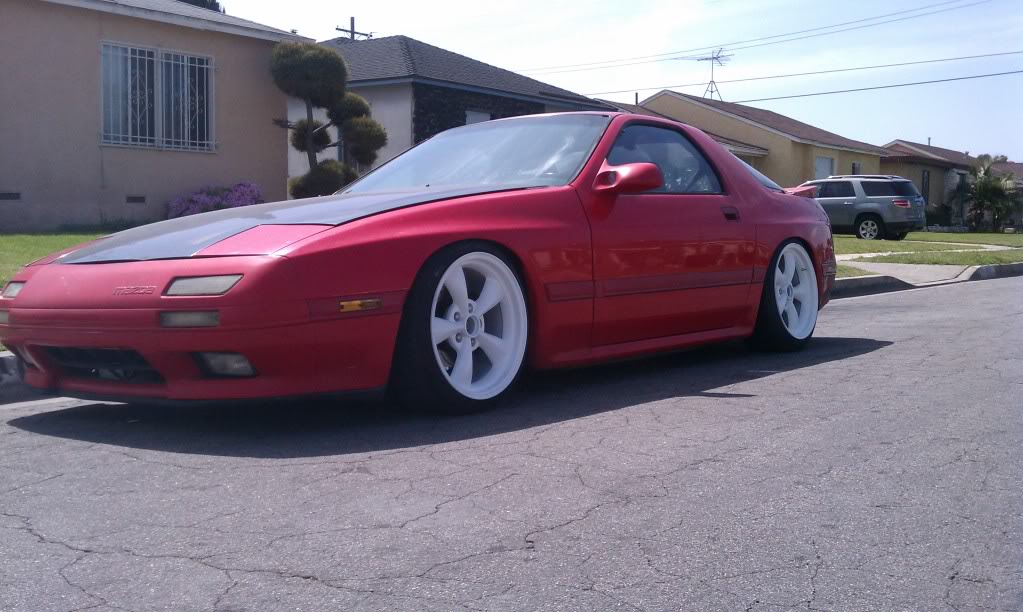

Name:  IMAG1030.jpg
Views: 843
Size:  115.5 KB

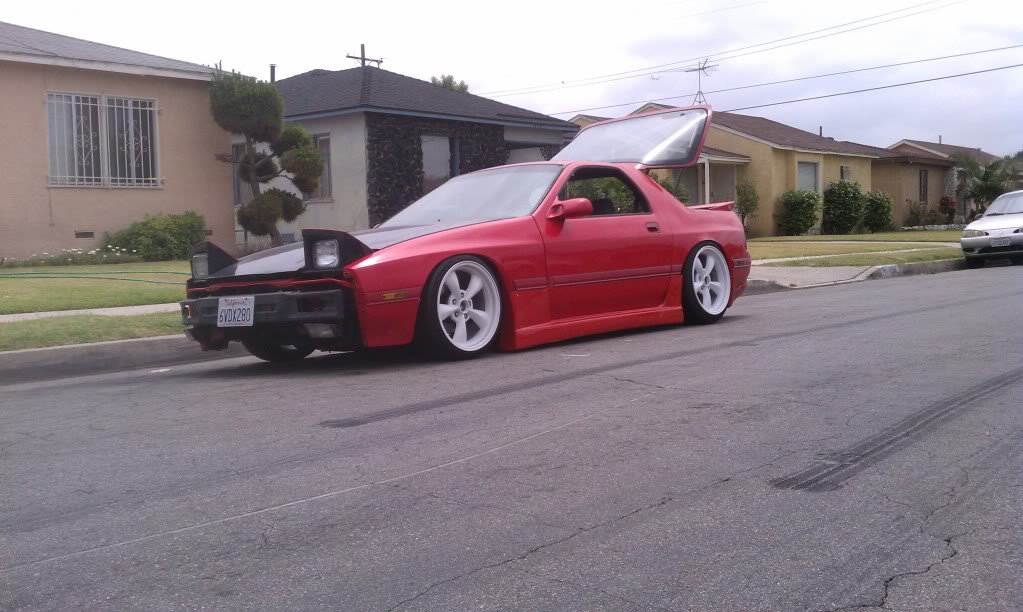

Name:  IMAG1207.jpg
Views: 830
Size:  108.0 KB

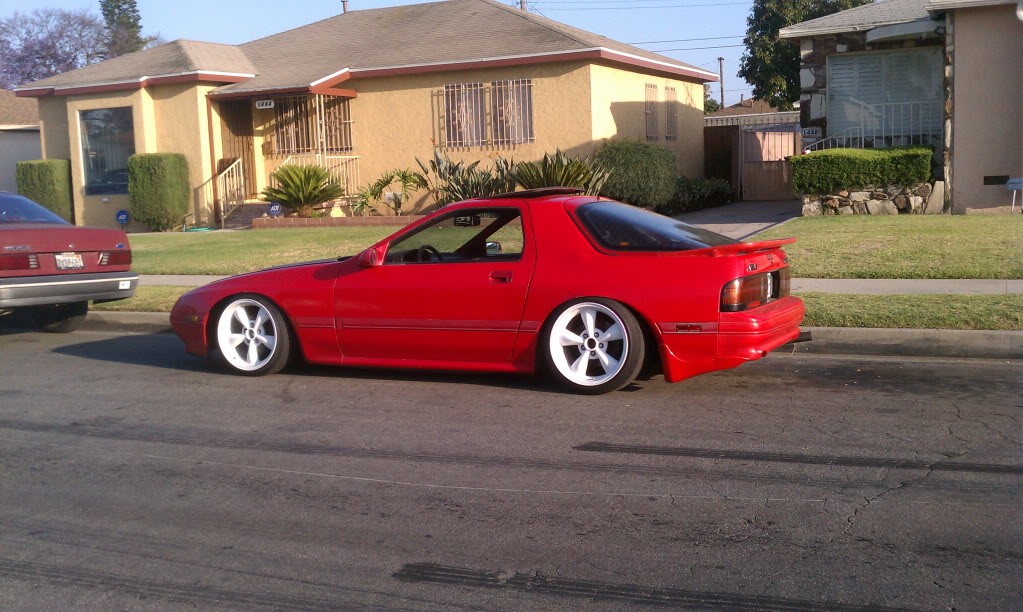

Name:  IMAG1193.jpg
Views: 833
Size:  143.2 KB
17x9 +24 5mm spacer up front 20mm spacer in the rear

Last edited by RadioX7; 06-15-12 at 02:03 PM.
Old 06-21-12, 09:57 AM
  #5508
Junior Member
iTrader: (1)

Incognito_LS1's Avatar

Join Date: Sep 2011
Location: Bothell WA
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Hey guys,
I need help determining if these will fit on a stock FC suspension.
I'm almost certain they are too tall, but haven't found a post to confirm. At $450 with %80 tread I think I'm just hoping they will fit....



I've searched and haven't found anyone running this tire size.

235/55 R17 17x7 rim
the guy can't tell me the offset, other then they came of an 08 mustang. ( I think I can make them work with spacers )

THANKs,
Aaron

Last edited by Incognito_LS1; 06-21-12 at 10:11 AM.
Old 06-21-12, 11:45 AM
  #5509
Senior Member
iTrader: (2)

ryan2949's Avatar

Join Date: Jun 2012
Location: Azilda, Ontario
Posts: 672
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Incognito_LS1
Hey guys,
I need help determining if these will fit on a stock FC suspension.
I'm almost certain they are too tall, but haven't found a post to confirm. At $450 with %80 tread I think I'm just hoping they will fit....



I've searched and haven't found anyone running this tire size.

235/55 R17 17x7 rim
the guy can't tell me the offset, other then they came of an 08 mustang. ( I think I can make them work with spacers )

THANKs,
Aaron
http://www.fc3spro.com/TECH/MODS/RT/tires.htm

The closest I could see on there are 235/50/17 and they should fit on a stock FC without issue. So I think you're good height wise.

Also, can anyone tell me how this will fit:
17x7.5 +31
17x8 +33

I'm stock height right now, but will lower the car by 1-1.5 inches when I can buy springs. Unless I find a decent set of coilovers for cheap. I don't want to roll or pull fenders, but I might if I have to since the wheels look sick.
Old 06-24-12, 10:53 AM
  #5510
Senior Member

iTrader: (4)

RTY PWR's Avatar

Join Date: Jul 2007
Location: simpsonville, sc
Posts: 447
Likes: 0
Received 0 Likes on 0 Posts
i wish i could find shine skirts like that. but no one seems to have em
Old 06-24-12, 04:07 PM
  #5511
Junior Member

nyek7's Avatar

Join Date: Jun 2012
Location: ayrshire
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
Name:  181320_10151830366570484_195816850_n.jpg
Views: 801
Size:  15.8 KB ma fc
Old 06-25-12, 09:24 AM
  #5512
INSPIRATIONILIZER


SAMSHIZZLE's Avatar

Join Date: Mar 2008
Location: NJ
Posts: 435
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RTY PWR
i wish i could find shine skirts like that. but no one seems to have em
I'm a little confused. Which Shine skirts are you looking for?
Old 06-25-12, 12:35 PM
  #5513
sevenslider

sevenZseven's Avatar

Join Date: May 2012
Location: Houston TX
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
that red one's looking dirty! In a good way! lol
Old 06-28-12, 01:51 AM
  #5514
Senior Member

AngelsAndBombs's Avatar

Join Date: Dec 2011
Location: Sacramento, Ca
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts
So whats the verdict with running what size over fender with a 19x10 +4? Will a 30mm do just fine? (Rear only)
Old 07-02-12, 05:42 AM
  #5515
Junior Member

Jarumie42172's Avatar

Join Date: May 2012
Location: Las Vegas
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Which will give the better flush look 17x8 +20 all around or 17x8 +40 all around?
Will be using stock S4 fenders and stock suspension at first then sooner changing to aftermarket shocks and coilover sleeves.

Rims I will be using are Tsw Snetterton's

Thank you
Old 07-02-12, 07:14 AM
  #5516
Eats, Sleeps, Dreams Rotary

iTrader: (2)

K!NCH's Avatar

Join Date: Jul 2007
Location: Cincinnati, OH
Posts: 3,564
Received 25 Likes on 14 Posts
Originally Posted by Jarumie42172
Which will give the better flush look 17x8 +20 all around or 17x8 +40 all around?
Will be using stock S4 fenders and stock suspension at first then sooner changing to aftermarket shocks and coilover sleeves.

Rims I will be using are Tsw Snetterton's

Thank you
The +20. The +40 won't fit.
Old 07-03-12, 11:51 PM
  #5517
Senior Member

iTrader: (7)

Supercharged FC's Avatar

Join Date: Jul 2008
Location: Seneca, SC
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts

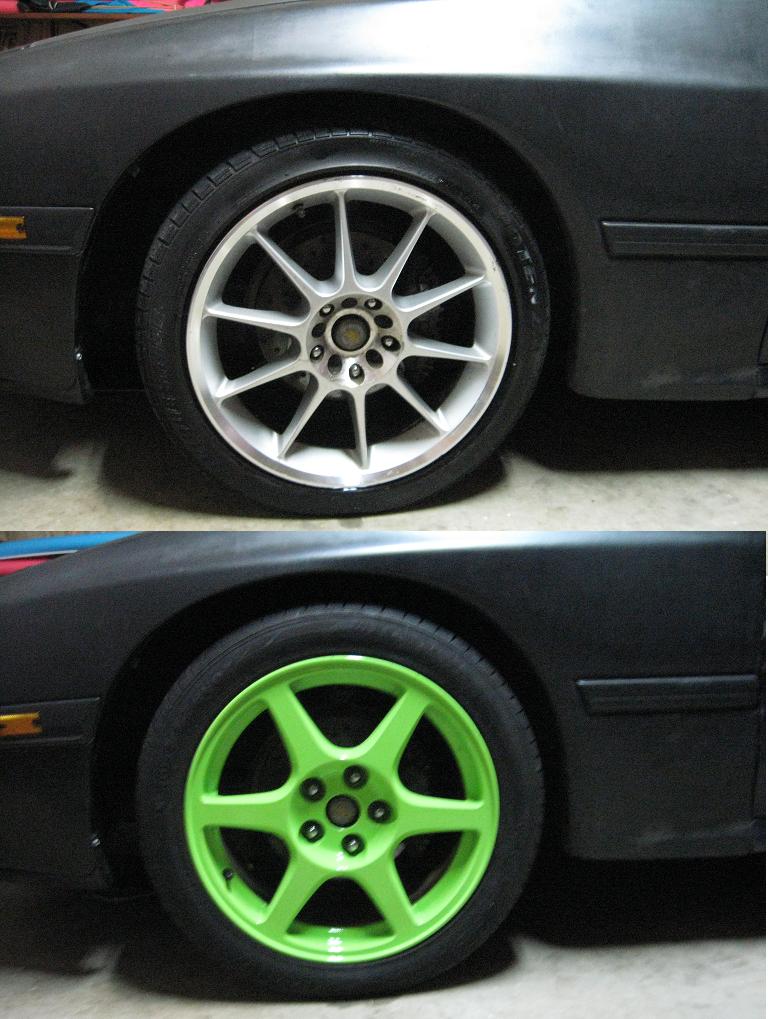

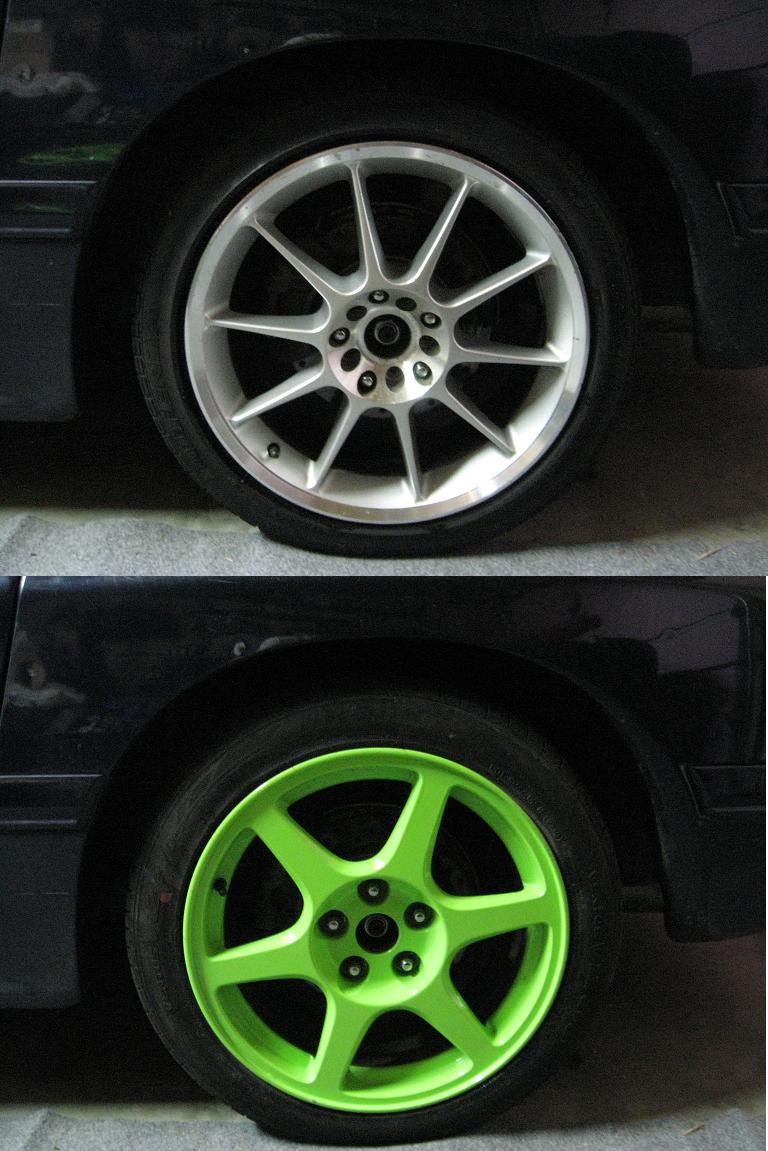

Evo 8 17X8 wheels on FC

Picked up a set of Evo 8 wheels today, came with 235/45R17 tires. Rims are said to be 17X8 35mm offset. Fit well but the 235 is too much for front. I need 225 or 5 mm spacer. I did not pick the color (Neon Green). My old Primax 618 rims 17X7 38mm offset are shown as a comparison.

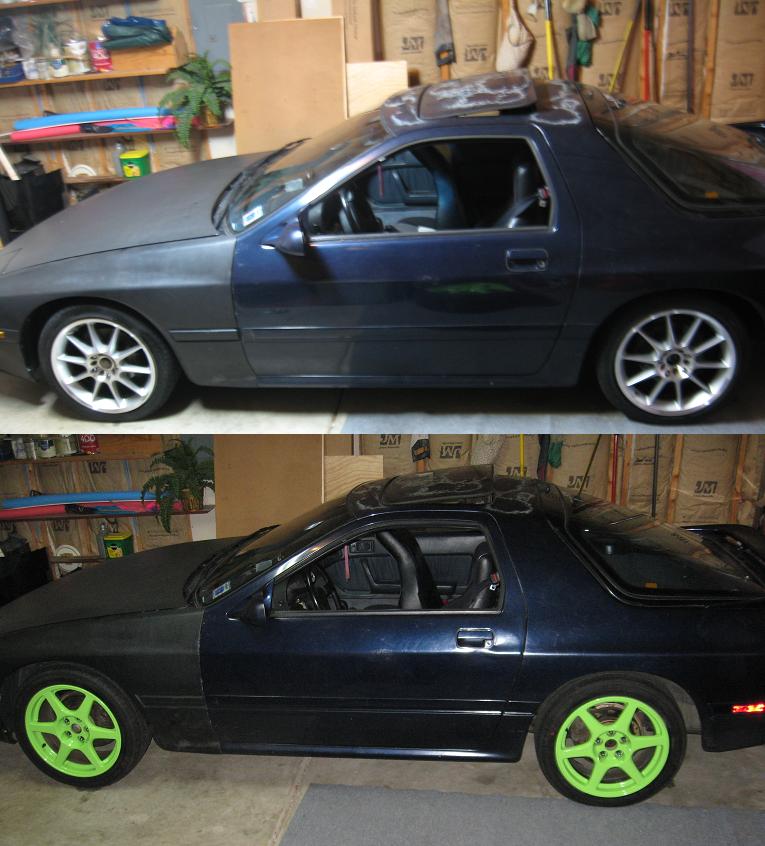

Attached Thumbnails The Official FC Wheel Fitment Thread-overall-comparo.jpg   The Official FC Wheel Fitment Thread-front-comparo.jpg   The Official FC Wheel Fitment Thread-rear-comparo.jpg   The Official FC Wheel Fitment Thread-front-clearance.jpg
Old 07-04-12, 04:05 PM
  #5518
Mr.
iTrader: (19)

Snoopy240's Avatar

Join Date: May 2009
Location: Stafford, Va
Posts: 441
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RTY PWR
RX7Club.com - RTY PWR's Album: Finally Fitted

This is my current setup
-saleen sc replicas 17x10 +20
-15mm adapters up front
-5mm spacer out back
-federal tires
-215/40 up front
-235/40 out back

Work equips on the way, 17x9.5/10.5, but currently deployed so when i get home they'll be on, stay tuned!
LMK when you want to sell these. Ill come get them
Old 07-05-12, 01:32 AM
  #5519
Junior Member

Jarumie42172's Avatar

Join Date: May 2012
Location: Las Vegas
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
How does this sound for all around 18x9.5 +20 for an s4 fc stock body. Will I need spacers if Im using coilover sleeves and will anything need to be done with the fenders?

Thanks
Old 07-05-12, 10:15 PM
  #5520
Senior Member

iTrader: (4)

RTY PWR's Avatar

Join Date: Jul 2007
Location: simpsonville, sc
Posts: 447
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Snoopy240
LMK when you want to sell these. Ill come get them
the saleens are up for sale now! pm me
Old 07-10-12, 02:13 AM
  #5521
89GTUs (38k original mi)

iTrader: (1)

scrapp's Avatar

Join Date: Sep 2003
Location: Houston
Posts: 678
Likes: 0
Received 1 Like on 1 Post
I have a friend selling some Volk TE37 19x9.5/8.5 +43
How will these fit the FC? The plus side is with tires they are the same height as my stock wheels/tires.

I don't have coil overs yet, but test fitting on the back looked promising... another friend says they will be sunken once I get coil overs.. Im trying to do my best to not heavily modify my fenders, but go for that old school "bolt up and go" tuner look.

19s were NOWHERE near my radar, till my friend called me up, and I actually played with a test fit.... For the price and what Im "envisioning" my fitment to be, Im sold on buying them...

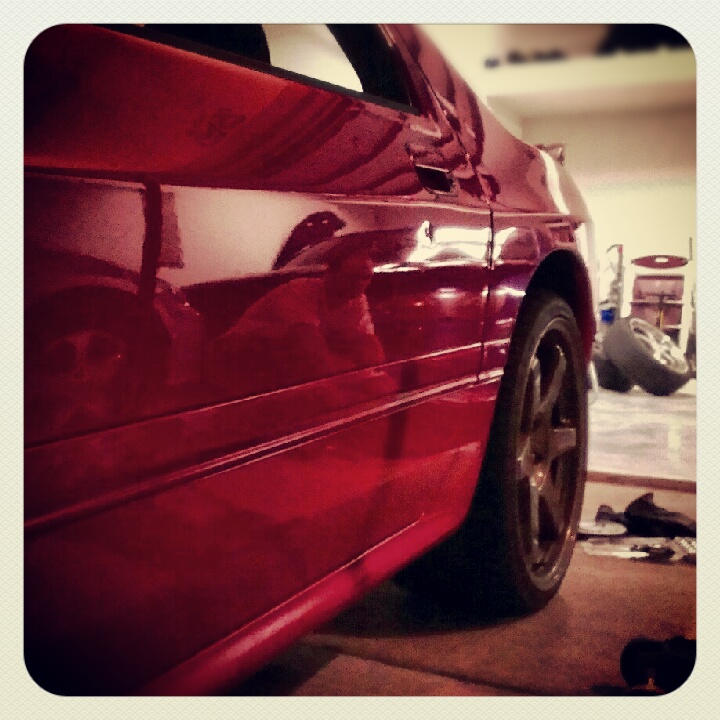

Attached Thumbnails The Official FC Wheel Fitment Thread-img_20120706_005946.jpg   The Official FC Wheel Fitment Thread-imag0113.jpg   The Official FC Wheel Fitment Thread-imag0115.jpg
Old 07-10-12, 02:37 AM
  #5522
Eats, Sleeps, Dreams Rotary
Tenured Member 15 Years

Valkyrie's Avatar

Join Date: Oct 2004
Location: Japanabama
Posts: 4,864
Received 110 Likes on 79 Posts
Question about rolling fenders... does it reduce the strength of the fender if you roll them? What are the downsides?
Old 07-10-12, 02:47 PM
  #5523
Senior Member

HoustonMS3's Avatar

Join Date: Aug 2009
Location: Houston, Texas
Posts: 288
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Scrapp
I have a friend selling some Volk TE37 19x9.5/8.5 +43
How will these fit the FC?
They will not fit at all without spacers. You will hit suspension up front and shields in the back. Some one correct me if I'm wrong.
Old 07-10-12, 09:07 PM
  #5524
Rotary Motoring
Tenured Member 20 Years
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 8,305
Received 819 Likes on 543 Posts
I have a friend selling some Volk TE37 19x9.5/8.5 +43

You will need a 10-15mm spacer up front. 225 to 255 up front depending on suspension and front lip roll.

Back will fit fine with up to ~275 wide.
Old 07-14-12, 06:18 PM
  #5525
Junior Member

LQROUT's Avatar

Join Date: May 2012
Location: Christchurch, New Zealand
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Here's my FC3S.

18x9.5" +10 offset with 215/35 R18 tyres all round

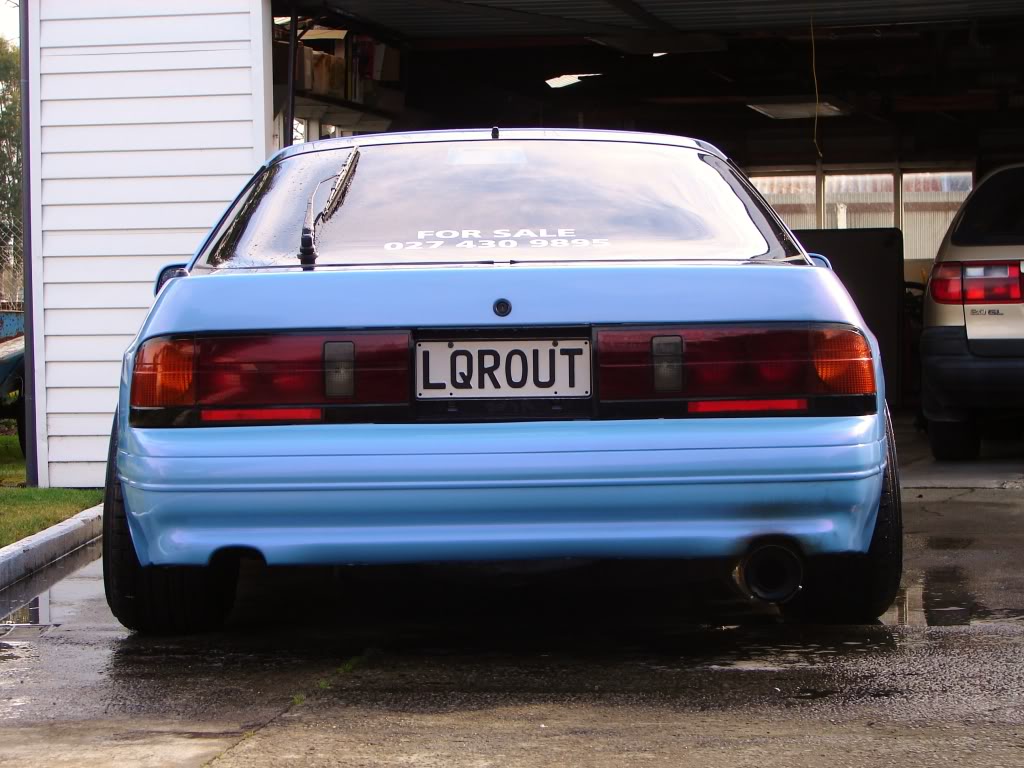

Name:  DSC02589.jpg
Views: 809
Size:  119.8 KB

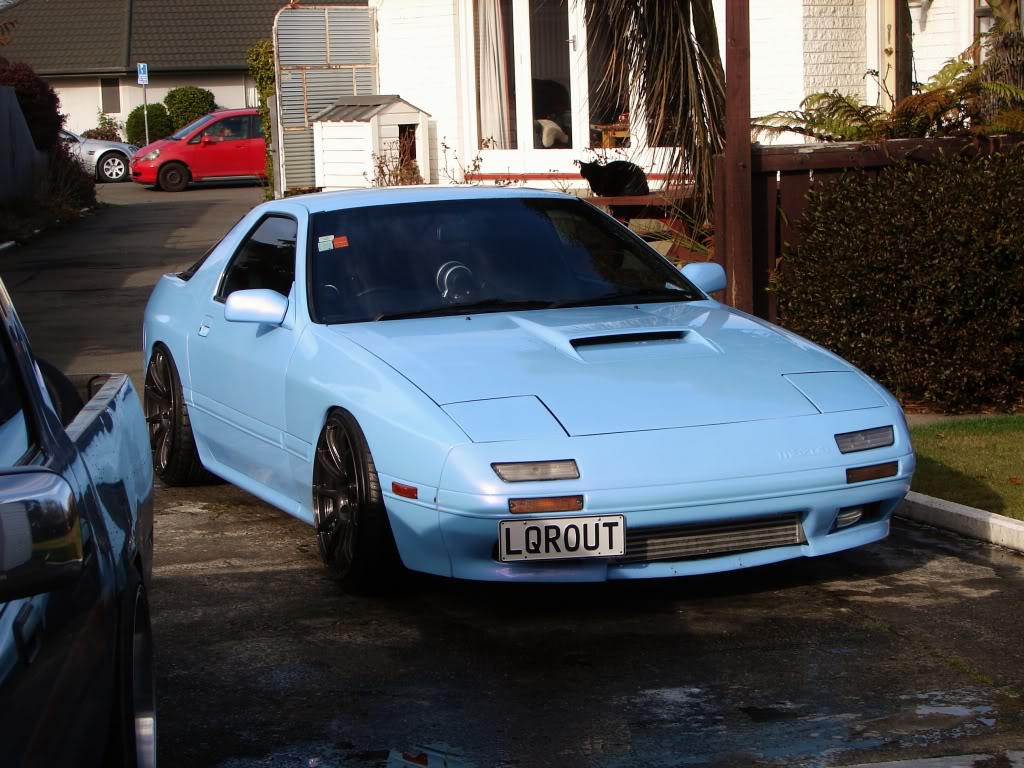

Name:  DSC02597.jpg
Views: 840
Size:  144.0 KB

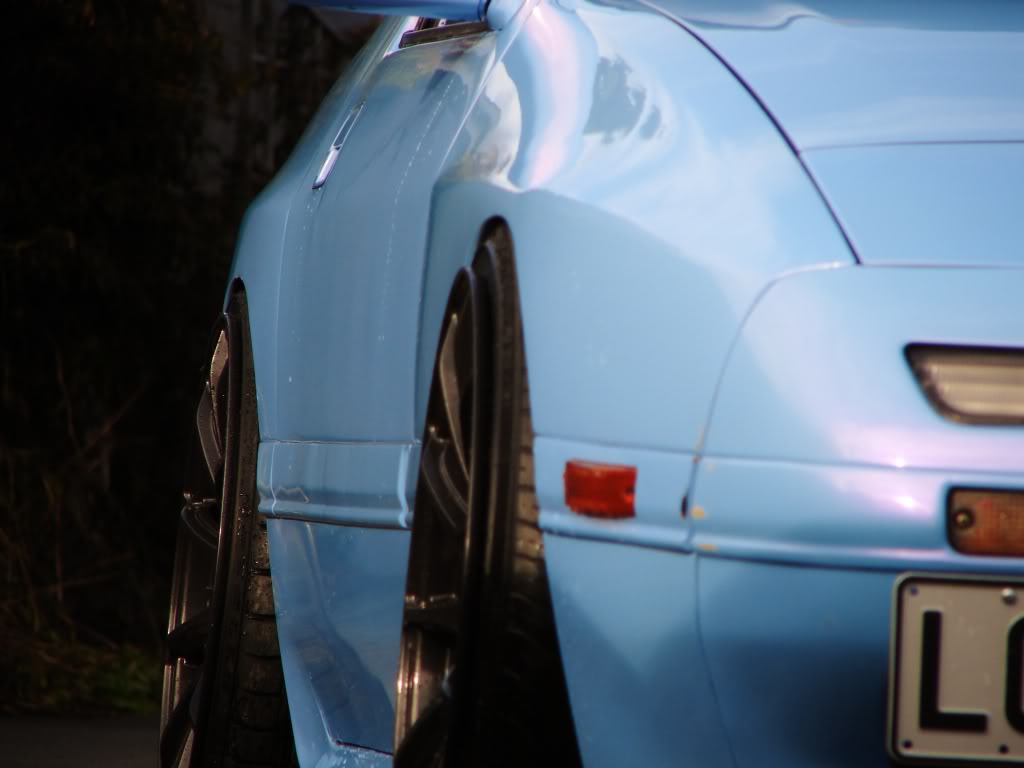

Name:  DSC02596.jpg
Views: 798
Size:  51.6 KB

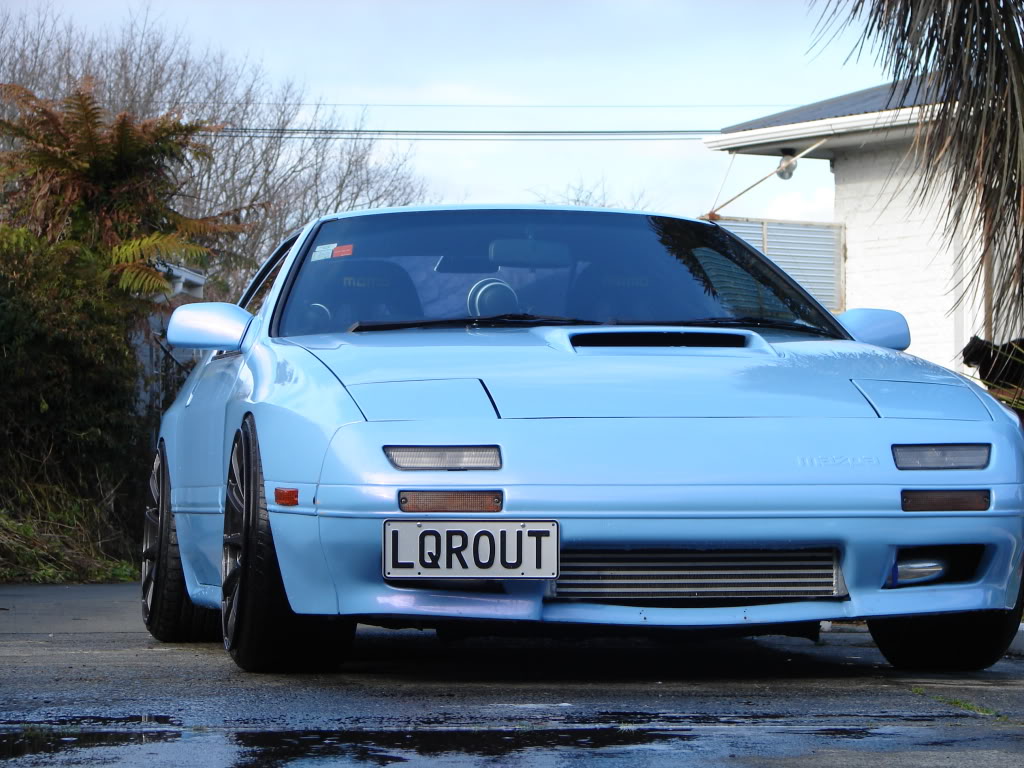

Name:  DSC02595.jpg
Views: 814
Size:  145.7 KB
