The Official FC Wheel Fitment Thread
#5205
Full Member
iTrader: (2)
Join Date: Mar 2010
Location: (559) Central Valley
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
i wanted to see if im going in the right direction and get feedback from you guys. i have enkei rpf1 rims that are 17x9.5+38 that the center bore size is 73. im planning on buying max adj wheel spacers and they offer 5 lug 1.50 thread 114.3 spacing with 60.1 center bore. and i know fc center bore size is 59.5? then i was going to get Hub Centric Rings to keep it tight. let me know guys thanks
#5206
Full Member
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
get hubcentric with center hole 60.1 i just got mine ICHIBA 10MM spaces with these specs and fits perfect with no slop
i wanted to see if im going in the right direction and get feedback from you guys. i have enkei rpf1 rims that are 17x9.5+38 that the center bore size is 73. im planning on buying max adj wheel spacers and they offer 5 lug 1.50 thread 114.3 spacing with 60.1 center bore. and i know fc center bore size is 59.5? then i was going to get Hub Centric Rings to keep it tight. let me know guys thanks
#5211
Full Member
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
#5212
Eats, Sleeps, Dreams Rotary
iTrader: (2)
#5213
High Comp Booster
iTrader: (4)
Join Date: Apr 2009
Location: Oakville, Ontario
Posts: 1,907
Likes: 0
Received 0 Likes
on
0 Posts

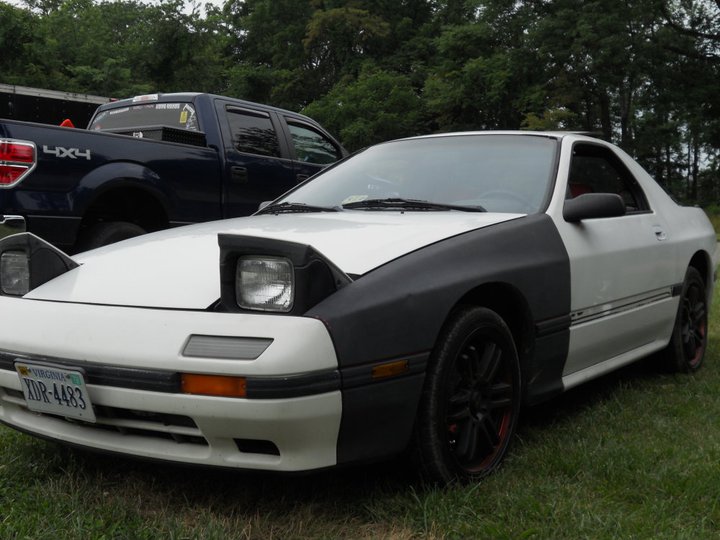

will need a spacer for the front, I have 17x9 +20 on the front and it JUST touches the coilover sleeve i have a 215/40R17 on it right now clears pretty good it does grab the inner fender lip every so often, but ill be going to a 225/45R17 for the track
Last edited by Bwek; 07-04-11 at 05:27 PM.
#5214
Full Member
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
It wont fit in the fronts but rear yes it will
People got 275/40/17 tires with out even doing anything to the fenders.
https://www.rx7club.com/showthread.p...=275%2F40%2F17
People got 275/40/17 tires with out even doing anything to the fenders.
https://www.rx7club.com/showthread.p...=275%2F40%2F17
No it wil not fit without spacers and heavy roll. See here http://fc3spro.com/TECH/MODS/RT/rims.htm
#5215
rx-for-my-7
iTrader: (1)
Good evening gents, was hoping for some advice to get my wheels fitting a bit better. I don't know what can be done differently with these wheel and tire size and stock fenders but I'd like a more flush look if possible. I'm open to rolling the fenders but would prefer not to pull them for these wheels. I don't know if that's necessary or even makes sense but I was hoping someone. Basically I was wondering if fitting some wheel spacers would be a possible solution? could point me in the right direction for measuring for some spacers? recommendations please.
Thanks in advance!
Currently
Front 17x7 +38 with 225/45-17
Back 17x9 +35 with 245/45-17
Stance GR+

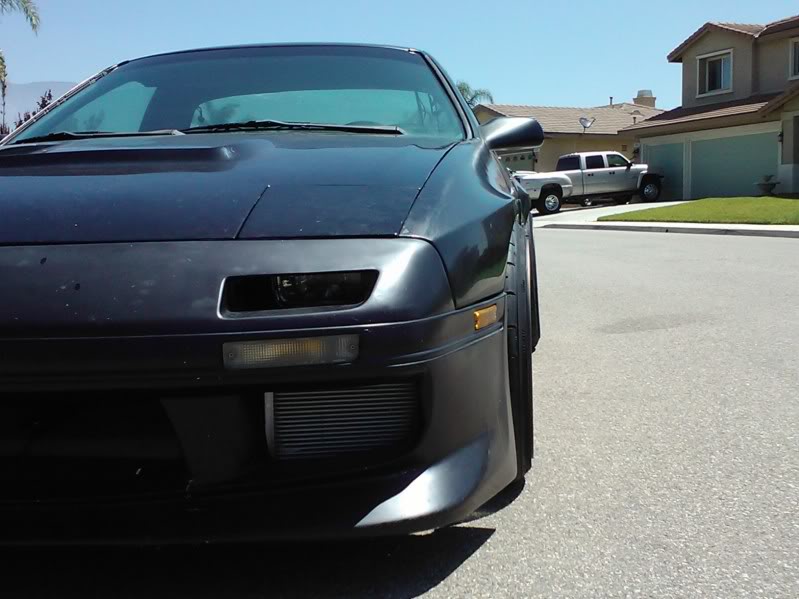

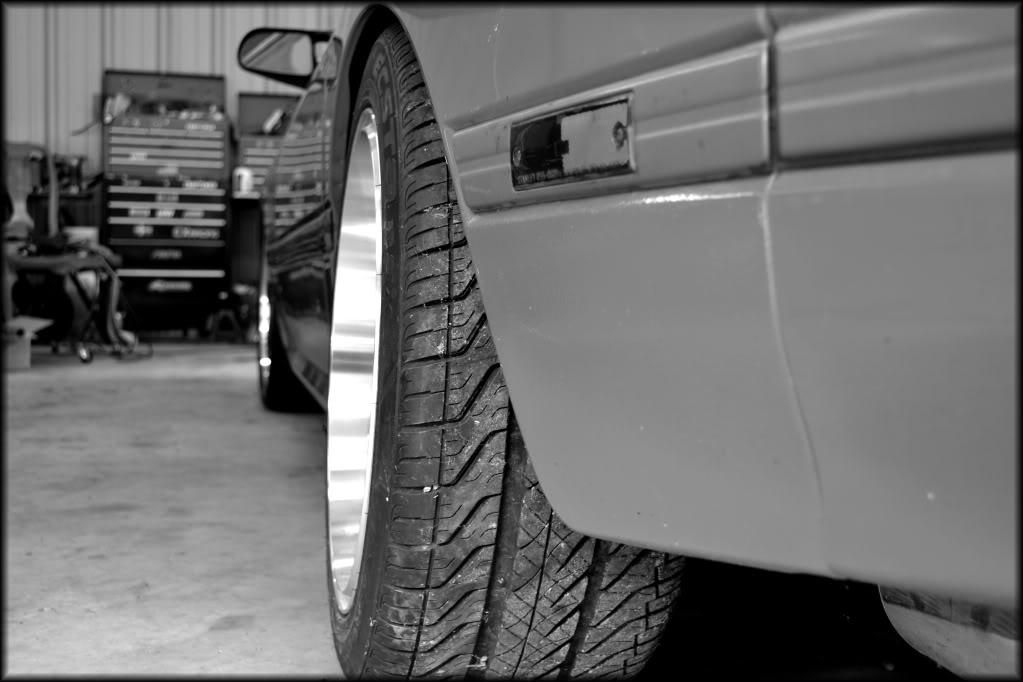

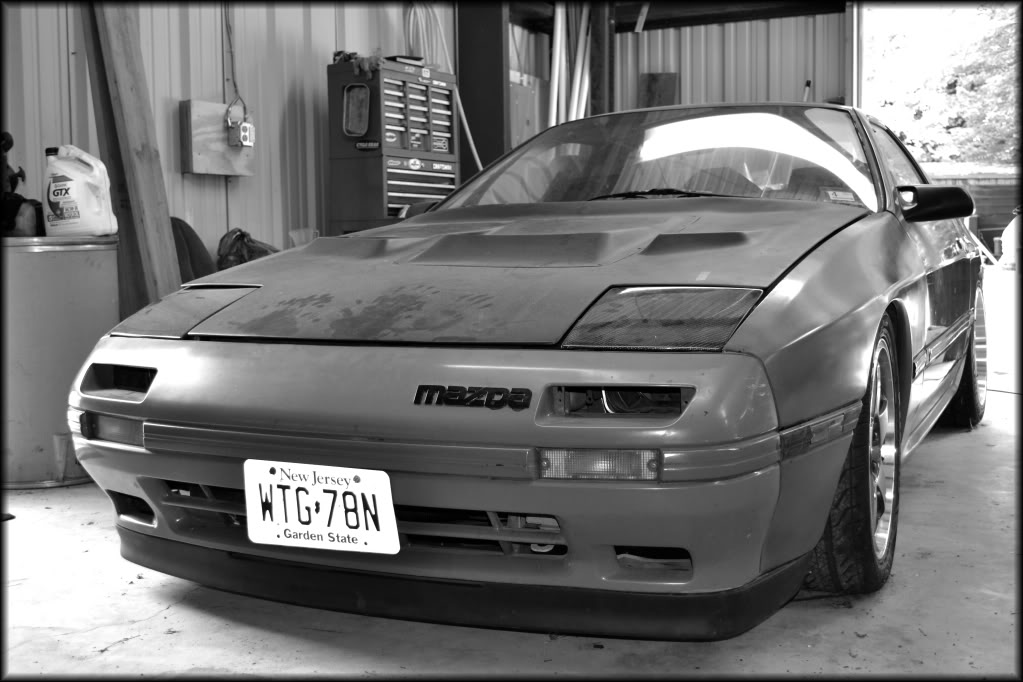

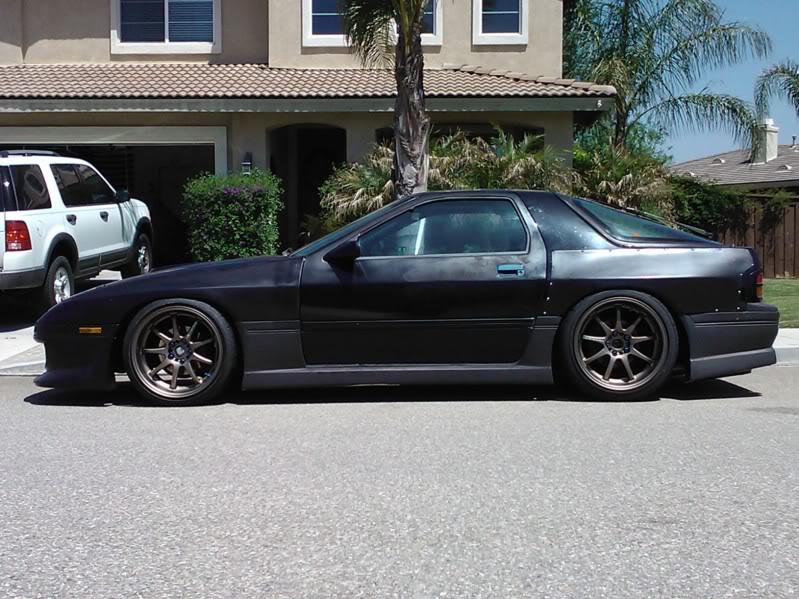

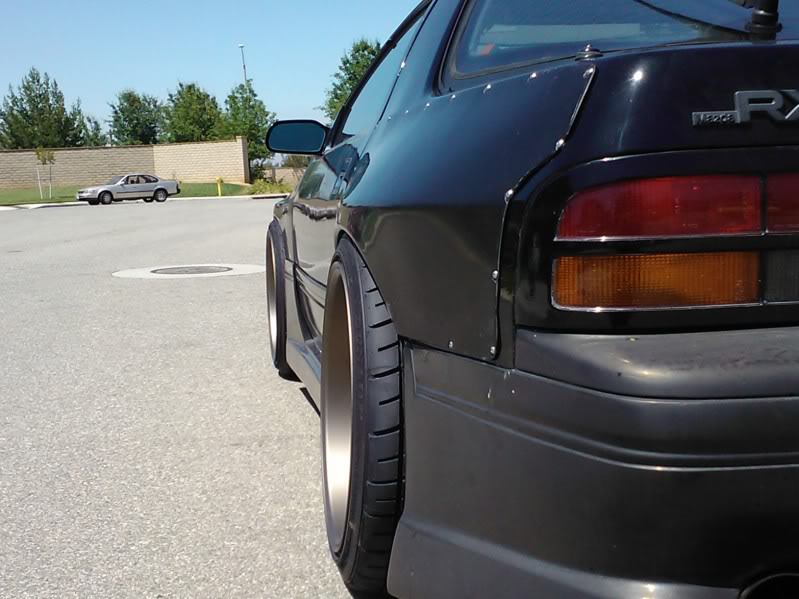

pics for reference
Thanks in advance!
Currently
Front 17x7 +38 with 225/45-17
Back 17x9 +35 with 245/45-17
Stance GR+
pics for reference
#5217
rx-for-my-7
iTrader: (1)
Hey man,
I just went out and poked a tape measurer against the widest tire sidewall to the fender wall:
About .5" in the front on both sides. About .4" on the drivers rear and .5" on the passengers rear.
If those are correct it looks like I could only run a 10mm even if rolling the inner fender lip.
Couple questions though, should I be measuring more towards the top of the sidewall rather than the widest point near the wheel lip?
Is it common to have a small difference side to side? (Maybe I should check the tires pressure?)
What size tires would I need to run 15mm?
Thanks so much for the response and have a great day!
I just went out and poked a tape measurer against the widest tire sidewall to the fender wall:
About .5" in the front on both sides. About .4" on the drivers rear and .5" on the passengers rear.
If those are correct it looks like I could only run a 10mm even if rolling the inner fender lip.
Couple questions though, should I be measuring more towards the top of the sidewall rather than the widest point near the wheel lip?
Is it common to have a small difference side to side? (Maybe I should check the tires pressure?)
What size tires would I need to run 15mm?
Thanks so much for the response and have a great day!
#5220
rx-for-my-7
iTrader: (1)
Got the Ichiba V1 sets that come with the longer studs for a pretty good deal @ $80.00 for each set. I'm excited to see what it looks like, I know I'll have to roll the inner lip on the fenders but don't think I'll have to pull anything yet.
Thanks for the help getting sorted.
-NJGB
Thanks for the help getting sorted.
-NJGB
#5221
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Got the Ichiba V1 sets that come with the longer studs for a pretty good deal @ $80.00 for each set. I'm excited to see what it looks like, I know I'll have to roll the inner lip on the fenders but don't think I'll have to pull anything yet.
Thanks for the help getting sorted.
-NJGB
Thanks for the help getting sorted.
-NJGB
