Originally Posted by USS CJ
for drifting? You want 245 front and 215 rear?


have you ever drifted an FC?

You want more grip, not less.

hehe yes I have drifted an FC before... this is me


The grip in the rear is MORE than I would ever seem to need when I am drifting. Right after the first 3/8 banked corner for example my rears are WARM and sticky. Any time after that I seem to get massive understeer from the front just not being able to grip. I will say turn and I'm still going strait.

Now in the picture you can see my inside front tire is almost off the ground... O.o I know having 20 year old struts and springs had a lot to do with it, and like I Said I already got some new ones of each. Also in the picture you can see I have massive body roll... the camera man is not very elevated, he was almost level with me.

Also although I am a turbo 7, I don't think I would be able to glide the rear as loose easily as I do with the smaller rears. I COULD be wrong, and it might even make the snap oversteer even less if I get wider rears... but sadly I have not tried. All I know is I NEED to get my front some more grip, the rear is fine once they get warm. My gtu came with turbo sway bars, and turbo springs, but I might upgrade the sway bars also. From everything I have read though, SOFTER gets more grip. I am a little confused, but it looks like I would like a soft front, and a hard rear. I have a mazdaspeed account and have access to some huge sway bars, but I'm not sure what good that will be.

Sorry I kinda started thinking/typing out loud. I still have time to get everything setup, so if you guys have any recommendations let me know. I didn't mean to turn this into a drift post.


Thanks
~Tweak


P.S. I'm also changing all my bushings and mounts, but not sure to what ones yet. I cant seem to find the mazdaspeed set. (if it ever existed)
Old 01-12-08, 07:58 PM
  #2777
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 5 Likes on 5 Posts
I see you're on stock wheels in front, 225/45/17's on some 17x8's will almost certainly give you the grip you want, but you should probably be looking into a stiffer suspension and doing some tuning there.

Softer is better as long as you can keep your dynamic alignment in check. The front looses camber as the car rolls, the rear gains camber, leading to more understeer as it rolls. Once you can keep the body motions under control then going stiffer will only take away grip. Stiffer isn't always better, but in this case it is.
Old 01-12-08, 08:27 PM
  #2778
Senior Member


USS CJ's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 598
Likes: 0
Received 1 Like on 1 Post
Man..good luck with you setup, that **** sounds horrible lol.
Old 01-12-08, 08:28 PM
  #2779
Full Member

Wezzmo's Avatar

Join Date: Apr 2007
Location: Perth, Australia
Posts: 123
Likes: 0
Received 0 Likes on 0 Posts
If you have more steering lock i am not liking your chances of fitting 17x9 +30s to the front of your car..

i have supernow rack spacers (pretty sure the maztrix, etc are copies of supernows ) and my work emotions 17x9 +17 (with a 5mm spacer) only cleared my lower arm and sway bar on full lock by a few mm....
Old 01-12-08, 11:36 PM
  #2780
Senior Member


USS CJ's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 598
Likes: 0
Received 1 Like on 1 Post
im running 17x9 +9 front with mazdatrix spacer and am 1 mm from swaybar at lock.

my roomie is 18x9.5 +10 front and doesnt hit.

You will be F I N E
Old 01-13-08, 12:10 AM
  #2781
Senior Member

unicorn_squad's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 415
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TweakGames
hehe yes I have drifted an FC before... this is me
http://i172.photobucket.com/albums/w...5.1trWmP4m.jpg
The grip in the rear is MORE than I would ever seem to need when I am drifting. Right after the first 3/8 banked corner for example my rears are WARM and sticky. Any time after that I seem to get massive understeer from the front just not being able to grip. I will say turn and I'm still going strait.

Now in the picture you can see my inside front tire is almost off the ground... O.o I know having 20 year old struts and springs had a lot to do with it, and like I Said I already got some new ones of each. Also in the picture you can see I have massive body roll... the camera man is not very elevated, he was almost level with me.

Also although I am a turbo 7, I don't think I would be able to glide the rear as loose easily as I do with the smaller rears. I COULD be wrong, and it might even make the snap oversteer even less if I get wider rears... but sadly I have not tried. All I know is I NEED to get my front some more grip, the rear is fine once they get warm. My gtu came with turbo sway bars, and turbo springs, but I might upgrade the sway bars also. From everything I have read though, SOFTER gets more grip. I am a little confused, but it looks like I would like a soft front, and a hard rear. I have a mazdaspeed account and have access to some huge sway bars, but I'm not sure what good that will be.

Sorry I kinda started thinking/typing out loud. I still have time to get everything setup, so if you guys have any recommendations let me know. I didn't mean to turn this into a drift post.


Thanks
~Tweak


P.S. I'm also changing all my bushings and mounts, but not sure to what ones yet. I cant seem to find the mazdaspeed set. (if it ever existed)
you should try upgrading from the stock 15 inch wheels in front... get something with a lower profile tire...
something more responsive in front will make it a lot easier to weight transfer, which you will need to do a LOT with the stock suspension, to make it slide.

and I wouldn't worry so much about sway bars as getting some springs/shocks that are at least a little stiffer than stock.
Old 01-13-08, 12:13 AM
  #2782
Senior Member

unicorn_squad's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 415
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TweakGames
Thanks finishline, I have been updating it every few weeks or so.


Black91n/a, I REALLY think that 245 should be quite wide enough from the stock 205s I have. I didn't know that I could go that wide without much issue. I won't be dropping the car far at all, (maybe an inch and a half) because I want to be able to keep my upgraded steering angle. Now I just need to find some cheap 17x9 30mm offset wheels for the front. I haven't even started thinking about rear yet. O.o I know I can fit some pretty big ones, but I'm not sure I will want to burn up some good wide rear tires. I will most likely go 205-215 rear.

Thanks guys!

BTW do you have any links to those pictures of the 245 in front?
I seriously doubt you will even be able to come close to turning all the way without rubbing with a 245 in front, on stock fenders.
****, even most D1 cars don't run bigger than 235's in front, and thats with huge fenders....
if you do really think you need to go this big in front, and plan on drifting with them.... good luck. you'll need it.
Old 01-13-08, 10:24 AM
  #2783
Balls deep...


RX710thAE's Avatar

Join Date: Mar 2006
Location: Bay Point, CA
Posts: 668
Likes: 0
Received 0 Likes on 0 Posts
18x8.5 +38 Front

18x9.5 +38 Rear

would these fit my FC?
Old 01-13-08, 12:25 PM
  #2784
Senior Member

unicorn_squad's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 415
Likes: 0
Received 0 Likes on 0 Posts
^ might need a small spacer in front.
Old 01-13-08, 01:31 PM
  #2785
Balls deep...


RX710thAE's Avatar

Join Date: Mar 2006
Location: Bay Point, CA
Posts: 668
Likes: 0
Received 0 Likes on 0 Posts
how small? 5mm? would i need to roll any of my fenders? thanks!
Old 01-13-08, 02:58 PM
  #2786
Ban Peak

iTrader: (49)

Molotovman's Avatar

Join Date: Jul 2002
Location: Northern Virginia
Posts: 4,012
Received 422 Likes on 270 Posts
hey guys, I want to run soem 15" wheels on my FC for autoX. I already have 225/55/15 R comps and I'm just wondering what the best offset is and what others are acceptable for a 15x7 wheel on an FC.
Old 01-13-08, 03:50 PM
  #2787
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 5 Likes on 5 Posts
30mm would be a good offset, that puts it about halfway between the suspension and the fenders. Get some 15x8's if you can, it'll give more grip, and shorter tires are your friend, 225/50/15 or better yet 225/45/15.
Old 01-13-08, 06:10 PM
  #2788
Senior Member

unicorn_squad's Avatar

Join Date: Oct 2006
Location: Colorado
Posts: 415
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RX710thAE
how small? 5mm? would i need to roll any of my fenders? thanks!
3-5mm would probably work...
depends a lot on what size tires you're running, and also what suspension, so its hard to say.
Old 01-13-08, 11:32 PM
  #2789
ド*リ*フ*ト*!!!


Jesse[SM]'s Avatar

Join Date: Jan 2005
Location: ColofuckinRADo
Posts: 189
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TweakGames
hehe yes I have drifted an FC before... this is me
I see no drifting...
Old 01-14-08, 12:06 AM
  #2790
FD pro licensed driver

iTrader: (3)

TweakGames's Avatar

Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by jwilliam
I see no drifting...
haha you ...do .. know that .. that is a still picture right? And right there I'm most likely doing a 4 wheel drift (cause of the understeer) haha

anyways here is the only other video I have of me doing some donuts and crap way back when. I know its nothing special, but I just caught the end of the last drift season, didn't get a chance to get much media.

http://youtube.com/watch?v=Bzb42uECUAY

so :P

Where are your drift pictures?
Old 01-14-08, 12:21 AM
  #2791
ド*リ*フ*ト*!!!


Jesse[SM]'s Avatar

Join Date: Jan 2005
Location: ColofuckinRADo
Posts: 189
Likes: 0
Received 0 Likes on 0 Posts
I'm just giving you **** because of no lock, I'm sure you're better than me. This is probably the best pic I have, and it's not even of my FC. I fail at making events.
Old 01-20-08, 12:09 AM
  #2792
Balls deep...


RX710thAE's Avatar

Join Date: Mar 2006
Location: Bay Point, CA
Posts: 668
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by unicorn_squad
3-5mm would probably work...
depends a lot on what size tires you're running, and also what suspension, so its hard to say.
i'm thinkin about going with the KYB shocks with RB springs or Tein springs...
Old 01-20-08, 07:09 AM
  #2793
1308ccs of awesome

iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,189
Received 17 Likes on 15 Posts
Originally Posted by RX710thAE
i'm thinkin about going with the KYB shocks with RB springs or Tein springs...
tein spring are crap. they're really just for looks, they're way too soft for how low they are. Unless you want to bottom out on everything go with the RB springs.
Old 01-20-08, 11:39 AM
  #2794
Full Member


Ishibubu's Avatar

Join Date: Aug 2006
Location: Georgia
Posts: 237
Likes: 0
Received 0 Likes on 0 Posts
Mustang GT Wheels 17x8 - Should I go with 225/40/17 or 235/40/17 or does it have to be ???/45/17?

Also will I have a problem running this with KYB's and Eibach GC Springs? (Any other recommended set-up)
Old 01-20-08, 11:41 AM
  #2795
U.S.A

iTrader: (1)

Risky Devil's Avatar

Join Date: Sep 2004
Location: il
Posts: 1,166
Likes: 0
Received 1 Like on 1 Post
45 series is tall and square on a 17x8.
Stick with the 235/40 or 225/40

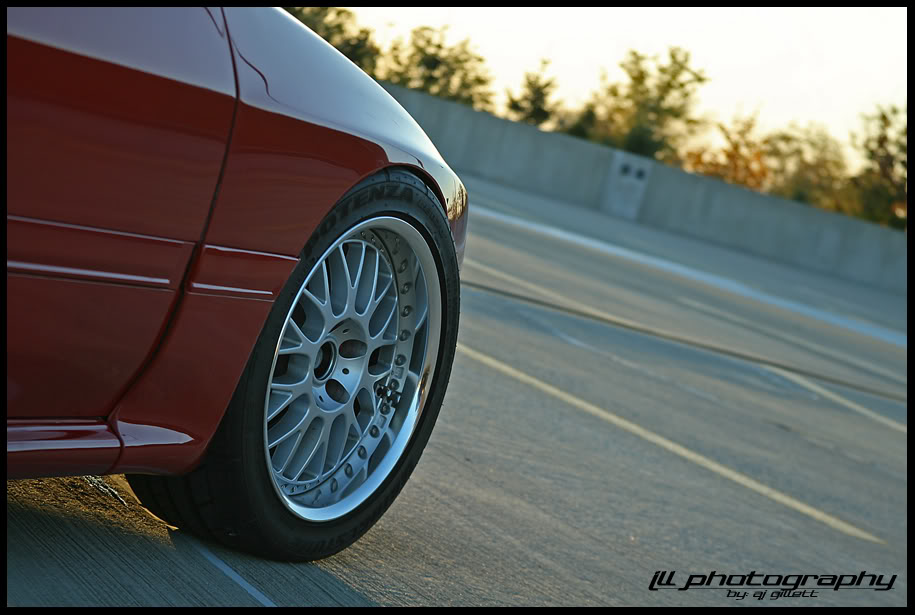

RE070 225/45 on a 17x8
Name:  IMG_6390r.jpg
Views: 223
Size:  84.9 KB
Old 01-20-08, 11:52 AM
  #2796
Full Member


Ishibubu's Avatar

Join Date: Aug 2006
Location: Georgia
Posts: 237
Likes: 0
Received 0 Likes on 0 Posts
Wow, if that sidewall was a lil smaller thats like perfect.
Old 01-20-08, 12:34 PM
  #2797
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 5 Likes on 5 Posts
225/40/17 is not a common size, whereas 225/45/17 is one of the most common sizes out there for high performance rubber and it's also closer to the stock tire diameter. For going any wider I'd go with 235/40/17 though.

Shouldn't be any problems with that suspension, will leave plenty of room.
Old 01-20-08, 03:14 PM
  #2798
Burning up Time


The Griffin's Avatar

Join Date: Sep 2004
Location: Earth
Posts: 805
Likes: 0
Received 2 Likes on 2 Posts
What offset are you running in that pic? Looks just right for the rim/tire size to me , not being a fan of the "rice elastic band tire" camp.

Originally Posted by Risky Devil
45 series is tall and square on a 17x8.
Stick with the 235/40 or 225/40

RE070 225/45 on a 17x8
Old 01-21-08, 11:00 PM
  #2799
Full Member


SINCITYFC's Avatar

Join Date: Oct 2004
Location: LAS VEGAS NV
Posts: 83
Likes: 0
Received 0 Likes on 0 Posts
Please advise

I just came across a good deal on some 18" wheels.

18x8 +10
18x9 +20

would 225/40/18 - 245/45/18 work and, do I need some fender rolling with this se up?
Old 01-21-08, 11:37 PM
  #2800
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 5 Likes on 5 Posts
Therear should be ok, but it'll be close to the fender, and those tires are too tall, try a 245/40/18, it's closer tostock diameter. As for the fronts, you'll need to not only roll the fenders, but pull them out too, or get some widebody fenders or some overfenders.
