need help on works xd9 wheels for fc

need help i like to put on 18x8s and 18x9s maybe 18x10 if i can fit them in the rear works xd9 wheels on my 87 turdoII but dont know what offset to order them in they have them in these offsets the front
+45mm / +35mm / +28mm and for the rear they have +43mm / +38mm /+30mm
+20mm and in the 18x10 they have +18mm / +38mm thanks
Attached Thumbnails need help on works xd9 wheels for fc-xd9.jpg

Last edited by rotorsport72; 04-04-08 at 11:32 PM.
Old 04-05-08, 12:22 AM
  #2
U.S.A

iTrader: (1)

Risky Devil's Avatar

Join Date: Sep 2004
Location: il
Posts: 1,166
Likes: 0
Received 1 Like on 1 Post
What kind of tire sizing/ type of driving are you trying to go for.

stretch, square fitment...

really depends
Old 04-05-08, 12:29 AM
  #3
Rotary Freak

iTrader: (22)

ARD T2's Avatar

Join Date: Mar 2001
Location: Silicon Valley, CA.
Posts: 2,775
Received 14 Likes on 12 Posts
Standard setup to clear STANCE COILOVERS. hehe shameless plug for ya Risky.

Based on those offsets go with:

18x8 +28, 225/40/18
18x9 +30, 255/35/18

No fender mods needed no abnormal camber needed. Rears gonna be real close so it comes down to alignment and lowering. If you want to feel safe, go with the +38.

Doesn't seem like any of the 9" have good offsets to clear coilovers up front, that's strange.

Rishie
Old 04-05-08, 03:10 AM
  #4
Junior Member


bart628's Avatar

Join Date: Mar 2006
Location: Bay Area
Posts: 14
Likes: 0
Received 0 Likes on 0 Posts
I can vouch for the sizes that Rishie suggested. (18x8 28mm/18x9 30mm)

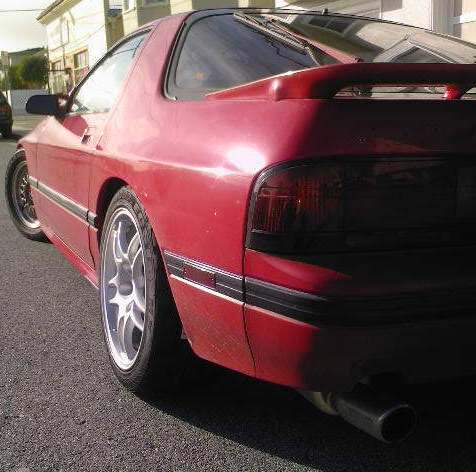

Just to give you an idea of the rears, these are 17x9 30mm wheels with 245/40/17's.
Attached Thumbnails need help on works xd9 wheels for fc-photo-0020e.jpg
Old 04-05-08, 12:38 PM
  #5
Rotary Freak

iTrader: (22)

ARD T2's Avatar

Join Date: Mar 2001
Location: Silicon Valley, CA.
Posts: 2,775
Received 14 Likes on 12 Posts
werd up.... Looks like there's plenty of room but you've got some camber there in the rear. If you put it back to stock camber settings it'd be pretty flush i think with the stock fender and a 255 size tire.

Rishie
Old 04-05-08, 03:38 PM
  #6
Full Member

Thread Starter

rotorsport72's Avatar

Join Date: Dec 2007
Location: L.A.
Posts: 60
Likes: 0
Received 0 Likes on 0 Posts
i would like a little stretch oh and by the way i have coilovers
