Finally!!!! ENKEI PF01 installed FD3S 18" pics

Thread Tools

Search this Thread

Old 06-19-10 | 03:04 AM
  #1
ARD T2's Avatar
Thread Starter
Rotary Freak
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 16
From: Silicon Valley, CA.
Finally!!!! ENKEI PF01 installed FD3S 18" pics

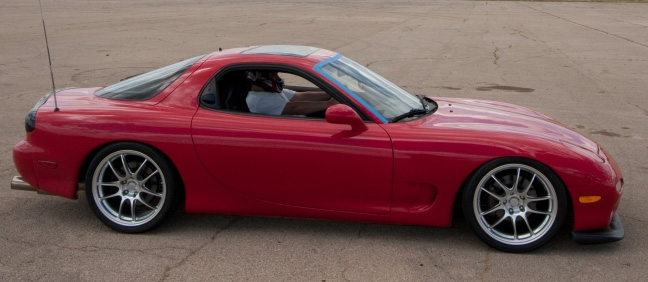

Well this turned out so nice. This wheel looks beautiful on the lowered FD.

18x9.5 +45 5x114.3 with 285/30/18 fender mods required.

There is a STANDARD FITMENT AND LOOKS THE SAME

18x9.0 +45 5x114.3 with 255/35/18 front and rear

OR STAGGER 255/35 and 275/35.

One of the best things about the PF01 is a great 9" offset for the front of the FD in 18", unlike the RPF1.
Attached Thumbnails Finally!!!! ENKEI PF01 installed FD3S 18" pics-pf01fd3s1.jpg   Finally!!!! ENKEI PF01 installed FD3S 18" pics-pf01fd3s2.jpg
Old 06-20-10 | 07:43 PM
  #2
Prometheus's Avatar
Still got it.
iTrader: (2)

Joined: Jan 2007
Posts: 1,687
Likes: 3
From: Seattle, Washington
Weight?
Old 06-22-10 | 12:37 AM
  #3
ARD T2's Avatar
Thread Starter
Rotary Freak
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 16
From: Silicon Valley, CA.
They are heavier than RPF1 around 20lbs, 18x9.5 but for cars other than FD it has a HUGE disk to clear big brakes. FD's are just a special case that they can run Low disk wheel with a bbk.

Rishie
Old 06-22-10 | 03:40 AM
  #4
R-R-Rx7's Avatar
Rotor or no motor
iTrader: (24)

Joined: Oct 2006
Posts: 3,411
Likes: 416
From: Limassol, CYPRUS
i like it!!!!!
Old 06-22-10 | 08:14 AM
  #5
GoodfellaFD3S's Avatar
Original Gangster/Rotary!
Veteran: Army
iTrader: (213)

Joined: Mar 2001
Posts: 30,580
Likes: 567
From: FL-->NJ/NYC again!
Looks great, but too bad about the increased weight
Old 06-22-10 | 06:23 PM
  #6
ARD T2's Avatar
Thread Starter
Rotary Freak
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 16
From: Silicon Valley, CA.
It's only 2 lbs.

I can't emphasize enough that Enkei is changing its policies for their M.A.T. process. They will make all their wheels heavier now because they noticed too much deflection in the RPF1.

They promise that you will see faster laptimes with one of the newer slightly heavier wheels. They have track tested and proven.

Not sure if you guys remember their article on the GTC01 where they produced the same wheel in lighter form and did track times. They proved that lighter isn't better and that the RPF1 if heavier would be faster.

Weight vs. Rigidity????

Old 06-22-10 | 07:33 PM
  #7
Double_J's Avatar
Rotary Freak
iTrader: (28)

Joined: Jun 2009
Posts: 2,089
Likes: 0
From: Ontario, Canada
Interesting post. Thanks for sharing!!

I was not familiar with article so I had to google it. Here is a summary of the above article.

http://og-made.com/archives/1904
Old 06-24-10 | 06:10 PM
  #8
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
Damn it...
Old 06-29-10 | 07:59 PM
  #9
MAXX65's Avatar
Full Member
iTrader: (2)

Joined: Nov 2006
Posts: 173
Likes: 0
From: San Diego
I just picked up mine today :-)
Old 06-29-10 | 09:18 PM
  #10
ARD T2's Avatar
Thread Starter
Rotary Freak
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 16
From: Silicon Valley, CA.
Carlos, yours are on their way.

Please post up some pics.

Rishie
Old 06-30-10 | 05:48 AM
  #11
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
I'll post pics Rooshie once I get the car back and figure out if I'm gong to to powder coat them black or not. If only I could have compromise on a measly 1/2" of width, I could have had them in black to start with... oh well, stubborn does have it's price!!

Again, thanks for the extraordinary deal!!

Cheers,
Carlos

Originally Posted by ARD T2
Carlos, yours are on their way.

Please post up some pics.

Rishie
Old 08-12-10 | 05:24 PM
  #12
MAXX65's Avatar
Full Member
iTrader: (2)

Joined: Nov 2006
Posts: 173
Likes: 0
From: San Diego

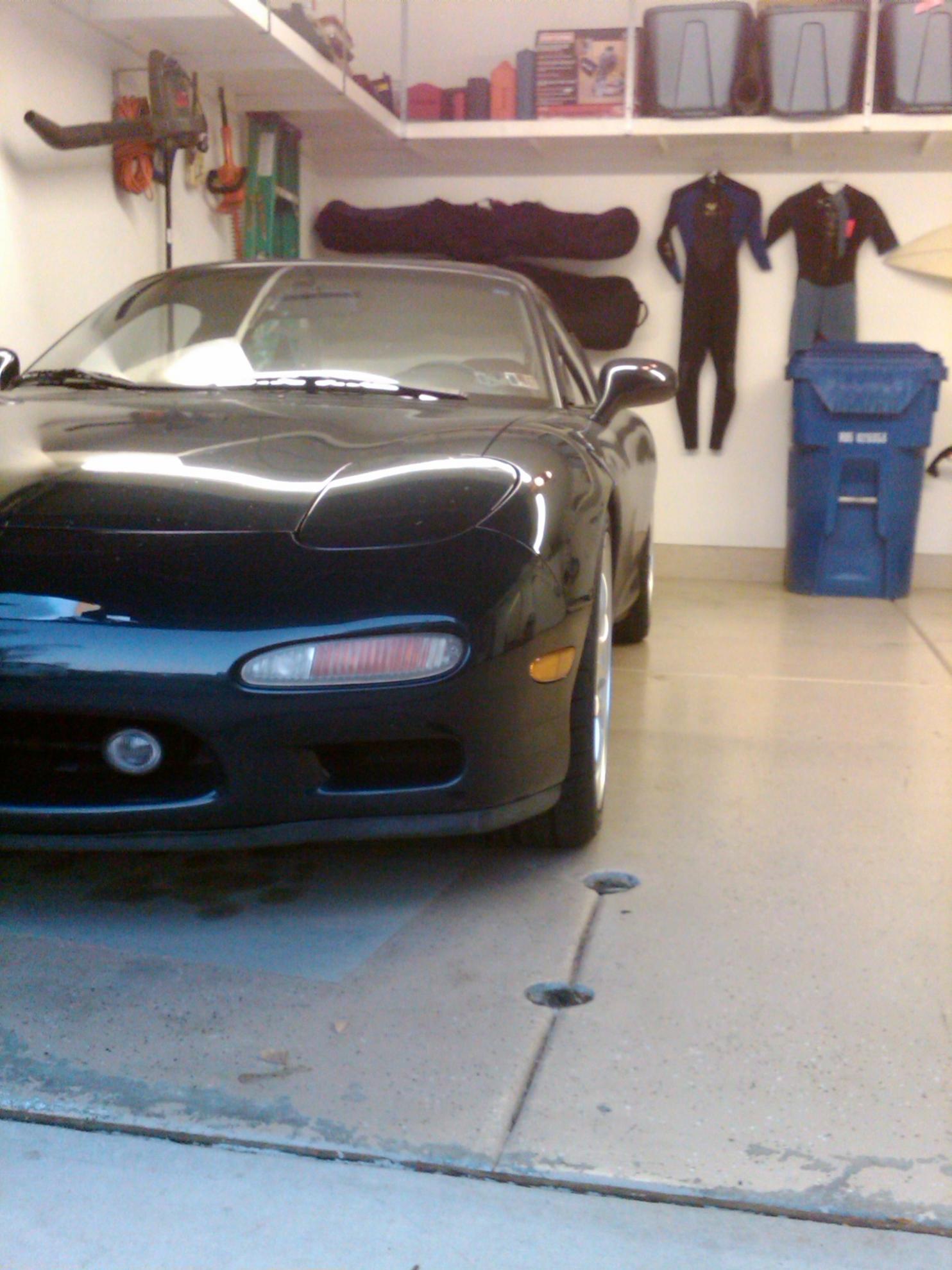

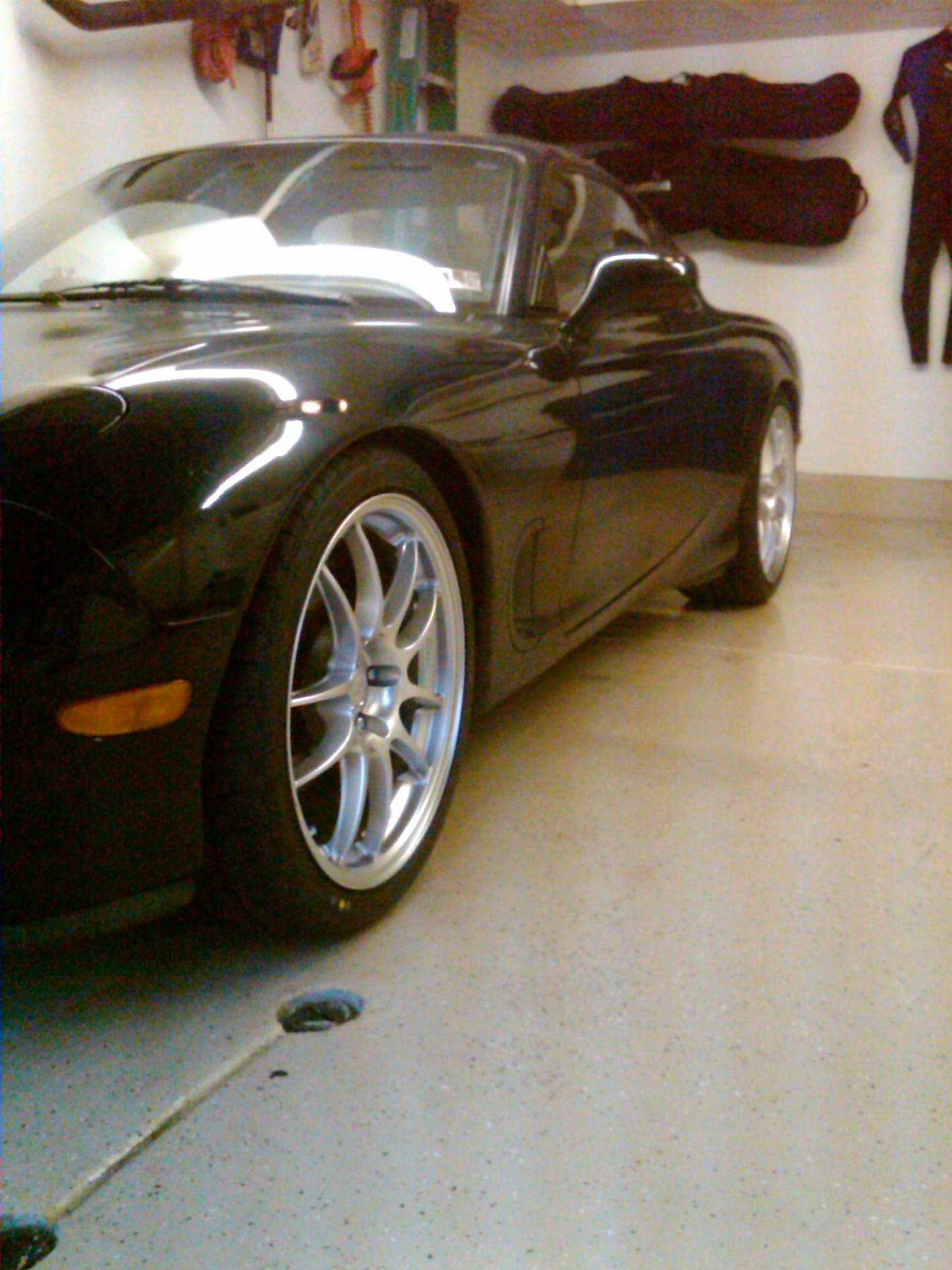

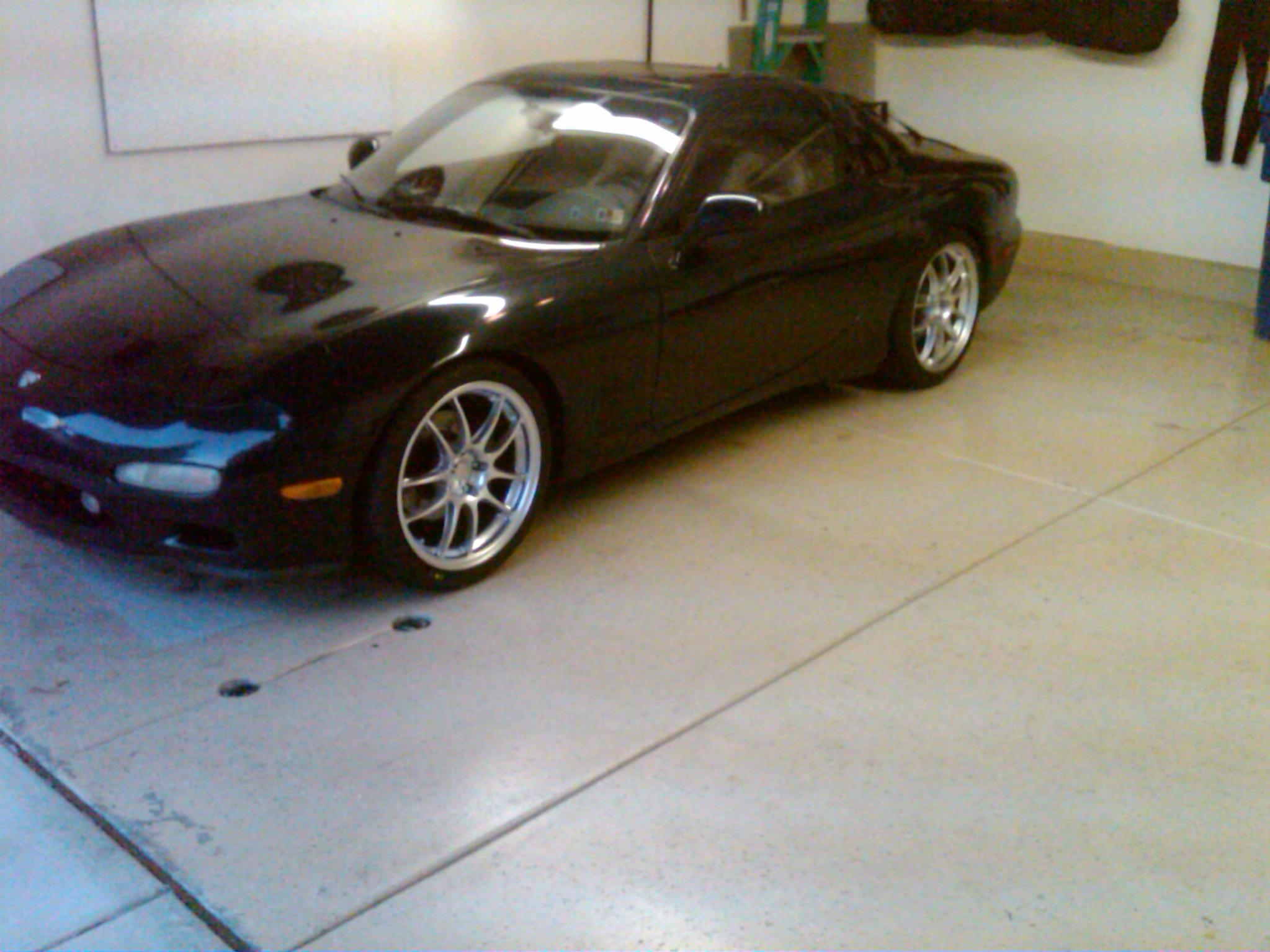

Pics of mine....18x9 all four corners. +45 Front & +35 Back
Attached Thumbnails Finally!!!! ENKEI PF01 installed FD3S 18" pics-img00133-20100805-1944.jpg   Finally!!!! ENKEI PF01 installed FD3S 18" pics-img00134-20100805-1946.jpg   Finally!!!! ENKEI PF01 installed FD3S 18" pics-img00135-20100805-1947.jpg
Old 08-12-10 | 06:21 PM
  #13
FC3S_nataku's Avatar
mattg prob nt coming back
iTrader: (3)

Joined: Feb 2005
Posts: 1,933
Likes: 0
From: OrangePark FL
do they still make rpf1's?
Old 08-13-10 | 11:37 AM
  #14
Svelte_7's Avatar
Back on the road again!
iTrader: (4)

Joined: May 2002
Posts: 447
Likes: 1
From: Bay Area
Not sure if my ad-killer is blanking out the article but I don't see anything. Anyone else have this problem?

Originally Posted by Double_J
Interesting post. Thanks for sharing!!

I was not familiar with article so I had to google it. Here is a summary of the above article.

http://og-made.com/archives/1904
Old 08-13-10 | 07:40 PM
  #15
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
Got my PF01's back from the powder coater today and they turned out gorgeous. Best of all, we FINALLY found the gremlin in my latest EFI install so I should have my car back by next month. I'll post pictures once the CYM has it's new matte black shoes!
Old 11-11-10 | 12:03 PM
  #16
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
Thumbs up BBK Clearance!

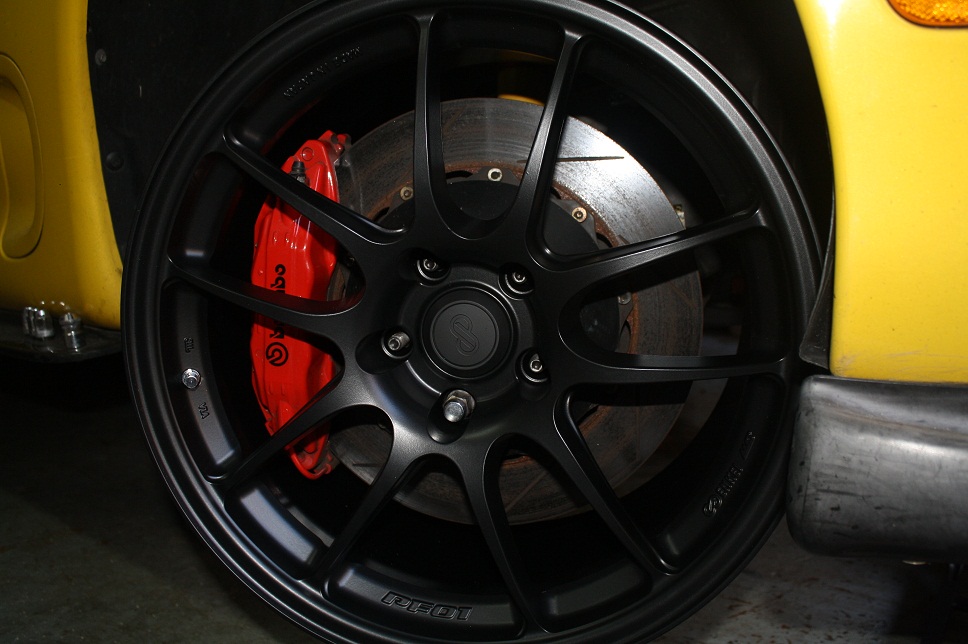

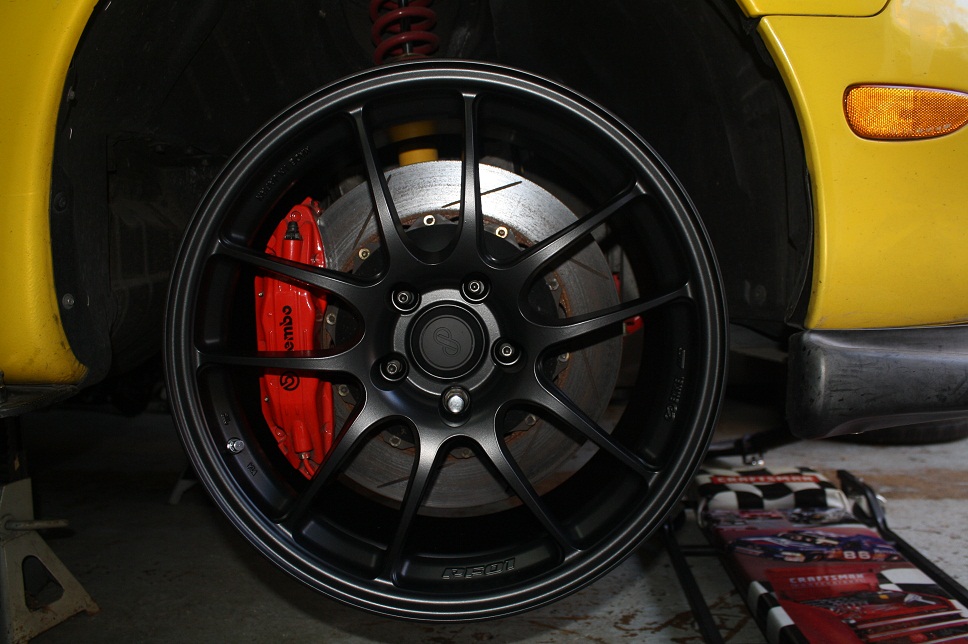

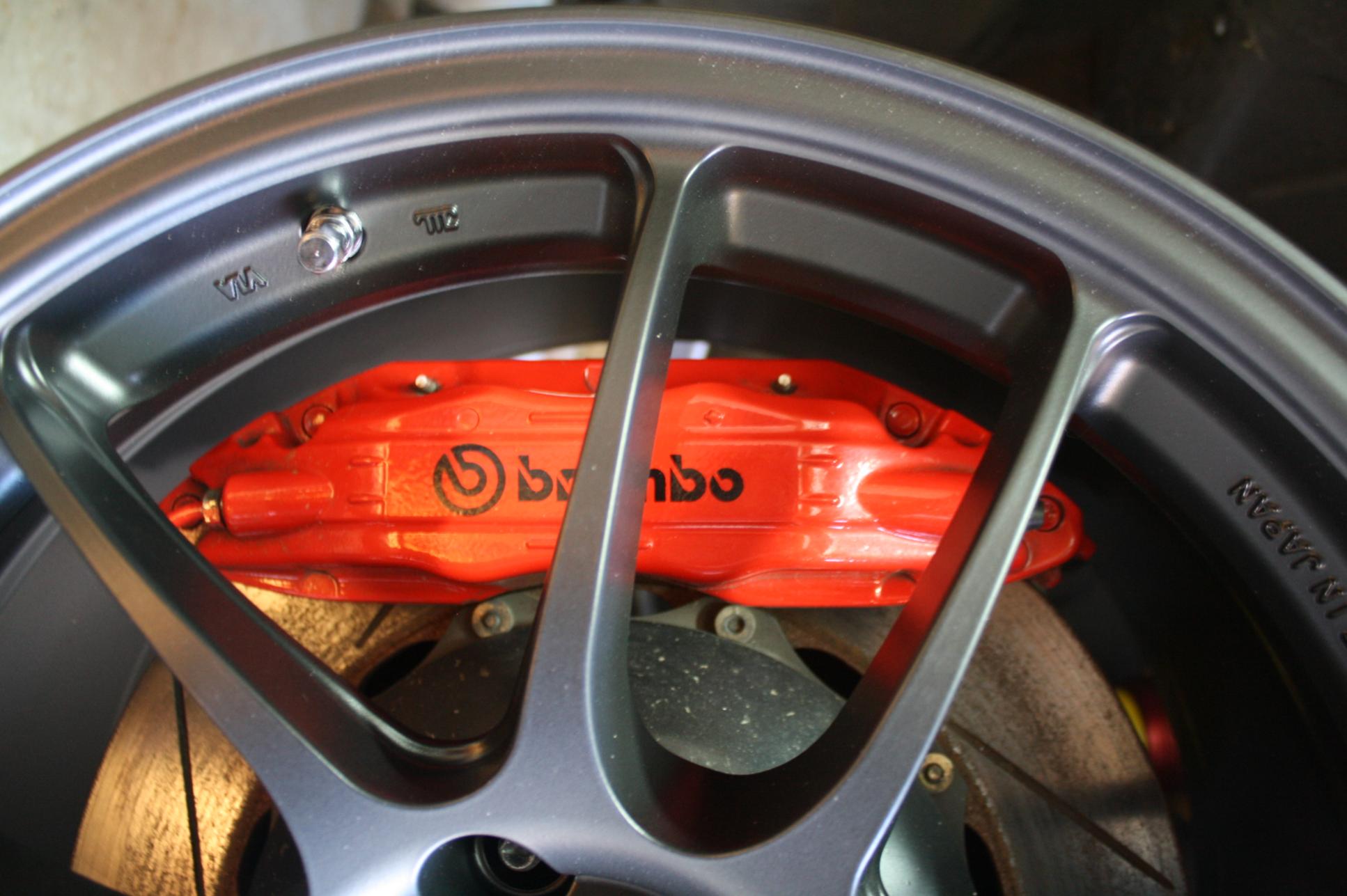

Took a couple of picture of the test fit for the 18x9.5 (+45) with my Brembo GT50 front calipers. Tons of room even with 355mm rotors!
  • About 5/8" between the caliper's "top" and the the inside rim
  • A hair over an inch from the caliper's outward logo'ed edge to the inside of the closest spoke.
Attached Thumbnails Finally!!!! ENKEI PF01 installed FD3S 18" pics-pf01-brembo-f40-355mm-rotors-3.jpg   Finally!!!! ENKEI PF01 installed FD3S 18" pics-pf01-brembo-f40-355mm-rotors-2-_sm.jpg   Finally!!!! ENKEI PF01 installed FD3S 18" pics-pf01-brembo-f40-355mm-rotors-1-_sm.jpg
Old 11-11-10 | 12:15 PM
  #17
ptrhahn's Avatar
Lives on the Forum
iTrader: (9)

Joined: Feb 2002
Posts: 9,136
Likes: 570
From: Arlington, VA
Those look great!

Carlos, who did your powder?
Old 11-12-10 | 03:05 PM
  #18
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
Thanks Peter. Yeah, I'm really happy with the job that Extreme Powder Coating in Lorton did, though they certainly weren't cheap.
Old 11-12-10 | 03:41 PM
  #19
MR_Rick's Avatar
Planning my come back
iTrader: (7)

Joined: Feb 2003
Posts: 3,393
Likes: 0
From: Austin, Tx
Looks clean
Old 11-15-10 | 11:38 AM
  #20
angeltiger's Avatar
Junior Member

Joined: Oct 2010
Posts: 7
Likes: 0
From: bakersfield,ca
Those look nice
Old 11-16-10 | 11:01 AM
  #21
ARD T2's Avatar
Thread Starter
Rotary Freak
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 16
From: Silicon Valley, CA.
I've got some more of these I'm clearing out for end of the year.

PF01:
18x9 +45
18x9.5 +45
18x10.5 +38


18x9.5 +15
18x10.5 +15

Hit me up.
Old 11-16-10 | 02:33 PM
  #22
tegrab18's Avatar
Junior Member

Joined: Nov 2010
Posts: 9
Likes: 0
From: NY
all these sets look nice. Wish i had money to buy wheels!!!!...
Old 11-16-10 | 02:38 PM
  #23
ptrhahn's Avatar
Lives on the Forum
iTrader: (9)

Joined: Feb 2002
Posts: 9,136
Likes: 570
From: Arlington, VA
Boy, a 9.5/10.5 combo w/ 255/35 and 295/30's would be sweet. Hmmm....
Old 11-16-10 | 03:21 PM
  #24
GoodfellaFD3S's Avatar
Original Gangster/Rotary!
Veteran: Army
iTrader: (213)

Joined: Mar 2001
Posts: 30,580
Likes: 567
From: FL-->NJ/NYC again!
Pete, I agree they look great, but with that rear you'd definitely need some serious fender rolling.
Old 11-16-10 | 09:06 PM
  #25
Carlos Iglesias's Avatar
Corn-to-Noise Converter
Veteran: Navy
iTrader: (6)

Joined: Mar 2002
Posts: 1,526
Likes: 387
From: The Elysian Fields (Texas)
You're certainly welcomed to come by and check em out in person. I'm REALLY happy with how they turned our, though I'm not sure I'd compare them to your BBS beauties.

Anyways, I expect to have the car on the jack stands for a few more months, so no "stance" pictures for a little while.


Originally Posted by ptrhahn
Boy, a 9.5/10.5 combo w/ 255/35 and 295/30's would be sweet. Hmmm....
