i'm at the last stages of my REW swap into my FC.....and i just can't get a grasp on this haltech wiring.....i want to find someone somewhat local to me, here in shreveport, that has some knowledge of what wire needs to go where and would be willing to tell me something that would help me out....or even better lend me a hand....lol

what i have.....haltech e6x.....streetported REW into my FC via custom mounts....t4/60-1....1600 secondarys...720 primarys.....so on....

so is there anyone near that can help.....?

thanks,
michael



wow nice to see someone doing a cool swap down here in the swamp not sure about the haltech as I have the microtech however have you checked out the engine management part of this forum? Lots of good info there!


edit: so your putting an 3rd gen motor into a 2nd gen? and don't have any pics up???? Man your going to get flamed j/k



lol....these are just for you....

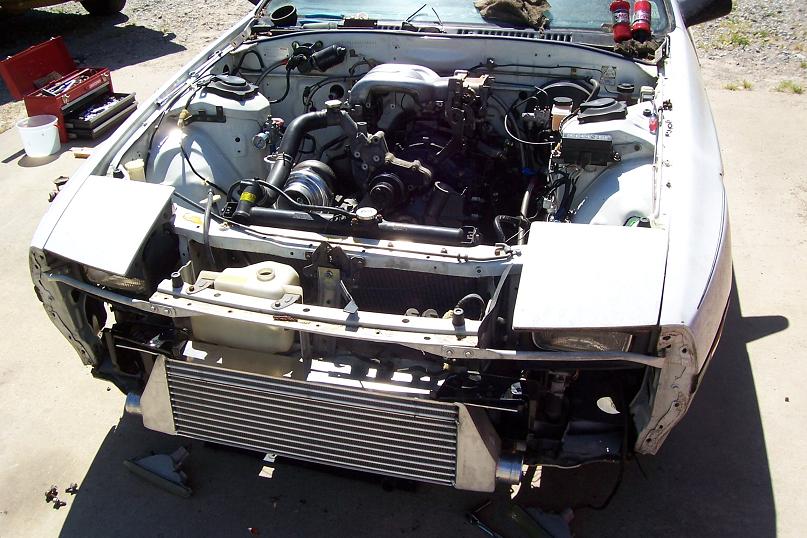

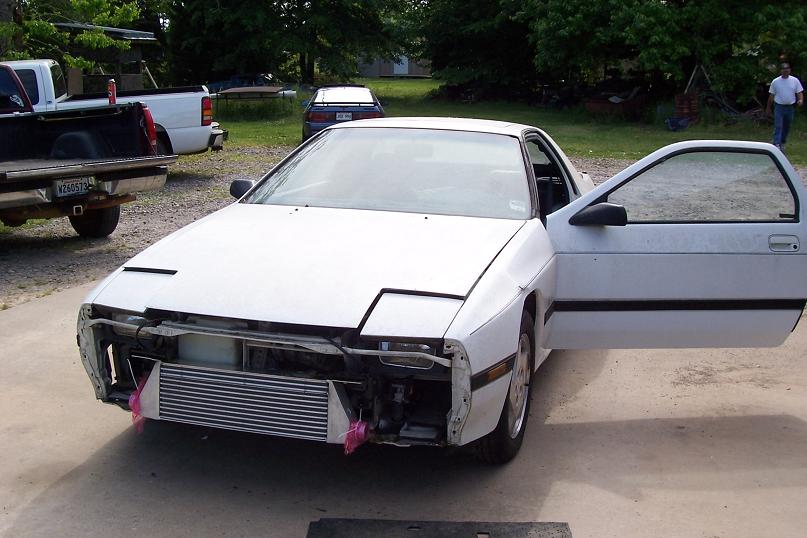

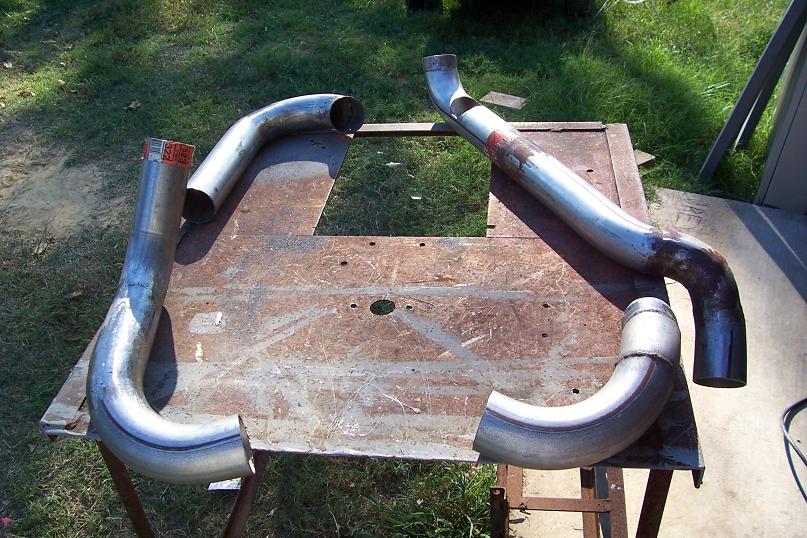

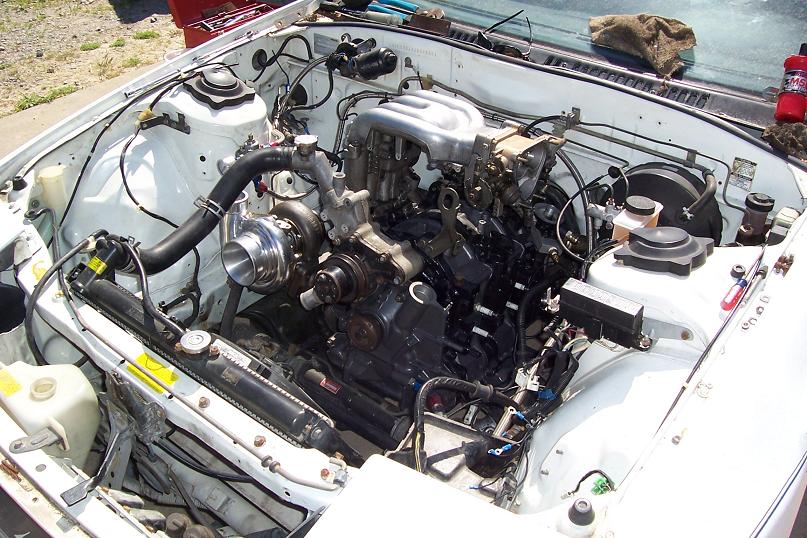

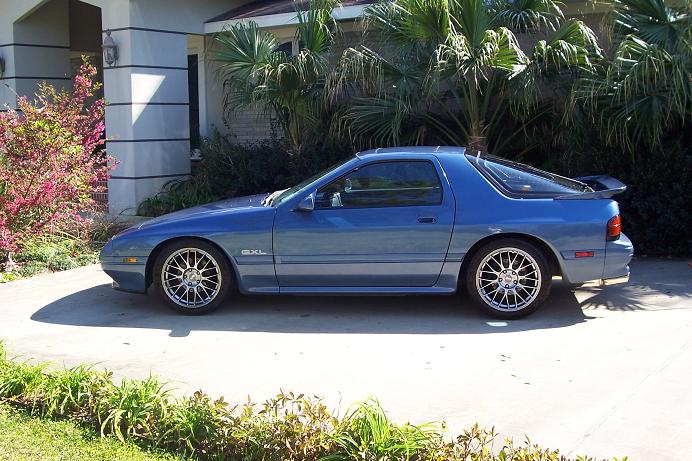

the motor is in the white car only for mock up purposes, for things like the IC piping below. REW block with a TII front cover and FC water pump housing.....the set-up will be going into the blue s5 gxl pictured below....

i just need help getting this damn haltech in so i can have the car going....

p.s. don't mind the fuel and reg. and sort of stuff in the bay, it's all from my old carb. aux bridge set-up



oh that kicks so much ***! I gotta remember not to mess with any blue gxl's running around Hey can you take a pic of the custom mounts you had to make for that? Thanks.

don't know if you've checked the engine management section or not yet but if that hasn't turned up anything good then go to teamfc3s.org and if that doesn't turn up anything good I bet joserotary.com maybe able to help you out for a nominal fee



nominal....hahaha...."nominal" isn't the term i'd describe for what he'd attempt to charge me....lol jose and i never have really seemed to see "eye to eye" on most subjects.
i've checked the engine management section but i can't seem to turn up anything that cleary says "x" wire is such and such. the part that i do acctually understand came from the teamfc3s.org forum....but it left me with the confusion in the end....this wiring just isn't my bag....i can assemble and build things...but apparently i can't wire them...lol
but here is a pic of the mount.....you can't see it completely but it'll get the point accross i'm sure.....it bolts accross the rear iron in the factory FD mounting points and comes around to the cups for the FC....i acctually ended up cutting a deal when i bought the motor, so he built it for me. he goes by mazdaspeed7 on the forums and he's posted the mounts for the swap before for sale, but they are the new and improved, IMHO, over my particular one.....anyway....here it is....



P.S. i am aware of the holes that are open into my motor.....they will be closed up...and i do expect oil to be able to seep through the front of the oil pan due to the bolt situation....but as much as i plan to drive the car i don't see it being that big of an issue.
and it doesn't line up properly due to the fact i'm running a REW block and oilpan....but an FC front cover....



looks pretty damn cool to me and looks like you did your homework on it, very cool! yeah puerto ricans have a totally differant view on how to setup and run cars. I guess I don't blame them cause they do have some of the fastest rx7's out there but yeah definatley a little differant. As far as the wiring is conserned I don't know if it's much harder than the lt8 but man if you just fallow the wires in the wiring diagram with where they are supposed to go it really is easy. Just sit down and take an afternoon to look over the wiring diagram and it will start to sink in and make sense.



I can help you with the Haltech stuff. I do those installations often. Toss me a PM and perhaps we can work something out.

B



you have been PMed



Yes this crazy ************ is actually doing this ****...I can't wait to see it run and tear some of these ricers asses up around here...
