My SS Autochrome mani. CRACKED! - PICS
02-15-06, 02:07 PM
#26
multipersonality disorder
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
Sure, I'll say it.
Both the HKS and GReddy (at least spell it right) designs SUCK.
Wastegate ports are not placed efficiently, and the designs are made more to just fit the compact engine bay of the FC / FD.
When you need to build things right, make one yourself!
-Ted
Both the HKS and GReddy (at least spell it right) designs SUCK.
Wastegate ports are not placed efficiently, and the designs are made more to just fit the compact engine bay of the FC / FD.
When you need to build things right, make one yourself!
-Ted
02-15-06, 02:20 PM
#27
development
Originally Posted by t-von
Turbo timers are a waste of money.
To coolant jackets, a TT in this application is worth its weight in platnium
02-19-06, 06:57 PM
#30
Do you feel lucky punk!!!
the exhaust looks like the engine have a lean condition. Also a very hot metal that make contac with cool water will crack because his expansion properties are reduced. If you look close to the crack, there is no metal composition problem. The welding is not a problem. The metal no crack in any normal circunstances. The only reason for that crack is the one that I said, a very hot stainless steel that make contact with cool liquid.
02-19-06, 08:18 PM
#31
Senior Member
Originally Posted by Nitrometano
The only reason for that crack is the one that I said, a very hot stainless steel that make contact with cool liquid.
The truth is anytime a material is heated (steel, wood, playdough, etc...) it strains. That is it changes in dimension. If this change is dimension is in any way restricted then stresses are created. These stresses are then what causes the material to fail. These stress my not even be that large, but if repeated then the material could still fail. This is called fatigue.
Geometric discontinuities (micro and macro) cause stress concentrations. A fillet, weld, hole and small material void are all examples of stress concentrations.
Justin
02-20-06, 02:43 AM
#34
Navy MarCom
iTrader: (3)
Join Date: Jul 2004
Location: On a Boat!
Posts: 812
Likes: 0
Received 0 Likes
on
0 Posts
I've worked with a few of these POS SS autocrome headers, they are made with Chinese uncertified steel products.. most of them have FAR too much carbon in them. which when heated/welded/modified in anyway will create a very very fragile metal. Even if you preheat then weld thier is still too many impurities in the metal from China to be worth $10 they are actualy worth. One thing that would help this header would be a divided flange to allow for expansion. but that's just like giving water to a dying man.. bit of a waste of time..
But with SO many people here and on jsut about every other fourm on the internet.. why are you actually surprized it cracked??
But with SO many people here and on jsut about every other fourm on the internet.. why are you actually surprized it cracked??
Originally Posted by Kahren
it has nothing to do with ss autochrome, most stainelss manifolds will crack, if you look up properties for SS you will see why its not the best thign to make manifolds out of. its got a high coeefficient of thermal expansion and its not very elastic. so when it gets hot its easier to crack. but either way that sucks
02-20-06, 02:27 PM
#35
Originally Posted by dubulup
I'll be using a turbo timer to keep the main (E-01, Motec, cluster) toggle switch active for 3-5min after shut down to keep an electric pump and radiator fans running after power has been cut from the ECU.
To coolant jackets, a TT in this application is worth its weight in platnium
To coolant jackets, a TT in this application is worth its weight in platnium
For their original design intent they are useless however, they are usefull in other specialized applications.
02-20-06, 06:08 PM
#37
GhostSS
Thread Starter
Join Date: May 2005
Location: Phoenix, AZ
Posts: 281
Likes: 0
Received 0 Likes
on
0 Posts

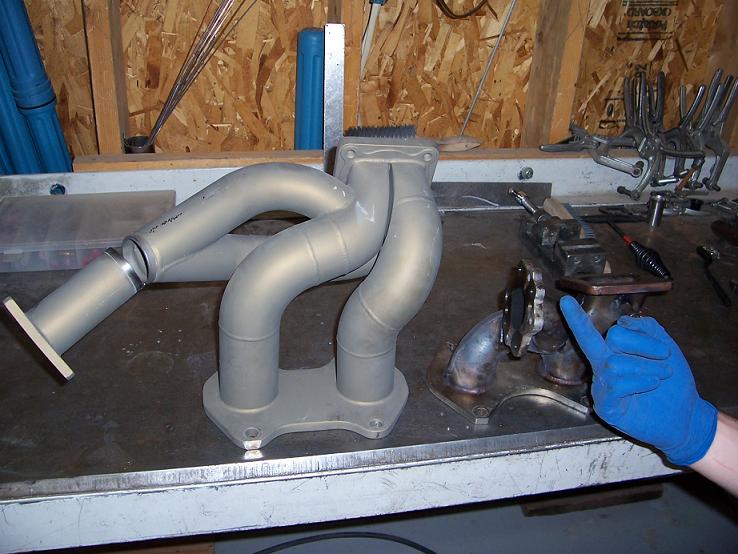

Forum member 1Revvin7. Hes got a whole bunch of pictures here
http://www.nopistons.com/forums/inde...album&album=42
I can't wait to get back on the dyno.
http://www.nopistons.com/forums/inde...album&album=42
I can't wait to get back on the dyno.
02-20-06, 09:40 PM
#38
I've got a manifold for you. It's braced so you don't have the substantial weight of the turbo resting on the hot (and more maleable) manifold. It costs a little more to make, somewhere around $600, but it's well worth it.
03-01-06, 07:17 AM
#39
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by shm21284
I've got a manifold for you. It's braced so you don't have the substantial weight of the turbo resting on the hot (and more maleable) manifold. It costs a little more to make, somewhere around $600, but it's well worth it.
