Is my high flow cat killing my power (dyno attached)?
12-03-05, 04:14 PM
#1
Is my high flow cat killing my power (dyno attached)?
Has anybody dyno'd their car with the same set-up and simply switched between a mid-pipe and a high flow cat? I am very curious of the exact effects of a good quality high flow cat throughout the power range on rwhp. If you have please post the results...
In the next week or two I am going to try to get my hands on a midpipe and retune the car. Afterwards I want to throw my high-flow on and see what power loss I'm seeing... I'd like to keep the cat if I can because I really don't like the smell or noise of a midpipe, but if their is a huge power difference, I might ditch it.

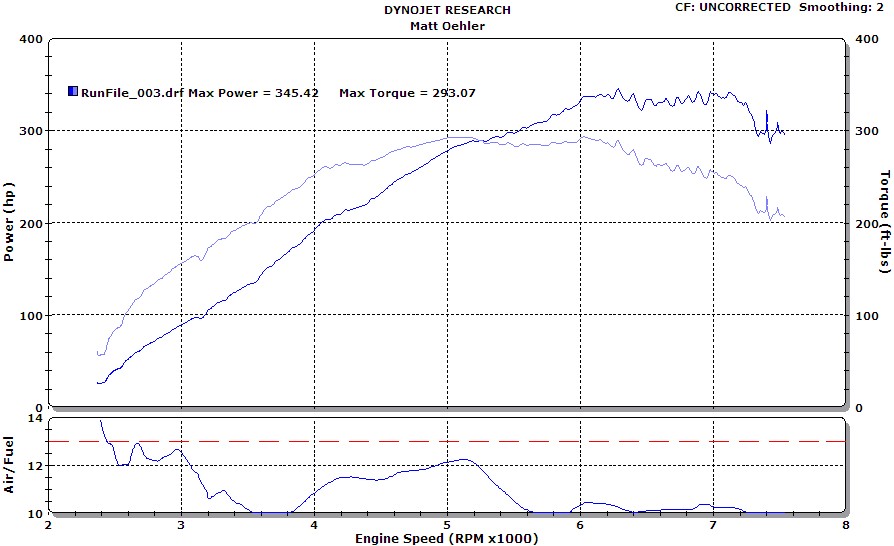

Just dyno'd my car last week. AFR's went to the 9's at more than 5k rpm's, using a tailpipe sniffer after the cat - so it's actually reading leaner than it really is! I have a lrage street ported motor, running 850's/1600's, and everything to support it. Engine is new with 1300 miles on it and the car is running great.
At 15 psi it only made 340 whp with a new SMB metallic high-flow cat (flows very well for a cat). I have seen other curves with a similar turbo (mine is a derivative of a GT40) and it made 390-410 whp with a midpipe at 15 psi. I figure that getting my AFR's back up will get me maybe 20-25 more hp in the upper rpm's. So in the end that would imply that the high-flow is killing about 30 rwhp or more whp at > 6k. Does this seem right? It seems high to me...
Thanks,
Matt
In the next week or two I am going to try to get my hands on a midpipe and retune the car. Afterwards I want to throw my high-flow on and see what power loss I'm seeing... I'd like to keep the cat if I can because I really don't like the smell or noise of a midpipe, but if their is a huge power difference, I might ditch it.
Just dyno'd my car last week. AFR's went to the 9's at more than 5k rpm's, using a tailpipe sniffer after the cat - so it's actually reading leaner than it really is! I have a lrage street ported motor, running 850's/1600's, and everything to support it. Engine is new with 1300 miles on it and the car is running great.
At 15 psi it only made 340 whp with a new SMB metallic high-flow cat (flows very well for a cat). I have seen other curves with a similar turbo (mine is a derivative of a GT40) and it made 390-410 whp with a midpipe at 15 psi. I figure that getting my AFR's back up will get me maybe 20-25 more hp in the upper rpm's. So in the end that would imply that the high-flow is killing about 30 rwhp or more whp at > 6k. Does this seem right? It seems high to me...
Thanks,
Matt
12-03-05, 05:55 PM
#3
Weird Cat Man
If your Air / fuels are really at 9 after the cat, you are losing a TON of power from that
The RX-7's ignition system doesn't work real well when you go under 10.
The RX-7's ignition system doesn't work real well when you go under 10.
12-03-05, 06:44 PM
#4
In the rpm range from 6,xxx rpms to 7,xxx rpms it appears you are having some ignition break up and as you noted you are also very rich. You could gain an roughly 10-20rwhp by leaning it out to 10.8 or so.
The horsepower curve at that area should have the shape of a crown (arc like). The bigger the port the further the peak of the crown shifts toward the higher rpms. I believe a stock ported engine peaks around 6,800 rpms.
A couple of years ago I switched from a high flow cat to a midpipe on stock twins. I dynoed each configuration within a month, the AFRS were close but the horspower gain was only about 10.
If you search the 3rd gen section there is a thread where a midpipe and high flow were dynoed, I know that test resulted in a much higher gain, possible 30-50 rwhp.
The horsepower curve at that area should have the shape of a crown (arc like). The bigger the port the further the peak of the crown shifts toward the higher rpms. I believe a stock ported engine peaks around 6,800 rpms.
A couple of years ago I switched from a high flow cat to a midpipe on stock twins. I dynoed each configuration within a month, the AFRS were close but the horspower gain was only about 10.
If you search the 3rd gen section there is a thread where a midpipe and high flow were dynoed, I know that test resulted in a much higher gain, possible 30-50 rwhp.
12-03-05, 06:46 PM
#5
Rotary Enthusiast
Join Date: Feb 2001
Location: In the Sky
Posts: 1,190
Likes: 0
Received 0 Likes
on
0 Posts
1. ditch the hi flo cat for a straight through pipe
2. get the A/F's stable around 11.0-11.5's
3. throw some timing at it
A/F's in the 9's is wayyyy to rich!
good luck!
2. get the A/F's stable around 11.0-11.5's
3. throw some timing at it
A/F's in the 9's is wayyyy to rich!
good luck!
12-04-05, 04:46 PM
#7
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
I made 360 at 15psi with a metal substrate cat, Blowzilla (aka GT35R compressor with a 1.00 divided hotside/s-trim wheel and a large street port. I was disappointed to say the least. Afrs were 11.3 all the way across. Timing at 15psi was 15L with 11 deg split. I had ignition breakup starting at about 6,900, so that may have been a limiting factor to some degree.
Your numbers are consistent with my experience.
Your numbers are consistent with my experience.
Trending Topics
12-04-05, 07:48 PM
#8
Originally Posted by CCarlisi
I made 360 at 15psi with a metal substrate cat, Blowzilla (aka GT35R compressor with a 1.00 divided hotside/s-trim wheel and a large street port. I was disappointed to say the least. Afrs were 11.3 all the way across. Timing at 15psi was 15L with 11 deg split. I had ignition breakup starting at about 6,900, so that may have been a limiting factor to some degree.
Your numbers are consistent with my experience.
Your numbers are consistent with my experience.
at what rpm was the 15L and what was the leading at 5,200 rpms?
thanks
12-04-05, 09:08 PM
#9
Originally Posted by CCarlisi
I made 360 at 15psi with a metal substrate cat, Blowzilla (aka GT35R compressor with a 1.00 divided hotside/s-trim wheel and a large street port. I was disappointed to say the least. Afrs were 11.3 all the way across. Timing at 15psi was 15L with 11 deg split. I had ignition breakup starting at about 6,900, so that may have been a limiting factor to some degree.
Your numbers are consistent with my experience.
Your numbers are consistent with my experience.
06-16-06, 08:27 PM
#11
Many things happened between now and then, the car now puts down 395 whp with a midpipe and gt4088 turbo with a .94 (slighly smaller because it was ground down some) hotside.
But... With just changing the midpipe and a retune, the car made 383 rwhp. The cat was actually dead (only 2k miles). The honycomb was all broken up inside when I removed it.
But... With just changing the midpipe and a retune, the car made 383 rwhp. The cat was actually dead (only 2k miles). The honycomb was all broken up inside when I removed it.
06-17-06, 03:38 PM
#13
I don't have the dyno sheet from the 395 whp pull. The response of the 4088 is pretty good IMO, but I have a < 0.94 hotside on it. So I gave up top end to get a better midrange. I see full boost (15-16 psi) by 4000 - 4200 rpms depending on gearing.
06-18-06, 01:18 PM
#16
Originally Posted by moehler
I don't have the dyno sheet from the 395 whp pull. The response of the 4088 is pretty good IMO, but I have a < 0.94 hotside on it. So I gave up top end to get a better midrange. I see full boost (15-16 psi) by 4000 - 4200 rpms depending on gearing.
06-19-06, 07:54 AM
#17
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by moehler
Many things happened between now and then, the car now puts down 395 whp with a midpipe and gt4088 turbo with a .94 (slighly smaller because it was ground down some) hotside.
But... With just changing the midpipe and a retune, the car made 383 rwhp. The cat was actually dead (only 2k miles). The honycomb was all broken up inside when I removed it.
But... With just changing the midpipe and a retune, the car made 383 rwhp. The cat was actually dead (only 2k miles). The honycomb was all broken up inside when I removed it.
06-19-06, 07:17 PM
#18
Originally Posted by Asleep
For 4000-4200 full boost I would guess that is in 3rd gear for that turbo?
Originally Posted by GoodfellaFD3S
yup. same thing happened to ccarlisi's cat. clogged and dead after minimal miles. i don't think those things are suitable for our cars.
