Single Turbo RX-7's Questions about all aspects of single turbo setups.

Garrett GT35 (not R)

Thread Tools

Search this Thread

Old 09-17-04 | 12:40 AM
  #1
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Question Garrett GT35 (not R)

Is anyone using the GT35?

I am looking at getting this turbo(GT35) with these specs:
Compressor: 76mm Wheel Dia.
56 Wheel Trim
.50 or .60 A/R ratio (not sure)
Trubine:
68mm Wheel Dia.
84 Wheel Trim
1.18 A/R ratio

I am using stock ports and hope for 400+ hp at 15-16 psi on pump gas(91 octane)

Looking for quick/decent spool and more lower end power rather than a lot at the top end.

Was told this would cap off around 7000 rpm (which I am fine with)

I have done a bunch of searching this past week and have found very little on this turbo, everyone is using the GT35R.

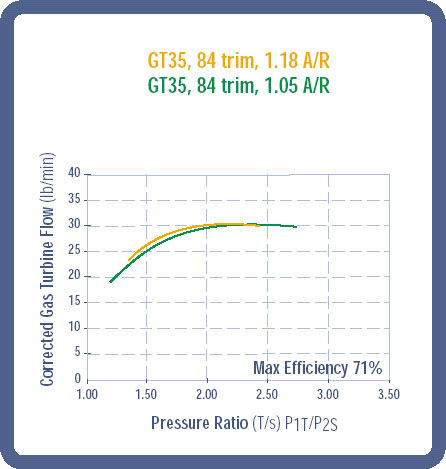

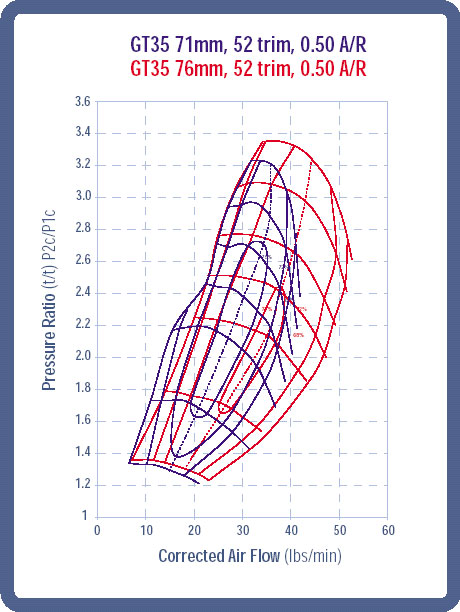

Here are the Maps:
Attached Thumbnails Garrett GT35 (not R)-gt35_compressor.jpg   Garrett GT35 (not R)-gt35_turbine.jpg

Last edited by SyderJL; 09-17-04 at 12:51 AM.
Old 09-17-04 | 01:05 AM
  #2
RXciting's Avatar
GrapefruitRacing?


Joined: Apr 2003
Posts: 2,155
Likes: 0
From: PartSource
from what i was told the R just means it uses ballbearing.. quicker spool.. but then again i could be miss-informed
Old 09-17-04 | 01:17 AM
  #3
1FooknTiteFD's Avatar
Ghost Ride the Whip

Joined: Mar 2001
Posts: 1,467
Likes: 1
From: Foster City, CA
I thought that all GT series turbos from garrett were ball bearing no? someone correct me if i'm wrong
Old 09-17-04 | 02:18 AM
  #4
CCarlisi's Avatar
Rebreaking things

Joined: Jun 2001
Posts: 2,586
Likes: 0
From: 1 foot in Boston 1 in NJ
No. All ball bearing Garrett turbos come with R compressors, but you can also get an R compressor with a plain bearing center section (meaning all GTXXR compressors do not necessarily come with ball bearing center sections).
Old 09-17-04 | 10:01 AM
  #5
Zero R's Avatar
Just in time to die
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 1
From: look behind you
What type of porting are you planning on running? 1.18 A/R is not what I would call quick spool with less emphasis on top end.
Old 09-17-04 | 02:04 PM
  #6
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Originally Posted by Zero R
What type of porting are you planning on running? 1.18 A/R is not what I would call quick spool with less emphasis on top end.
I am using the stock ports for now.

What A/R should I be looking for??

I have also been considering the "Blowzilla" a T4/GT40 with .70 A/R with a 61mm inducer or the "Big Kahuna" a T4/T04R with .70 A/R and 66.5mm inducer both have the optional turbine housing trim wheels just not sure which wheel trim to use though O,P, or Q.

I was told by my tuner (Ralph Friend from Ground Zero in OR) to use the GT35 for what I want after he called around. He normally knows what he is talking about when it comes to turbos and rotaries becuase he has tuned so many, I just thought I would check here too and see what you guys think and get a second opinion

Keep the comments coming and thanks for the help so far.

Justus
Old 09-17-04 | 02:32 PM
  #7
Zero R's Avatar
Just in time to die
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 1
From: look behind you
I know Ralph very well. I would say on stock ports stay closer to a 1.0, much bigger than that and you will be losing response.
Old 09-17-04 | 03:51 PM
  #8
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Thanks Zero R, yeah Ralph is a good guy. So what turbo do you think fits my criteria??
The GT35 comes with the option of a 1.08 A/R would that be better, or would one of the other turbos I mentioned (T4/GT40 or T4/T04R) be better?

Thanks for the input it is much appreciated

Justus
Old 09-17-04 | 04:42 PM
  #9
Zero R's Avatar
Just in time to die
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 1
From: look behind you
If your not wanting the R than a standard GT35 would work with the 1.08 not super responsive but it will work. Still a little large for stock ports non-BB. I would say .9? would work well for street and stock ports.
Old 09-17-04 | 04:49 PM
  #10
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Thanks for the comments Zero R, its not that I don't want the R its just the $$ thing . . . .
So it looks like the A/R from the turbos from Chepaturbos.com will be too low (.70 A/R)

Thanks again,

Justus
Old 09-17-04 | 07:54 PM
  #11
Zero R's Avatar
Just in time to die
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 1
From: look behind you
Wrong you are reading the A/R on the comp.
.70A/R comp is fine.
I wouldn't go much over 1.0 on the turbine if your looking for decent spool.
Old 09-17-04 | 08:03 PM
  #12
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Ohh I see, so how do I know the A/R on the compressor for those turbos(Is it determined by the wheel trim)?
Also what is the lowest I want to go with the A/R? I would like to be making power until 7K rpm.
Thanks for the help Zero R

Justus
Old 09-18-04 | 03:22 AM
  #13
LT1-7's Avatar
John

Joined: Mar 2001
Posts: 1,393
Likes: 0
From: Oregon
Zero R, what turbine wheels should Justus use? From talking to him, it seems he wants something with very good low end for the streets. His goal is 400rwhp which isn't much. I was telling him he probably needs P trim w/ an A/R right around .96 to 1.0.
Old 09-18-04 | 05:19 PM
  #14
Zero R's Avatar
Just in time to die
iTrader: (1)

Joined: Nov 2001
Posts: 4,143
Likes: 1
From: look behind you
That sounds about right to me, he would get pretty good response and still make the power he wants, without having to run too high a boost level.
Old 09-19-04 | 10:40 PM
  #15
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Hey Zero R, just wanted to say thanks for the help, looks like I am heading in the right direction now.

Justus
Old 09-19-04 | 11:00 PM
  #16
Xcessive's Avatar
Senior Member

Joined: Mar 2001
Posts: 287
Likes: 0
From: aloha,OR.Usa
Hi Sean
Maybe you have available some diiferent ar/s for the GT35, precision turbo is limited to what
they offer for justus. Ralph
Old 09-19-04 | 11:58 PM
  #17
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Hey Ralph, I looked up Garrett's catalog and they have a turbine option that Precision Turbo doesn't show, its a 1.05 A/R on the trubine with the 76mm dia. wheel on the compressor that is shown by Precision Turbo.

Justus
Old 10-28-04 | 03:31 AM
  #18
LT1-7's Avatar
John

Joined: Mar 2001
Posts: 1,393
Likes: 0
From: Oregon
Looks like Garrett sells a GT35R with a 1.08 a/r for a decent price

Precision sells the PT61 with a .96 a/r that's pretty cheap too

The T4/GT40 is an awesome deal I would say. Not too many people have tried it on a rotary either so you'll be one of the first
Old 10-29-04 | 02:34 AM
  #19
SyderJL's Avatar
Thread Starter
EMPEROR

Joined: Nov 2002
Posts: 561
Likes: 0
From: Aumsville, OR
Hey John, thanks for the post.
Where are you finding the prices for the turbos?
I went to percisonturbo.net and didn't find any prices.
Are you looking at a different site?
I found the PT61 but the largest A/R listed was .86

BTW when are you pulling James engine?? I would love to help

Justus
Old 10-29-04 | 04:09 AM
  #20
LT1-7's Avatar
John

Joined: Mar 2001
Posts: 1,393
Likes: 0
From: Oregon
Originally Posted by SyderJL
Hey John, thanks for the post.
Where are you finding the prices for the turbos?
I went to percisonturbo.net and didn't find any prices.
Are you looking at a different site?
I found the PT61 but the largest A/R listed was .86

BTW when are you pulling James engine?? I would love to help

Justus
Talk to Ralph for pricing on Precision turbos, we just bought one for our project. He's in good with Precision and will get you the right a/r and everything for an awesome deal.

James' engine might stay in longer than we thought. Some business ideas just crossed my mind and we might need his engine to stay in place for another couple of weeks. The plan was to do it this coming sunday. Check your pm
