Drain line question

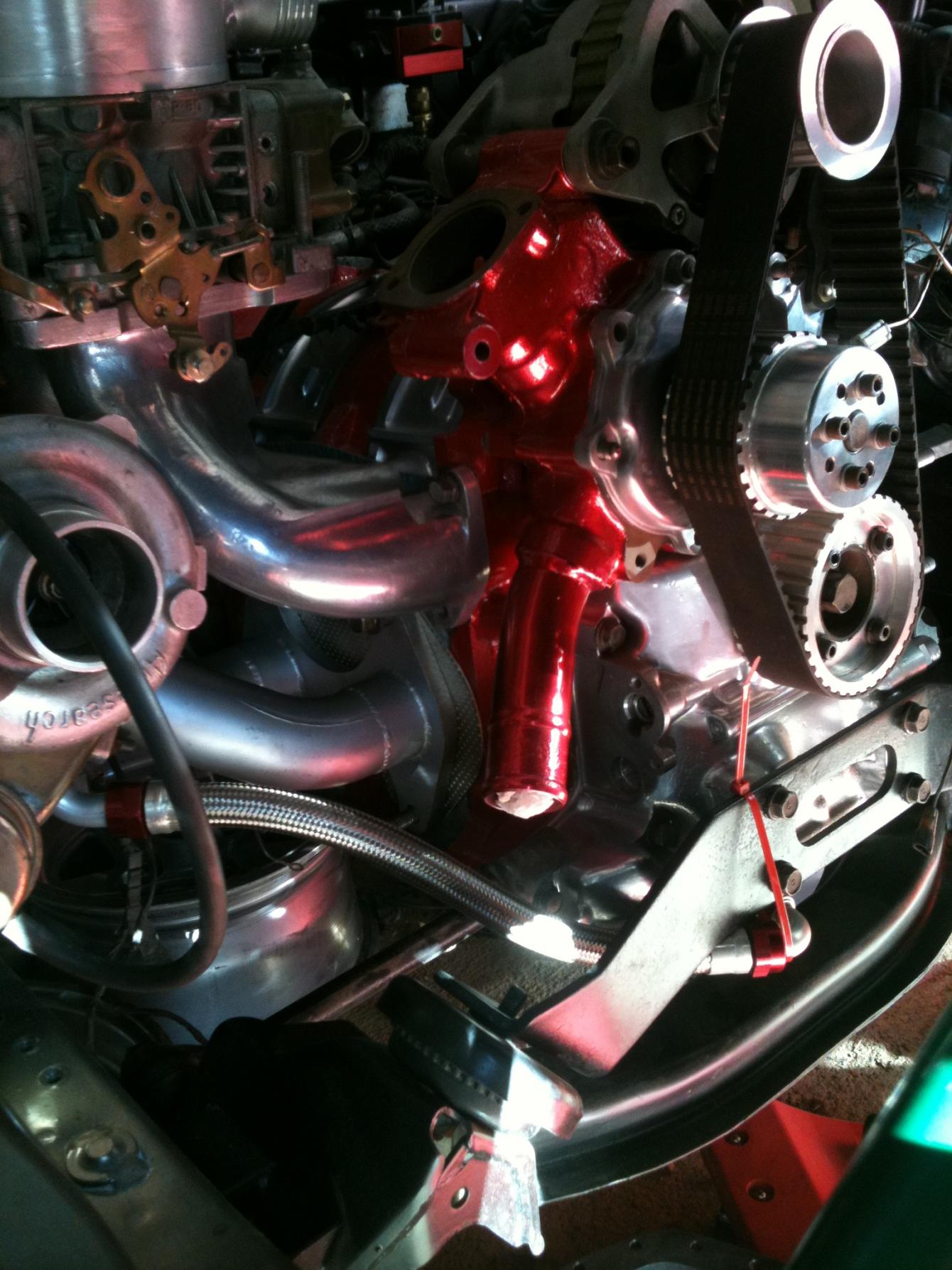

I've been mocking things up, and before I cut a hole in my Mazdaspeed oil pan, I wanted to know if my drain line has enough of a slope to operate properly? Thanks guys!

Attached Thumbnails

Reply Like

11-22-11, 04:17 PM

GoodfellaFD3S

Original Gangster/Rotary!

iTrader: (213)

Join Date: Mar 2001

Location: FL-->NJ/NYC again!

Posts: 30,570

Likes: 539

Received 554 Likes on 335 Posts

Eh, that's not exactly ideal. Is there a way you can get a better angle coming off the CHRA?

Reply Like

11-22-11, 07:02 PM

IRPerformance

Sponsor

iTrader: (41)

Join Date: Apr 2003

Location: NJ

Posts: 11,347

Likes: 75

Received 317 Likes on 190 Posts

You might get issues with oil backing up and smoking like that. Ideally you want the oil return as close to 6 o'clock as possible.

Reply Like

11-22-11, 09:37 PM

ported12at

Senior Member

Thread Starter

iTrader: (2)

Join Date: Nov 2007

Location: Augusta, Ga.

Posts: 356

Likes: 0

Received 0 Likes on 0 Posts

I've already rotated the housing to set the drain dead at 6:00 The drain line has angled fittings on it. Would I be better off going with a shorter line that has straight fittings?

Reply Like

11-23-11, 08:05 AM

IRPerformance

Sponsor

iTrader: (41)

Join Date: Apr 2003

Location: NJ

Posts: 11,347

Likes: 75

Received 317 Likes on 190 Posts

Yes. It looks like you have plenty of room to run a straight fitting off the turbo down before you bring it over to the oil return on the front cover.

Reply Like
