60-1 setup questions
just want to start of with saying that with this setup i would have all supporting mods.
PFC+ Commander
DP, MP, Cat back
RacePort or Streetport depending on if the 60-1 could flow a RacePort
Fuel pump (not sure on which yet)
850cc primaries 1600cc secondaries
Fluidyne radiator
Apexi intercooler core (custom V-mount setup)
Plus the obvious of removing air pump and what not.

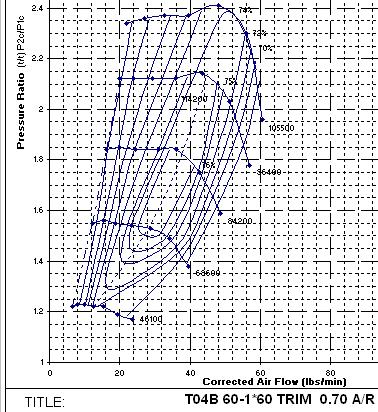

Ok i have a brand new Garret T04 60-1 with 70 a.r. upgraded compressor housing sitting on my floor right now. i was wondering if anyone out there has or had this turbo and could tell me exactly where it maxes out on power and boost. i kno it will b a quick spooling turbo but i would like somewhere around 400hp. just wanted to kno if this would b possible or should i seek other routes to reach my goal.
Josh,
PFC+ Commander
DP, MP, Cat back
RacePort or Streetport depending on if the 60-1 could flow a RacePort
Fuel pump (not sure on which yet)
850cc primaries 1600cc secondaries
Fluidyne radiator
Apexi intercooler core (custom V-mount setup)
Plus the obvious of removing air pump and what not.
Ok i have a brand new Garret T04 60-1 with 70 a.r. upgraded compressor housing sitting on my floor right now. i was wondering if anyone out there has or had this turbo and could tell me exactly where it maxes out on power and boost. i kno it will b a quick spooling turbo but i would like somewhere around 400hp. just wanted to kno if this would b possible or should i seek other routes to reach my goal.
Josh,
#4
Weird Cat Man
![](https://www.rx7club.com/images/misc/10_year_icon.png)
What wheel and A/R is on the exhaust? That turbo with a 1.00 and P trim wheel should get you around 375-425 rwhp at 14-17 PSI depending on how well it all turns out.
#6
Original Gangster/Rotary!
![](https://www.rx7club.com/images/ranks/veteran_army.png)
![](/images/misc/20_year_icon.png)
iTrader: (213)
Originally Posted by Get_SiDeWaYs
A/R on exhaust side is only .63. i kno its a bit small for a 13b. but like i said. its already in my posession and paid for.
Trending Topics
#8
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Aug 2006
Location: Hamilton Oh
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Hmmm in that case. well i would sure hate to have that thing go unused. wat u think i could sell it for? being brand new and all. now i guess its go big or go home. lol
#9
You can buy a new turbine housing. New they're around $325. There are guys swapping them around all the time so just keep an eye out for a used one. Might even find a piston guy that wants to trade down or just wants your housing.
If you're wanting top end power and you have a divided manifold try to find a 1.00. If the manifold is undivided then a .96 will work well. Just make sure what trim the wheel is so that you buy the appropriate housing. Most are P-trim but measure it to be sure.
We just built an FC with a 62-1. Made 411 on a Mustang dyno at 16psi on pump fuel. That's where we ran out of fuel. Peak power was at 7500rpm. The 62-1 held boost strong to peak power. If you're looking for 350-400whp find yourself a larger turbine housing and put it together. We're located just down the road in Louisville if you need any help.
If you're wanting top end power and you have a divided manifold try to find a 1.00. If the manifold is undivided then a .96 will work well. Just make sure what trim the wheel is so that you buy the appropriate housing. Most are P-trim but measure it to be sure.
We just built an FC with a 62-1. Made 411 on a Mustang dyno at 16psi on pump fuel. That's where we ran out of fuel. Peak power was at 7500rpm. The 62-1 held boost strong to peak power. If you're looking for 350-400whp find yourself a larger turbine housing and put it together. We're located just down the road in Louisville if you need any help.
#10
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Aug 2006
Location: Hamilton Oh
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Nice, sounds like a good plan. well of course this is all a plan in the making. have to figure out insurance probs b4 i go buying one of these bad boys!!! but thx for the help.
Happy rotoring!
Happy rotoring!
