PP side/center plate intake port filling?
11-19-05 | 06:18 PM
#1
Thread Starter
Where's the Meth
iTrader: (1)
Joined: Aug 2004
Posts: 274
Likes: 1
From: Nelson, New Zealand
PP side/center plate intake port filling?

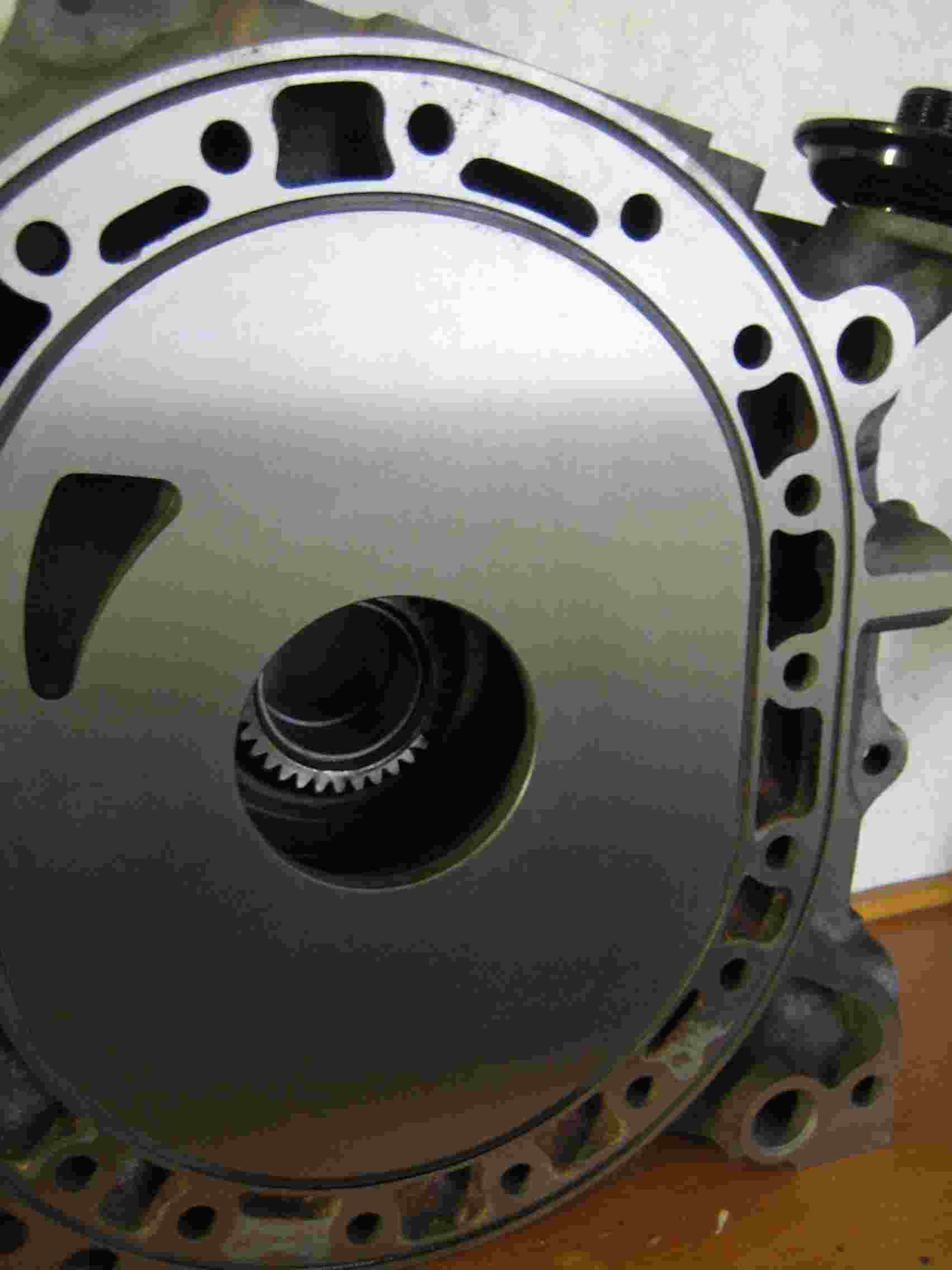

When preparing the side plates(housings) and center plate(housing) when building a PP engine, is it important to fill the original intake ports with devcon or similar, or can you leave them empty?
I have seen engines just using a blanking plate, what is the advantage of filling the ports? If the ports are empty, will a slight vacuum occur as the rotor passes over the ports? Or is it to reduce the likely-hood of unwanted air leaks on the intake stroke?
Or have I missed the mark altogether?
I have seen engines just using a blanking plate, what is the advantage of filling the ports? If the ports are empty, will a slight vacuum occur as the rotor passes over the ports? Or is it to reduce the likely-hood of unwanted air leaks on the intake stroke?
Or have I missed the mark altogether?
11-19-05 | 06:59 PM
#2
OBEY YOUR MAZDA
Joined: Oct 2002
Posts: 3,060
Likes: 2
From: Denmark
From what i have read on this forum and on nopistons.com, filling the intakeports creates less turbulence around the portarea.
There is a reason that even Mazda fills them, im in the process of making a PP motor and plan on filling them with Devcon aluminum thingie
There is a reason that even Mazda fills them, im in the process of making a PP motor and plan on filling them with Devcon aluminum thingie
11-19-05 | 10:36 PM
#4
Senior Member
Joined: Jan 2004
Posts: 341
Likes: 0
From: Colorado
The disadvantage of filling the ports is obviousely that the filler might break lose. It has happened before....
As a side note anyone knows if a PP with sideports has been attempted. I know about the cross or semi pp with smaller pp ports but haven't heard about anyone ever attemptiong a full PP with the sideports in parallel.
As a side note anyone knows if a PP with sideports has been attempted. I know about the cross or semi pp with smaller pp ports but haven't heard about anyone ever attemptiong a full PP with the sideports in parallel.
11-20-05 | 04:21 AM
#5
OBEY YOUR MAZDA
Joined: Oct 2002
Posts: 3,060
Likes: 2
From: Denmark
11-20-05 | 11:18 AM
#6
Senior Member
Joined: Jan 2004
Posts: 341
Likes: 0
From: Colorado
Originally Posted by Kim
You need to be a member to view this page and it is 30 pounds to join the fun!!!
Trending Topics
11-20-05 | 06:15 PM
#8
Lives on the Forum
Joined: Sep 2003
Posts: 5,707
Likes: 5
From: BC, Canada
I'd immagine that filling the side ports would give you a much better seal for the side seals and longer seal life. I can't see how a full PP motor could run with side ports too, it would be way too much port and if the motor would run, it would probably not make much power and run like crap.
11-20-05 | 06:58 PM
#9
Old [Sch|F]ool
Joined: May 2001
Posts: 12,637
Likes: 466
From: Cleveland, Ohio, USA
Originally Posted by Black91n/a
I'd immagine that filling the side ports would give you a much better seal for the side seals and longer seal life. I can't see how a full PP motor could run with side ports too, it would be way too much port and if the motor would run, it would probably not make much power and run like crap.
It is assumed that the side ports would be covered off at the ends if they were left unfilled.
And if you fill, you do NOT go NEAR the sealing surface of the housing, in case the stuff expands and the rotor starts chewing on it. RB recommends 1/8" from the surface. I went 1/4-1/2". No kill like overkill.
11-23-05 | 05:59 PM
#11
Some of the Aussies like to weld the side ports up and then have the housings resurfaced. As long as you are using a simlar material and are careful, that might be a nice way to do it.
