porting into oil seal track-voodoo?
#1
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
porting into oil seal track-voodoo?
I may be buying my friend's motor, which is going to be rebuilt. The rear housing will be replaced with a new piece and the front has less than 5000 miles on it. Dave at KD looked at the port work and said it's very good, but there is a small amount of oil seal path overlap. I wasn't sure what he was talking about at the time. He said it's nothing to worry about so I took his word for it. I've been doing some reading and now I'm not so sure I believe that.
What are the pros and cons to enlarging the port in this way? I use the car as a daily driver. I think I would benefit from longer motor life more than a slight power increase. Am I jepordizing reliability by going this route?
Dave mentioned that it will smoke a little if it sits idling for awhile, but won't when the car is moving. Does anybody have any personal experience with regard to this?
What are the pros and cons to enlarging the port in this way? I use the car as a daily driver. I think I would benefit from longer motor life more than a slight power increase. Am I jepordizing reliability by going this route?
Dave mentioned that it will smoke a little if it sits idling for awhile, but won't when the car is moving. Does anybody have any personal experience with regard to this?
#4
Full Member
Join Date: Oct 2002
Location: New Zealand
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
I've got a spare set of side plates sitting here that had been ported the same way as you described(little bit passed the oil seal track) but few people told me they're not useable??
I will see if I could get a hold of a camara and take some photos of the ports.
I will see if I could get a hold of a camara and take some photos of the ports.
#5
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
This is from Gmonsen
"It should not be a problem and it will sound great... Ed Kim's was like that."
Sinful7, I've love to see a pic of your ports. I will try to get one of the motor in question some time this month.
Like many other things this may be a matter of degrees.
"It should not be a problem and it will sound great... Ed Kim's was like that."
Sinful7, I've love to see a pic of your ports. I will try to get one of the motor in question some time this month.
Like many other things this may be a matter of degrees.
Last edited by CCarlisi; 07-01-03 at 11:36 AM.
#6
Full Member
Join Date: Oct 2002
Location: New Zealand
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
?? I upload a photo with a reply post, but I can't see my reply message?
I might try to upload to imagestation and then attach a link or something, just a minute.......
I might try to upload to imagestation and then attach a link or something, just a minute.......
Trending Topics
#12
We come with the Hardcore
iTrader: (2)
Join Date: Nov 2001
Location: Springfield, MO
Posts: 2,456
Likes: 0
Received 0 Likes
on
0 Posts
Very nice port-work... I'm just not so sure about those burns. If it were me, I'd actually pay the money to have the housings lapped, or hit them 600-800grit wet/dry.
#13
Full Member
Join Date: Oct 2002
Location: New Zealand
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Liquid Anarchy
You just messing around w/ that housing? Or are you planning to use it w/ the burns and all?
You just messing around w/ that housing? Or are you planning to use it w/ the burns and all?
Here is shot of the primary
Last edited by Sinful7; 07-02-03 at 08:04 AM.
#14
Full Member
Join Date: Oct 2002
Location: New Zealand
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Liquid Anarchy
Very nice port-work... I'm just not so sure about those burns. If it were me, I'd actually pay the money to have the housings lapped, or hit them 600-800grit wet/dry.
Very nice port-work... I'm just not so sure about those burns. If it were me, I'd actually pay the money to have the housings lapped, or hit them 600-800grit wet/dry.

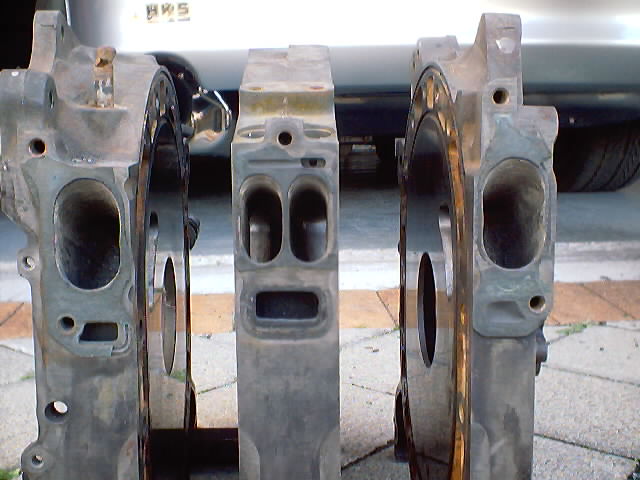

a shot of port runners
Last edited by Sinful7; 07-02-03 at 08:06 AM.
#16
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
What does all this have to do with porting into the oil seal track? =)
I spoke to Gordon Monsen about this last night. He said Ed Kim has a motor like this and it has held up fine. Does anybody know his email? I've tried searching but I can't search for "ed kim" because "ed" is 2 letters. I get nothing by searching for "edward kim" and way too much when searching for "kim."
I spoke to Gordon Monsen about this last night. He said Ed Kim has a motor like this and it has held up fine. Does anybody know his email? I've tried searching but I can't search for "ed kim" because "ed" is 2 letters. I get nothing by searching for "edward kim" and way too much when searching for "kim."
#17
Banned. I got OWNED!!!
Join Date: Sep 2002
Location: Saint Louis
Posts: 2,092
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Sinful7
The porting was a friend's handy work, I would like to hear some opinions on if they are usable.
a shot of port runners
The porting was a friend's handy work, I would like to hear some opinions on if they are usable.
a shot of port runners
#18
Full Member
Join Date: Oct 2002
Location: New Zealand
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Yea they looked quite bad might need some tidy up.
In one of the secondary port pic you can see clearly it's ported passed the oil seal track, are they ok to use for rebuild??
I know it's gonna smoke alot.
In one of the secondary port pic you can see clearly it's ported passed the oil seal track, are they ok to use for rebuild??
I know it's gonna smoke alot.
#19
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
I've done some more research on this subject. My conclusion is that porting into the outer oil seal track will accelerate wear on the oil seal AND the port may catch and break a compression seal. The performance gain from this style port when compared to a normal street port is minimal because the extra area of the port is covered by the rotor for a large portion of each revolution.
Below is a list of the people I spoke to about this and what they said. Enjoy!
Racing Beat (Chris Engine tech): "Uh Oh" (after I told him the housing I was planning on using had this characteristic) He went on to say it will shorten the life of the oil seals and can break the side(or maybe it was corner) seals.
Mazdatrix: (Jeff) It can catch and break the side seals. It should not be done under any circumstances. "It is not a grey area, if the housings have been ported in this far THROW THEM AWAY."
Mazdacomp (Tim): "Bad idea....It will increase wear on the oil seals and can catch and break the side seals."
Rice Racing (thread listed below): “For the very marginal gain in port opening area (less than 5%) That porting is VERY bad practice! It will result in excessive outer oil control ring wear due to excessive exposure to raw air fuel mixture. It will not provide any gain in flow due to port timing improvement as for a large majority of the time the extra area ported is covered by the rotor side...”
Judge Ito (thread listed below): The very first lesson a Rotary Engine builder learns about porting is: never port into the center of the side housings(no gain in power or anything else and exposure to the oil seal ring is no good.
https://www.rx7club.com/forum/showth...l&pagenumber=3
Below is a list of the people I spoke to about this and what they said. Enjoy!
Racing Beat (Chris Engine tech): "Uh Oh" (after I told him the housing I was planning on using had this characteristic) He went on to say it will shorten the life of the oil seals and can break the side(or maybe it was corner) seals.
Mazdatrix: (Jeff) It can catch and break the side seals. It should not be done under any circumstances. "It is not a grey area, if the housings have been ported in this far THROW THEM AWAY."
Mazdacomp (Tim): "Bad idea....It will increase wear on the oil seals and can catch and break the side seals."
Rice Racing (thread listed below): “For the very marginal gain in port opening area (less than 5%) That porting is VERY bad practice! It will result in excessive outer oil control ring wear due to excessive exposure to raw air fuel mixture. It will not provide any gain in flow due to port timing improvement as for a large majority of the time the extra area ported is covered by the rotor side...”
Judge Ito (thread listed below): The very first lesson a Rotary Engine builder learns about porting is: never port into the center of the side housings(no gain in power or anything else and exposure to the oil seal ring is no good.
https://www.rx7club.com/forum/showth...l&pagenumber=3
Last edited by CCarlisi; 07-02-03 at 06:53 PM.
#20
Senior Member
iTrader: (4)
port
Hi, i have motor bridge port with this trouble.
All morning i start is burn oil ( a lot of smoke 3 minute about ) same trouble if i stop the motor for 2 hour or more ( but less smoke one minute ).
One morning i remove the lower intake and i notice oil in this section oil from rotor seal.
Never put this hausing plate in your motor.
Thanks
All morning i start is burn oil ( a lot of smoke 3 minute about ) same trouble if i stop the motor for 2 hour or more ( but less smoke one minute ).
One morning i remove the lower intake and i notice oil in this section oil from rotor seal.
Never put this hausing plate in your motor.
Thanks
