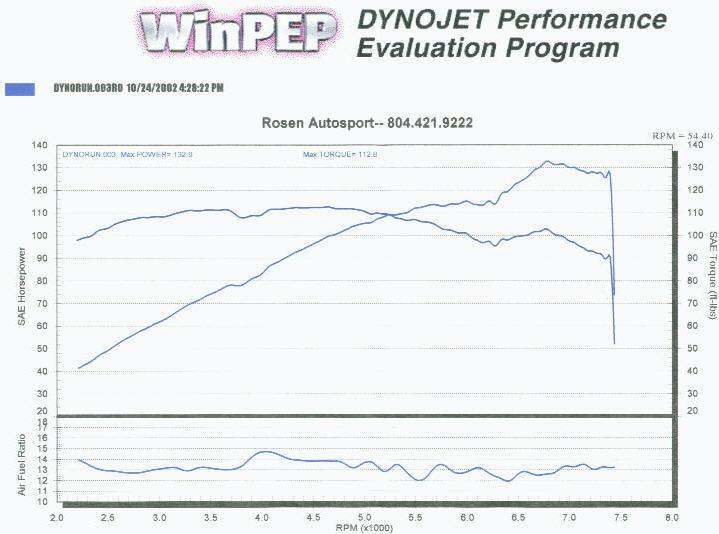

Corrected- Power: 132.9 Torque: 112.8



I've been waiting for your results and I must say that Is pretty low based on your mods. I thought for sure you would be In the 145-155 range.



NA?&nbsp There seems to be something funny happening at 6k-6.5k RPM or so - 6 ports working okay?


-Ted



I know the 6 ports are opening all the way up, because I put a wire tie on the actuator and it moved to the top. I don't know when they are opening up. Maybe I should go for RPM activation?



Check out my thread Fully Blown Electric Auxilliary setup In the 2nd gen Forum.



There seems to be a pattern forming. Everyone who dyno's there n/a thinks it should put out more power than it does. (Including myself). However, very soon I will have some secret "Pineapple Juice" (Kinda like Rikkis secret sauce, but made by Rob) that will allow me to break the 200rwhp mark! Then I will put the smack down on every n/a Rx-7 out there!! All of you will bow down at my feet, saying "Impressive, is CJs car!" Ahh, yes....the day is near!

CJ

(This is what happens to me when I get less than 2hrs of sleep for a couple days in a row.)



pp13bnos///Can we get a list of your mods that puts you In the near or over 200rwp barrier?



If you go to the first page, 3rd reply down, of this thread, I've given a basic run down of what I have that put me at 167rwhp. Actually, that was when i had working 6 ports. Now, i've removed all the different rods associated with the 6 port system. So i should be at the 170+ area now. I've often thought about having it dyno'd with a open exaust. (header only). Just to see how much hp is lost.

What i would realy like to do, is put a single exaust on my car then have it dyno'd again. This way I could put an end to the dual vs single debate. (I think that dual true duel flows better) Much like Von has to the race pipe vs header debate.

I should have the P.J. project finished within 2 months or so. Then maybe after that, some nitrous to put the smack down on some 3rd gen owners!

CJ



Hey Zach, give us a list of mods, would ya? CJ



I guess you displayed your mods earlier. I overlooked It since we've reached 4 pgs now! Glad to hear you looking Into Nitrous since I am too. Will keep you dudes posted.



mods: http://www.zaxjax.com/87Mazda.htm



I'm bringing up the dead.
Where is everyone now? Promised 200rwhp from CJ? I know I'm still the same. I spent too much money on beer and pizza last semester.

Zach: Still 137



Looking at the A/F curve it's a bit lean at 4k rpm and a little to rich at 5.5k and 6.4k rpm. The A/F curve at 6.4k rpm is around 12:1 which is way to rich for a NA motor.
NA motors like to be in the 12.8 to 13.5:1 A/F range depending on port and ignition timing. Shoot for 13.2:1 as a starting point.

crispeed
87 RX-7 TII
9.204@150.47mph
2600lbs
un-tubbed

Travieso Racing
73 RX-3
10.57@124.97mph
2190lbs
un-tubbed
13B PP--- All Motor
traviesoracing.com



I think each car is different when it comes to a/f ratios. My car made peak power at a extemely lean 14.25 to 1.

As far as the 200rwhp mark, I'm %100 positive no one will make much more than 180ish rwhp with the stock airflow meter/ecu, without any nitrous. Even thats on a dyno jet, not a mustang, wich I like to use. On a mustang, I doubt anyone will be much over 170rwhp. I recently had my FC dyno'd again, and posted about it. I can dig it up, if somone wants.

As far as the nitrous, its been completed and ran a couple bottles through the car. At first, I was running a 75 shot with some detination. So backed the timing down about 6 degrees (3 more than what i thought was safe.), and still got some ping. Threw in some B10EGV spark plugs (I usually use 9s in L and T.) and was still getting some ping around 7,500+. I said hell with it, threw some B11EGVs in it, and It ran great. But it would start to foul the plugs out when it was cold, and when I did alot of stop and go driving. So I backed the 75 shot down to a 50 shot, and run the B10s. All seems well now. BTW, I was using 93 ocatane. Future plans are to put it back on the dyno with a wide ban, and run a 150shot. Rob@Pineapple says the motor should hold a 200 shot if I have the fuel to go with it. I don't know If i need that much power for my daily driver or not. But it would be fun to take to the track.

CJ



Here is a link to some figures from my 13bp NA

http://www.mazdarotary.net/melbccr_dyno_day.htm

Cheers, twister

Mine is the red & Silver RX7 - 230hp (actually down from previous runs)



Lets see if the forum is accepting uploads today.



This is a dyno of my peripheral engine a long time ago. The numbers are not exact. I had two tachs in my pu at the time. (3 counting the stock one.) One was the SDS efi system, and the 2nd was an autometer 11k rpm one. Bolth said i was spinning the motor to 10k on the lower runs, and 11k rpms on the higher run. For some reason the dyno did'nt agree. Everyone that did the dyno day had the same problem as me. This just did'nt happen to me and the club once, but two different dyno days, a year apart. So, I guess we'll never know the exact numbers....but these are pretty close. CJ



Maybe an AFC would help out. Thanks. Love the vids of your car btw. Damn thats fast!

Nice PP runs CJ. I'm surprised the power isn't up higher in RPMs. Seems like its right because the HP & TQ lines cross around 5252 (+-500rpm ).



Got to get a GOOD exhaust! Header and a good flowing muffler IS a MUST! Got to get that gas and air in and out as fast as possible. That makes power!



if rwhp is 180, what would your hp be @ the flywheel?
(just needed to know approx. how much hp is lost from the flywheel to the wheels of an n/a).

also just picked up a complete 90 n/a. Will be doing a complete conversion in a 1st gen gslse.
project plans are: (stock 160fwhp 140torque)

- extrude honing(not streetporting) intake manifold and motor intake/exhaust ports
- pineapple racing 6port racing sleeves
- slightly bored out throttle body
- apex cone airfilter
- se fuel injectors
- rb header (2to1) into a 2 1/2" exhaust with a bonez hiflo cat
- lightweight underdrive pullies
- wolf engine management

anyone have any thoughts about potential hp/torque #'s both fwhp and rwhp w/ this project? thanx, this is just something I've been wanting to put together for a speedy 1st gen n/a roadster.



that you have a legit chance at 200 rwhp if not more. so that works out to be what? uhhh 235-240 ish flywheel. I wanna try the wolf too.
sounds like an awesome paackage.

GSL-SE (drewl)



Be careful with the wolf!
For racing over here we find that the Motec or Microtech is the bext way to go for sure!
