This question is for anyone that is using the Banzai adapter with an FC.
Can anyone post pictures of where they put their map sensor in their engine bay and where they ran the vacuum line from the map sensor?
Can anyone post pictures of where they put their map sensor in their engine bay and where they ran the vacuum line from the map sensor?
#2
![](https://www.rx7club.com/attachments/power-fc-forum-47/333617d1235971179-pics-map-sensor-set-up-banzai-adapter-map_sensor.jpg)

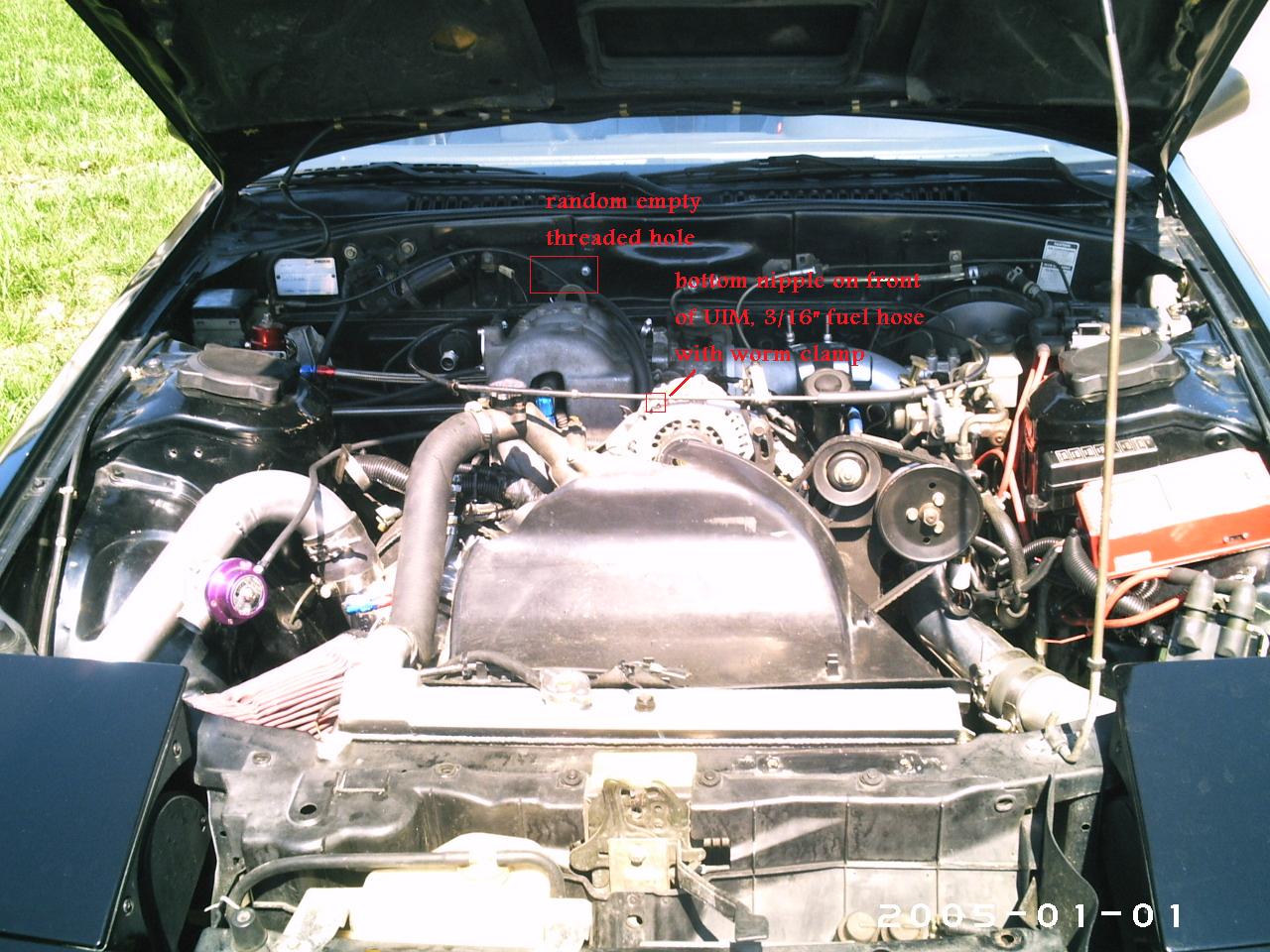

I don't know what was originally there, but I think it was an M8 bolt hole on the firewall. I just bolted the MAP sensor to that with one bolt and tightened it pretty good. The MAP sensor has a barb on it that makes 3/16" fuel hose fit very very tightly. I ran that to the bottom nipple on the front of the UIM. I have been told this is a good vacuum source, presumably because it gets vacuum from both rotors as opposed to just bleeding off one runner like that small nipple on the side by the ACV. To keep that hose secure on the UIM I had to use a worm clamp, basically the smallest you can find. It's pretty damn difficult to install there with the UIM still on.
That setup though never had any problems with leaks or blowing off up to 21psi. You do NOT want this blowing off!
