Power FC PFC & CAS..who gets what from who?!?
#1
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
PFC & CAS..who gets what from who?!?
Okay, I've narrowed my no start issue down. My question is this though.
I install a known corrupt/bad pfc in my car and I can see the tach bounce and car will fire right up. Even w/the screwed up MAP sensor readings.
Okay so now I remove that unit and install a known properly working unit in my car (All "applicable" sensor readings are in spec), and I can't get no signal from the CAS. Tach stays dead @ 0 rpm. no fuel no nothing, just cranks.
Ok so Riddle me that please.
Going to pull the harness for the nth time tommorow and trace the CAS wiring. This is a single turbo harness too btw. Not one that I stripped down
Also I have rewired stand alone fuel pump.
Is it possible for the PFC to short power to the CAS if lets say one was to remove the fuel pump relay or something? The PFC see's an open circuit in the fuel pump operation
I install a known corrupt/bad pfc in my car and I can see the tach bounce and car will fire right up. Even w/the screwed up MAP sensor readings.
Okay so now I remove that unit and install a known properly working unit in my car (All "applicable" sensor readings are in spec), and I can't get no signal from the CAS. Tach stays dead @ 0 rpm. no fuel no nothing, just cranks.
Ok so Riddle me that please.
Going to pull the harness for the nth time tommorow and trace the CAS wiring. This is a single turbo harness too btw. Not one that I stripped down
Also I have rewired stand alone fuel pump.
Is it possible for the PFC to short power to the CAS if lets say one was to remove the fuel pump relay or something? The PFC see's an open circuit in the fuel pump operation
#2
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Need someone to answer me this quick question. Shouldn't I get the same ground mV reading on both CAS connectors since they both share the same ground wire?
On G i get 1.8mV the NE reads nothing
Both are getting a + signal of .378 V from ECU w/key on
Need some input here thanks
On G i get 1.8mV the NE reads nothing
Both are getting a + signal of .378 V from ECU w/key on
Need some input here thanks
#3

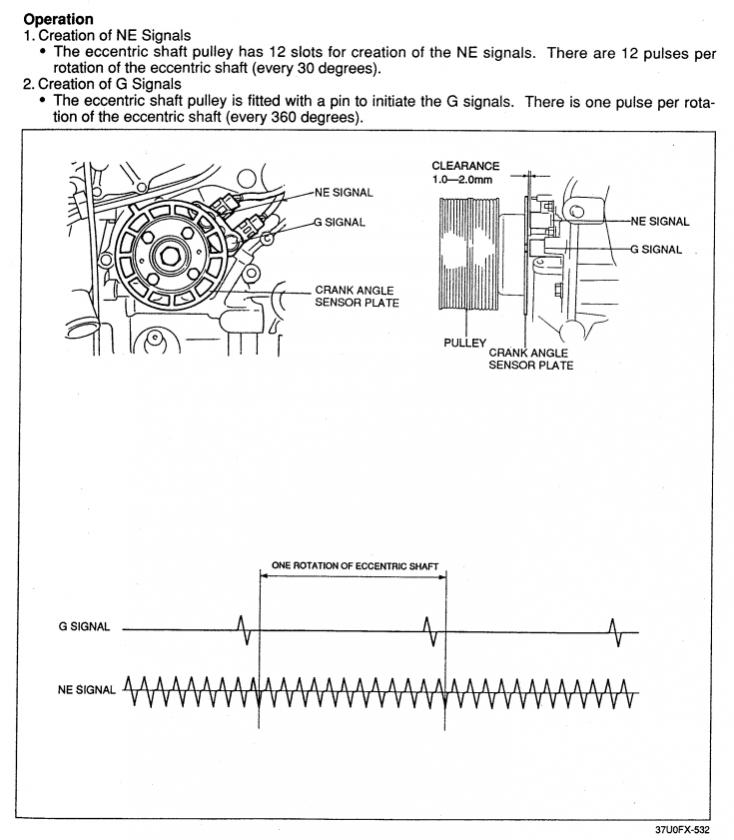

the crank angle sensors produce an AC waveform...
The wiring has a ground and shield wire... some wires are in parallel

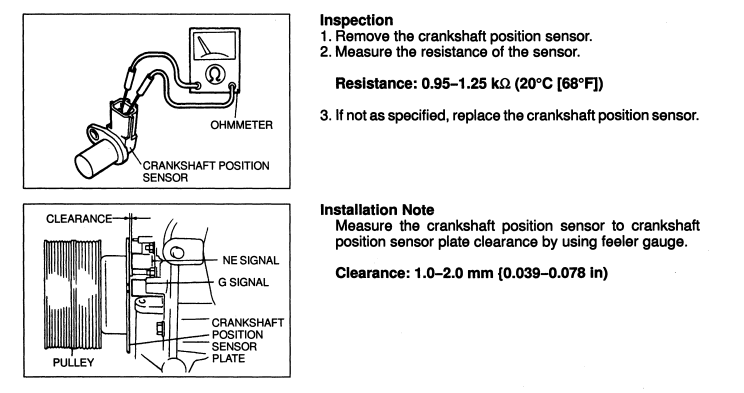

resistance and airgap need to be in spec:
this is why I don't unwrap harnesses. I might cut some unnecessary plugs but you really don't want to mess with shielded wire.
The wiring has a ground and shield wire... some wires are in parallel
resistance and airgap need to be in spec:
this is why I don't unwrap harnesses. I might cut some unnecessary plugs but you really don't want to mess with shielded wire.
#5

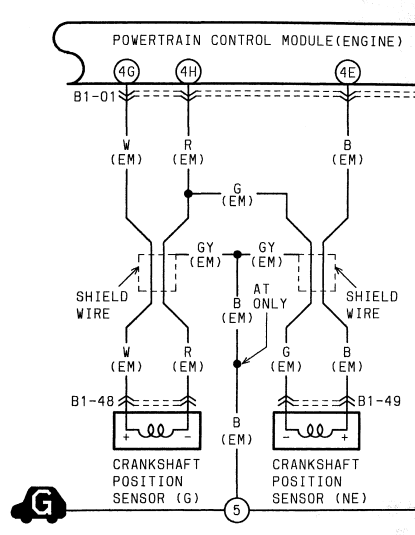

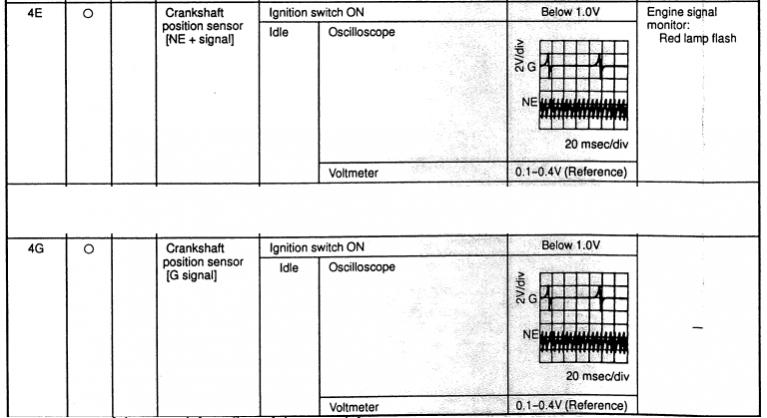

If you are referring to the "+" side of the sensors as shown in the diagram above, it is the white wire for the G sensor and the black wire for the Ne sensor. It's in the diagram. You can find which pin goes with which wire by checking out the diagrams for the plugs, which can also be found in the wiring diagrams document:
If somebody started messing with the grounds or the shielding in the harness that could be the source of your problems
If somebody started messing with the grounds or the shielding in the harness that could be the source of your problems
#6
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
yeah but see my issue is this. I cant go by that diagram as I have different color wires coming from the back of the connector. thats y I asked about the orientation from looking above.

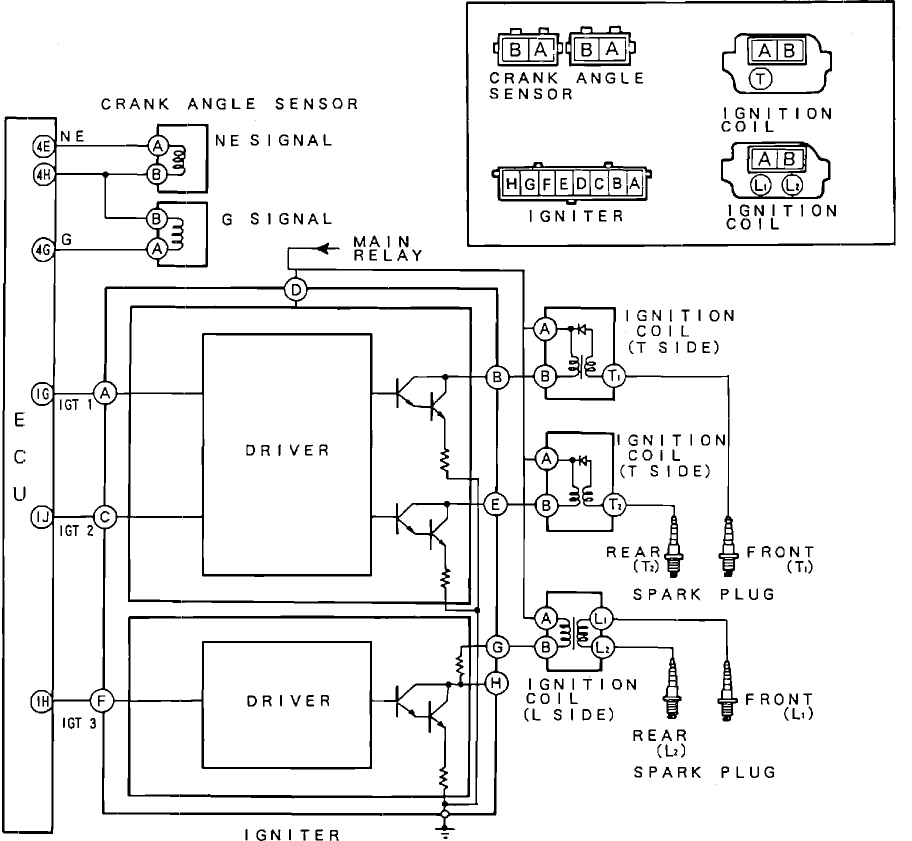

I found a diagram though but is this correct?
A being the + and B being the - signal back to ecu
I found a diagram though but is this correct?
A being the + and B being the - signal back to ecu
Trending Topics
#8
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Yeah it makes sense now, well anyway I checked for continuity and evrything matched up perfectly. I checked the clearance and I have 4mm of clearance betwwen the crankshaft plate and CAS...So I'm definately thinking thats my problem here
#9
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
o well Im over it...
Checked clearance w/feeler gauge and it was within spec
Checked for continuity and everything is matching and flowing
Voltage checked fine
Plug up bad pfc car gets signal and starts up...
Plug in good pfc no tach jump, no signal, no nothing...
I give up....going to source an unmolested harness
Checked clearance w/feeler gauge and it was within spec
Checked for continuity and everything is matching and flowing
Voltage checked fine
Plug up bad pfc car gets signal and starts up...
Plug in good pfc no tach jump, no signal, no nothing...
I give up....going to source an unmolested harness
#12
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Well its worth a try I guess while Im at it I can add some ground points as it stands right now I only have one in the engine bay and the other two by the ecu.
Also would it hurt to try and also ground the shield wire to the chassis?
Dont think I mentioned it here but when it does start w/the bad PFC it has a steady idle but you can hear alot of popping & missing from the timing
Also would it hurt to try and also ground the shield wire to the chassis?
Dont think I mentioned it here but when it does start w/the bad PFC it has a steady idle but you can hear alot of popping & missing from the timing
#16
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Oh yeah so yesterday I found & fixed abviously what was wrong as you can see from the pic below.
Those are the G & B wires coming from the CAS (NE) connector.
Cool everythings hooked back up properly now (check & recheck) so I go to start her and still nothing and now it will not even start w/the bad PFC)
Will report back once I have acquired an "UNMOLESTED!" harness...let this also be a lesson to all...Be very careful with these so called "Single turbo harnesses" lurking around the forums. So far I'm 0 for 2 on them
Those are the G & B wires coming from the CAS (NE) connector.
Cool everythings hooked back up properly now (check & recheck) so I go to start her and still nothing and now it will not even start w/the bad PFC)
Will report back once I have acquired an "UNMOLESTED!" harness...let this also be a lesson to all...Be very careful with these so called "Single turbo harnesses" lurking around the forums. So far I'm 0 for 2 on them
#17
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Okay by chance anbody know what this connector goes to? it loooks like some kind of aftermarket knock sensor but I have left it hanging ever since I had this harness
Hmmmmm...?!?!?!?!?
Hmmmmm...?!?!?!?!?
#20
ReDux
Thread Starter
iTrader: (16)
Join Date: Apr 2005
Location: Woodbridge, VA
Posts: 334
Likes: 0
Received 0 Likes
on
0 Posts
Update
So 1 engine, 3 harnesses (two bad), 3 Apexi Pfc's (only 1 bad), 2 fuel pumps (1 fried), and a host of other misc components She finally f&*cking starts and drives and everything is in sync
Damn is she responsive..
So basically a corrupt pfc + POS stripped harness = Car starts but runs like ****...Mix into that equation either a proper harness or pfc and you get nothing.
Please to all be very leary of these so called "single turbo harnesses and apexi untis" floating around. This has been a very costly lesson and unfortunate experience for me, but my car runs beautifully now and I'm jus ready to move on
Damn is she responsive..
So basically a corrupt pfc + POS stripped harness = Car starts but runs like ****...Mix into that equation either a proper harness or pfc and you get nothing.
Please to all be very leary of these so called "single turbo harnesses and apexi untis" floating around. This has been a very costly lesson and unfortunate experience for me, but my car runs beautifully now and I'm jus ready to move on
