Power FC help, need a map for 3574R / 1600 inj
#1
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
help, need a map for 3574R / 1600 inj
I am in need of a base map to get my car running. I have been searching around quite a bit and have not come up with much. I have a used PFC and datalogit, no competent tuners in the area and would really like to get this running. Here is a list of my setup and a link to my build thread (which I need to update) https://www.rx7club.com/single-turbo-rx-7s-23/spec-3574r-install-965464/
3574R single
bosch 1600 secondaries
full exhaust
Vmount
HKS twinpower
bur9eq leading and trailing
Any help is greatly appreciated!
Thanks,
Dan
3574R single
bosch 1600 secondaries
full exhaust
Vmount
HKS twinpower
bur9eq leading and trailing
Any help is greatly appreciated!
Thanks,
Dan
#2
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
Well, after a fun day of dealing with an ignition issue and a flooded engine I finally got the 7 running and thru the idle process for the most part, I still need to make some adjustments to the TB though. I basically copied what looked to be good IGN map and set the rest according to the FC-Edit manual. This is my first experience with the PFC and tuning for that matter so I am nervous and excited at the same time =)
#4
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
I am still working on the idle / light throttle putting around...or I should say it is stuttering/hesitating terrible on throttle tip-in. It tends to run a bit better under full elec load but still hesitates. I will be pulling the plugs later tonight and double checking my grounds. Other than that I may just start over with the base mod map and see how it goes.
#5
did you see this thread https://www.rx7club.com/power-fc-forum-47/accel-settings-inj-vs-accel-tps1-eliminate-stumbles-916169/ ?
#6
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
did you see this thread https://www.rx7club.com/showthread.php?t=916169 ?
I found that a couple of days ago, and implemented the new settings last night, as well as adjusted my tps to a higher base setting (still within range). It did help quite a bit, but there is a stumble present, its almost like the injector shuts off for a split sec when rolling in from idle, or punching the throttle during engine decel; rev to 3500, let off, punch at 2000 = slight delay-lean-then rev. Its really strange...
I do have a couple charts of before and after I changed INJ Accel and I will try to get them posted yet tonight.
#7
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts

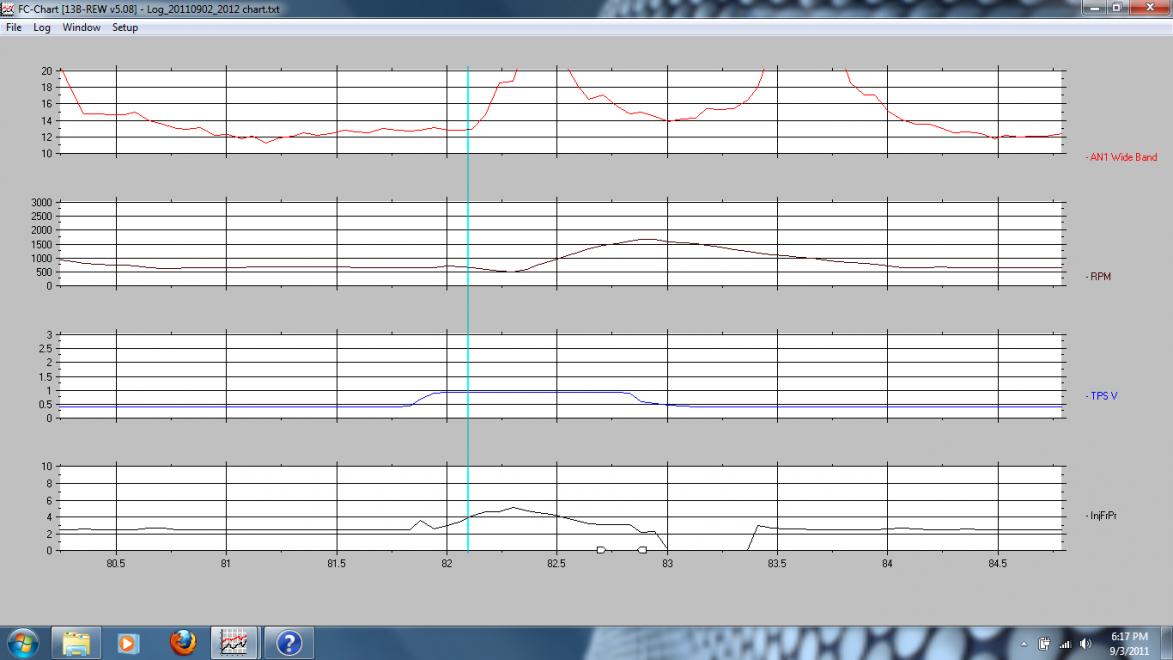

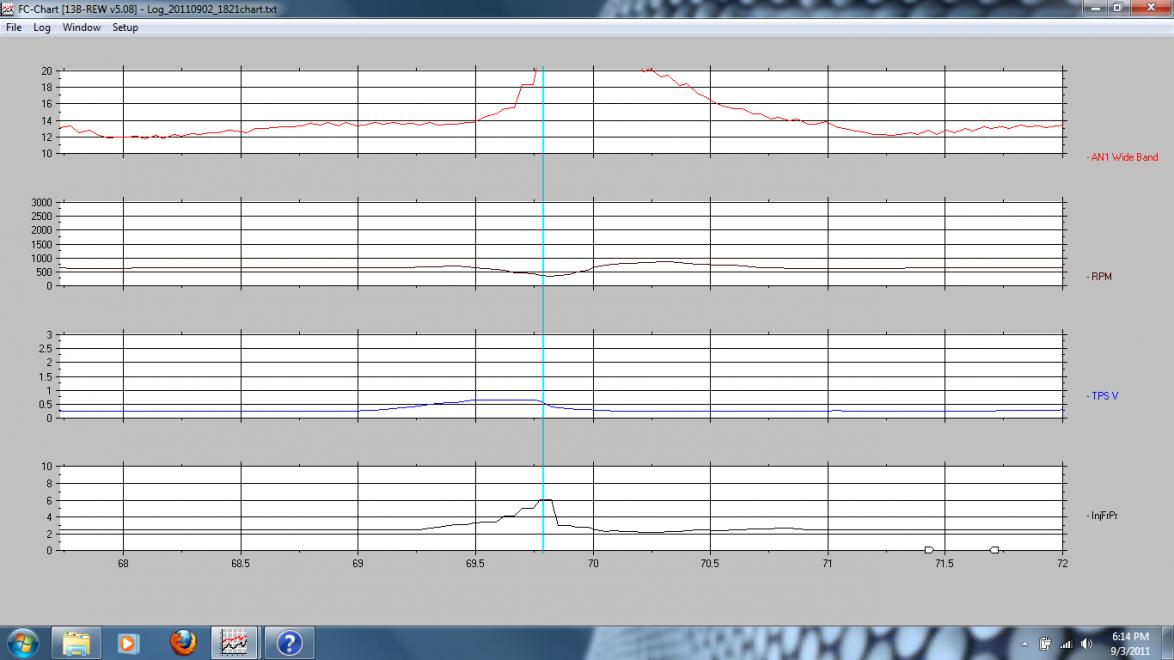

Here are my charts from last night, just idling, no load. I did not set a lower limit on the INJ but if you look at the RPM you will notice that id drops while the injector shows that it is firing...
Trending Topics
#9
The Overattempter
Thread Starter
iTrader: (3)
Join Date: Apr 2003
Location: Iowa
Posts: 197
Likes: 0
Received 0 Likes
on
0 Posts
I have been playing with different settings for the INJ Accel and just can't get rid of the hesitation... it only happens 60% of the time so I am almost wondering if it is an elec / mechanical issue. I am going thru my last couple logs trying to get the AFR more stable for cruising / light load, maybe if I set the idle higher it will help with the stumble?
