paulr33

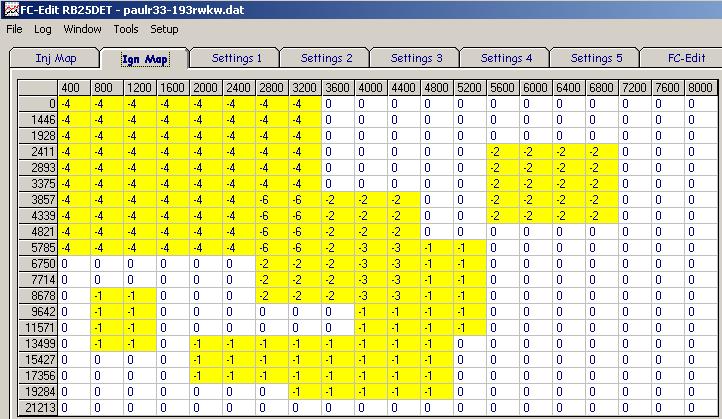

datalogit has this function already (compare mode)

paulr33

datalogit's compare funtion

FastHatch

The compare function in Tune will be totaly different from the one in Edit. It's more like the one in the AEM software.

sferrett

Is a beta-test version of this available anywhere? I tried the link mentioned earlier in the thread but it returns a file-not-found response. I just got a datalogit and would very much like to take a look at this new software.

Cheers,
Simon.

Wht180

it was listed on page 9.

Thanks a TON Andre!!! I can't wait to get home and test this out!

-Rich

FastHatch

I'm sorry that the next release is delayed, but i currently don't have as much time to work on FC Tune as i would like to have.

But that doesn't mean that nothing has happened in the last weeks. I've put a lot of work in the charts. Editing is now possible with draging the data points/markers in the charts. Monitoring is also possible in a real time ("live") chart. The Microsoft chart and others lack features, they are meant to display static data. Editing/Selecting is not really possible and they are not fast enough to display about 10 samples/frames per second. Who is using a really slow pc/laptop for tuning and can test if the chart is fast enough also on low end pc's? Anything below 400 MHz?

I have to test which scaling is the best and still fast enough. With 10 samples per second 150 data points would mean a history of 15 seconds. Multiple plots (multiple charts) are also not supported yet.

MichaelB145

Hurry please....I need this!

TailHappy

I have a 133Mhz laptop I can test with if you'd like....

NeoTuri

iTrader: (2)

Good progress Fast. You've been quite busy this year.

OKRX-7

Just to keep this point fresh, I like what your doing and would love to be able to run FC Tune on my Jornada 720 (CE3.0).

FastHatch

The Jornada 720 runs Microsoft Windows Handheld PC (H/PC) 2000 Operating System. This OS is a modified version of the Pocket PC version of Windows CE 3.0.

I have to check which development environment from Microsoft supports the HPC 2000.



The screen resolution is also different than the Pocket PCs.



I've bought a Pocket PC 2003 SE to do some in-car tests. We've got 30 Windows Mobile 5.0 PDAs from HP so i can test it on them as well. Not sure if we still have some PPC 2002, so i may only be able to test FC Tune in the emulator, some thing with the HPC 2000.

I try to get the next release out after christmas (or to be political correct, after the holidays), if you like you can try it on the HPC.

Tim Benton

iTrader: (1)

I've got a 366 I use with my datalogit.

Tim

Rudy 34

And what's about the harware interface ? Do you still plan to sell some units ?

MichaelB145

Any updates?

FastHatch

Yes, but it won't be a box like the Datalogit, currently waiting for a new color LCD

I've just emailed a new test version to a member here, i guess it will take another 2 weeks before i can release a new stable version.

FC Tune is not dead and will not be for a decade.

In the future i will add support for more ECUs like Greddy e-manage, HKS FCON etc. Once the app is done it's not that much work to add support for more ECUs. If anyone has a good idea for a name for a software and 'Commander' that supports multiple ECUs please PM me.

Howard Coleman

iTrader: (6)

how many auxiliary ports will be available? ( the datalogit having 4)

howard coleman

FastHatch

The Datalogit has 4 channels with a 8 bit resolution (2^8 = 256), the controller i am using has 14 channels with a 10 bit resolution (2^10 = 1024).

Datalogging on a SD/MMC card will be also supported.

HobbeZ

wow... the amount of know how with this project is pretty amazing seems like it would we well worth the wait

pom_vr2

First of all, Thanks for your work hard to made FC Tune. It will be a good program for all FC tuner around the world. It is very difficult to find anyone who can join and ask a question from tuner. Tuner have to use this software to tune the engine for high performance with safe and quickly for its. Thanks a lot for your work. And hope to help you to carried out your project as soon as possible to put it out for any people who need it.

I am a tuner from BKK, Thailand. I have had both FC Datalogit and Kashi FC box. Both of them work well. They have had advantage and disadvantage.

Kashi FC box used japanese software , difficult to used due to japanese language. It came from original, it supported the FC ECU.

FC Datalogit used english language that was international. Easy to understand. But FC Datalogit , Map Table and Font could not be changed. It was too small.

I have heard, it has english version for PowerFC. But it used by PowerFC dealer only. One guy in BKK get it from somewhere. I also need english version for my tunning job. That is a good new, I found you on internet. Your software can used for all FC interface boxes. I hope you can finish your interface box with additional drag function for all car.

FastHatch , I have done many car fiitted with PowerFC ECU such as 1JZGTE, 2JZGTE, 3SGTE , SR20DET , RB26DETT. If you would like me to test your software, do not hesitate to contact me at

pom_vr2@hotmail.com.

1 Question, I have installed your FC Tune 0.53 on WinXP. I found the data could not show any as the attached picture. Is it my problem or from your test program, pls verify.

S.Jessada

FastHatch

Please check you inbox. It seems like the calibration file was opened correctly but the number format for the grid is wrong.

What are your regional settings?

pom_vr2

Thanks for your help. Now it's OK.

Can I use FC Tune 0.53 to test with 1-2JZ or 3S or any now. I will test it with Kashima Interface.

Please advised.

Thanks & Best Regards
S.Jessada

FastHatch

It took several weeks of programming, but a graph is now implemented. It supports scrolling as well as realtime monitoring on low-end laptops. It's just some random data for testing purposes in the screenshot:



Currently only one overlay graph is supported, but i'm working on multiple graphs. If it's an overlay graph the values are scaled on a percent base. In "Channel setup" dialog under monitor (already available in version 0.53) can you can set a min and max value, min is 0% and max 100%. If only one channel is on the graph the values are scaled by the min and max values.

The color of the channels can also be set in the "channel setup" dialog. The legend (on the bottom|top|left|right) can be hidden and then the channels in the channel-window are drawn in the selected color.

In the above screenshot 50 samples/data points are on "one page" of the graph, that means with a sample rate of 10 samples per second you've a history of 5 seconds. I don't know if that is enough during monitoring. On the other side, the more samples on the graph, the worse the resolution. Maybe 5 pixel per sample is ok and then it auto-scales by the window size.

i'm also experiencing with the +/- keys to zoom in and out.

Also not yet implemented is an "axis marker" which can be dragged around and the values of the selected sample/data point are displayed in the other monitor windows.

As you can see a lot work has still to be done, but in-car tests will start soon.

OKRX-7

Feel free to hit me up when you have a decent running PPC version and I will try it out, I wouldn't worry to much about changing it for PPC2000 right now. There are some GAPI's out there that will run 2002 and 2003 progs, I would think for the most part it will be able to handle it. As far as layout, I can use virtual display to rotate the screen for starters.

fritts

iTrader: (5)

With as many low cost laptops that are available, why not use one as the gauge cluster. I have been thinking about how I could do this with the commander connection that comes out of the datalogit. This way I could customize the gauge cluster with whatever information I feel is important. Also would all me to have a real temperature gauge and display boost on the cluster. Why not have a customizable screen with sensor outputs that could be used as a gauge cluster. It would be much cheaper than using anything else that is currently out there now ie defi, stack, sdl. Let me know if this would be possible.
Thanks

incognico

Looks like this is progressing nicely, FastHatch!

I have just finished building my own interface box, so I could try out FC Tune for myself, but it seems my car (MR2, 3S-GTE) is not currently supported. Still, FC Edit is still a good step up from the hand controller.

Is there any info people like me can provide to assist in adding support for more vehicles?
