gracer7-rx7

iTrader: (16)

Thanks for the DL software. Now I can't get the USB driver working. Been trying for 2 hours now downloading all diff drivers... Ready to pull out whats left of my hair!

I'm on XP Pro on a Toshiba. Seemed so much easier on my 4 year old laptop RIP...

Email is amgracer7-rx7@yahoo.com

Thank you!

yuichiror

iTrader: (1)

I borrowed a datalogic from a friend and couldn't get the USB interface to work. I tried finding a driver online, but nothing seemed to work. So I ended up getting a USB to Serial cord(made by IOGear) from Walmart that came with its own driver. BTW, I'm running XP Pro too and I had to dremel off the pieces that tighten the connection from the new cord.

gracer7-rx7

iTrader: (16)

I saw a few threads about that also. I needed to get the car running in order to get there though (long story). I'm going to try and get a ride over there to buy one.

Zimbu

You actually DEPEND on your modified FD??? Ahahahaha. Thats got me in a good mood for the day, best of luck to you man I don't know if you're more brave or stupid! J/K! Have a nice day.

gracer7-rx7

iTrader: (16)

Both of my FDs have been much more reliable than the e36 BMW they replaced. And it doesn't depreciate like the BMW either.

Its more of a weekend car, but yes I do depend that it starts and drives which it does 99.99999% of the time. Especially if I keep it away from most Rotary shops who think they know how to work on cars.

VegasFD

What's the brand of the USB/Serial cord you're using? 90% of the time you can go to the manufacturers' website and download the driver.

gracer7-rx7

iTrader: (16)

Its the IO one. I tried downloading it but the Found New Hardware wizard wasn't able to use the downloaded drivers for some reason. It doesn't install by itself either as the IO one requires a CD to install.

In my frustration last night I unchecked the checkbox on the Hardware wizard prompting to install and now I can't even get the Hardware wizard to do its thing. Tried to get it going manually last night and couldn't get it to work. Going to try it again tonight with a hopefully clearer head....

nashman69g

iTrader: (3)

I was having trouble with My IOgear one..Turns out the Usb port # was higher than 8...Go into hardware monitor and see if your usb-serial cable is there...When u see it right click it and change the port # to a port # that isn't beening used. If your not sure how to do this just say so and I'll take you thru step by step.

Marshall

gracer7-rx7

iTrader: (16)

I just bought another one last night. Too tired to screw around with it though. Gonna give it a shot tonight. Thanks for the input fellas.

nashman69g

iTrader: (3)

<!--[if gte mso 9]><xml>
<oocumentProperties>
<o:Author>Wink Employee</o:Author>
<o:LastAuthor>Alvin Gilmore</o:LastAuthor>
<o:Revision>4</o:Revision>
<o:TotalTime>38</o:TotalTime>
<o:Created>2006-10-25T21:27:00Z</o:Created>
<o:LastSaved>2006-10-25T22:51:00Z</o:LastSaved>
<o:Pages>1</o:Pages>
<o:Words>146</o:Words>
<o:Characters>834</o:Characters>
<o:Company>Wink, Incorporated</o:Company>
<o:Lines>6</o:Lines>
<o:Paragraphs>1</o:Paragraphs>
<o:CharactersWithSpaces>979</o:CharactersWithSpaces>
<o:Version>11.8107</o:Version> </oocumentProperties> </xml><![endif]--><!--[if gte mso 9]>
<xml>
<w:WordDocument>
<w:Zoom>90</w:Zoom>
<w:PunctuationKerning />
<w:ValidateAgainstSchemas />
<w:SaveIfXMLInvalid>false</w:SaveIfXMLInvalid>
<w:IgnoreMixedContent>false</w:IgnoreMixedContent>
<w:AlwaysShowPlaceholderText>false</w:AlwaysShowPlaceholderText>
<w:Compatibility>
<w:BreakWrappedTables />
<w:SnapToGridInCell />
<w:WrapTextWithPunct />
<w:UseAsianBreakRules />
<wontGrowAutofit />
<w:UseFELayout /> </w:Compatibility>
<w:BrowserLevel>MicrosoftInternetExplorer4</w:BrowserLevel> </w:WordDocument>
</xml><![endif]--><!--[if gte mso 9]><xml>
<w:LatentStyles DefLockedState="false" LatentStyleCount="156"> </w:LatentStyles>
</xml><![endif]--><!--[if gte mso 10]>
<style>
/* Style Definitions */
table.MsoNormalTable
{mso-style-name:"Table Normal";
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-parent:"";
mso-padding-alt:0in 5.4pt 0in 5.4pt;
mso-para-margin:0in;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:"Times New Roman";
mso-fareast-font-family:"Times New Roman";
mso-ansi-language:#0400;
mso-fareast-language:#0400;
mso-bidi-language:#0400}
</style>
<![endif]--><!--[if gte mso 9]><xml>
<o:shapelayout v:ext="edit">
<o:idmap v:ext="edit" data="1" /> </o:shapelayout></xml><![endif]--><!--[if gte mso 9]>
<xml><o:shapedefaults v:ext="edit" spidmax="1027"/>
</xml><![endif]-->A common problem when connecting some USB to Serial Bridges/Convertersis that the Com port is set higher (>8) than available through Datalogit (1-8) for later versions or (1-3) for earlier versions. To solve this problem, start by opening “Device Manager” (right clicking on “My Computer” and selecting “Properties”).

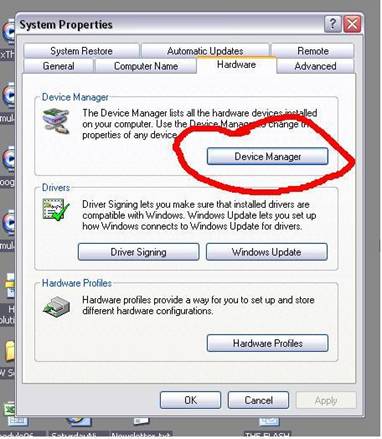

The following will appear: select “Device Manager.”

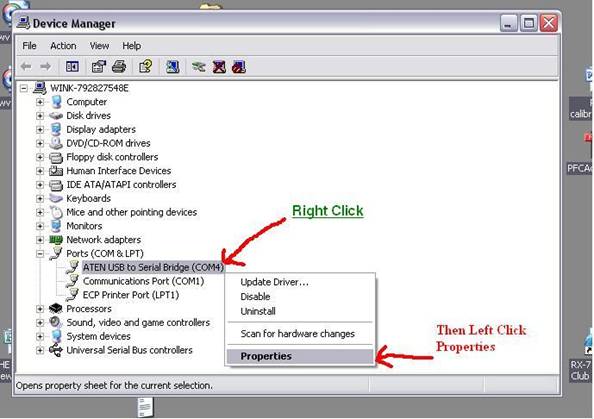

<o:p></o:p>You should now be in the following screen. Find your “USB to Serial Bridge” and make note of what “COM” number is there. If the number is greater than the ports available in “Datalogit” continue on; if not then there is another problem. Right click on this and then select “Properties”


<o:p></o:p>

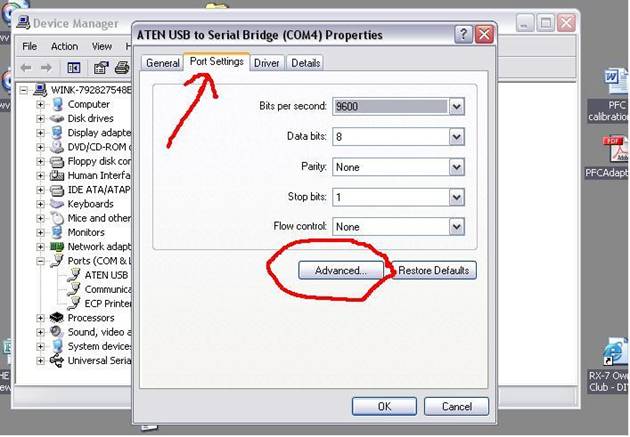

<o:p> </o:p> Now select “Port Settings” and then left click “Advanced.”

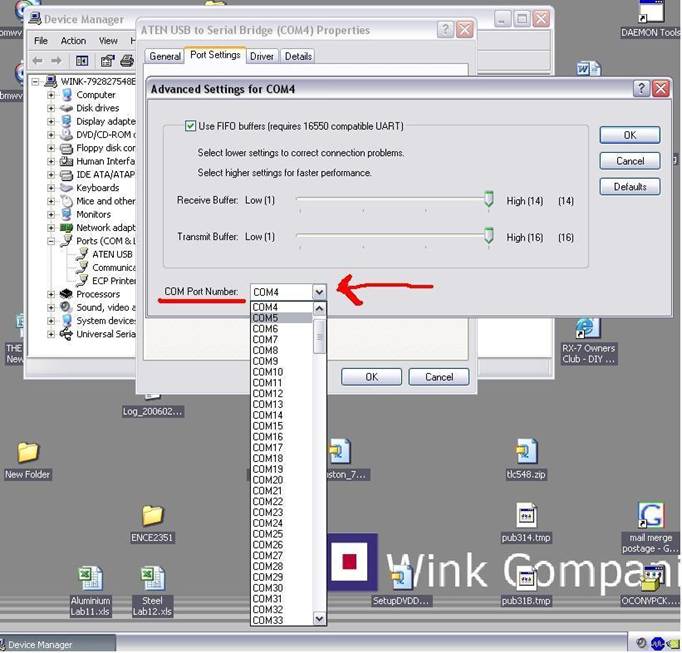

<o:p> </o:p> <o:p> </o:p>Under the “Advanced Settings for Com(current number)” left click the drop down menu and select a port number not being used and no more than 8. Select “OK” ...then “OK”… and close “Device Manager”. Now you are done.


<!--[if gte vml 1]><v:shape
id="_x0000_s1028" type="#_x0000_t75" style='width:511.5pt;height:489.75pt'>
<v:imagedata src="Datalogit%20Fix2_files/image004.jpg" o:title="image012"/>
</v:shape><![endif]--><!--[if !vml]-->
<!--[endif]-->

gracer7-rx7

iTrader: (16)

Nashman you rock!! Really appreciate the very useful info and the trouble you went through. Hopefully it'll help others out also in the future.

I finally got everything working. Bought a DYNEX USB PDA/Serial Adapter at Best Buy for $35. It came with its own CD for drivers. I'm uploading these drivers for anyone who might want to try them in the future.

I put in the CD, connected the USB cable which was connected to DL box, turned key on, went through Found New Hardware wizard, pointed it to the CD, finally installed the drivers!!!

I tried to run DL and it gave me an error about COM 8 so I changed the COM port on DL to 8 and voila!

Re-installed my Steve Kan map and everything is good to go. Took her out for a spin and life is good again.

gracer7-rx7

iTrader: (16)

drivers

nashman69g

iTrader: (3)

Oh I forgot something ...Each USB port on the computer gets assigned a port number..If you plug the USB Serial Bridge into another USB port and the port number is greater than the selectable Com ports in Datalogit, I mean to say FCedit, then you need to change the port number to 1-8 using the above information. If it wasn't clear above, under Device Manager-Ports the current port for the USB-Serial should be next to the name of the driver XP assigned for the USB-Serial Bridge (COM ?). As long as the Com # is 1-8 (for latest version of FCEdit) or 1-3 (for earlier version) your OK. Under FCEdit you select the port number that is assigned to the USB-Serial Bridge in XP.
If anything sounds unclear let me know and I'll try to clarify.
I always try to help anyway I can :icon-tup: ...Maybe a Mod can sticky this for future referance or DaleClark can add this to his PowerFC info.

Marshall

mono4lamar

iTrader: (32)

marshall i've tried all of this and it doesnt work still... could it be my pfc? HELP PLEASE!!!

gracer7-rx7

iTrader: (16)

what error are you getting? What cable and driver are you using?

mono4lamar

iTrader: (32)

well i change com ports and either get depending if i do read or read all interface not responding and if i do read all i get interface not responding and error 76. im using a radio shack serial to usb convertor. below is the driver for the cable im using. i can get it to not have any error messages but when i click read it just flashes the screen and the defalt map is still intact. why can i not read my current map??? i even tried starting the car as is with the pfc installed and it will not fire. could the pfc be fried? i have spark so im hoping that the pfc is fine. i was going to try tomorrow putting in the stocker and seeing if it would start up. any recommendations? thank you for anything you can do here.

http://support.radioshack.com/Downlo...e/260-0183.exe

gracer7-rx7

iTrader: (16)

IfI read your post correctly, I got the same before I gave up and tried a new USB kit so I could get a new driver. Did you try installing the driver's I uploaded? Might want to give it a shot.

Once I got those drivers loaded all I had to do was change the port and I was good to go. I think I might have used COM 8 or 9 on my machine but yours might be different.

Hope that helps. Took me a few days to get it working right.

neo240sx

hey I'm having this problem I got a serial to usb from radio shack and it will interface with the datalogit but only to tell me what version datalogit I'm using. When I try to make it "read all" it tells me "interface not responding"?

R-R-Rx7

iTrader: (24)

try to change the COM port from the datalogic, ...it varies from computer to computer. my one works on com5
