Rx3 rims back space 16x7 & 16x8

Thread Tools

Search this Thread

Old 08-12-09 | 02:07 PM
  #1
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
Rx3 rims back space 16x7 & 16x8

what would be the best back space for the front of an rx3 with 16x7 in the front and 16x8's in the rear.

also as for tires i see that most people use 205/ 40 all around. But, would 215/40 fit in the front too with a 7" rim. and 225 or 215's in the rear with an 8" rim fit without any issues?

i'm in the process of getting some custom wheel adapters made from 4x110 to 4x114.3. and the rims that i'm starting off with all have a +30 offset with the 7" in front and 8" in the rear

thanks!
Old 08-12-09 | 05:28 PM
  #2
SAVANT's Avatar
I SMELL GAS
iTrader: (1)

Joined: Oct 2005
Posts: 152
Likes: 0
From: PASADENA CA
Wheres Wacky?
Old 08-12-09 | 06:26 PM
  #3
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
in the front i can bolt-up a 16x7 +30 offset with just 5mm or less to spare. thats about 131mm or 5.2" in back space. so a rim would just about scrape the strut housing with 136mm back space.
Old 08-12-09 | 11:16 PM
  #4
Jaime Enriquez's Avatar
OLDROTA


Joined: Apr 2003
Posts: 1,389
Likes: 1
From: Los Angeles
The 7" on my Rx2 have a +12 offset...and the 6.5 in front have a +9. You will probably want to aim somewhere around there, stock is a +20, you don't really want to go higher than that.
Old 08-13-09 | 01:14 AM
  #5
islandsnow's Avatar
Senior Member

Joined: Jun 2004
Posts: 598
Likes: 0
From: SoCal
Originally Posted by bosozo9
in the front i can bolt-up a 16x7 +30 offset with just 5mm or less to spare. thats about 131mm or 5.2" in back space. so a rim would just about scrape the strut housing with 136mm back space.
bolt the wheel and set it on the ground measure between the edge of the wheel and the inside edge of your fender or where you think it should be at with out rubbing the fender. The measurement you get is how your adapter thickness.
Old 08-13-09 | 01:15 AM
  #6
islandsnow's Avatar
Senior Member

Joined: Jun 2004
Posts: 598
Likes: 0
From: SoCal
Originally Posted by SAVANT
Wheres Wacky?
He's on facebook playing "bejeweled"
Old 08-13-09 | 03:08 AM
  #7
.::evil inside::.'s Avatar
Senior Member

Joined: Jun 2004
Posts: 263
Likes: 2
From: Australia
Does anybody know if a 15x7 wheel will fit on the front of my rx2 with a +20 offset and 4.75" backspace?
I'm a little concerned that these wont fit, as you've got to get wide wheels pretty spot on in the front of rx2's as there isn't much room
Old 08-14-09 | 02:59 AM
  #8
julzrx808's Avatar
Full Member


Joined: Aug 2008
Posts: 65
Likes: 0
From: New Zealand
Originally Posted by bosozo9
what would be the best back space for the front of an rx3 with 16x7 in the front and 16x8's in the rear.

also as for tires i see that most people use 205/ 40 all around. But, would 215/40 fit in the front too with a 7" rim. and 225 or 215's in the rear with an 8" rim fit without any issues?

i'm in the process of getting some custom wheel adapters made from 4x110 to 4x114.3. and the rims that i'm starting off with all have a +30 offset with the 7" in front and 8" in the rear

thanks!
If you want to fit 215 tyres on a 7 on the front i would go around +10, the last thing you want is the tyre rubbing the strut. I had 7 inch wide at +12 with 205 tyres and it had bout a finger width between the strut. So a 215 would fit just right.
Rears you have more room to play with , you can have quite deep backspace as there's heaps of room on the inner guards. It depends on how you want the car to sit. 0 offset on a 8" sit the rim out a bit, close to flush with the guard. You could go back as far as +30 ish if ya want tho
Get a basic 7" rim, figure out the offset and do some measuring .Its easy once you get ya head around it!!
Old 08-14-09 | 06:54 PM
  #9
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
i just checked out the rear and a 16x8 with +30 offset would bolt-up with more then a fingers space from the leafspring with atleast an inch more to more out. looks like a 9inch wide rim would fit no problem on the rear of the rx3 coupe. as for me looks like i can go with a 225 tire in the rear with about a 20mm spacer.
Old 08-15-09 | 01:30 AM
  #10
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
Originally Posted by .::evil inside::.
Does anybody know if a 15x7 wheel will fit on the front of my rx2 with a +20 offset and 4.75" backspace?
I'm a little concerned that these wont fit, as you've got to get wide wheels pretty spot on in the front of rx2's as there isn't much room
you're so wrong for using offset and backspace in one paragraph
Old 08-15-09 | 01:31 AM
  #11
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
Originally Posted by bosozo9
i just checked out the rear and a 16x8 with +30 offset would bolt-up with more then a fingers space from the leafspring with atleast an inch more to more out. looks like a 9inch wide rim would fit no problem on the rear of the rx3 coupe. as for me looks like i can go with a 225 tire in the rear with about a 20mm spacer.
sure buddy. you can fit any size rim but the question are:

do you want it flush or do you want to stick out ALA 80's mini-pick up truck
Old 08-15-09 | 01:33 AM
  #12
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
Originally Posted by islandsnow
He's on facebook playing "bejeweled"
hey mang you need to spend time with your facebook and update your picutres
Old 08-15-09 | 01:48 AM
  #13
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
Originally Posted by bosozo9
what would be the best back space for the front of an rx3 with 16x7 in the front and 16x8's in the rear.

also as for tires i see that most people use 205/ 40 all around. But, would 215/40 fit in the front too with a 7" rim. and 225 or 215's in the rear with an 8" rim fit without any issues?

i'm in the process of getting some custom wheel adapters made from 4x110 to 4x114.3. and the rims that i'm starting off with all have a +30 offset with the 7" in front and 8" in the rear

thanks!
stop being cheap. I never feel safe with those adapters. I have 16x7.5 in front and 16x8 in rear but they have different backspace and it will cost you lots of heines for me to say it.
Old 08-15-09 | 03:24 AM
  #14
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
it'll be cheaper for me to just buy a different set of rims. its starting to cost me alot of money trying to get mazdaspeed MS-01's on my dang rx3..
Old 08-15-09 | 09:08 AM
  #15
.::evil inside::.'s Avatar
Senior Member

Joined: Jun 2004
Posts: 263
Likes: 2
From: Australia
Originally Posted by wackyracer
you're so wrong for using offset and backspace in one paragraph
care to explain why perhaps?

thats what the wheel supplier quoted me and I don't see why you can't mention backspace and offset in the one sentence. A different offset is going to result in a different amount of backspace, how are these two measurements possibly not relevant?

no need to make silly comments when clearly you have no idea what you're talking about.
Old 08-15-09 | 09:11 AM
  #16
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
It jsut happened that I do know what Im talking about.
Old 08-24-09 | 11:41 PM
  #17
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal

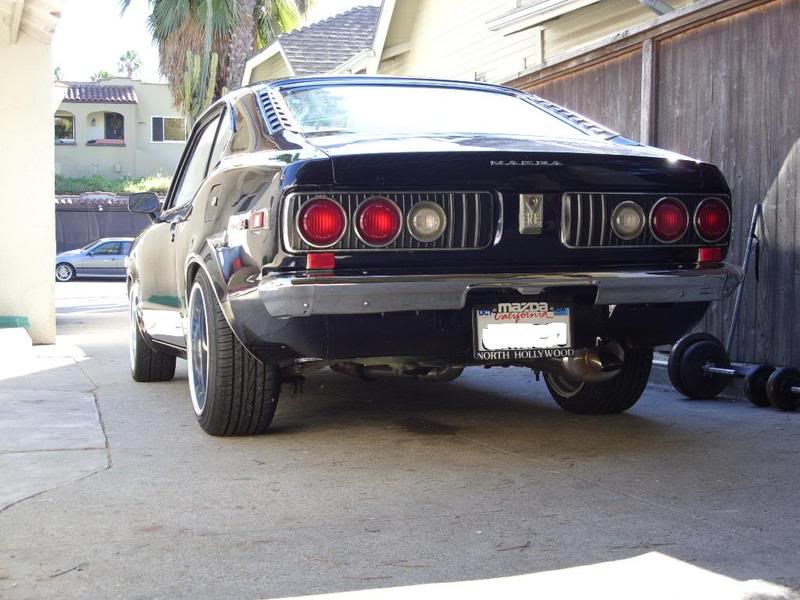

this is to back it up. doesnt stick out at all. you need proper backspace.

Name:  SDC10076.jpg
Views: 1737
Size:  77.0 KB
Old 08-26-09 | 12:19 AM
  #18
islandsnow's Avatar
Senior Member

Joined: Jun 2004
Posts: 598
Likes: 0
From: SoCal
[QUOTE=wackyracer;9450005]this is to back it up. doesnt stick out at all. you need proper backspace.

QUOTE]

Ok just finished updating my pictures... So what's the backspacing and offset on these wheels again.
Old 08-26-09 | 12:35 AM
  #19
islandsnow's Avatar
Senior Member

Joined: Jun 2004
Posts: 598
Likes: 0
From: SoCal

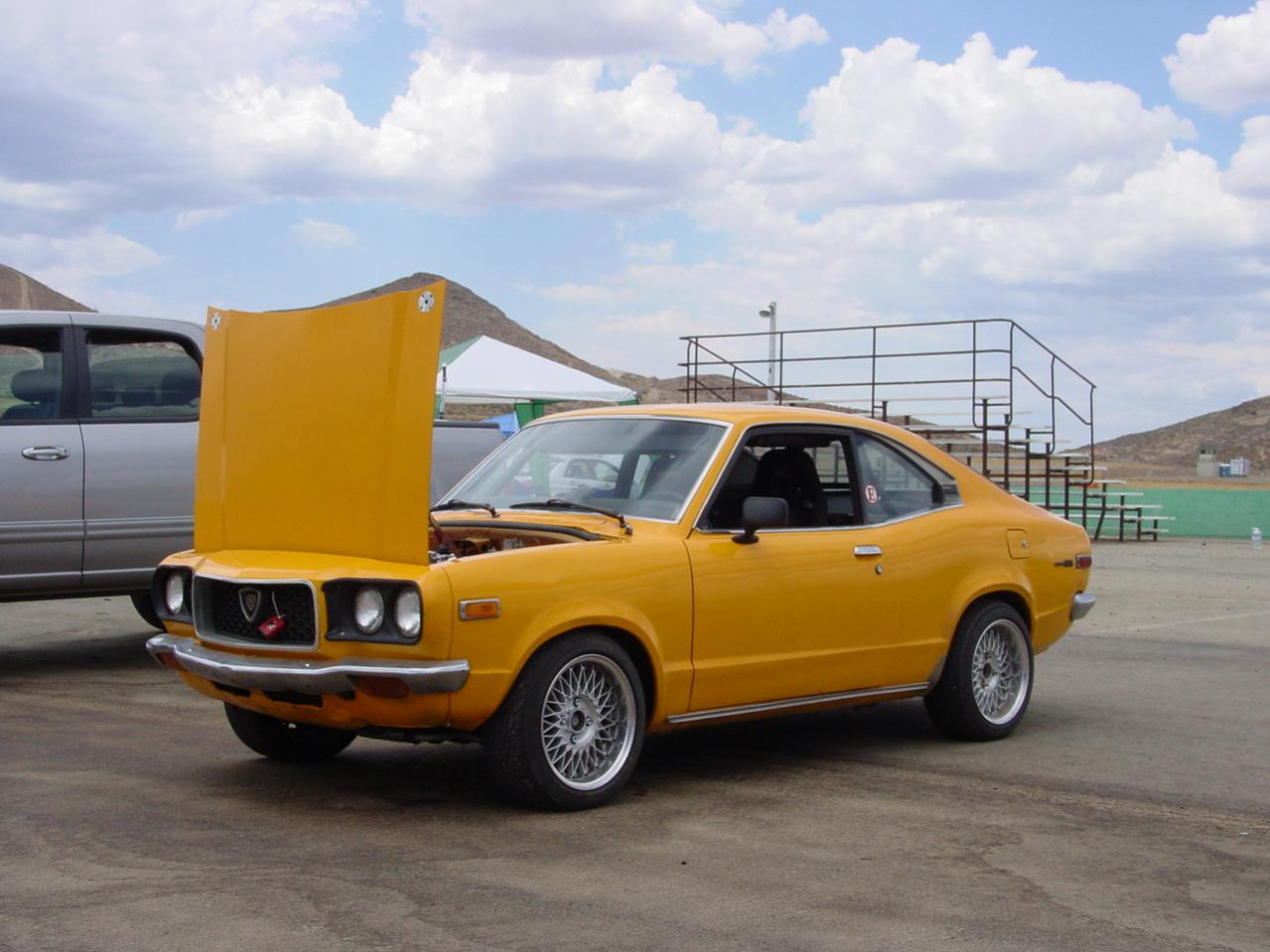

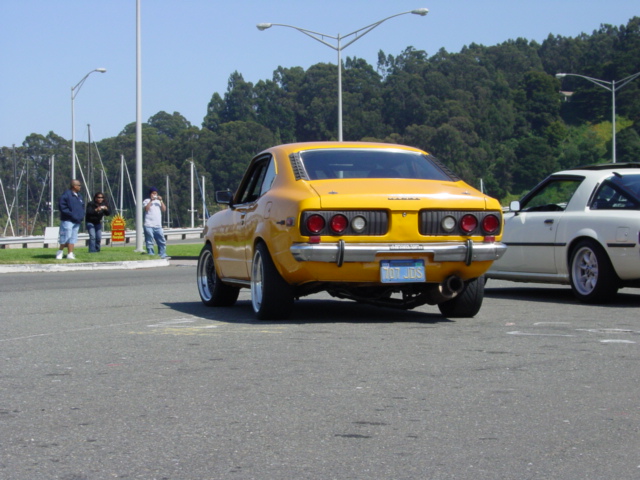

Here's a two set of wheel's on my 3 one set are 16x8 and the other are 15x7.5. (old pictures by the way) I'd tell you what the offset's and backspacing's are but according to wacky I cant use the same word in a sentence. Plus its been so long ago that I probably dont remember any more.
Attached Thumbnails Rx3 rims back space 16x7 & 16x8-picture-041.jpg   Rx3 rims back space 16x7 & 16x8-picture-002.jpg
Old 08-26-09 | 01:02 PM
  #20
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
NICE! with the 8 inch rim in the back what size tires you guys running?
Old 08-26-09 | 08:14 PM
  #21
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
we need 2 cases of heines and 1lb of korean bbq, then maybe, thats a maybe we will disclose the secret.
Old 08-26-09 | 09:29 PM
  #22
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
haha.. 1lb of korean bbq is just a snack!
Old 08-29-09 | 01:39 AM
  #23
Siraniko's Avatar
RX for fun
iTrader: (13)

Joined: Aug 2001
Posts: 15,926
Likes: 22
From: Socal
Originally Posted by wackyracer
stop being cheap. I never feel safe with those adapters. I have 16x7.5 in front and 16x8 in rear but they have different backspace and it will cost you lots of heines for me to say it.
I just noticed incorrect size. that should be 16x8.5, not 16x8
Old 08-29-09 | 03:54 AM
  #24
13BT_RX3's Avatar
The General RE

Joined: Apr 2003
Posts: 906
Likes: 7
From: San Diego, CA
Originally Posted by .::evil inside::.
care to explain why perhaps?

thats what the wheel supplier quoted me and I don't see why you can't mention backspace and offset in the one sentence. A different offset is going to result in a different amount of backspace, how are these two measurements possibly not relevant?

no need to make silly comments when clearly you have no idea what you're talking about.
IIRC...Offset = Backspace - Width/2

Wheels are usually sized with diameter, width and offset. You could specify backspacing in place of offset, and someone could calculate the offset. If you were told the offset and backspacing you could calculate the width. All told it is just more straight forward to use width and offset or even width and backspacing, but using offset and backspacing is the least clear way to describe a wheel. Least clear, but not wrong.
Old 08-29-09 | 12:41 PM
  #25
bosozo9's Avatar
Thread Starter
Full Member
iTrader: (5)

Joined: Feb 2002
Posts: 136
Likes: 0
From: southern cali
dang Wacky.... 16x8.5? NICE! Did you have to roll the fenders with a baseball bat like back in the day!
