RX-8 with FD trans?
Hey does anyone know if you can put a fd trans on a rx8 i know that the shifter is set further back on the fd trans than it is on the 8's trans and i think the length is close to the same but not perfect any help would be great.
9000k is offline
Reply Like
Old 03-19-10, 04:20 PM
  #2
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Why not get the RX8 5speed trans?
Japan2LA is offline
Reply Like
Old 03-19-10, 06:19 PM
  #3
Junior Member
Thread Starter

9000k's Avatar

Join Date: May 2008
Location: oklahoma
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
well i have a fd trans and there is no 5speed manual trans for rx8. The reason for this swap is i need a stonger trans for FI
9000k is offline
Reply Like
Old 03-19-10, 09:02 PM
  #4
Rotor Head Extreme

iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,719
Likes: 0
Received 26 Likes on 17 Posts
The transmission will fit the engine. You may have to modify the PPF.
t-von is offline
Reply Like
Old 03-19-10, 09:53 PM
  #5
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Originally Posted by 9000k
well i have a fd trans and there is no 5speed manual trans for rx8. The reason for this swap is i need a stonger trans for FI
Sorry but you are mistaken..

Rx8 was offered in Japan with 5 speed.. I have actually imported about 10 of them for various people in the last few years...

I will post a pics if you dont believe..

HERE YOU GO....

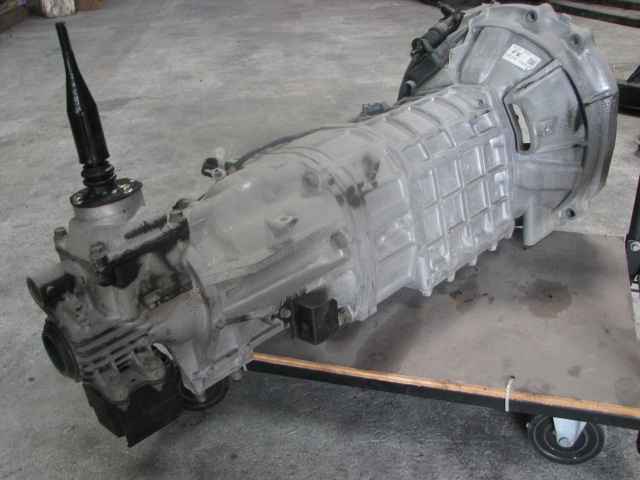

1st pic is RX8 5 speed trans

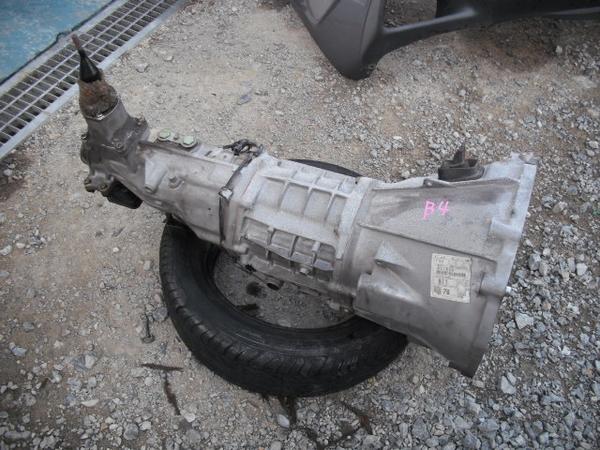

2nd pic is RX8 6 speed trans

Bolts right in....Shifter is in the correct place..easy as pie...
Attached Thumbnails RX-8 with FD trans?-rx8-5-speed.jpg   RX-8 with FD trans?-rx8-6-speed.jpg
Last edited by Japan2LA; 03-19-10 at 10:00 PM.
Japan2LA is offline
Reply Like
Old 03-21-10, 02:32 PM
  #6
Full Member

iTrader: (1)

costas's Avatar

Join Date: Oct 2006
Location: amherst MA
Posts: 112
Received 2 Likes on 2 Posts
Is it possible for you to measure the distance from the front of the bellhousing (mating surface to engine) to the shifter for the 5 speed box ? any info on the 5 speed ratios?
Thanks
costas is offline
Reply Like
Old 03-21-10, 09:37 PM
  #7
mazda mario


mario1386's Avatar

Join Date: Jun 2007
Location: port st lucie
Posts: 400
Likes: 0
Received 0 Likes on 0 Posts
could u swap the tail housing?they look very similar
mario1386 is offline
Reply Like

Trending Topics

Old 03-21-10, 09:45 PM
  #8
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Originally Posted by mario1386
could u swap the tail housing?they look very similar
Not possible.. but why would you want to?

They are both the same length..
Japan2LA is offline
Reply Like
Old 03-21-10, 09:46 PM
  #9
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Originally Posted by costas
Is it possible for you to measure the distance from the front of the bellhousing (mating surface to engine) to the shifter for the 5 speed box ? any info on the 5 speed ratios?
Thanks
They are the same length

Shifter is in the same location on both..
Japan2LA is offline
Reply Like
Old 03-22-10, 12:08 AM
  #10
YOUR TRIANGLE NIGHTMARE

iTrader: (6)

rotorooter93fd's Avatar

Join Date: Mar 2006
Location: automotive purgatory
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
Rudy?
rotorooter93fd is offline
Reply Like
Old 03-22-10, 08:19 PM
  #11
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Anyone interested in getting an RX8 5 speed trans should pm me. I will have 2 in the next container.
Japan2LA is offline
Reply Like
Old 03-22-10, 09:37 PM
  #12
Moderator
Tenured Member 20 Years
iTrader: (3)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 10,915
Received 323 Likes on 284 Posts
this 5-speed that you mention, is it based on the old Turbo cases? if not, why would someone want to replace the 6-speed? just curious ....
diabolical1 is offline
Reply Like
Old 03-23-10, 12:19 AM
  #13
Rotor Head Extreme

iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,719
Likes: 0
Received 26 Likes on 17 Posts
Originally Posted by diabolical1
this 5-speed that you mention, is it based on the old Turbo cases? if not, why would someone want to replace the 6-speed? just curious ....


My guess is the 5 speed gears are wider so it may hold more power.
t-von is offline
Reply Like
Old 03-25-10, 06:28 PM
  #14
Banned. I got OWNED!!!
iTrader: (256)

Japan2LA's Avatar

Join Date: Mar 2005
Location: Los Angeles CA.
Posts: 11,092
Likes: 0
Received 2 Likes on 1 Post
Originally Posted by diabolical1
this 5-speed that you mention, is it based on the old Turbo cases? if not, why would someone want to replace the 6-speed? just curious ....
The center section is same as FD3S not FC3S

The 6speed is super weak.. They Break all the time..

The 5 speed is actually a stronger trans

Thats why..
Japan2LA is offline
Reply Like
Old 03-25-10, 10:36 PM
  #15
YOUR TRIANGLE NIGHTMARE

iTrader: (6)

rotorooter93fd's Avatar

Join Date: Mar 2006
Location: automotive purgatory
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
indeed the 6 speed is weaker. 9000k has my old fd tranny and they are about the same legnth but the shifter is in a slightly different position bolt pattern matches up i think the only the thing that is needed is maybe built up the rear end. after that if the driveshaft is long enough your in business if not the get one that does. that should do it. feel free to correct me if im forgetting anything
rotorooter93fd is offline
Reply Like
Old 05-20-10, 08:59 PM
  #16
Speed Mach Go Go Go

iTrader: (2)

GoRacer's Avatar

Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Japan2LA
The center section is same as FD3S not FC3S

The 6speed is super weak.. They Break all the time..

The 5 speed is actually a stronger trans

Thats why..
Is it the gears or the synchros that are weak? I was actually thinking of swapping the 6-spd in to my FD.
