well what had happened was the dowel land around the dowel broke. which is odd considering i have solid dowels and stud action going on in there. but i will say this, she was flying when it let go. so neeed more strength for the power
#3456
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
i have 6 oversize studs and the rest are tension bolts. was a thing aspec said would be plenty enough for what im doing. so turns out that is wrong. and i do have all solid dowels with the external oil reroute.
im stumped as to why it broke. i thought i had taken all the proper precautions to keep this from happening. i have a few thoughts of what might of done it, but right now its only guesses.
im stumped as to why it broke. i thought i had taken all the proper precautions to keep this from happening. i have a few thoughts of what might of done it, but right now its only guesses.
#3460
My first thought is they did a shitty job machining for those over sized studs (which doesn't take much to **** up.) They could have integrated too much clearance or not enough, unless they fit as good and with the proper clearances -for that different material- to give it the optimal running and sliding fit like the factory dowels, they don't do a damn thing to resist twist if the clearance is over sized, only squeeze the engine together "better" than factory tension bolts. If undersized the dowels will become a press fit causing massive amounts of stress. even worse if they have proper clearances but the holes don't line up "perfectly" you're creating stress risers that way too. the expansion and contraction rate of over sized studs won't be the same as the stock tension bolts which will cause stress, especially if not every single tension bolt was replaced with the studs. You then are creating uneven tension throughout different parts of the engine.

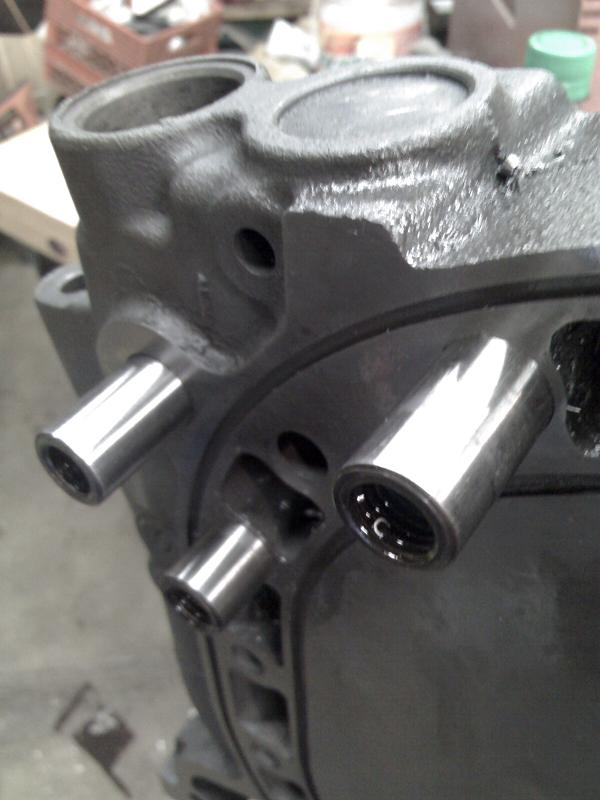

what a lot of people are having better experiences with lately are scraping the stud business all together and placing extra hollow dowels strategically located around the upper dowel location in the tension bolt holes on both front and rear housings/irons, the tension bolts then go through the new dowels. each extra dowel added takes 16% less stress off the original dowel lands.
what a lot of people are having better experiences with lately are scraping the stud business all together and placing extra hollow dowels strategically located around the upper dowel location in the tension bolt holes on both front and rear housings/irons, the tension bolts then go through the new dowels. each extra dowel added takes 16% less stress off the original dowel lands.
#3462
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
thats something i was thinking of trying, but i dont really like how thin the material gets around the coolant passages unless you use really small dowels.
i wish i had the cash i would swap to an RE and which seems to be the best base engine for structural strength. but i dont so gotta figure out what im gonna do.
i have also been wondering if i have things too solidly mounted creating undue stress and harmonics??
i wish i had the cash i would swap to an RE and which seems to be the best base engine for structural strength. but i dont so gotta figure out what im gonna do.
i have also been wondering if i have things too solidly mounted creating undue stress and harmonics??
#3463
It means 12A all ways^
iTrader: (20)
Join Date: Jul 2008
Location: Northern IN
Posts: 769
Likes: 0
Received 0 Likes
on
0 Posts
The simplest route would be to stud the rest of the engine, like the other Keith said different expansion and contraction between the tension bolts and studs could have contributed. But I have read alot of good news on extra dowels also.
If ya need some help or anything with it let me know.
If ya need some help or anything with it let me know.
#3464
I'm having a hard time remembering, but the last time I was over did you tell me you solid mounted your transmission? I remember the engine had already had the aluminum mounts. I've heard it is good practice to run solid on one or the other, but not both for flexibility reason. if you are running solid transmission mounts this season and hadn't last season then that may be the culprit.
#3465
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
yes i did put in the solid trans mounts. the poly ones i have were just flexing way too much and shifting was an issue. prob just replace the iron, freshen up, and put in a softer engine mount on one side to absorb some of the vibrations. i would love to add some dowels but im on a budget so having to have machine work done right now isnt feasible
#3466
Movie Star
iTrader: (11)
Join Date: Dec 2003
Location: Fort Wayne, Indiana
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
A guy from Chicago area selling one for $2100.
Part out your current engine and get it.
You could also sell what you won't need from his package deal:
$2100obo
13B RE from a 90-96 Eunos Cosmo $1600
-S5 Turbo2 Manual Transmission $100
-Banzai Racing FC engine mounts w/ polyurethane bushings *NEW* $75
-ACT 6 Puck Clutch (#MZ010) *NEW* $350
-Resurfaced Aluminum Flywheel, never used since resurfacing $200
-NGK Spark Plug Wires (#RC-ZE02) *NEW* $40
-NGK Spark Plugs *NEW* $35
-FD Alternator w/ FC belt pulley *NEW* $180
The prices listed are the prices I paid for everything (minus shipping) rounded down. I bought the engine a few years ago, it came with a 90 day start-up warranty. I never got to start up the engine or use any of these these parts that i bought unfortunately. I am selling it all together, if whomever buys the engine does not want the other parts, I will sell them separately later. I am in Skokie, Illinois.
If you have an starter that fits in here, we can test the compression. Murray's gave me the wrong one a few years ago, and I never test fitted until a few weeks ago.
13B RE from a 90-96 Eunos Cosmo $1600
-S5 Turbo2 Manual Transmission $100
-Banzai Racing FC engine mounts w/ polyurethane bushings *NEW* $75
-ACT 6 Puck Clutch (#MZ010) *NEW* $350
-Resurfaced Aluminum Flywheel, never used since resurfacing $200
-NGK Spark Plug Wires (#RC-ZE02) *NEW* $40
-NGK Spark Plugs *NEW* $35
-FD Alternator w/ FC belt pulley *NEW* $180
The prices listed are the prices I paid for everything (minus shipping) rounded down. I bought the engine a few years ago, it came with a 90 day start-up warranty. I never got to start up the engine or use any of these these parts that i bought unfortunately. I am selling it all together, if whomever buys the engine does not want the other parts, I will sell them separately later. I am in Skokie, Illinois.
If you have an starter that fits in here, we can test the compression. Murray's gave me the wrong one a few years ago, and I never test fitted until a few weeks ago.
#3467
^^rotard for life^^
iTrader: (3)
Join Date: Sep 2004
Location: Orlando
Posts: 906
Likes: 0
Received 0 Likes
on
0 Posts
i did see that the other day. if i had cash to blow i would buy it for sure. but financially right now it makes more sense for me just just source a new iron and do a light rebuild. RE's are the ****. if i would of been smarter when i built the car i would of gone that direction from the get go.
#3471
Mad Man
iTrader: (5)
Design Engineering Works is going to be having a dyno day May 22 (Saturday) at Chris Johnsons Race Engines in Auburn. We originally were doing this more as a workplace dyno day but we have a couple of open spots to fill. Didn't know if anyone was interested in running. It is $50 for 3 runs with WBO2. Let me know if you would be interested and we can sign you up. We are going to be starting around 9:00 AM and will have some lunch for the guys that are dynoing.
http://www.designengineeringworks.co...lts.asp?Cat=18
http://www.designengineeringworks.co...lts.asp?Cat=18
#3472
Movie Star
iTrader: (11)
Join Date: Dec 2003
Location: Fort Wayne, Indiana
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
Design Engineering Works is going to be having a dyno day May 22 (Saturday) at Chris Johnsons Race Engines in Auburn. We originally were doing this more as a workplace dyno day but we have a couple of open spots to fill. Didn't know if anyone was interested in running. It is $50 for 3 runs with WBO2. Let me know if you would be interested and we can sign you up. We are going to be starting around 9:00 AM and will have some lunch for the guys that are dynoing.
http://www.designengineeringworks.co...lts.asp?Cat=18
http://www.designengineeringworks.co...lts.asp?Cat=18
What kind of dyno do they have?
Is it load bearing?
I need to tune my car soon and need to figure out what dyno's around here will suffice.
Do you happen to know their hourly rates (if they have a load bearing dyno)?
#3474
Mad Man
iTrader: (5)
EPP is gone now. Dynatech is gone/no more dyno. Lengifelter won't let you on their dyno. So Chris Johnson Racing Engines is about the only place left. Its a Dynojet not sure if he has it optioned for load bearing or not as its an option on the Dynojets. They are really reasonable at $75 per hour including WBO2 and strap down.
