Megasquirt Trapped and Confused! What to do next?
#1
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Trapped and Confused! What to do next?
Hey guys,
I've kind of hit a pot hole in my modification journey. I have a S5 TII with a nice list of mods (Link Here) and I'm looking to safely make somewhere between 350-400whp on pump gas, with the ability to make between 400-500 on race gas. I currently have around 310whp on pump gas.
I have very limited funding (poor college student now), so please keep that in mind.
My problem is this:
I have been told by several people that my car is ready to be taken to that power level (safely) but I need to do a couple things. They include:
- Get a Wideband O2 Sensor for the MegaSquirt EMS (the dyno I use to tune it already has a wideband O2 sensor.. but supposedly the MS needs it to work properly?).
- Get some sort of Ignition Control system; some sort of system that can change timing degrees based on RPM or Boost Pressure. I have an old version of the MS that does not include the Ignition Control (It uses the stock ECU for Ignition). I was told, if I can get my hands on one, the old Apexi SITC piggyback ignition controller would be a good choice.
For those of you who know about the Megasquirt (I am still very much a noob when it comes to how it works) are there any wideband O2 sensors that the MS can talk to? Supposedly all I need is the sensor itself, no other controller devices that usually come with widebands (such as Zetronix). What all sensors does the MS need to get a good, safe, accurate tune? EGT? Intake Temp? Wideband? What else?
Are there any other options for igniton control? I've been told i'm basically screwd and I need to either get the Megasquirt N' Spark system, or another ECU (such as the Haltech E6K). Unless maybe I could get my hands on the SITC.
Help!!!! Anything you can provide me with would be greatly appreciated. If you have any more questions concearning work ive done and other technicalities feel free to ask and I will respond ASAP.
-Andrew
I've kind of hit a pot hole in my modification journey. I have a S5 TII with a nice list of mods (Link Here) and I'm looking to safely make somewhere between 350-400whp on pump gas, with the ability to make between 400-500 on race gas. I currently have around 310whp on pump gas.
I have very limited funding (poor college student now), so please keep that in mind.
My problem is this:
I have been told by several people that my car is ready to be taken to that power level (safely) but I need to do a couple things. They include:
- Get a Wideband O2 Sensor for the MegaSquirt EMS (the dyno I use to tune it already has a wideband O2 sensor.. but supposedly the MS needs it to work properly?).
- Get some sort of Ignition Control system; some sort of system that can change timing degrees based on RPM or Boost Pressure. I have an old version of the MS that does not include the Ignition Control (It uses the stock ECU for Ignition). I was told, if I can get my hands on one, the old Apexi SITC piggyback ignition controller would be a good choice.
For those of you who know about the Megasquirt (I am still very much a noob when it comes to how it works) are there any wideband O2 sensors that the MS can talk to? Supposedly all I need is the sensor itself, no other controller devices that usually come with widebands (such as Zetronix). What all sensors does the MS need to get a good, safe, accurate tune? EGT? Intake Temp? Wideband? What else?
Are there any other options for igniton control? I've been told i'm basically screwd and I need to either get the Megasquirt N' Spark system, or another ECU (such as the Haltech E6K). Unless maybe I could get my hands on the SITC.
Help!!!! Anything you can provide me with would be greatly appreciated. If you have any more questions concearning work ive done and other technicalities feel free to ask and I will respond ASAP.
-Andrew
Last edited by RyoFC3S; 06-15-06 at 12:59 AM.
#3
Lives on the Forum
I think you're kidding yourself about hitting those numbers...safely.
You have no idea what the capabilities of the MS you own.
That's just downright dangerous.
You make it sound trivial to hit numbers like that - it's not.
Learn the capabilities of the MS first before asking questions like this.
You won't understand the answers are it stands now.
Second, CHEAP WILL BITE YOU IN THE ***.
If you want to tackle this project, get lots of money and then have even more money "just in case".
Your Tial 40mm WG is too small.
The Turbonetics 60-1 will have trouble hitting those numbers unless we're talking ungodly amounts of boost - i.e. race gas.
The Walbro is too small to safely support power levels you're talking about.
-Ted
You have no idea what the capabilities of the MS you own.
That's just downright dangerous.
You make it sound trivial to hit numbers like that - it's not.
Learn the capabilities of the MS first before asking questions like this.
You won't understand the answers are it stands now.
Second, CHEAP WILL BITE YOU IN THE ***.
If you want to tackle this project, get lots of money and then have even more money "just in case".
Your Tial 40mm WG is too small.
The Turbonetics 60-1 will have trouble hitting those numbers unless we're talking ungodly amounts of boost - i.e. race gas.
The Walbro is too small to safely support power levels you're talking about.
-Ted
#4
King of the Loop
Im no pro at all but im pretty sure the MS only needs a wideband for auto/self tuning. if your tuning it on a dyno with a wideband theres no need for one to be hooked up all the time. Second of all most wideband kits have an additional output just for an ems.
Third of all, listen to Ted.
Third of all, listen to Ted.
#5
NorCal 7's Co-founder
I'll have to admit that Ted makes a great point.
Hitting those kinds of numbers isn't the easiest thing in the world to do. And taking the cheaper route to get there will result in a blown motor.
Now I don't personally sell all of the gear you need to do this project right, but if you want I can hook you up with the shops that do. And I know I can get you better prices than you'd normally find on most things. As per usual, just drop me a PM and let me know what you need. I will help out where I can. And keep your head up because you will eventually hit the numbers you are wanting.
Zach
Hitting those kinds of numbers isn't the easiest thing in the world to do. And taking the cheaper route to get there will result in a blown motor.
Now I don't personally sell all of the gear you need to do this project right, but if you want I can hook you up with the shops that do. And I know I can get you better prices than you'd normally find on most things. As per usual, just drop me a PM and let me know what you need. I will help out where I can. And keep your head up because you will eventually hit the numbers you are wanting.
Zach
#6
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
You have no idea what the capabilities of the MS you own.
That's just downright dangerous.
You make it sound trivial to hit numbers like that - it's not.
That's just downright dangerous.
You make it sound trivial to hit numbers like that - it's not.
Learn the capabilities of the MS first before asking questions like this.
You won't understand the answers are it stands now.
You won't understand the answers are it stands now.
Second, CHEAP WILL BITE YOU IN THE ***.
Your Tial 40mm WG is too small.
The Turbonetics 60-1 will have trouble hitting those numbers unless we're talking ungodly amounts of boost - i.e. race gas.
The Walbro is too small to safely support power levels you're talking about.
I've done my research and prepared for this power output. You know what you're talking about, and i've talked to you about it plenty. I am asking questions about the Megasquirt ECU and Ignition Control, so please address those issues which I stated in my original post. I have plently of experianced rotary guys around me IRL that know the capabilities of my setup that have helped me along the way.
BklynRX7> Thanks for your input. I've heard that same thing from a few people, so I think i'm just gonna save myself the trouble and stick with the Dyno's Wideband.
BoostedRex> Thank you, I won't hesitate to go through you for parts.
-Andrew
Last edited by RyoFC3S; 06-15-06 at 05:06 PM.
#7
Am I missing something? a 60-1 should be able to make 350-400 rwhp at a little over 1bar on pump gas,although 400 may be a stretch.But it depends on other factors also.
Trending Topics
#8
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by The Griffin
Am I missing something? a 60-1 should be able to make 350-400 rwhp at a little over 1bar on pump gas,although 400 may be a stretch.But it depends on other factors also.
See my last post for those of you who are keeping up with the thread and trying to help me out.
-Andrew
#10
Which version of MS do you have? Is it a version 2.2 board or the older (original) V1.0 board? I'm not sure about the V1.0 board but you can get the V2.2 board to do ignition.What you need is one of error*'s daughter boards or if you have some electronics skills you can make up the ignition circuit on a breadboard.There is also a couple of minor board mods to use the 3 Led's as ignition outputs .The other thing you will need to do is flash the firmware with MS'n S-E code(megasquirt and spark extra code) to use the ignition side.
Last edited by The Griffin; 06-15-06 at 09:43 PM.
#11
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
I'm pretty sure its a V2.2 board, but i'm checking on that now...
I've been told I may have a "problem" since right now the MS is wired through the factory ECU. Supposedly i'm setup right now to have the factory ECU used only for ignition, while everything else is controlled by the MS. By stopping using the ECU as the ignition controller and using the MS instead, would that mean that i'd have to rewire everything to the factory wire harness and get rid of the ECU all together? Is there any way to just keep it wired like it is already (through the factory ECU) and just "turn off" the ignition part, so that the factory ECU is just kind of a "passageway" from the MS to the factory wiring harness? I'd like to avoid cutting the stock wiring harness if at all possible...
And is there any other hardware or sensors I need to control ignition, or is it just software and wires?
Thanks for the help.
-Andrew
I've been told I may have a "problem" since right now the MS is wired through the factory ECU. Supposedly i'm setup right now to have the factory ECU used only for ignition, while everything else is controlled by the MS. By stopping using the ECU as the ignition controller and using the MS instead, would that mean that i'd have to rewire everything to the factory wire harness and get rid of the ECU all together? Is there any way to just keep it wired like it is already (through the factory ECU) and just "turn off" the ignition part, so that the factory ECU is just kind of a "passageway" from the MS to the factory wiring harness? I'd like to avoid cutting the stock wiring harness if at all possible...
And is there any other hardware or sensors I need to control ignition, or is it just software and wires?
Thanks for the help.
-Andrew
Last edited by RyoFC3S; 06-15-06 at 09:58 PM.
#12
You'll have to add some more info on your setup.But if the MS is separate in it's own case then the easiest way is to build an adaptor harness for the stock wiring harness by canibalizing a S5 N/A ecu for the connector.For an S5 though you will lose a few things,the biggest are,OMP control (have to premix) and BAC control (unless you mod the board with the correct Transistor to use the stock BAC valve).The other ones you can live without,2 stage fuel pump voltage,S5 TII wastegate solenoid,and fuel press. reg. solenoid function.
#13
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by The Griffin
You'll have to add some more info on your setup.But if the MS is separate in it's own case then the easiest way is to build an adaptor harness for the stock wiring harness by canibalizing a S5 N/A ecu for the connector.
For an S5 though you will lose a few things,the biggest are,OMP control (have to premix) and BAC control (unless you mod the board with the correct Transistor to use the stock BAC valve).
The other ones you can live without,2 stage fuel pump voltage,S5 TII wastegate solenoid,and fuel press. reg. solenoid function.
Thanks for your help Griffin.
-Andrew
#14
What's the point??
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
the fpr solenoid switches the FPR ref. vacuum to atm for warm start ups i believe. The 2 stage voltage is so at low load it has a lower voltage and at high load it gets full voltage. This is not entirely necesary, but it does help with the current draw from the alternator at idle.
#15
Originally Posted by RyoFC3S
I'll try and get some pictures of the way its setup right now... Not sure what you mean about the connector though.
Originally Posted by RyoFC3S
I don't have an OMP or BAC valve.
#18
Originally Posted by RyoFC3S
Would it help that I have two S5 TII ECUs? One is all hacked up with the MS installed, and the other is the stock unadulterated one that came with the car.
-Andrew
-Andrew
How did you get around the stock ecu going into limp mode with removing the OMP? I'm under the impression that the limp mode also alters the ignition.Did you take it off and leave it plugged into the harness in the engine bay?
#19
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by The Griffin
How did you get around the stock ecu going into limp mode with removing the OMP? I'm under the impression that the limp mode also alters the ignition.Did you take it off and leave it plugged into the harness in the engine bay?
I have taken pictures but Im having troubles getting them to work, so here's a simple diagram of how its setup until I can get real pictures:
Thanks!
#20
Rotary Enthusiast

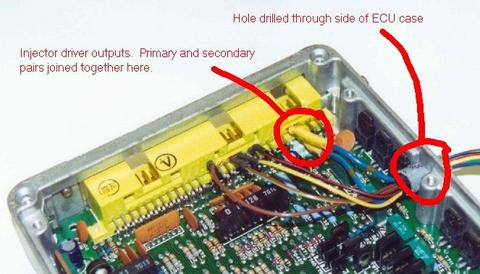

Sounds exactly like how I set up my old S4 back in 2002 (see attached pic below).
If you want to add ignition control to your V2.2 piggy-back setup, you're going to have two issues:
1.) MS decoding of stock or modified CAS
At present in fuel-only mode, the stock ecu does the CAS wheel decoding, and you are likely just using the coil for triggering. To go to full standalone mode, you need to modify the MS box to handle the CAS wheel decoding. Unfortunately, the older V2.2 board you have does not have any built-in VR sensor signal conditioning circuitry, so you need to build extra circuits from scratch (LM1815 circuit or equivalent), or add the "error*" daughterboard.
2.) Modification of board for spark outputs
You'll need to add pull-up resistors, and add wires to provide the spark signals from the three board-mounted led's out to the coil packs.
If you want to keep the stock ecu case in place for whatever reason, you could just continue to cut away at the pins inside, and run patch wires out to the MS similar to what has already been done. You really only need a half-dozen or so extra wires (2 vr +ve, vr ground, IgT-T, IgS-T, IgT-L are all that come to mind at the moment).
As is obvious from reading this post, MS, while being a very capable system, is also very much in the 'DIY' category. It can do just about anything you can dream of, but if you move beyond fuel-only mode, hardware and firmware mods are almost always required. The newer V3.0 board minimizes this work (see the V3.0 build thread), and you may want to consider upgrading to that board rather than do the mods required to your V2.2 setup.
If you want to add ignition control to your V2.2 piggy-back setup, you're going to have two issues:
1.) MS decoding of stock or modified CAS
At present in fuel-only mode, the stock ecu does the CAS wheel decoding, and you are likely just using the coil for triggering. To go to full standalone mode, you need to modify the MS box to handle the CAS wheel decoding. Unfortunately, the older V2.2 board you have does not have any built-in VR sensor signal conditioning circuitry, so you need to build extra circuits from scratch (LM1815 circuit or equivalent), or add the "error*" daughterboard.
2.) Modification of board for spark outputs
You'll need to add pull-up resistors, and add wires to provide the spark signals from the three board-mounted led's out to the coil packs.
If you want to keep the stock ecu case in place for whatever reason, you could just continue to cut away at the pins inside, and run patch wires out to the MS similar to what has already been done. You really only need a half-dozen or so extra wires (2 vr +ve, vr ground, IgT-T, IgS-T, IgT-L are all that come to mind at the moment).
As is obvious from reading this post, MS, while being a very capable system, is also very much in the 'DIY' category. It can do just about anything you can dream of, but if you move beyond fuel-only mode, hardware and firmware mods are almost always required. The newer V3.0 board minimizes this work (see the V3.0 build thread), and you may want to consider upgrading to that board rather than do the mods required to your V2.2 setup.
#21
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by renns
The newer V3.0 board minimizes this work (see the V3.0 build thread), and you may want to consider upgrading to that board rather than do the mods required to your V2.2 setup.
Second, if I was to get the V3.0 board, would that mean I'd have to rewire everything? Do I just buy the board itself? My problem is this: I bought my MS already fully wired. All I had to do was unplug my old ECU and plug this one in (basically) so in reality doing any of this wiring would be a new thing for me.
I'd love to do all the work myself, but the fact is I just dont trust myself working on precision electronics like this. The more help you guys can give me the more confident i'd feel diving head first into this project.
-Andrew
#22
S5 TII
Thread Starter
iTrader: (1)
Join Date: Oct 2003
Location: Denver, CO
Posts: 826
Likes: 0
Received 0 Likes
on
0 Posts
Well, I bought an Apex'I SITC. The guy I bought the Megasquirt from said that he used one with his and they worked perfectly together and are prefectly capable of the power levels Im going for.
Thanks to everyone who contributed constructive advice (esp. renns and Griffin). Ill try and let you know how it goes.
-Andrew
Thanks to everyone who contributed constructive advice (esp. renns and Griffin). Ill try and let you know how it goes.
-Andrew
#23
Rotary Enthusiast
Originally Posted by RyoFC3S
Second, if I was to get the V3.0 board, would that mean I'd have to rewire everything? Do I just buy the board itself? My problem is this: I bought my MS already fully wired. All I had to do was unplug my old ECU and plug this one in (basically) so in reality doing any of this wiring would be a new thing for me.
I'd love to do all the work myself, but the fact is I just dont trust myself working on precision electronics like this. The more help you guys can give me the more confident i'd feel diving head first into this project.
#25
Originally Posted by Terrh
if my camaro buddies can build 600whp cars with a walbro fuel pump, I don't see why a 350whp rotary can't use one.
