MSII with V3.0 PCB - Stock CAS Trailing Coil HELP
I have a J-Spec S5 13BT...the car itself is a 1988 N/A car retaining its stock coil packs.
-I have figured out what wire to solder for the leading coil-pack, but I have a hard time figuring which wire on the trailing coil pack goes to what
WIRING THE MEGASQUIRT TO THE COIL-PACKS
*Trailing coil-pack ignition trigger
- IGt-L from coil-pack connects to PIN29 on the DB37 plug
*Trailing coil-pack coil-select trigger
- IGs-T from coil-pack connects to PIN27 on the DB37 plug
What I need to figure out is which wire on the "Trailing coil-pack" is what (IGt-T or IGs-T)

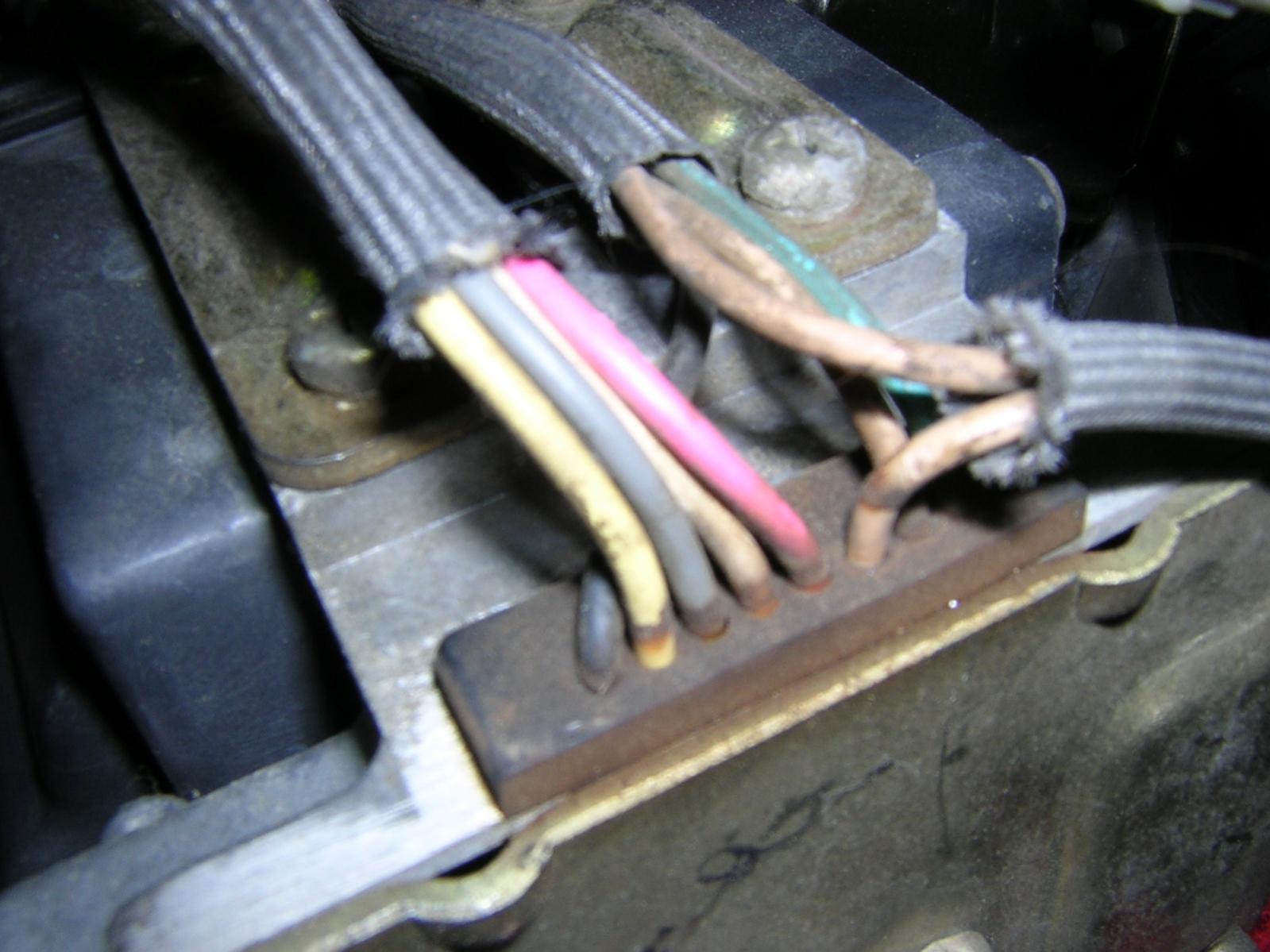

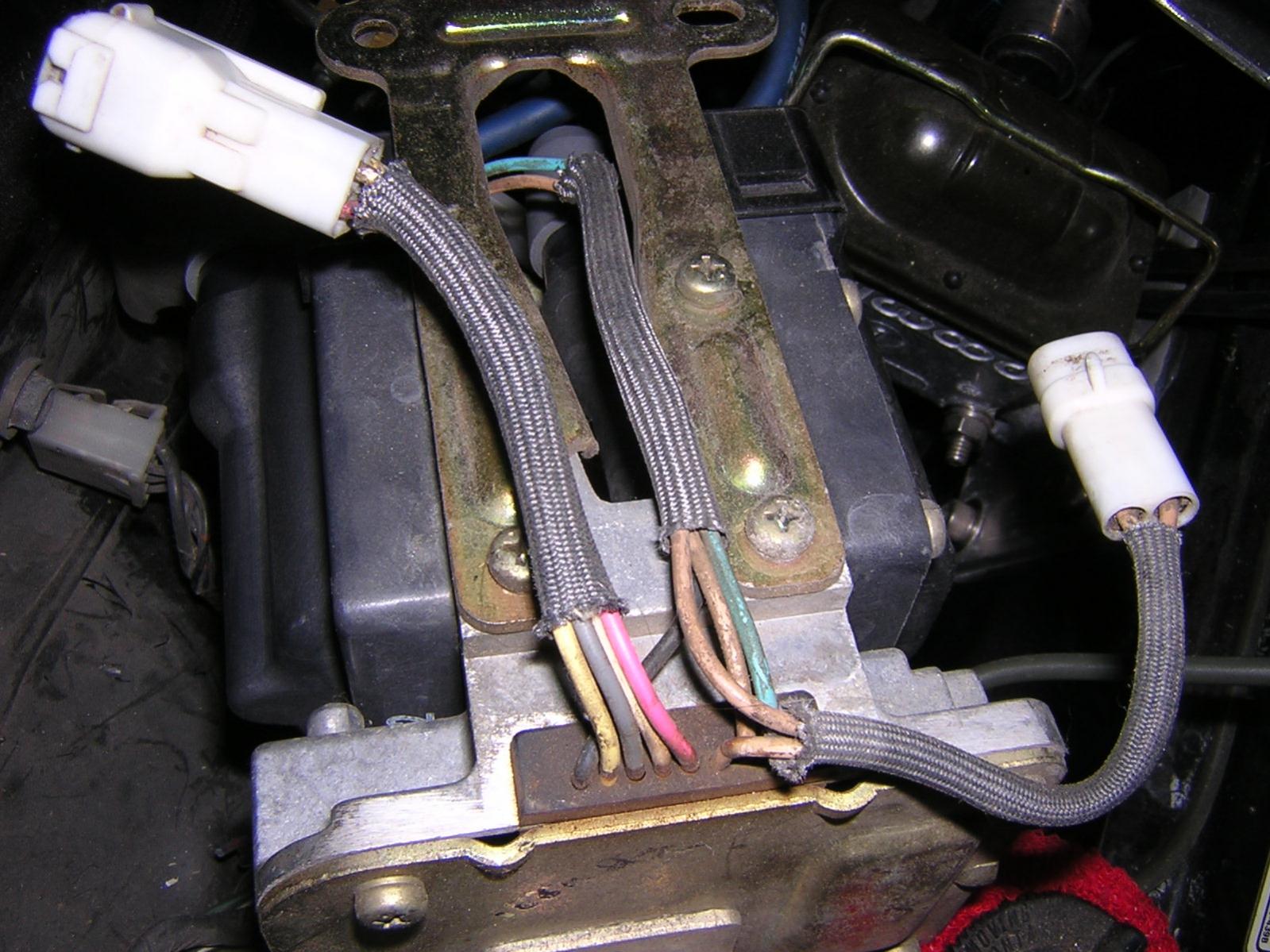

I have a pic of the trailing coil below...please help me out
Which wire is the trailing coil ignition trigger and trailing coil-select trigger?
-I have figured out what wire to solder for the leading coil-pack, but I have a hard time figuring which wire on the trailing coil pack goes to what
WIRING THE MEGASQUIRT TO THE COIL-PACKS
*Trailing coil-pack ignition trigger
- IGt-L from coil-pack connects to PIN29 on the DB37 plug
*Trailing coil-pack coil-select trigger
- IGs-T from coil-pack connects to PIN27 on the DB37 plug
What I need to figure out is which wire on the "Trailing coil-pack" is what (IGt-T or IGs-T)
I have a pic of the trailing coil below...please help me out
Which wire is the trailing coil ignition trigger and trailing coil-select trigger?
12-31-09, 09:07 AM
#3
Full Member
Join Date: Sep 2008
Location: Puerto Rico
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
http://stuff.pw.cx/Megasquirt%20MS2%...azda%20CAS.pdf
• LEADING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-L: Red Wire
• TRAILING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-T trigger: Red Wire
o IGs-T select: White Wire
• Leading coil-pack ignition trigger
o IGt-L from coil-pack connects to PIN29 on the DB37 plug
• Trailing coil-pack ignition trigger
o IGt-T from coil-pack connects to PIN25 on the DB37 plug
• Trailing coil-pack coil-select trigger
o IGs-T from coil-pack connects to PIN27 on the DB37 plug
• LEADING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-L: Red Wire
• TRAILING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-T trigger: Red Wire
o IGs-T select: White Wire
• Leading coil-pack ignition trigger
o IGt-L from coil-pack connects to PIN29 on the DB37 plug
• Trailing coil-pack ignition trigger
o IGt-T from coil-pack connects to PIN25 on the DB37 plug
• Trailing coil-pack coil-select trigger
o IGs-T from coil-pack connects to PIN27 on the DB37 plug
12-31-09, 12:40 PM
#4
http://stuff.pw.cx/Megasquirt%20MS2%...azda%20CAS.pdf
• LEADING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-L: Red Wire
• TRAILING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-T trigger: Red Wire
o IGs-T select: White Wire
• Leading coil-pack ignition trigger
o IGt-L from coil-pack connects to PIN29 on the DB37 plug
• Trailing coil-pack ignition trigger
o IGt-T from coil-pack connects to PIN25 on the DB37 plug
• Trailing coil-pack coil-select trigger
o IGs-T from coil-pack connects to PIN27 on the DB37 plug
• LEADING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-L: Red Wire
• TRAILING
o +12V IGN SWITCHED: Tan wire
o GND: Runs through mount
o IGt-T trigger: Red Wire
o IGs-T select: White Wire
• Leading coil-pack ignition trigger
o IGt-L from coil-pack connects to PIN29 on the DB37 plug
• Trailing coil-pack ignition trigger
o IGt-T from coil-pack connects to PIN25 on the DB37 plug
• Trailing coil-pack coil-select trigger
o IGs-T from coil-pack connects to PIN27 on the DB37 plug
