If you want to se more....here is some pics:



Abiex,
Very nice photos, I like your car, but please next time when you upload photos on the net, make them .jpeg format. They are alot smaller...

-Fanis



If i want to edit my writing....how do i do it?



Within 30 min. of your reply, just press the "edit" button in the lower right corner of your post



can't see the piccies... :-(



me neither



too late for editing I guess

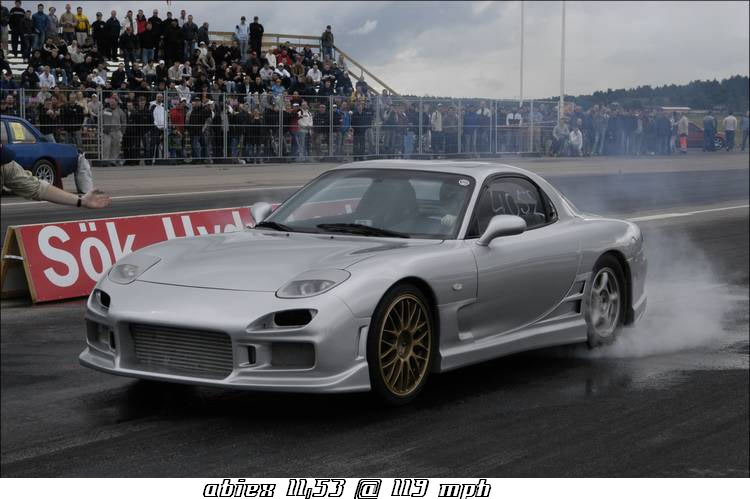

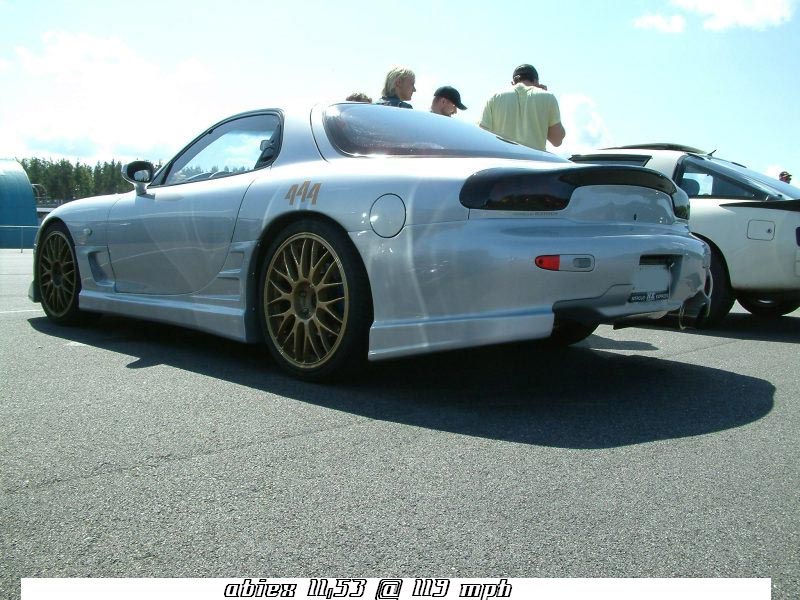

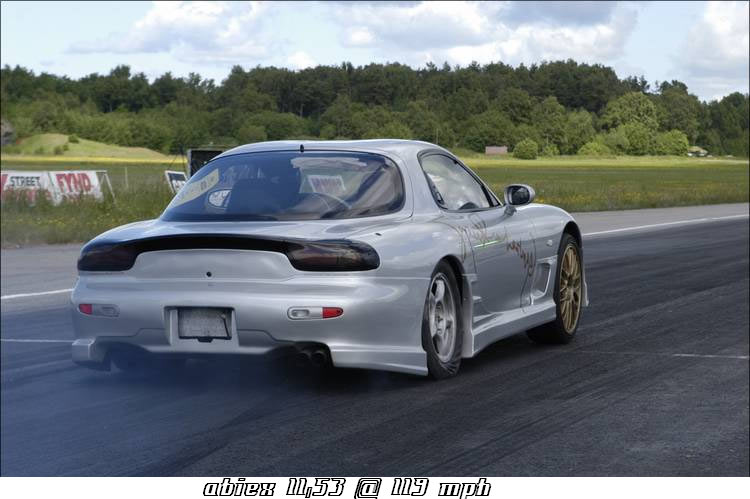

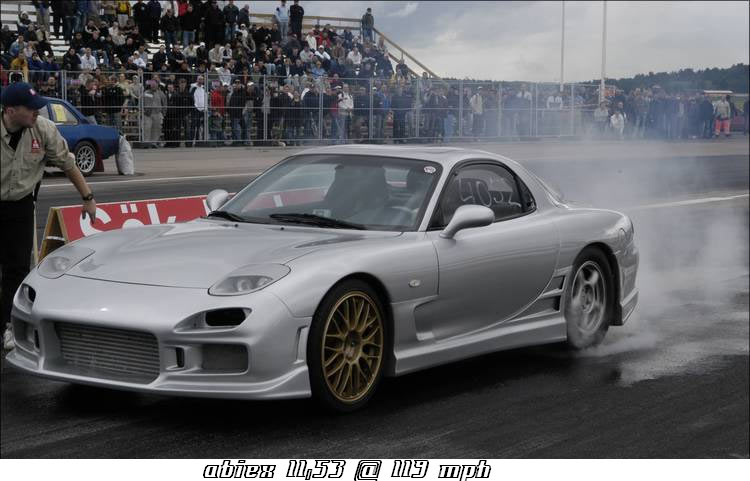

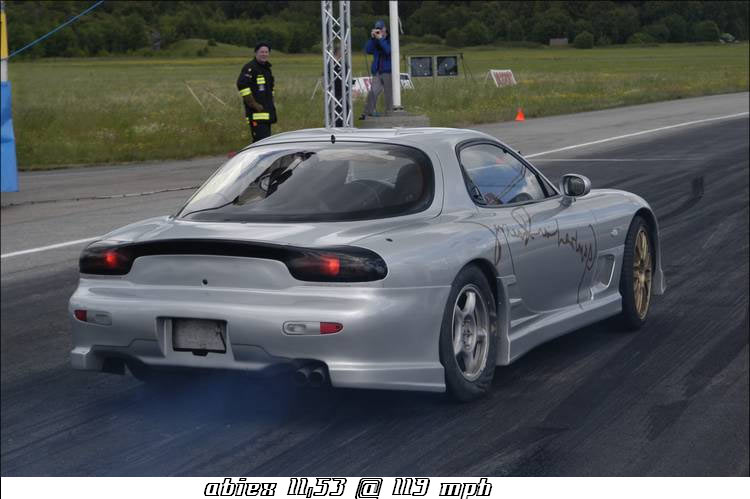

Here are Abiex's pictures....

-Fanis



Very nice car... I'd like engine bay pics aswell, if someone can post them
It's amazing how clean and perfect an FD looks without rear wing... That''s so much nicer (in my own opinion, of course) then those picknick-tables...



It does look good but some of the picknick-tables really work. Like the RE-Amemiya one.


*end of highjack*

-Fanis



Here you have some new pictures on abiex car!
he made the shift light by himself.... pretty cool huu!! heheheh
And you know that the original soundshit is great but! you cant hear it when the engine is extreamly tuned... and abiex does not like the traditionall shift light bazzoka so he came up with this idea! NICE!



Here is some before and after pictures about abiex engine.


the engine assambled

here you see the engine is cleaned and ready

here you see ports are extreme!

here you see a plce for 3mm apex seal!



all these oictures are taken by www.wankeltrim.se
the engine tuned by www.wankeltrim.se



the 3mm apex seals and the corner seals


you can compere the ports in the intake manifold this is before

and this is after big difrence

The HKS clutch and hks light flywheel!



ready to install!



this waterpump will abiex use

here is the subframe for the 20b.... i thnk that abel ibarra did have the same in his rx7 with the 20b

here you see abiex tired and smelly!!! heheheh


look at the intercooler hahahahaha...... when you go big YOU GO BIG!



here some pictures on the dowels



here is the car with the 13B-rew engine he over 400+ rwhp with 1bar of boost
and this was summer 2004



the new lsd a cusco 1&2 way



here is the new catchtank
you will see new pictures later on!

here is his fuelrails that he made by himself!

hmmm and you know what this is!



i will return with new pics later on have nic time bye!!!!



Cool stuff, I really like the idea of the built in shift light.



Your FD and 20B motor looks very nice!... along with Wankeltrim's porting

Thanks for sharing the photo's
Oliver



That is feeling for quality,when my own engine is ready im going to post some pics on something went out of control.



Another pic of my car on the track in sweden ....JAPMEET 2004
Before the diff broke.



I guess that You will be replacing that 444 sticker soon



pic doesn't work for me :-(
