Drifting Discuss Drifting and drifting techniques here.

PBM Modded Knuckles w/ Mazdtrix Angle Kit

Thread Tools

Search this Thread

Old 01-29-11, 11:05 AM
  #1
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Talking PBM Modded Knuckles w/ Mazdtrix Angle Kit

Hey whats up i was wondering if anyone could help me out ive been searching for awhile but maybe i can seem to find the key words to type. I have Powered By Max modded knuckles with the mazdtrix angle kit here are some questions i have.

Im getting these mustang wheels 17x9 24mm, 17x10.5 27mm.

1. Will a 9 inch wheel hit the sway bar with that much angle?
2. Can i air hammer in the wheel wells to make fitment?
3. Anything else anyone think might get in the way of the wheel? I will probably stretch some tires on the front a little to clear up some room.


Any help is well appreciated!!!
Old 01-29-11, 08:11 PM
  #2
Senior Member

iTrader: (3)

slava's Avatar

Join Date: Oct 2003
Location: Colorado
Posts: 594
Likes: 0
Received 0 Likes on 0 Posts
i was running the same setup on my fc

1. more than likely yes, completely remove sway bar
2. yes, but i found it easier to go to town with real big hammer
3. your offsets way to high, its gonna hit everything. get 25-35mm spacers
Old 01-30-11, 12:09 AM
  #3
RX7-Factory

iTrader: (8)

driftfcbuckey's Avatar

Join Date: Jan 2008
Location: Vegas
Posts: 2,674
Received 18 Likes on 18 Posts
+1 for removed front sway bar... i did and have never looked back... i pulled off both, as did JTP, and pretty much everyone else with 2nd gen RX7's in drifting. feels good. try it.

+1 also on the wheel spacers. if you dont wanna buy them to help clear stuff, then buy them for the fashion show. spacers are always full of win.
Old 01-30-11, 09:33 AM
  #4
Rotary Enthusiast

iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by red92vr4buckey
+1 also on the wheel spacers. if you dont wanna buy them to help clear stuff, then buy them for the fashion show. spacers are always full of win.
+2 haha
Old 01-30-11, 01:59 PM
  #5
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
haha thanks guys, so the handling is still good even with both sway bars gone? i have some thickk ones i think they rb
Old 01-30-11, 02:19 PM
  #6
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts

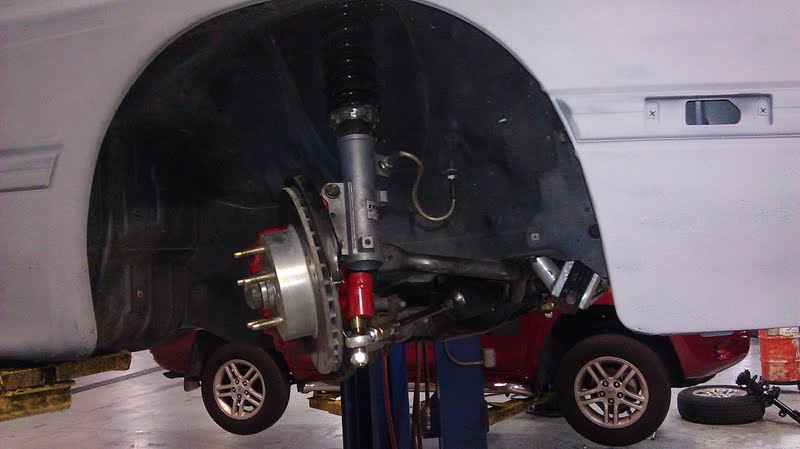

Name:  Angleee.jpg
Views: 1101
Size:  38.1 KB


Thats a lot of angle. Now just need some wheels to put on it.
Old 01-30-11, 02:37 PM
  #7
RX7-Factory

iTrader: (8)

driftfcbuckey's Avatar

Join Date: Jan 2008
Location: Vegas
Posts: 2,674
Received 18 Likes on 18 Posts
Originally Posted by TheGoldenSB
haha thanks guys, so the handling is still good even with both sway bars gone? i have some thickk ones i think they rb
sell them and get some money back for needed stuff.
Old 01-30-11, 03:46 PM
  #8
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
What else do you think i should do? Kinda hard of a questions when you dont know what my setup is ill just do a quick breakdown let me know if there is anything i could do. Also what camber,caster,toe setup do you guys use?


stock internals, stock turbo
2 msd 6al , 1st gen distributor, magnacore 11mm wires
aeromotive fuel pressure regulator with rp comp pump just 750cc up top
full 3 in exhaust with cat
alum radiator
sakura motorsports standalone
greddy profec boost control low 11lbs high 17lbs
stock s5 lsd
poly urethane all around except "motor,tranny,diff mounts"
front and rear strut bars
new ps rack and pinion
k sport hydraulic e brake


prolly more but too high to think of the rest haha
Old 01-30-11, 06:58 PM
  #9
Senior Member

iTrader: (12)

Justen's Avatar

Join Date: Jul 2007
Location: New Jersey
Posts: 511
Likes: 0
Received 0 Likes on 0 Posts
I currently have a stock s5 T2 Lsd... Which I'm going to weld before I start out this season. It currently slips like a mother, and I heard they only get worse when they get hot at drift events.

If you're willing to spend the money, go for a aftermarket clutch-type lsd. Or if youre broke, just weld living day-lights out of it....
Thats what people have told me.
Old 01-30-11, 08:17 PM
  #10
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
i have a viscous lsd right now its not too bad i'd like a nice 2 way
Old 01-30-11, 09:31 PM
  #11
Meow

iTrader: (2)

RE TurboII's Avatar

Join Date: May 2005
Location: San Diego
Posts: 1,047
Likes: 0
Received 1 Like on 1 Post
dont boost 17psi on stock turbo
Old 01-30-11, 10:02 PM
  #12
RX7-Factory

iTrader: (8)

driftfcbuckey's Avatar

Join Date: Jan 2008
Location: Vegas
Posts: 2,674
Received 18 Likes on 18 Posts
Originally Posted by RE TurboII
dont boost 17psi on stock turbo
i can vouch for this.

lol it wouldn't make it that high. mine never went above 15psi
Old 01-31-11, 08:59 AM
  #13
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts

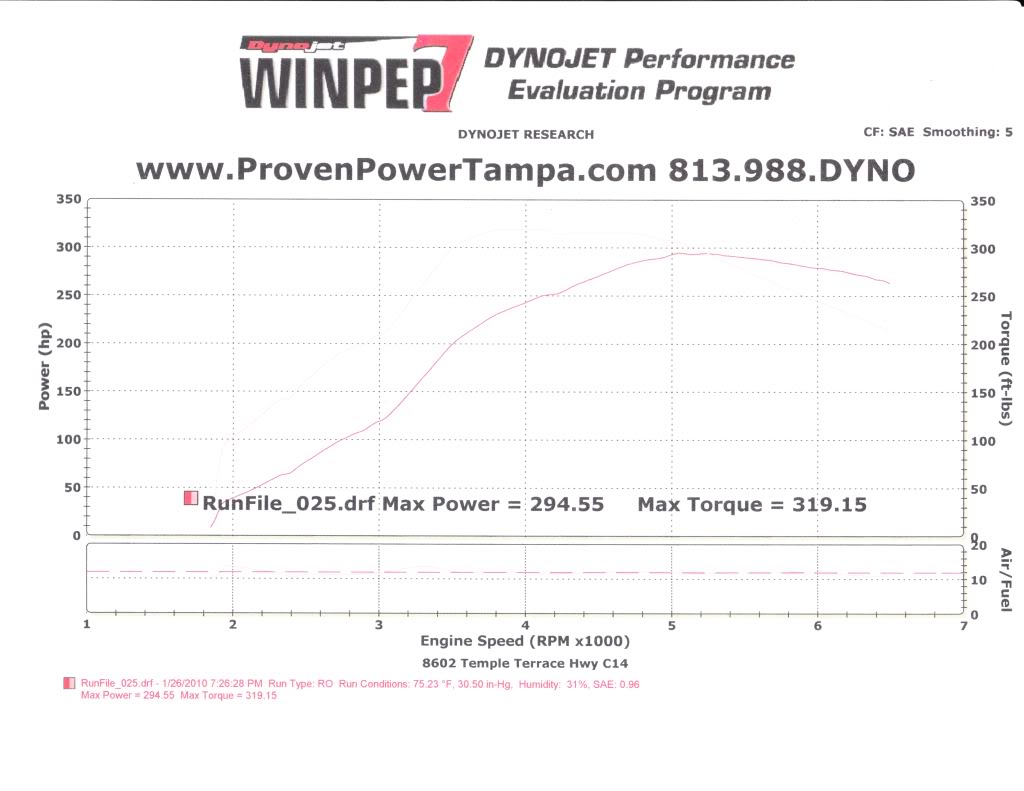

Name:  DynoSheet.jpg
Views: 624
Size:  91.0 KB


Mine did make it that high here is the dyno on 17lbs made nearly 300hp but i never put it on high boost we just did on the dyno to see how much power we could make. You can tell it drops of drastically at like 5.5k stock turbo cant suck in anymore air. Id like to get it rebuild by bnr. Any suggestions on what stage for drifting?
Old 01-31-11, 01:09 PM
  #14
RX7-Factory

iTrader: (8)

driftfcbuckey's Avatar

Join Date: Jan 2008
Location: Vegas
Posts: 2,674
Received 18 Likes on 18 Posts
damn i should've dyno'd my car..
Old 01-31-11, 01:15 PM
  #15
Senior Member

Thread Starter
iTrader: (1)

TheGoldenSB's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 309
Likes: 0
Received 0 Likes on 0 Posts
Best way to get a good tune. But what bnr turbo should i get? I dont make any power past like 5.2k or something like that how much farther would a bnr make power to if anyone knows?
