I was planning to hand lap them for a few hours using the technique shown in the Mazdatrix video with permatex valve grinding compound.

thewird
Old 12-13-10, 06:25 PM
  #27
Coming to a track near u!

iTrader: (5)

RacerJason's Avatar

Join Date: Sep 2001
Location: Toronto
Posts: 3,858
Received 3 Likes on 2 Posts
Re-nitriding is not necessary typically as the factory nitriding actually penetrates the irons surface beyond minimum spec usable depth.
Old 12-13-10, 06:51 PM
  #28
400WHP or bust

iTrader: (7)

Nismo Convert86's Avatar

Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RacerJason
Re-nitriding is not necessary typically as the factory nitriding actually penetrates the irons surface beyond minimum spec usable depth.
The deeper you go, the less hard it is, I'm going to call BS. you might have a surface hardness of Rockwell 40c in the surface but that will become more soft the deeper you go.
Old 12-14-10, 09:09 AM
  #29
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,791
Likes: 0
Received 113 Likes on 95 Posts
Having not seen the Mazdatrix video, I'm now very curious about the hand lapping. Basically smear valve grinding compound on two plates and then lap them against one another for an hour or so?
Old 12-14-10, 11:22 AM
  #30
I

iTrader: (3)

Prôdigy2nd's Avatar

Join Date: Oct 2005
Location: Alberta, Canada
Posts: 993
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Aaron Cake
Having not seen the Mazdatrix video, I'm now very curious about the hand lapping. Basically smear valve grinding compound on two plates and then lap them against one another for an hour or so?

Yes I believe that is the procedure, that's how the rebuild video I have showed how to do it...


J.
Old 12-15-10, 12:03 AM
  #31
Lives on the Forum
Tenured Member 15 Years
Thread Starter
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,592
Likes: 0
Received 11 Likes on 11 Posts
Originally Posted by Aaron Cake
Having not seen the Mazdatrix video, I'm now very curious about the hand lapping. Basically smear valve grinding compound on two plates and then lap them against one another for an hour or so?
Yah pretty much. Figure eight, flip, figure 8, flip etc.

thewird
Old 12-16-10, 02:00 PM
  #32
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,791
Likes: 0
Received 113 Likes on 95 Posts
Huh, I'll have to give that a try next time I build an engine. Too bad I have already blasted and painted the irons I'll be using for the Cosmo...

I've also heard of people using thick plate glass and fine grit sand paper to resurface irons at home.
Old 12-17-10, 03:16 AM
  #33
Lives on the Forum
Tenured Member 15 Years
Thread Starter
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,592
Likes: 0
Received 11 Likes on 11 Posts

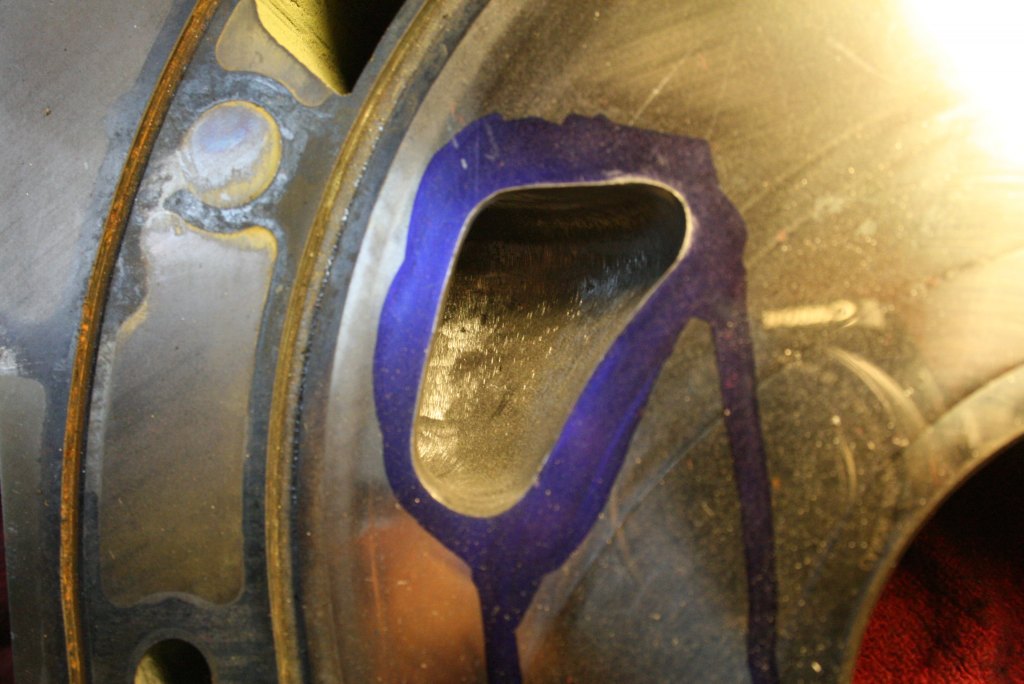

Progress, getting better. Here are my primary ports




Uploaded with ImageShack.us

thewird
Attached Thumbnails Port Ate my Cutting Tool >_>-image-08a6_4d0b1d5f.jpg
