Alak

iTrader: (9)

Me wants! Help me Max!! I got a good 6-Port 13B sitting here just crying for PP!!! Please, I beg!



I'll be going carb however D:

ShaunO

I have to admit I don't understand the fundamentals of the peripheral port engine. From the look of things, I'm guessing it's all about cramming more air into the engine. Is that about the size of it? What are the characteristics of a peripheral port engine? What are the trade-offs?

84stock

iTrader: (5)

From what I understand (no personal experience here, just prior reading) you lose some driveability and gains tons in the top end. But some say otherwise, I think it is up to the designer/builder to achieve the right intake timing and set up. Looking at Max's recent work this thing may be the next miracle, turbo power out of an n/a, no lag, just WAHHHHHHHHHHHHHHHHHHHHH. And hopefully some of Max's brappity brappity brap

84stock

iTrader: (5)

looking thru those hole it looks like you must've polisher those rotors.

84stock

iTrader: (5)

ooooops, polished

soloracer951

Most likely he's using the "brand new" series 5 N/A rotors that he bought earlier in the thread.

Maxthe7man

Ok...

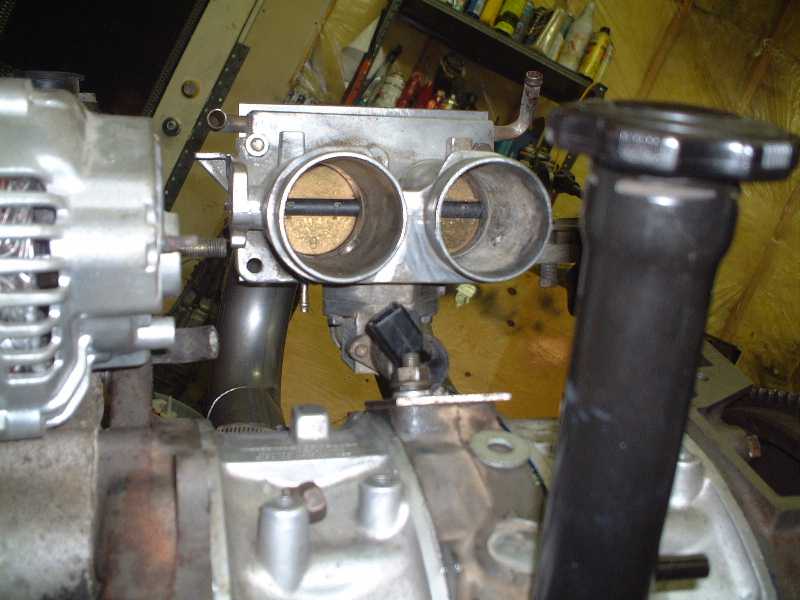

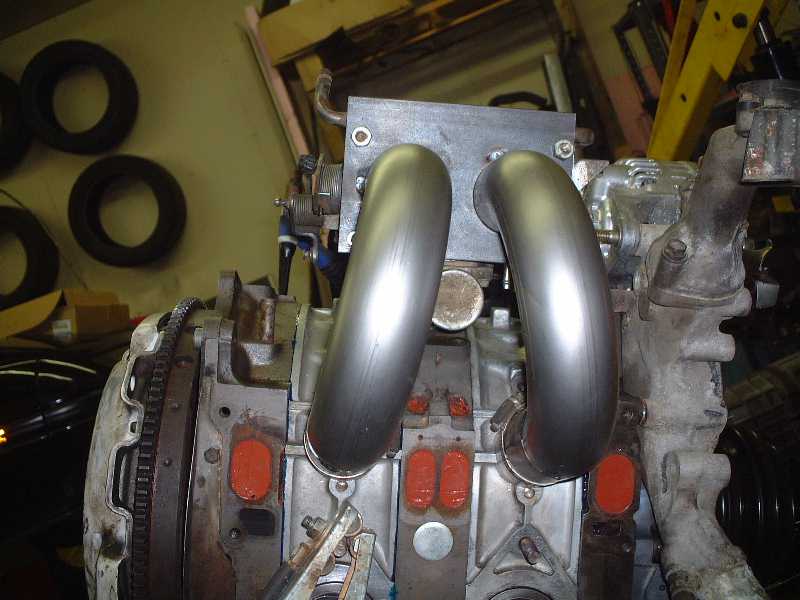

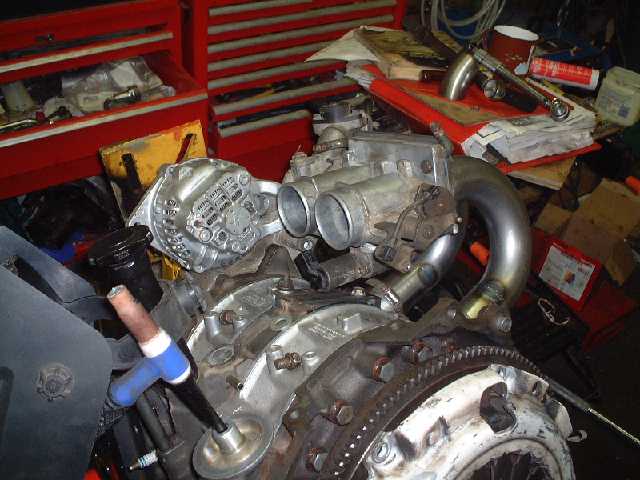

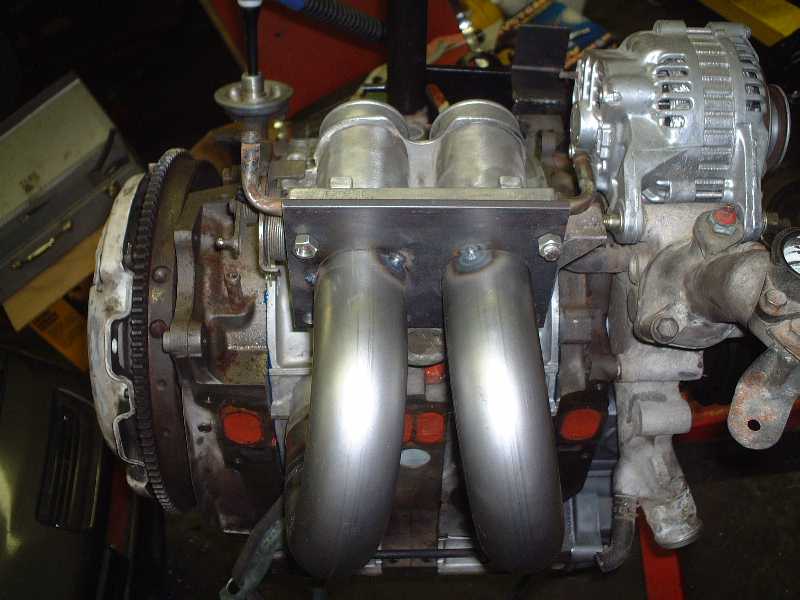

Roughed in the intake manifold today, the girlfriend is gonna kill me spending so much quality time in the garage...






Tomorrow I will put some injector bungs and a fuel rail on it..max

Alak

iTrader: (9)

Interesting approach on the intake design. I though a straight pipe coming off the intake port would have been a more interesting design. Open it up all the way and see the engine working. Wouldn't that be amazing.

RXciting

Nice manifold! wish i lived in Calgary so i can see this thing in person when it's all said and done. Till then pics and vids will have to suffice.

BTW nice holder for the welder

bigmack000

you done yet max lol ?

Prôdigy2nd

iTrader: (3)

well i have an idea for when i have the means and the engines to **** around with, why not (i have no idea if this will work good or not or it if should even be conceilable, but) have P ports on the engine like shown in your beautiful building, then have the stock houseing (not sure name) the intakes kept too then going down the highway have one set of intakes closed, lets the p ports for ***** and giggles. just so that i understand (and you guys too) you are running basicly a stock setup, then you open the Ports while still haveing the stock ports do their jobs, can someone say instanity, or possible? funny thought i had how cool it would be to kick turbo'd cars ***'s (like my friends 300ZX TT) on the highway with absoluty no boost , oh i hope this is possible cause then i'de build it, (with the help of other RX7 club members in Alberta too :P. tell me i'm crazy or is it possible?

Prôdigy

Terrh

iTrader: (7)

what you are describing is pure madness.

while it is in theory possible, practicality reasons as to why it doesn't work must exist.

Probably, something along the lines of it not making power till like, 15,000RPM or something, and at which point you've turned your doritos into pringles.

FC3S.USD

iTrader: (2)

If i understand correctly , what hes describing is semi p port.

It maintains the stock intakes plus theres a small hole in each housing . They are controlled via actuator.

This already exists .

R.P.M.

iTrader: (3)

Yeah....Mr. Ito just finished his semi-PP setup for his RX-3 drag car!! What a sic setup!!!

Prôdigy2nd

iTrader: (3)

well i'm talking full blown P-Ports not just some small little holes ROFL, ya it is probly really cool, but hell go all the way and watch the gas gauge go down with both open, i don't really think it's meant for practicality, mainly kicking caocky guys asses, without the use of boost (like my buddies 300ZX) i would love to kick the crap outta that car with no boost , besides when modifiny a RX 7 genral rule of thumb i found is with most mods, just chuck practicality out the window :P



Prôdigy

FC3S.USD

iTrader: (2)

well if its just to beat your freinds 300zx , just get some nitrous or somethig.

bigmack000

whay he is talkignabtou seem liek rotary vtec lol

coldfire

iTrader: (1)

not only would you have overly massive port area, but i think you would just have too much damn intake timing with a full PP in addition to the stock.

people have done this semi-PP idea. the problem is there are many things to consider with it...
sometimes it does work out quite well. other times people end up getting the worse of both worlds...as much power as just a large street port, with all the driveability issues of a full PP.

Judge Ito's setup is currently running around 300rwhp ALL-MOTOR.
he is aiming for 360+rwhp running on methanol.

anyways let's not hijack Max's thread since i am very interested in seeing what is going with this project

p4nc7

iTrader: (1)

...wow...just, wow..

Prôdigy2nd

iTrader: (3)

no that would just be a perk, i don't like giggle juice, never wanna use it, but thats me, so what are the "Issues" that P Ports have considering the normal intakes that Rortaies normally have, cause i am looking into doign this myself, but i would like more info or even a link (other than the search bar) to research it more. No i don't have any Rortary powered vehilce yet, but withen a year i should have an imported FC or withen a 1 -1/2 i will have my imported FD. but until then i need to be cheap with my money so i can upgrade them as i receive them



Prôdigy

C-Murder

p-ports have the problem with having to replace the engine with every oil change

dufourmike

iTrader: (1)

so not true, i think anyone who actually has one could tell you different. most last 50k, which to me, seems like a long time when you actually consider what you get and how often you would use it

Archangels

this is why max is "the 7 man"....

Dragoon

What are you gonna run for fuel management? And will a P-port have any vaccum at idle?

Alak

iTrader: (9)

I dont think max comes round here (this forum) much. I heard vague rumour he was overseas chillin with some important 'rotary folk'. Might not be done with the PP project for awhile.
