ITB's FTW!!

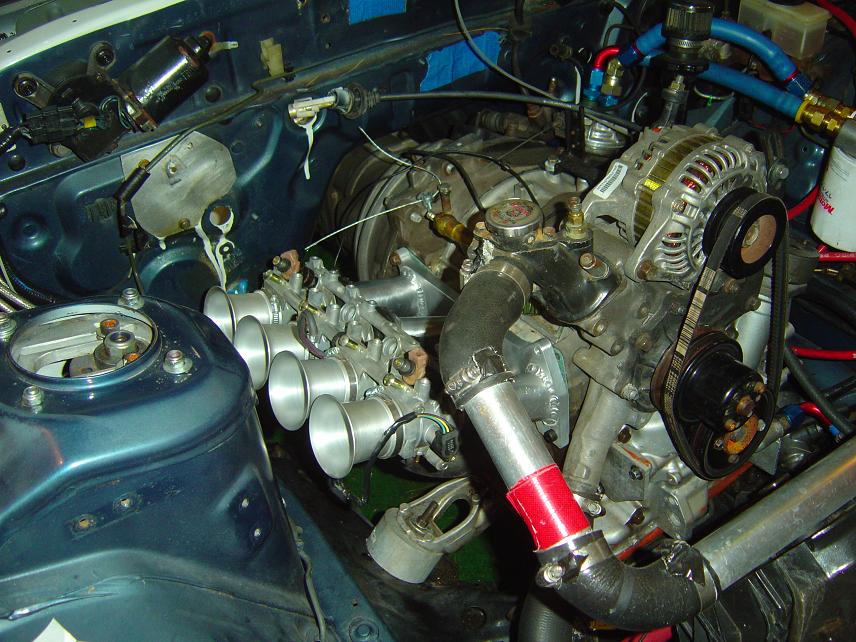

Couldn't resist putting pics of this up.
BTW Balzz....thats your motor.....maybe you could convince Eric to let me leave the ITB's on!
What do you think Eric
BTW Balzz....thats your motor.....maybe you could convince Eric to let me leave the ITB's on!
What do you think Eric
The following users liked this post:
Westcoast FC (05-12-21)
05-01-07, 03:29 PM
#3
05-02-07, 08:50 AM
#4
Rotary Freak
Super Duper SetUp
WOW nice setup. I wonder whose motor they will be going on? I bet that they will flow like mad and let that person realize the full potential of his RPM built motor on a certain race car this year. LOL!!!
I will be over later today to pick them up.
Thanks Joe.
Eric
I will be over later today to pick them up.
Thanks Joe.
Eric
05-03-07, 08:28 AM
#7
Rotary Freak
Sorry Shane, THEY ARE MINE HA HA HA HA!!!!!
Seriously though, I test fit the manifold last night and it looks great. Everything fits very well and the effective runner length was 8" from throttle plates to port opening, just like Rohan suggested to have the torque peak at 8500 rpm (crossing my fingers). Going to spend some time today with the grinder to clean up the welds inside and outside.
I just need to move my remote filter setup, make up some throttle linkage mounts and an airbox. Dave and I can't wait to hear it run with the bodies and the new exhaust.
They are 'busa 50mm bodies.
Eric
Seriously though, I test fit the manifold last night and it looks great. Everything fits very well and the effective runner length was 8" from throttle plates to port opening, just like Rohan suggested to have the torque peak at 8500 rpm (crossing my fingers). Going to spend some time today with the grinder to clean up the welds inside and outside.
I just need to move my remote filter setup, make up some throttle linkage mounts and an airbox. Dave and I can't wait to hear it run with the bodies and the new exhaust.
They are 'busa 50mm bodies.
Eric
The following users liked this post:
Westcoast FC (05-12-21)
Trending Topics
05-03-07, 10:33 AM
#8
400WHP or bust
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
I wouldn't grind it, a file is much better, no airborne aluminum dust, unless of course you want to not remember how to drive your car.
Looks pretty damn nice how ever.
Looks pretty damn nice how ever.
05-03-07, 11:36 AM
#10
Rotary Freak
I appreciate the advice,"I wouldn't grind it, a file is much better, no airborne aluminum dust, unless of course you want to not remember how to drive your car.
Looks pretty damn nice how ever."
Great advice. I wish I was smarter 20 years ago.
I always use a filter mask when I grind into aluminum now. I hardly have any hearing left from listening to way to many unmuffled motors, so I always use ear plugs now. I almost always wear sunglasses outside now to protect my eyes from harmful U.V. rays.
Small things I know, but if I had done these things back when I was a kid, I wouldn't have these issues now.
Eric
Looks pretty damn nice how ever."
Great advice. I wish I was smarter 20 years ago.
I always use a filter mask when I grind into aluminum now. I hardly have any hearing left from listening to way to many unmuffled motors, so I always use ear plugs now. I almost always wear sunglasses outside now to protect my eyes from harmful U.V. rays.
Small things I know, but if I had done these things back when I was a kid, I wouldn't have these issues now.
Eric
05-30-07, 09:05 PM
#15
We come with the Hardcore
iTrader: (2)
Join Date: Nov 2001
Location: Springfield, MO
Posts: 2,456
Likes: 0
Received 0 Likes
on
0 Posts
really glad someone did this. Got the same plan in my head; but down-draught, Looking for an 18" runner length from rotor to velocity stack.
...by the way; where'd you get the keen velocity stacks? GSXR TB's yea?
...by the way; where'd you get the keen velocity stacks? GSXR TB's yea?
05-30-07, 11:09 PM
#17
Grey-Bruce Rotorhead
Join Date: Apr 2002
Location: Chesley, Ontario, Canada
Posts: 1,484
Received 0 Likes
on
0 Posts
05-31-07, 08:36 AM
#19
Rotary Freak
Were Getting Close!!!
Liquid Anarchy, I got the velocity stacks from a bike company in New Jersey that specializes in Hayabusa performance. The name is (if I recall correctly) Orient Performance.
Just an update on the system in the car, everything fit perfectly. The length gave me enough room to fit an airbox and I was able to get nuts or allen head bolts on all of the proper mounting holes. The fuel lines and throttle cable needs to be adjusted, but nothing too tricky. The 'busa bodies tie all 4 throats together to give you a consistent vacuum signal for the ecu. I am fortunate in that I am only using 2 of the injector ports to hold the secondary injectors. I was able to thread and tap both of the center throttle body injector holes to insert fittings that allow me to keep the vacuum brakes on the car. I still may need to use an accumulator to give enough of a consistent source for the booster, we will need to test and see.
Main problem was creating a proper fuel rail that flows enough to drive the injectors and has enough meat to attach the proper fittings. I searched it out and found a source of raw extruded fuel rail in -6 and -8 ID's. I then had to buy a number of taps to fit the stock banjo and pressure regulator fittings. I had to make stand offs from the bodies as well to hold the rail firmly and allow adjustability to provide the proper compression for the injector seals.
All in all it has taken a bunch of thinking, a lot of fabrication and the total costs for the application has been under $800 Cdn. (including very special taps). We wanted to use as much of the stock Mazda stuff as possible and I believe we have been successful. It hasn't been easy, but we will be different.
We should have the rest of the car wired by this weekend and fire it up. Once it runs reliably then off to the dyno for mapping, then to a test day.
We can't wait to hear the sound and find out how much power over the Holley setup we ran last year, we will get.
Eric
Just an update on the system in the car, everything fit perfectly. The length gave me enough room to fit an airbox and I was able to get nuts or allen head bolts on all of the proper mounting holes. The fuel lines and throttle cable needs to be adjusted, but nothing too tricky. The 'busa bodies tie all 4 throats together to give you a consistent vacuum signal for the ecu. I am fortunate in that I am only using 2 of the injector ports to hold the secondary injectors. I was able to thread and tap both of the center throttle body injector holes to insert fittings that allow me to keep the vacuum brakes on the car. I still may need to use an accumulator to give enough of a consistent source for the booster, we will need to test and see.
Main problem was creating a proper fuel rail that flows enough to drive the injectors and has enough meat to attach the proper fittings. I searched it out and found a source of raw extruded fuel rail in -6 and -8 ID's. I then had to buy a number of taps to fit the stock banjo and pressure regulator fittings. I had to make stand offs from the bodies as well to hold the rail firmly and allow adjustability to provide the proper compression for the injector seals.
All in all it has taken a bunch of thinking, a lot of fabrication and the total costs for the application has been under $800 Cdn. (including very special taps). We wanted to use as much of the stock Mazda stuff as possible and I believe we have been successful. It hasn't been easy, but we will be different.
We should have the rest of the car wired by this weekend and fire it up. Once it runs reliably then off to the dyno for mapping, then to a test day.
We can't wait to hear the sound and find out how much power over the Holley setup we ran last year, we will get.
Eric
Last edited by 23Racer; 05-31-07 at 08:52 AM.
The following users liked this post:
Westcoast FC (05-12-21)
09-16-08, 08:16 PM
#24
Likes to swear....alot
Thread Starter
iTrader: (3)
Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 3 Likes
on
3 Posts
Yeah we're going to be tryin a PP in a few months on the engine dyno. Building a fuel map from scratch is going to suck though lol.
As for the 4 port intake manifold, we could definatly build one for you if you wanted. We started to build our own on a 20B block
The Hybusa TB's work pretty nicely.
As for the 4 port intake manifold, we could definatly build one for you if you wanted. We started to build our own on a 20B block
The Hybusa TB's work pretty nicely.
The following users liked this post:
