RXeckless

iTrader: (11)

Thanks, Jim your the man!
I spend my day trolling the internet, but those days are gone. Got a contract job today, so much for retirement. 20 hours a week, same money I made before, work from home , bonus suckers.

JDK

iTrader: (8)

To many reply's, i'll make it four:
Scrodes
RXeckless
RevRx7
RX187

Messages sent to the first four.

pfsantos

iTrader: (1)

Someone please take a video of the tricky points OP mentioned, and update us with a link.

Would be invaluable as a refresher for even those who've done a few rebuilds.

Thank you.

JDK

iTrader: (8)

Revised parts list to include 2mm and 3mm apex seals/springs....Goopy also supplies good quality seals in both sizes:


N304-11-300A 3mm apex seal- you need 6
1757-11-304 3mm apex seal spring- you need 6
N351-11-COOC 2mm apex seal-you need 6
N326-11-CO4A 2mm apex seal spring small -you need 6
N326-11-CO6C 2mm apex seal spring large -you need 6
N326-11-C20A 2mm Corner seal Stock-you need 12
NFO1-11-C24 2&3mm corner seal spring All- you need 12
1011-11-321 3mm corner seal All-you need 12
N326-11-C17 Side seal spring All- you need 12
N3Z1-11S10A Oil control ring set -2 per set All- you need 4 sets
0820-11-341 Control O-Ring- inner green All- you need 4
8341-11-343 Control O-Ring- outer black All- you need 4
N225-11-351 Control ring spring-inner blue All- you need 2
N225-11-361 Control ring spring-inner cream All- you need 2
1011-11-353A Control ring spring-outer-blue All- you need 2
1011-11-363A Control ring spring-outer-cream All- you need 2
N326-10-B71A Coolant seals- Orange All-you need 4
N326-10-B72 Coolant seals-Black All- you need 4
N3A1-10-B73 Dowel O -Rings All- you need 4
0813-10-555A Rear Stat. Gear O-ring All-you need 1
9954-10-1105 Pulley Hub bolt O-ring All-you need 1
N326-10-C15 Front cover back up ring FD-you need 1
N231-10-174 Front cover O-Ring Both FD&FC-you need-1
0839-10-455 Tension bolt seals All- you need 17
N3A1-10-502 Front cover gasket-FD FD
1668-10-556A Rear Main Seal All
0820-10-605 Front Main Seal All
N386-15-162 Water Pump housing gasket-FD FD&FC 86-95
N2Y0-10-502 Front Cover Gasket-FC 86-88 FC
N2YO-15-162 Water Pump housing Gasket FB-FC 74-85
n3ya-10-427 FD oil pan gasket 93-up

White Rotary

Ah...I missed a great chance.... what was I doing....

Nismo Convert86

iTrader: (7)

Wow Jim, that is quite the offer! You have been a great asset to the community, you're going to be missed. Always helping out the little guy, if the housings are ok let me know, I need tobuy good used or get Goopy to machine mine then I can build it! Cheers, Kevin

mr.zoom

iTrader: (1)

Jim,

Where do you get your turbos from?

thanks,

JDK

iTrader: (8)

Rich,
I was using Precision Turbo, reason being they helped me out though JRP, Garrett would be my 1st choice but if a budget build is what your after you will find Precision to be more cost effective.
What are your goals / plans?

mr.zoom

iTrader: (1)

Just to replace my current to4e. Flange weld broke off the turbine housing.

RXeckless

iTrader: (11)

Jim thanks for a very informative afternoon! Love to see a keg being put back together sometime.
Nice to meet Matt, Jay and Chas, they were great and very helpfully as well.

RX187

iTrader: (2)

It was an amazing informative session on tearing down a motor, lots of tips and things to look for when tearing a motor apart. I'll upload the pictures I took but unfortunately my phone ran out of space early on in the tear down, but I'll post what I did take later today or tomorrow.

Thanks Jim for holding such an event, the knowledge you're passing on is priceless, and it was great meeting the rest of you guys (Matt, Rick, Jay), we all got hands on with the tear down, even though too many hands on 1 thing meant us trying to get a side seal spring out that was already out LOL.

Still, it was lots of fun and very informative, great guys and a great teacher (quote Jim "I'm not a teacher"), lol.

Scrodes

Thanks again Jim, it was an awesome experience. If you do another group and want someone to come take a ton of photos let me know.

Get those photos up Chas :-P

JDK

iTrader: (8)

Your all welcome, it was really a pleasure having the first session with a group that was so enthused about learning the first steps in the process.
Matt, door is always open to you.... taking pictures would be fine if you think it will be educational and helpful to others wanting to use this thread as reference to doing their own engine work, also for who ever wants to get involved in making this thread a part of the community for the future. If there are any others (1 or 2 ) that have a keg to open up then we could do a few more “opening a engine” sessions before we move on to the next steps. PM me if anyone is willing to donate their engine for research, just remember you will have to take all the pcs. with you when were done

RevRx7

iTrader: (1)

I know this is late lol, but big thanks to jim for giving us our first steps on what to do when rebuilding these engines. We really appreciate you taking the time out of your day to show us the ropes. It was a great experience and I would love to do it again!

S/O to Matt, chas, and rick these are some great guys that are driven to learn about these motors nice to meet you guys.

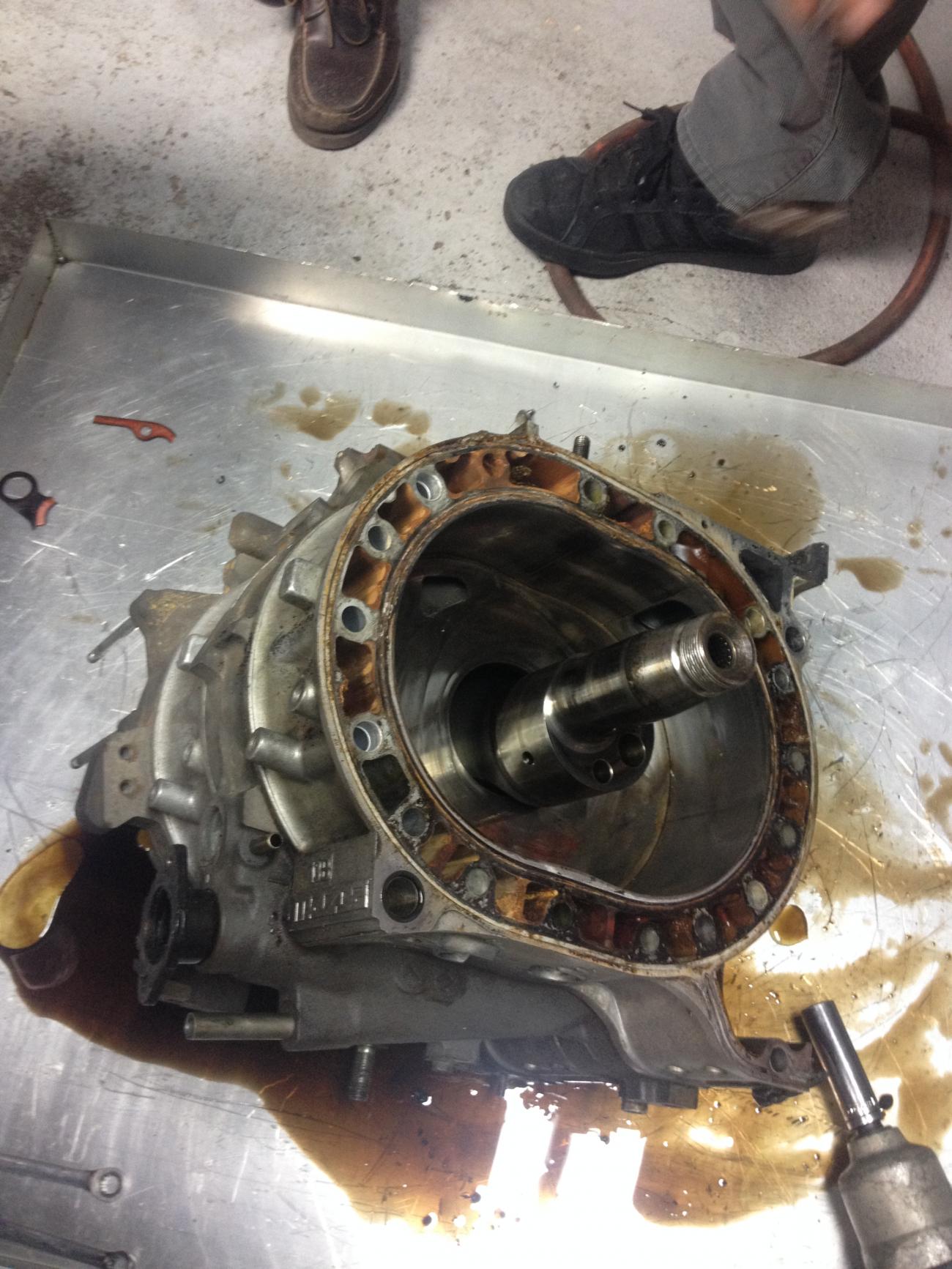

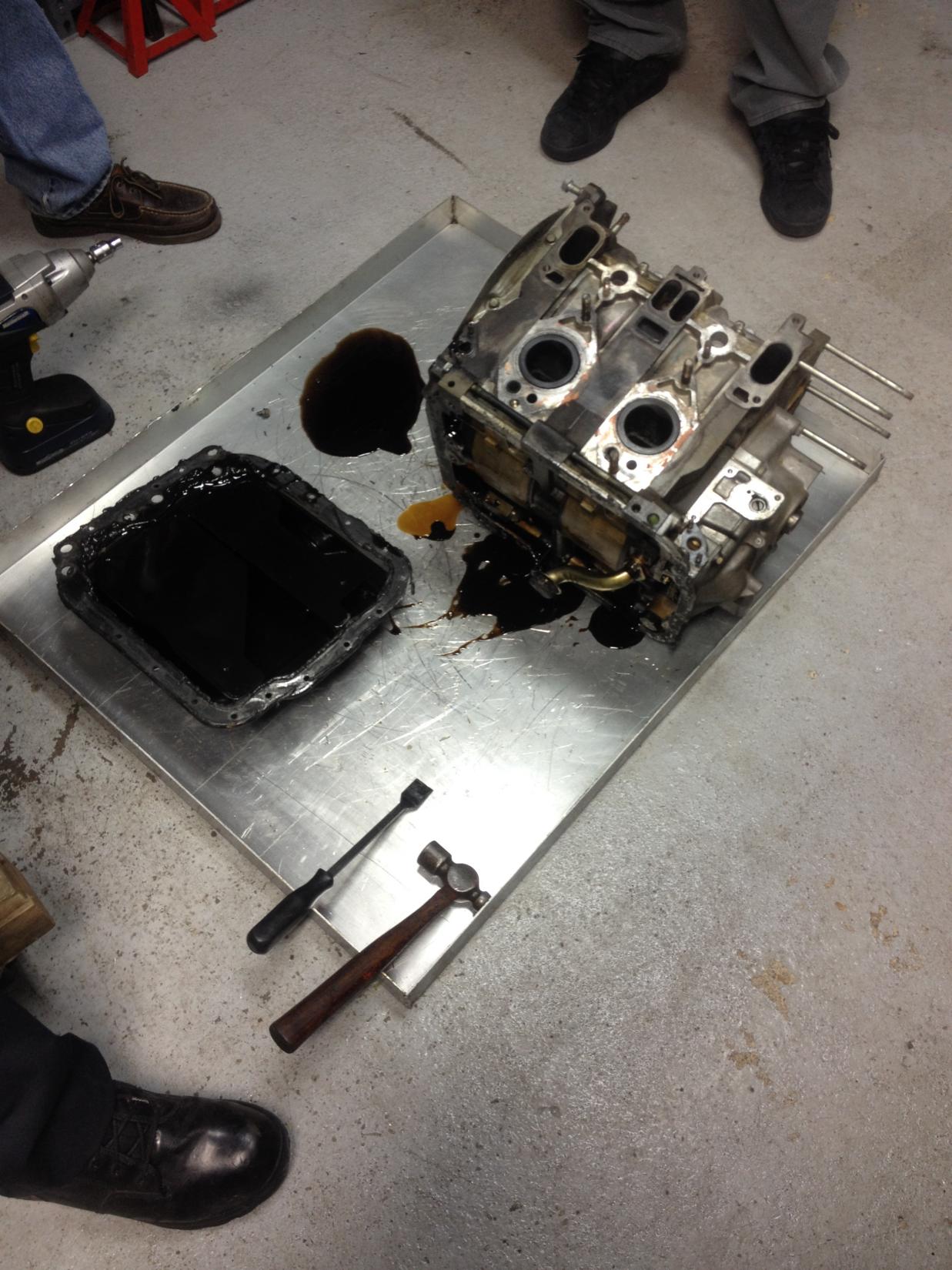

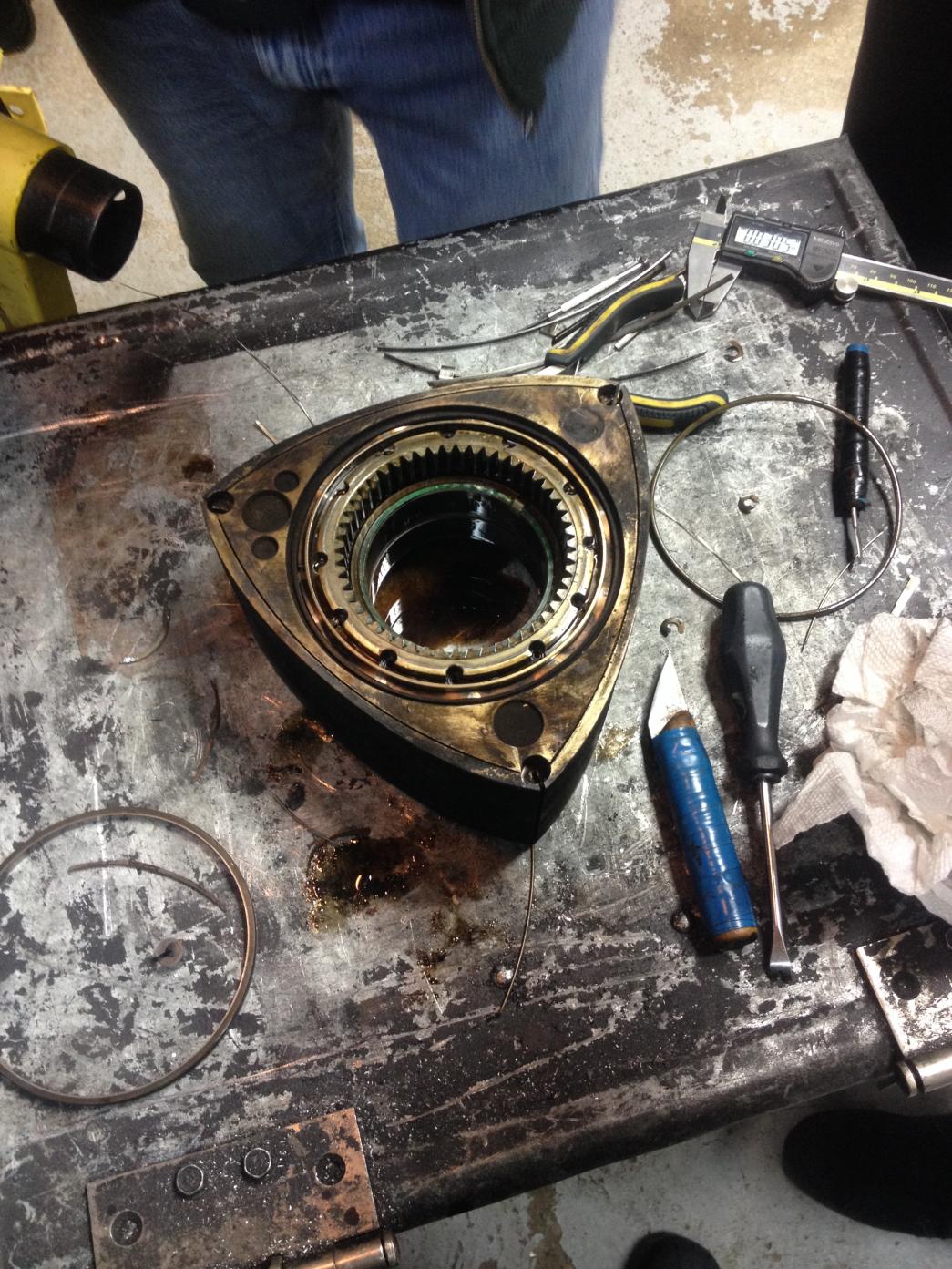

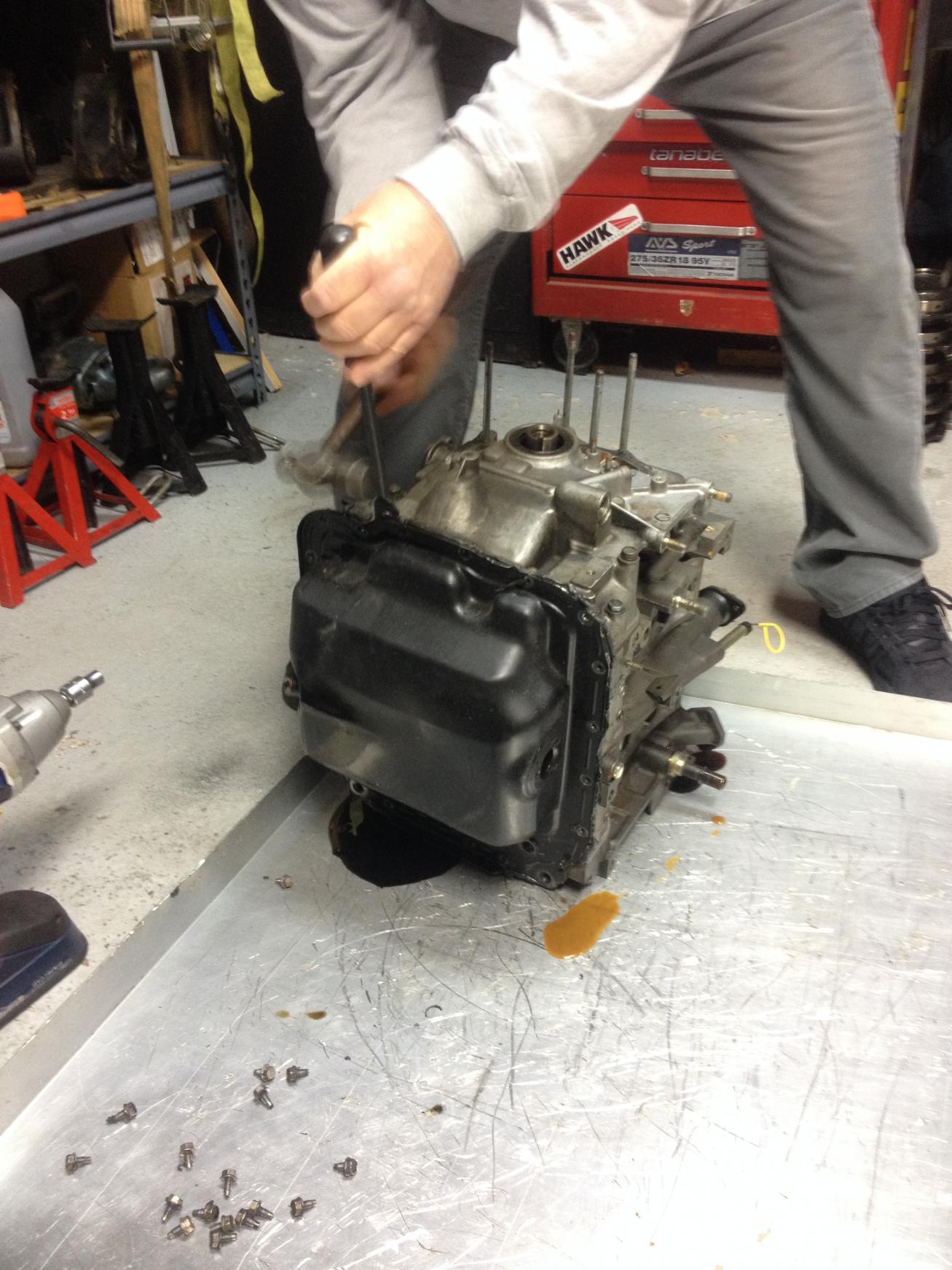

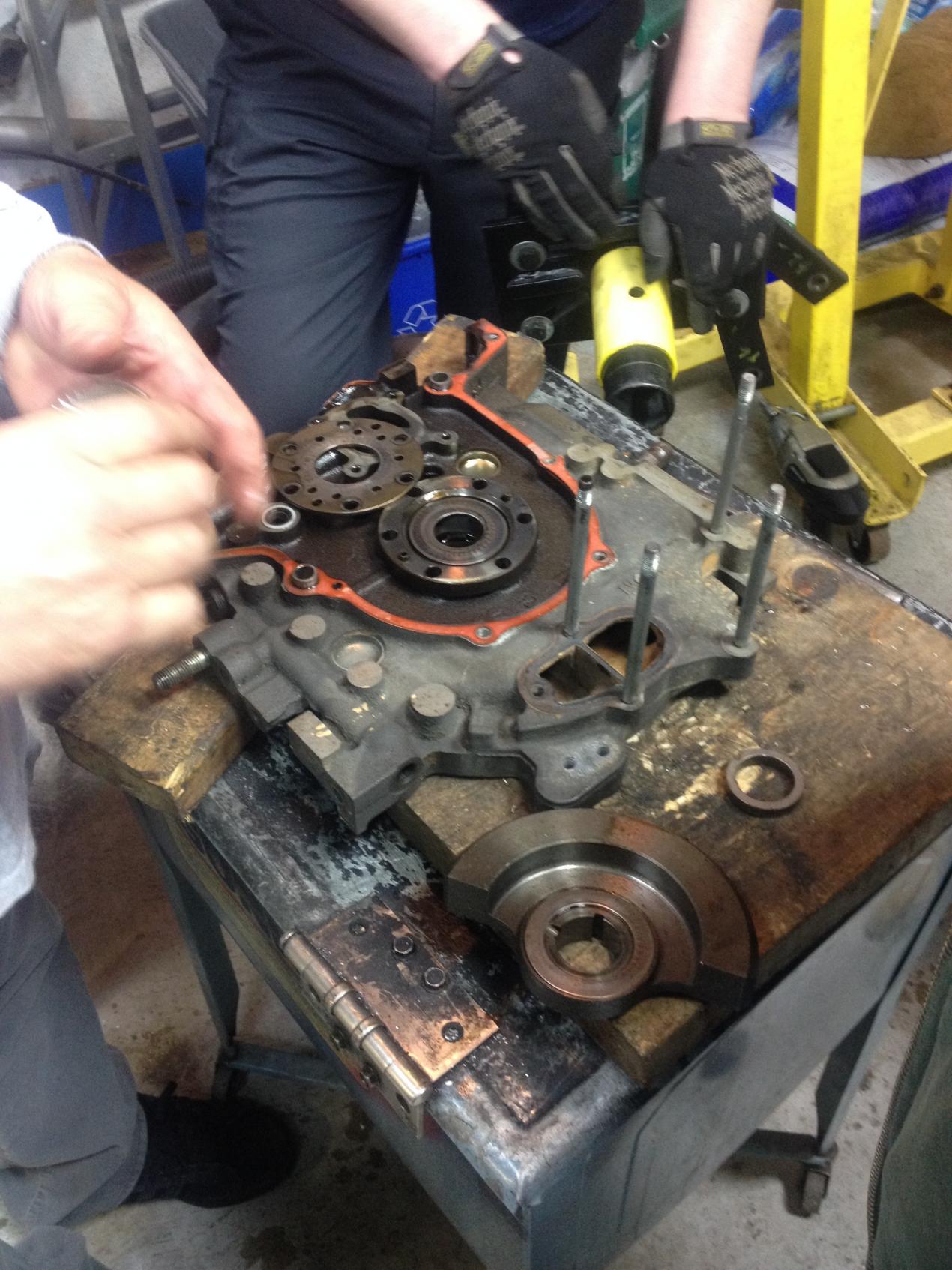

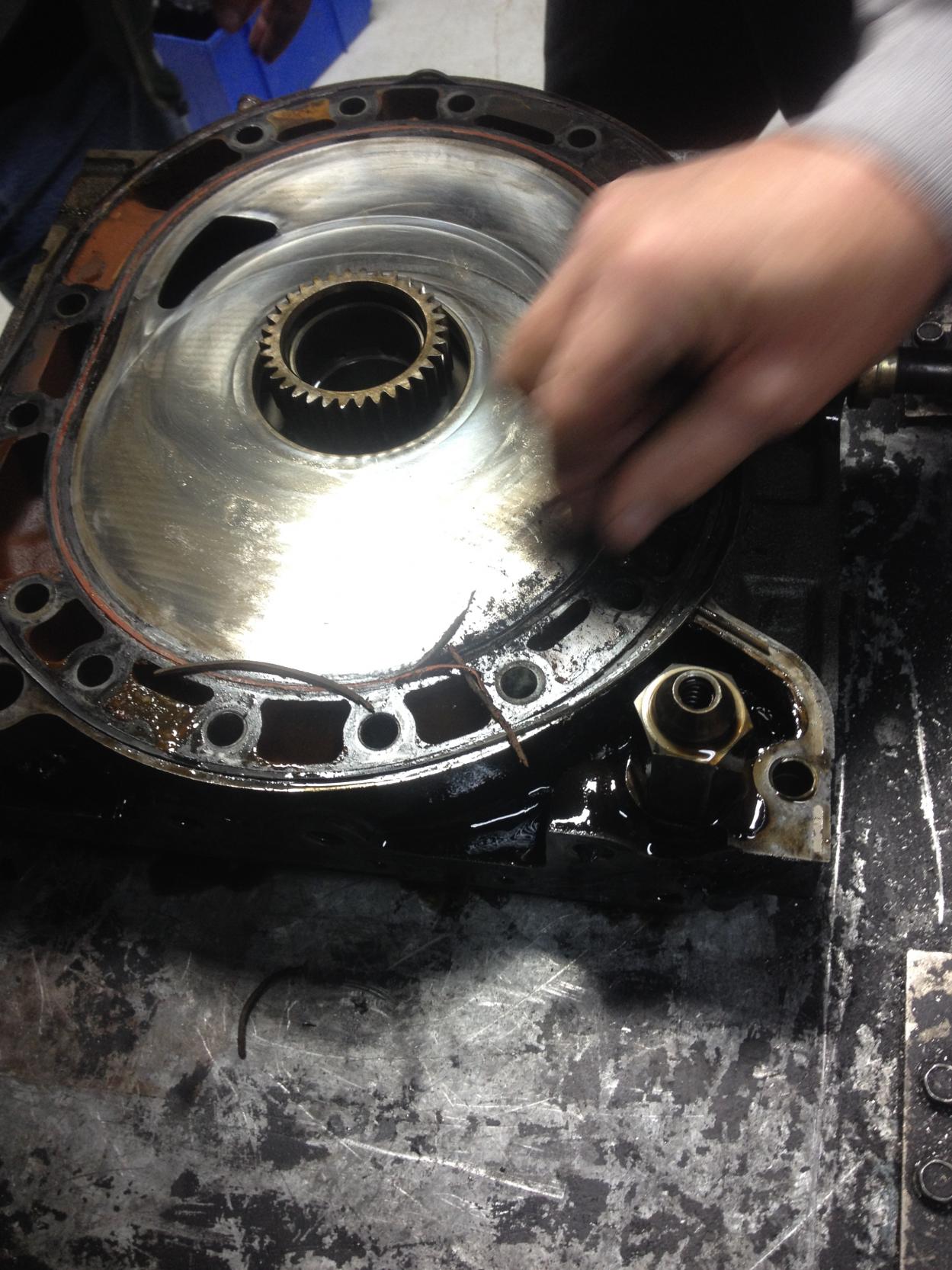

Here are some pic's from the tear down.

ROTRY PWR

iTrader: (14)

I got an S5 na motor ready for teardown in the next session.
JDK to post details.

JDK

iTrader: (8)

Thanks for the donation ROTRY PWR
Here is a list of the next four people in line for a "opening a engine" session..... then the next two will be with the same people 1st group then 2nd group on cleaning and inspection followed by two building sessions.

June 21st 12 noon until done:

number8
OsterFD3S
"Ryuji"
sctRota
ROTRY PWR

Please let me know ASAP if any of the above can not make it. This should take most of the summer to complete and will determine if there is a need to continue any further.

number8

iTrader: (2)

Excellent!
I am currently booked on a flight home that is scheduled to land at 2:45pm. . . . But I will have it changed to an earlier flight first thing in the morning! The "early" one is in at 11:30. . . . So, I'll be fresh off the plane. . . but I'll be there!

JDK

iTrader: (8)

Now that’s dedication....

'Ryuji'

I'll be there for sure ! Definitely cannot sleep on this opportunity

alex1370

JDK, you are a god sending angel! I want to join the next tutorial session for sure! I'm so glad to see some experienced guys like you in my neighborhood offering help to the fellow RX7 enthusiasts. I live in Mississauga too (Winston Churchill & Eglinton). Just bought my 88vert 2 weeks ago. Eventually planing on doing a S4 Turbo swap. If you like, I could really use some guidance and help from a veteran like you when it comes to the hands on stuff. I've been doing a lot of research on internet and watched a whole bunch of rebuild video. I got some general idea about the job, but still not confident enough about all the details. Anyhow, I would really like buy you a beer sometime and discuss my project with you. I will drop you a PM. Looking forward to hear from you. Alex

number8

iTrader: (2)

Sadly, my level of dedication isn't understood by the "nice" people at Air Canada who have already over sold the earlier flight. . . .But will "advise me of any changes in the flight status" so, I'm not hitting the ground until 2:45pm Saturday
Unless a rotary miracle happens. . I'll be to late.

JDK

iTrader: (8)

You can go no "stand by" and see if number8 can make it or not.....if she can't then maybe you can take her place.....we'll know better on Thursday.

alex1370

Sound great, will check my inbox every other hour from now on... Thanks for letting me know Jim.

JDK

iTrader: (8)

number8-can't make it
OsterFD3S- can't make it
"Ryuji"
sctRota- no reply
ROTRY PWR
alex1370
Room for one more.....any takers?

RXeckless

iTrader: (11)

I'd come again, but I'll be in Ottawa for a meet & greet. Just too many rotary flakes now a days.LOL
