1985 RX7 Single Turbo Build...
#178
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Thanks... Chris Ludwig really helped me a lot.. My ecu was in wrong spark mode... Now im getting iat bung put onto carb hat... Next time im home im going to see if I can get it to idle at least
#181
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
The issue im having now is that it curently will prime the fuel when the key it first turned on for a couple seconds but the the fuel pump will not stay running. The only way i can get it to stay on and running is if i run a jumper wire to the switched ground signal side of the relay directly to ground. This is the ground signal that the ECU (E6K) provides to turn on the fuel pump. Any Ideas why it might be doing this?
Next i need to set the timing.... i cant really get it to idle low enough yet to set the timing... and for some reason with the timing lock on the timing marks will be in one spot for a brief while then randomly jump about 20 degrees... and the engine revs increase. not sure what that is either..
also the tacho out does not seem to work for the 85 12a stock tach.. not yet anyways...
Next i need to set the timing.... i cant really get it to idle low enough yet to set the timing... and for some reason with the timing lock on the timing marks will be in one spot for a brief while then randomly jump about 20 degrees... and the engine revs increase. not sure what that is either..
also the tacho out does not seem to work for the 85 12a stock tach.. not yet anyways...
#183
Congrats! I love the "WAAHHOOOO" at the end of the video
strange it will jump around 20 degreees? You are using the stock FC pulley? iirc you should set it to 5 degrees & verify it using the front rotor leading plug. I was having the toughest time getting the idle to be at 1,000rpm, then I realised the timing was slightly off. I think the idle will do its self a favor once the timing issue is resolved
strange it will jump around 20 degreees? You are using the stock FC pulley? iirc you should set it to 5 degrees & verify it using the front rotor leading plug. I was having the toughest time getting the idle to be at 1,000rpm, then I realised the timing was slightly off. I think the idle will do its self a favor once the timing issue is resolved
#184
Next i need to set the timing.... i cant really get it to idle low enough yet to set the timing... and for some reason with the timing lock on the timing marks will be in one spot for a brief while then randomly jump about 20 degrees... and the engine revs increase. not sure what that is either..
also the tacho out does not seem to work for the 85 12a stock tach.. not yet anyways...
also the tacho out does not seem to work for the 85 12a stock tach.. not yet anyways...
If thats what it is, it could be a two-birds one-stone sorta deal here!
#185
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Congrats! I love the "WAAHHOOOO" at the end of the video
strange it will jump around 20 degreees? You are using the stock FC pulley? iirc you should set it to 5 degrees & verify it using the front rotor leading plug. I was having the toughest time getting the idle to be at 1,000rpm, then I realised the timing was slightly off. I think the idle will do its self a favor once the timing issue is resolved
strange it will jump around 20 degreees? You are using the stock FC pulley? iirc you should set it to 5 degrees & verify it using the front rotor leading plug. I was having the toughest time getting the idle to be at 1,000rpm, then I realised the timing was slightly off. I think the idle will do its self a favor once the timing issue is resolved
#186
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
The tach runs off the trailing ignitor. I accidentally cracked a wire when I was playing around with wire tuck ideas and killed my tach and trailing ignition. Re-hooked up the wire and magically my tach is back
If thats what it is, it could be a two-birds one-stone sorta deal here!
If thats what it is, it could be a two-birds one-stone sorta deal here!
#187
I'm preparing an F9 install - this uses the same sort of fuel management only, minus ignition control. I'll be using the stock -SE dizzy for now until the rest of the EFI swap is done, then focusing in on upgrades.
I've always wondered where those computers get the tach/rpm signal - crank angle sensor i assume.
#189
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI

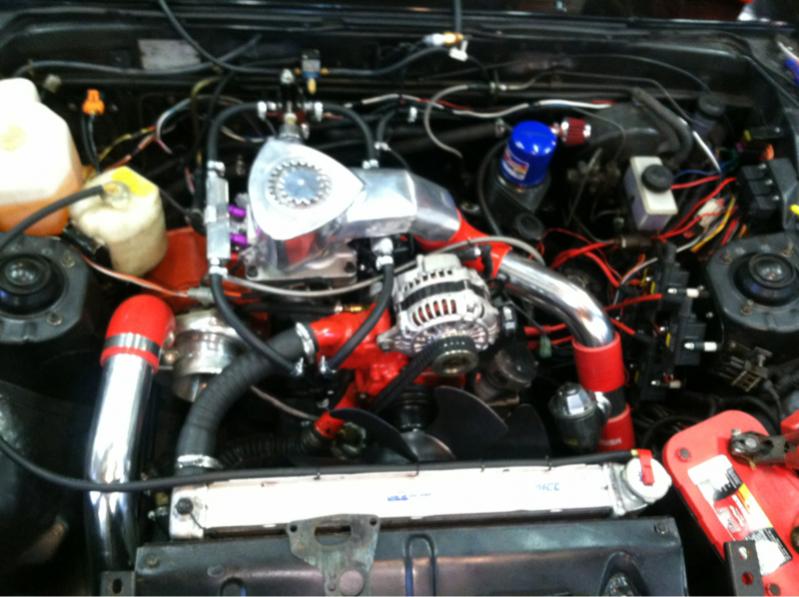

Boost plumbing complete... Need to put some beads on pipes with homemade bead roller and clamp it all up... Still can't get fuel pump to stay on while cranking/ running... One coil is junk.... Dang it all... Think I fouled my plugs too.. Who's running what plugs?
#191
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Yes I can start it if I run a direct ground jumper to the fuel pump relay.. Otherwise it won't run ... I had it running before... I think something happened to cause the ecu to not run the pump but can't figure out what...
#192
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Anyone run into this issue w an old battery... Got an optima red top that's about 6-7 yes old.... Had an issue with the car not charging a year ago... After it sat all winter... Finally after a trickle charge for 2 days the car charged fine...,
#194
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Ok I think Might have figured something out... I have my stock fb wire connected to the bottom (L) terminal on my fd alternator... Nothing is connected to the top (S) terminal... According to a diagram I found online for s6 alternator the L should go to gauge and S should go to batt power, or maybe key power... Does this mean my alt wasn't charging correctly? I thought my volt meter said it was charging but then again I did have my battery charger on most of the time... Anyone think this could be the root of my problem?
#195
I frikkin love the dedication here, cant wait for more vids, subscribed! Keep up the good work cant wait to see this thing with ECU in proper order and a tune!
Also really cool how your friends / fam seem to rally around in tough times.
Also really cool how your friends / fam seem to rally around in tough times.
#196
So I've been researching the later-model alternator swap into FB - and you have to leave one wire disconnected. The later-model alternators read the difference between constant voltage and current usage.
So if current usage "drops" to zero - it will try to ramp up the alternator output to compensate. However the engine isnt running so its just drawing juice to try to generate juice - drains the battery over the process of a night or two.
So if current usage "drops" to zero - it will try to ramp up the alternator output to compensate. However the engine isnt running so its just drawing juice to try to generate juice - drains the battery over the process of a night or two.
#197
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Thanks guys! Yeah my friends/fam are great! Turns out it only charges the way I had it... The fuel pump issue was just my CAS off a tooth... Apparently the ecu didn't think the car was running/cranking. So it shut off the fuel pump... Almost there.......
#198
Orilleys auto parts or whatever it is named in your area should be able to bench test the alternator for you and tell you what is working and what isn't. I know mine failed the "lamp on" test which I'm guessing is the wire which shows the battery idiot light on the FD dash.
let us know if this is still acting up
let us know if this is still acting up
#199
Thread Starter
35r 13b first gen
iTrader: (3)
Joined: Apr 2002
Posts: 1,290
Likes: 0
From: Richland Center WI
Alternator is fine.. I hooked it up correctly.. Tried the other way.. No chargie.. The lower terminal only works fine 14.6v or something.. Still no fuel pump other than key on prime though... But I have rpm.... Bout to just run a ground from relay to switch in cockpit connected to ground...
