[QUOTE=David Hayes;7053806]Okay, so things seem to be wrapping up nicely on the project. I know it's a scary thought but I might actually get to drive the car again
My coils have been swapped out and new MSD ignition AMP boxes per Crispeed's recommendation have been installed. Had a bit of a delay in getting the correct boxes in but that's now been resolved. JEGS sent the wrong unit - it came in the right box but was a DIS-2 unit instead of a 4. Brain at Gotham has everything wired up so the car should be good to go for an awesome Steve Kan "final" tune.

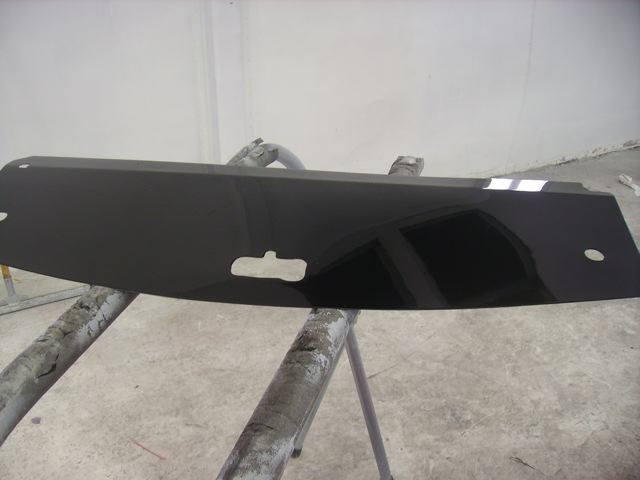

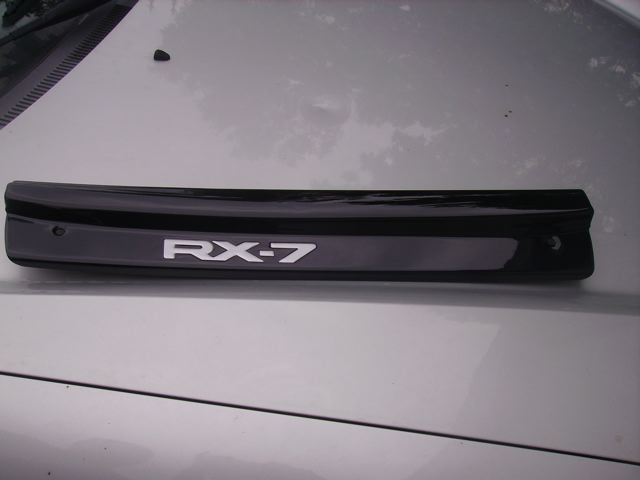

While the car is there, Gotham is working on a few small things. They're replacing the PIAA fog light switch I have with an RX7 OEM one and a few other things like this. The painter is working on painting my radiator shroud with the same black finish as the car and they're also doing the same to my door sills. Speaking of painting, the hood vents have now been completed and the hood is painted. The vent mesh material has been shaped:

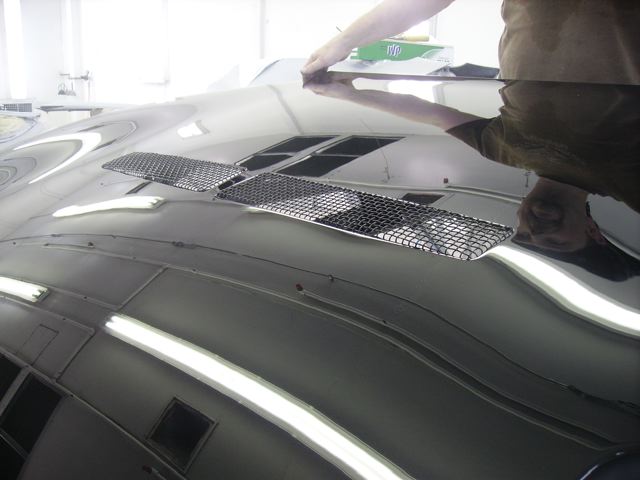

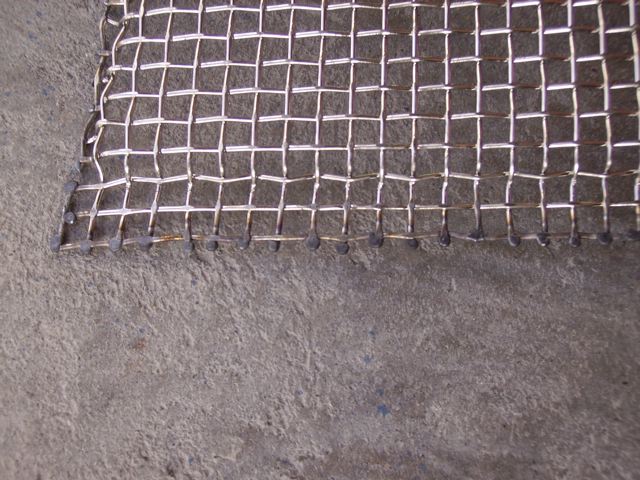

The fabricator, Asian Motorsports in Dallas TX, tig welded the ends of the mesh to keep everything tidy:

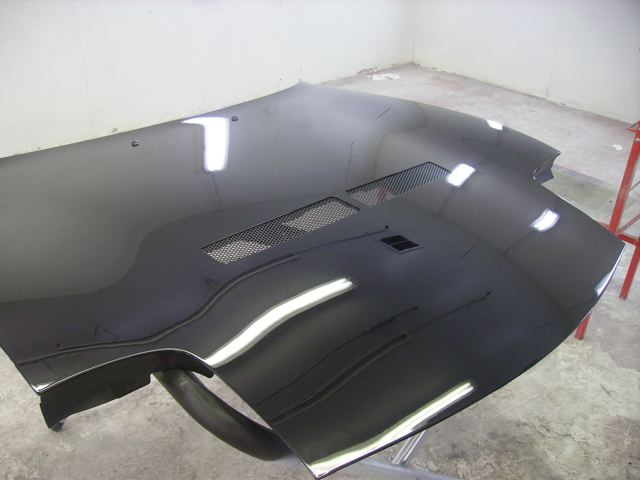

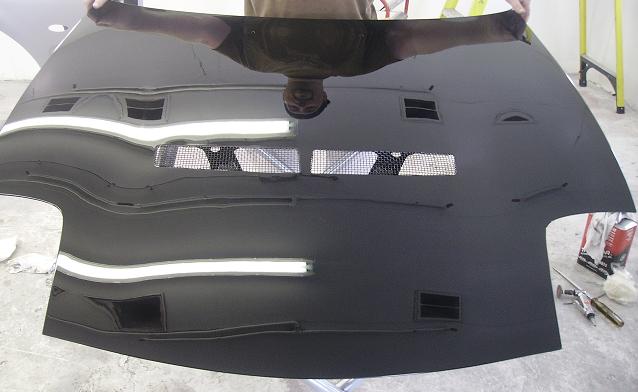

The shaped mesh inserts were then sent out for black powder coating and were installed in the hood. The final product:

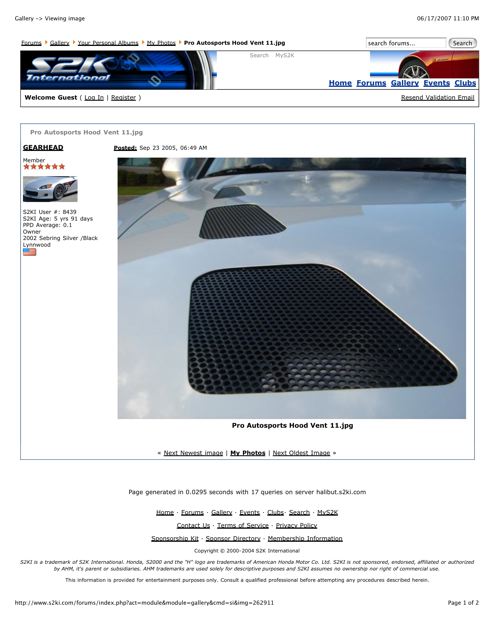

Not quite so final though for me. I'm just not pleased with the mesh inserts - they don't give the car enough of an OEM feel for me. So, I've asked the fabricators to install a different mesh in the openings, the kind used on a Honda S2000 in another thread on the forum:
david, car is beautiful.....i feel for you with all this crap you are going thru. i am in the same boat with my zo6.....lots of money and people not fixing it right. how does the underneath look. i bought a ks hood but the underneath looks like ***. i just wanted to see how it turned out on yours. any rain guards? thanks. kvn
My coils have been swapped out and new MSD ignition AMP boxes per Crispeed's recommendation have been installed. Had a bit of a delay in getting the correct boxes in but that's now been resolved. JEGS sent the wrong unit - it came in the right box but was a DIS-2 unit instead of a 4. Brain at Gotham has everything wired up so the car should be good to go for an awesome Steve Kan "final" tune.
While the car is there, Gotham is working on a few small things. They're replacing the PIAA fog light switch I have with an RX7 OEM one and a few other things like this. The painter is working on painting my radiator shroud with the same black finish as the car and they're also doing the same to my door sills. Speaking of painting, the hood vents have now been completed and the hood is painted. The vent mesh material has been shaped:
The fabricator, Asian Motorsports in Dallas TX, tig welded the ends of the mesh to keep everything tidy:
The shaped mesh inserts were then sent out for black powder coating and were installed in the hood. The final product:
Not quite so final though for me. I'm just not pleased with the mesh inserts - they don't give the car enough of an OEM feel for me. So, I've asked the fabricators to install a different mesh in the openings, the kind used on a Honda S2000 in another thread on the forum:
david, car is beautiful.....i feel for you with all this crap you are going thru. i am in the same boat with my zo6.....lots of money and people not fixing it right. how does the underneath look. i bought a ks hood but the underneath looks like ***. i just wanted to see how it turned out on yours. any rain guards? thanks. kvn
#1754
^The underside of the hood (you are speaking of this right?) should look fine as it is the OEM hood. I also still have the heat insulation installed so it should look pretty good. Will post pics when I get the car back.
Haven't heard yet from Gotham - hope the engine survived the extra pound of boost.
Haven't heard yet from Gotham - hope the engine survived the extra pound of boost.
#1756
^No extra pound Steve doesn't want to do it. Spoke with him yesterday about this and have decided to call it a day at 15 PSI. No reason why but I don't want to go against the tuner's wishes.
The engine turns out to be a "C" series so it has the upgraded shaft. It doesn't have though what Steve wants, which is extra oil lubrication going to the center rotor.
I'll get the car back (soon ) and worry about this later.
The engine turns out to be a "C" series so it has the upgraded shaft. It doesn't have though what Steve wants, which is extra oil lubrication going to the center rotor.
I'll get the car back (soon ) and worry about this later.
#1757
Hood vent update

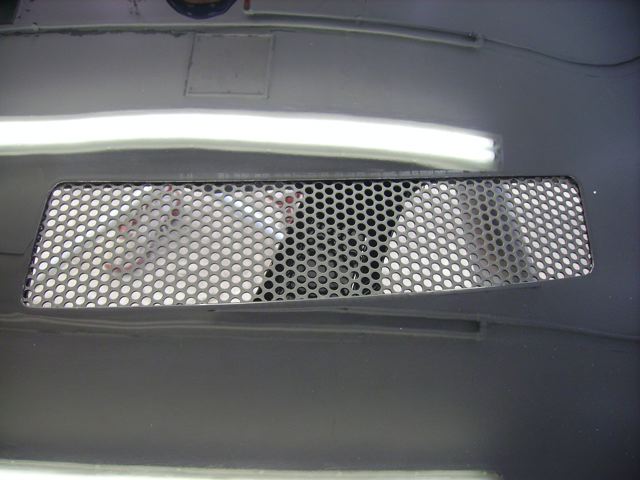

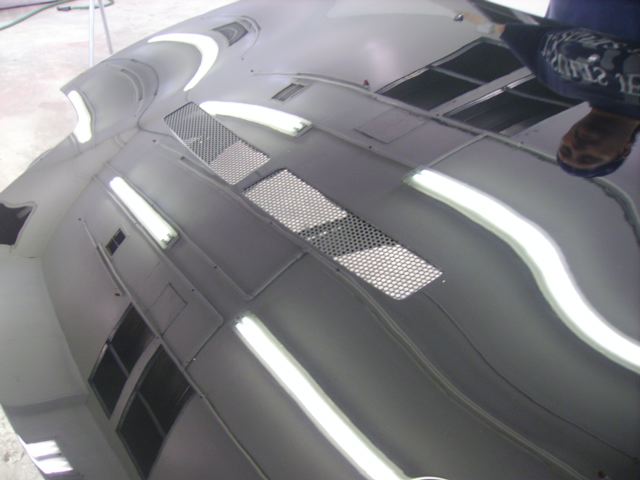

The project is now complete and I'm very happy with the way things look. Here are several pics of the completed hood and the new vents:

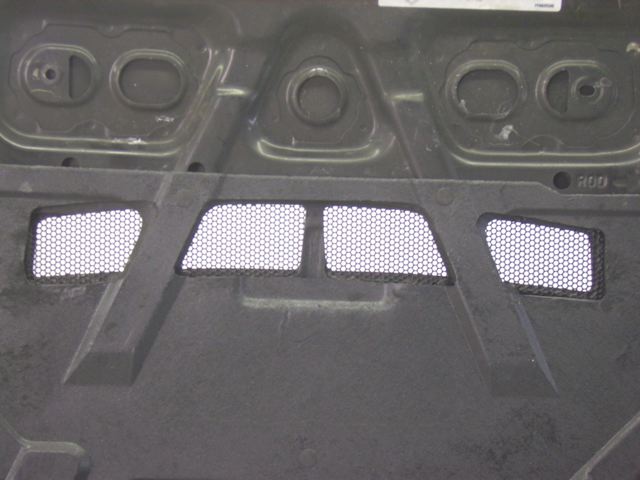

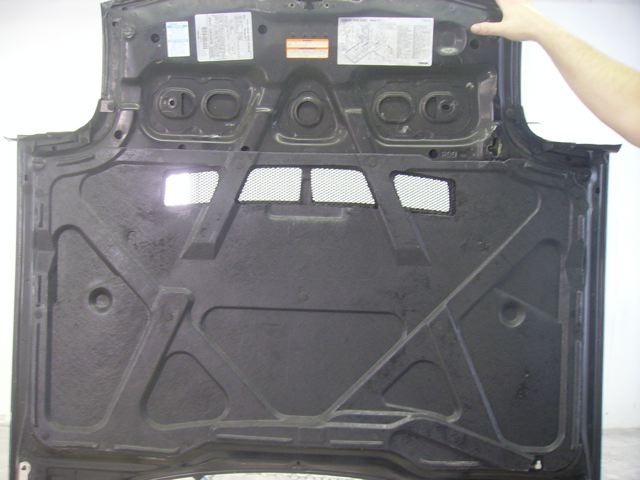

The mesh material is aluminum and powder coated flat black to give it an OEM feel. You've also asked what the underside of the hood looks like. I've kept the insulation material and Asian Motorsports (body shop/painters working with Gotham Racing) inset the mesh under the insulation and cut holes for the vents:
So, I'm pretty happy with the way things now look. Hopefully it will help with heating issues but it still retains a stock look. How will it handle rain? I really can't answer this. Some one mentioned rain guards for vents but I know little about this. Maybe someone can detail what this is.
The mesh material is aluminum and powder coated flat black to give it an OEM feel. You've also asked what the underside of the hood looks like. I've kept the insulation material and Asian Motorsports (body shop/painters working with Gotham Racing) inset the mesh under the insulation and cut holes for the vents:
So, I'm pretty happy with the way things now look. Hopefully it will help with heating issues but it still retains a stock look. How will it handle rain? I really can't answer this. Some one mentioned rain guards for vents but I know little about this. Maybe someone can detail what this is.
#1759
BOYCOTT EXXON MOBIL!!!
Join Date: Dec 2003
Location: Westchester County, New York. USA
Posts: 2,048
Likes: 0
Received 0 Likes
on
0 Posts
Looks good Dave... The rain gaurds are a tray that goes underneath the vents to catch the water from splashing all over the engine bay... The trays have funnel like holes that drain the rain water in strategic places that wont wet any vital engine components.
Dwayne
Dwayne
Last edited by RX7UP; 06-28-07 at 09:18 AM.
#1766
David, the discussion re: rain guards is as old as the forum lol. The topic's been beaten to death. It's simply a fact that there is no danger in running a hood w/o any rain guards in the rain, provided the vents aren't right above a vital electrical component like the alternator lol. Otherwise, don't worry about it. Your money is better spent elsewhere. Countless FD owners - including myself - have THOUSANDS of miles on vented hoods w/o using any rain guards with absolutely NO ill effects.
~Ramy
~Ramy
#1768
Rob
iTrader: (2)
Or you can just pop a set of guards off of an Impreza (hood vents stock) and call it a day ;o). Although I tend to agree with Ramy that rain won't hurt your engine, it does result in rust, discoloration and electrical risk (how ever small and insignificant). I think it's reasonable to assume that penny-pinching vehicle manufacturers like Subaru install these things for a reason.
#1771
rebreaking things
Join Date: Apr 2006
Location: Manhattan
Posts: 866
Likes: 0
Received 0 Likes
on
0 Posts
I think you're going to hit a traction limit before you hit a boost limit in any event, so I wouldn't get too hung up on extracting maximum hp unless you're into triple digit wheel spin.
#1772
^Yes, right about the traction issue. The rear was breaking loose through 3rd gear when I drove the car last and that was at 450 WHP.
I spent some time on the phone yesterday with Cam Worth, owner of Pettit Racing and he says the engine is built to 500-600 WHP so I'm calling it a day at 540. Two experts, Cam and Steve, have now spoken
