Zeitronix Wideband and TPS
Please help me figure out how to wire up the RX7 TPS to input into my wideband unit. The zeitronix wideband unit accepts 1 wire for "Throttle Pos. Sensor".
The FD has 4 wire, according to a post I found when I searched TPS Wiring.
What wire is used for input into a wideband/datalogging system? Im thinking Full range, but I don't want to tap it unless you guys are positive.
The FD has 4 wire, according to a post I found when I searched TPS Wiring.

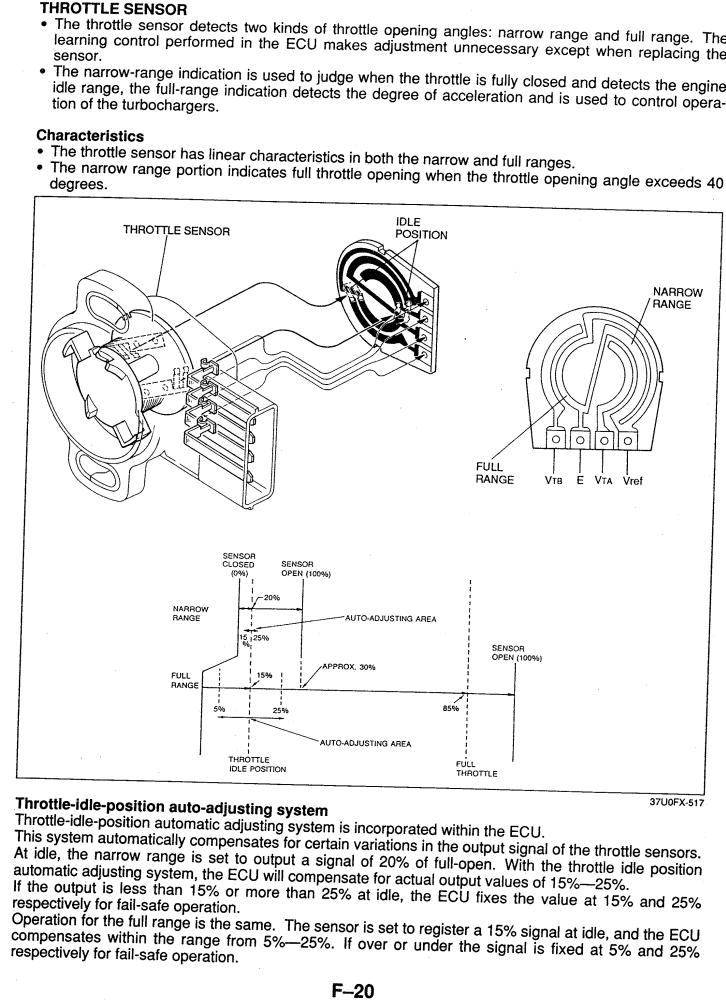

There are four connections between the TPS and the ECU. Two of those go "into" the ECU.
Full Range is Black/Green and goes to 3G on the ECU.
Narrow Range is Green/Red and goes to 3F on the ECU.
Full Range is Black/Green and goes to 3G on the ECU.
Narrow Range is Green/Red and goes to 3F on the ECU.
What wire is used for input into a wideband/datalogging system? Im thinking Full range, but I don't want to tap it unless you guys are positive.
