3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.
Sponsored by:

A word about re-wiring your fuel pump. [pics]

Thread Tools

Search this Thread

Old 09-14-10 | 03:29 PM
  #26
gracer7-rx7's Avatar
needs more track time
iTrader: (16)

Joined: Mar 2006
Posts: 9,383
Likes: 608
From: Bay Area CA
Originally Posted by Prometheus
I think a thread consolidation is needed, there is too much good information directly related, but in different threads.

PM me with those threads and I'll consolidate. I was thinking of folding this thread into Ihor's original thread on the topic.

Last edited by gracer7-rx7; 09-14-10 at 03:41 PM.
Old 09-14-10 | 03:40 PM
  #27
gracer7-rx7's Avatar
needs more track time
iTrader: (16)

Joined: Mar 2006
Posts: 9,383
Likes: 608
From: Bay Area CA
Here are some links to CrisyRX7's fuel pump wiring and upgrades with specific mention of posts and fuel safe wiring:
http://www.reganrotaryracing.com/fddualfuelpumps.htm
from this post:
https://www.rx7club.com/showpost.php...5&postcount=13
on Ihor's original thread about wiring your fuel pumps:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/why-everyone-should-rewire-their-fuel-pump-847009/
which I just copied into the FAQ thread below Dale Clark's thread on fuel pump rewire
The following users liked this post:
estevan62274 (07-26-18)
Old 09-14-10 | 03:42 PM
  #28
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Originally Posted by gracer7-rx7
Here are some links to CrisyRX7's fuel pump wiring and upgrades:
http://www.reganrotaryracing.com/fddualfuelpumps.htm
from this post:
https://www.rx7club.com/showpost.php...5&postcount=13
on Ihor's original thread about wiring your fuel pumps:
https://www.rx7club.com/showthread.php?t=847009
which I just copied into the FAQ thread below Dale Clark's thread on fuel pump rewire
well that definitely answers my question.

looks like the same part is in this pic:
Old 09-14-10 | 03:59 PM
  #29
ttmott's Avatar
Senior Member

iTrader: (1)

Joined: Aug 2006
Posts: 398
Likes: 8
From: Space Coast Florida
Originally Posted by theorie

This one is not sealed. I use specific bulkhead connectors designed for the application. PAVE Technologies is a great source; they will set up the connector with all of the correct softgoods. I have used this one in my projects; it has PTFE insulated 12 gauge wires and the wires are terminated (fuel will not leak up under the insulation:
http://www.pavetechnologyco.com/desi...ductindex.html
Old 09-14-10 | 04:36 PM
  #30
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Originally Posted by ttmott
This one is not sealed. I use specific bulkhead connectors designed for the application. PAVE Technologies is a great source; they will set up the connector with all of the correct softgoods. I have used this one in my projects; it has PTFE insulated 12 gauge wires and the wires are terminated (fuel will not leak up under the insulation:
http://www.pavetechnologyco.com/desi...ductindex.html
im sure the one from summit would work just fine with some fuel-safe gasket maker:
http://www.caswellplating.com/permat...ketmakers.html

Permatex® Super High Tack™ Gasket Sealant

Fast-drying sealant dries to a highly tacky, non-brittle film. Temperature range -65°F to 500°F (-54°C to 260°C); resists gasoline, oil, antifreeze, axle lube.
also, gasoline-resistant primary wire by the foot:
http://www.etrailer.com/dept-pg-Acce...gw-1_Wire.aspx
[quote=Standard Copper Primary Wire is widely used in the trailer and automotive industry for original equipment and replacement wiring. The General Purpose Thermo-Plastic (GPT) Insulation is highly resistant to acids, gasoline, oil, grease and most industrial solvents. Meets SAE J1128 Specifications. For use with 50 volts or less, 176 degrees Fahrenheit.[/quote]

or this:

http://www.supremehardware.com/servl...RY-WIRE/Detail
Gb Xtreme Primary Wire
rated 600 v
vinyl insulation resists water, battery acid, oil gasoline, and uv radiation
tin plated copper for corrosion resistance
ultra flexible to resist fatigue due to vibration and flexing
ul listed
10 gauge; red
8'coil
Old 09-14-10 | 05:57 PM
  #31
$lacker's Avatar
Rotary Enthusiast
iTrader: (9)

Joined: Mar 2010
Posts: 1,087
Likes: 15
From: Canada
So is it possible to get the gasoline safe wire and bulkhead connectors online at the same place?
Old 09-14-10 | 07:04 PM
  #32
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Not sure. I know someone's gonna hate on my shopping list, but here is what I'm going to use:

(x2) Summit Racing® Bulkhead Cable Connector SUM-G1431 = $24.95 shipped
(x1) Permatex® Super High Tack™ Gasket Sealant = $3.99 (Purchased Local)
(x2) GB Xtreme Primary Wire 10-Gauge, 8-foot (Black & Red) = $22.93 shipped
(x1) Non-Insulated Ring Terminal 10-Gauge (Pack of 20) = $4.99 (Purchased Local)

So my total is a little over $60. Keep in mind I already have the wiring done from the battery to the top of the bulkhead with 10-Gauge wire and a Bosch relay.

I'll share pics when I get the parts...
Old 09-19-10 | 10:30 PM
  #33
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
worked on the fuel pump wiring at SuckieBomb Garage today

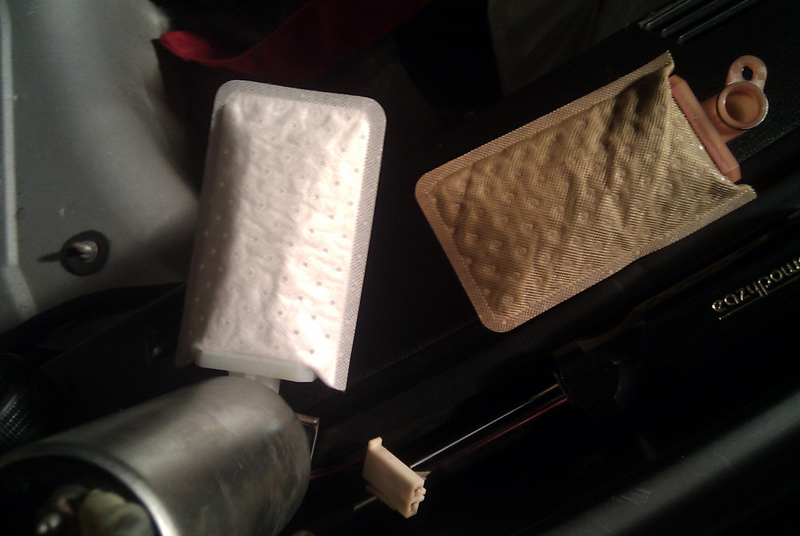

new sock

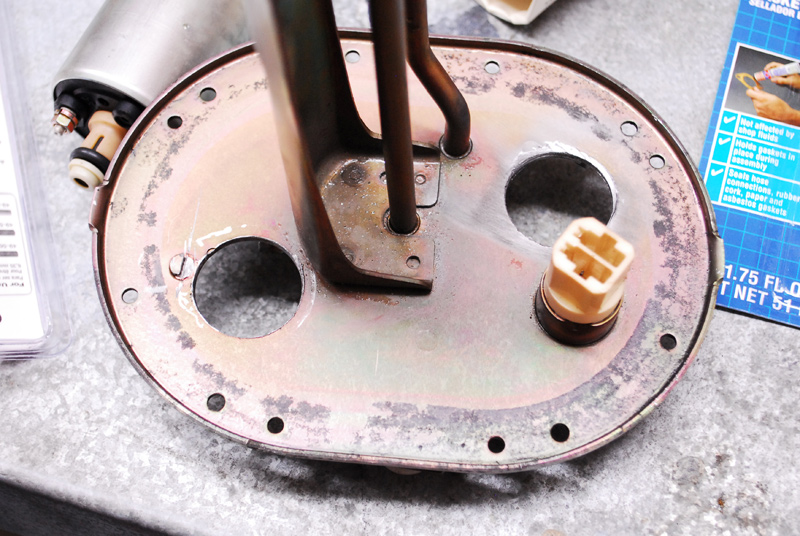

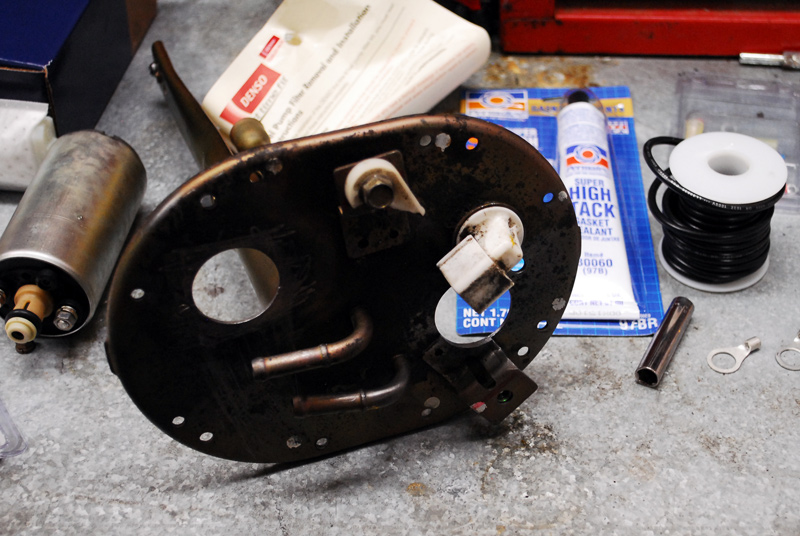

holes cut for bulkhead connectors

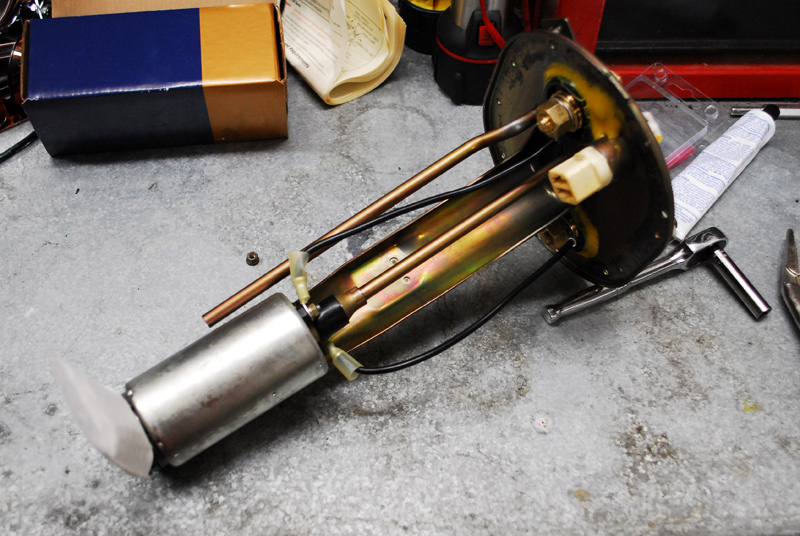

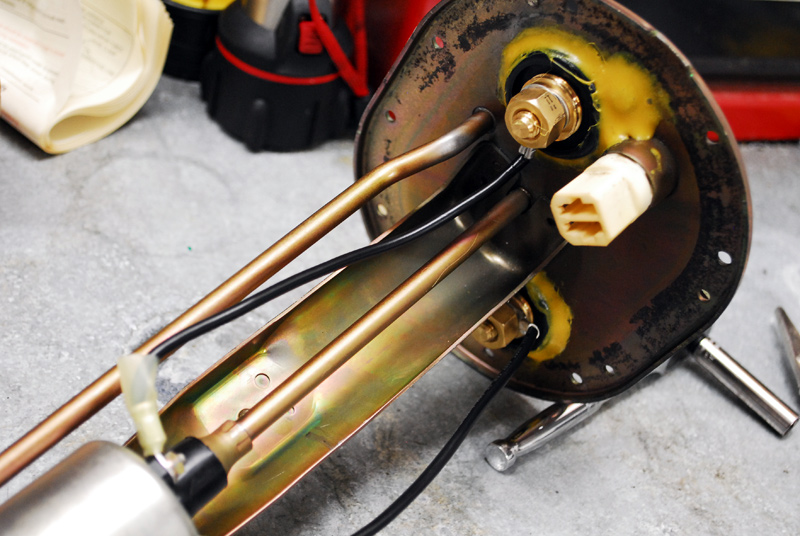

new wires with ring terminals. bulkhead connectors sealed with gasoline-safe gasket maker:


Attached Thumbnails A word about re-wiring your fuel pump. [pics]-imag0100.jpg   A word about re-wiring your fuel pump. [pics]-dsc_5410.jpg   A word about re-wiring your fuel pump. [pics]-dsc_5412.jpg   A word about re-wiring your fuel pump. [pics]-dsc_5413.jpg   A word about re-wiring your fuel pump. [pics]-dsc_5414.jpg

Old 09-19-10 | 10:33 PM
  #34
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL

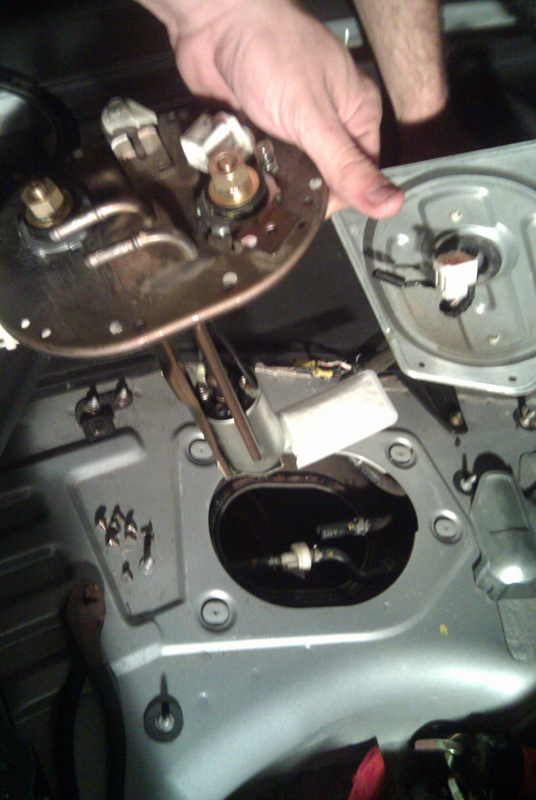

putting it back in:

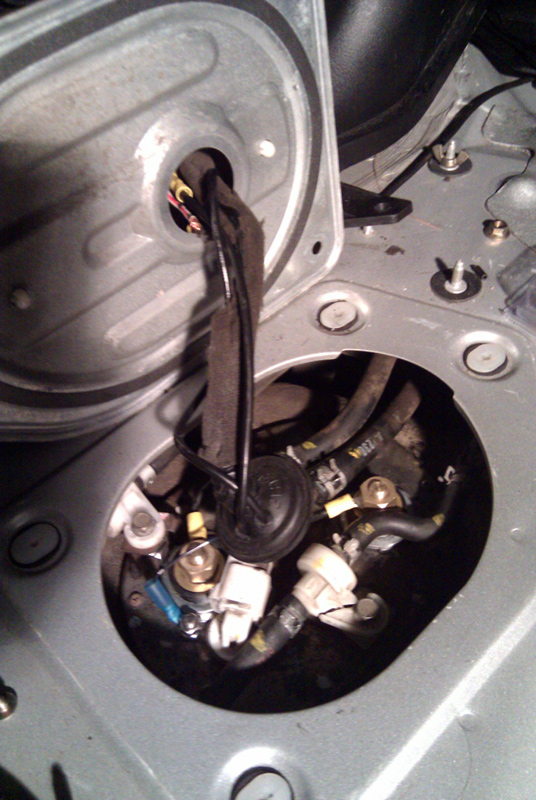

all hooked up:


then rich and his IRP thugs showed up and ruined the party.
Attached Thumbnails A word about re-wiring your fuel pump. [pics]-imag0102.jpg   A word about re-wiring your fuel pump. [pics]-imag0103.jpg   A word about re-wiring your fuel pump. [pics]-rich-gang.jpg
Old 09-19-10 | 11:25 PM
  #35
JhnRx7's Avatar
Golf Cart Hooligan
iTrader: (12)

Joined: Oct 2002
Posts: 993
Likes: 23
From: Philadelphia, PA
Originally Posted by theorie


then rich and his IRP thugs showed up and ruined the party.

Old 09-27-10 | 07:38 PM
  #36
jonathan_ed3's Avatar
Full Member

iTrader: (1)

Joined: Jan 2007
Posts: 90
Likes: 0
From: Dallas
Originally Posted by ttmott
This one is not sealed. I use specific bulkhead connectors designed for the application. PAVE Technologies is a great source; they will set up the connector with all of the correct softgoods. I have used this one in my projects; it has PTFE insulated 12 gauge wires and the wires are terminated (fuel will not leak up under the insulation:
http://www.pavetechnologyco.com/desi...ductindex.html
How much does that thing cost? I cannot figure out for the life of me how to purchase one.
Old 09-27-10 | 09:17 PM
  #37
ttmott's Avatar
Senior Member

iTrader: (1)

Joined: Aug 2006
Posts: 398
Likes: 8
From: Space Coast Florida
It's been a few years but I think the wall connector was about $40 and the cable end was less with hermetic seals... Call them 937.890.1100 x6

Also try Newark Electronics they carry a wide line of connectors.

Lastly, Alvatek specalizes in aircraft connectors 1-888-965-7278
Old 10-20-10 | 09:07 AM
  #38
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
just wanted to update about my fix.

so i had a small problem, fortunately it happened within 24 hours. the electrical bulkhead pass-thru connectors weren't sealed properly. apparently i let the gasket maker set-up for too long and then didn't tighten the locking nut enough so i had fuel seeping out (very little but enough to get the top of the bulkhead 'wet' with fuel). i noticed it right away because of the smell coming from my trunk area. haha

i pulled the assembly again, removed the new connectors, cleaned them, and then re-installed them with new gasket maker and got the locking nuts proper tight. no more leaking! it's been about a month now and still no problem.

cheers.
Old 01-02-11 | 01:12 PM
  #39
RotaryEvolution's Avatar
Sharp Claws
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 47
From: Central Florida
on a side note, the second bulkhead isn't necessary for a ground, the pump can be grounded through the pump housing. only one bulkhead per pump as the ground doesn't need to be isolated and is necessary for the fuel level sender and low fuel level lights(if you're omitting the stock ground wire, i would at least upgrade the wiring diameter and run a gold plated terminal).
Old 05-05-11 | 04:45 PM
  #40
rizzxx7's Avatar
DIGG7ER
iTrader: (4)

Joined: Apr 2001
Posts: 988
Likes: 0
From: virginia beach, va.
what kind of drill bit did you use to cut the holes out? size?
Old 05-06-11 | 08:18 AM
  #41
87 t-66's Avatar
not a drifter
iTrader: (133)

Joined: Jun 2004
Posts: 9,337
Likes: 6
From: Columbus, Ohio
Originally Posted by theorie
just wanted to update about my fix.

so i had a small problem, fortunately it happened within 24 hours. the electrical bulkhead pass-thru connectors weren't sealed properly. apparently i let the gasket maker set-up for too long and then didn't tighten the locking nut enough so i had fuel seeping out (very little but enough to get the top of the bulkhead 'wet' with fuel). i noticed it right away because of the smell coming from my trunk area. haha

i pulled the assembly again, removed the new connectors, cleaned them, and then re-installed them with new gasket maker and got the locking nuts proper tight. no more leaking! it's been about a month now and still no problem.

cheers.
any further issues? i am looking to do this soon and was going to purchase those same connectors

Originally Posted by rizzxx7
what kind of drill bit did you use to cut the holes out? size?
1 1/4"

Originally Posted by Karack
on a side note, the second bulkhead isn't necessary for a ground, the pump can be grounded through the pump housing. only one bulkhead per pump as the ground doesn't need to be isolated and is necessary for the fuel level sender and low fuel level lights(if you're omitting the stock ground wire, i would at least upgrade the wiring diameter and run a gold plated terminal).
so if i keep the stock sending unit connector in place (using only 2 wires), and run separate power and ground wires, the fuel level gauge and low fuel light wont work?

Last edited by 87 t-66; 05-06-11 at 08:25 AM.
Old 05-06-11 | 10:37 AM
  #42
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Originally Posted by 87 t-66
any further issues? i am looking to do this soon and was going to purchase those same connectors
Haven't had any further issues since I re-sealed the fittings (whatever the last post is dated...)
Old 05-06-11 | 12:43 PM
  #43
87 t-66's Avatar
not a drifter
iTrader: (133)

Joined: Jun 2004
Posts: 9,337
Likes: 6
From: Columbus, Ohio
Originally Posted by 87 t-66
so if i keep the stock sending unit connector in place (using only 2 wires), and run separate power and ground wires, the fuel level gauge and low fuel light wont work?
nevermind, dumb question
Old 05-06-11 | 06:06 PM
  #44
rizzxx7's Avatar
DIGG7ER
iTrader: (4)

Joined: Apr 2001
Posts: 988
Likes: 0
From: virginia beach, va.
theorie - did you remove your fuel level float? do you just now go with mileage for fuel level?
Old 05-06-11 | 06:51 PM
  #45
MOBEONER's Avatar
It's finally reliable
iTrader: (18)

Joined: May 2004
Posts: 3,513
Likes: 10
From: NEW YORK CITY
Originally Posted by rizzxx7
theorie - did you remove your fuel level float? do you just now go with mileage for fuel level?
.
Old 05-06-11 | 07:04 PM
  #46
rizzxx7's Avatar
DIGG7ER
iTrader: (4)

Joined: Apr 2001
Posts: 988
Likes: 0
From: virginia beach, va.
I Didn't see it on the pics, maybe hes got it hooked up differently?
Old 05-07-11 | 09:15 PM
  #47
theorie's Avatar
Thread Starter
AponOUT!?
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Originally Posted by rizzxx7
theorie - did you remove your fuel level float? do you just now go with mileage for fuel level?
no it's still in there. still using the float level for the gauge
Old 07-22-11 | 07:21 PM
  #48
KKMpunkrock2011's Avatar
dorito powered

iTrader: (5)

Joined: Mar 2008
Posts: 2,839
Likes: 0
From: Lincoln, NE
Tom, do you think one of these connectors will be sufficient to get enough voltage for two pumps?
Old 07-23-11 | 02:19 AM
  #49
Alex Rodriguez's Avatar
MODERATOR
Veteran: Marine Corp
iTrader: (137)

Joined: Jan 2005
Posts: 6,441
Likes: 9
From: Houston Texas
Originally Posted by KKMpunkrock2011
Tom, do you think one of these connectors will be sufficient to get enough voltage for two pumps?
Note the barb fittings where changed to 3/8 instead of the big 1/2 ones
Old 07-23-11 | 01:06 PM
  #50
shmacklepap's Avatar
FD** Fire Disaster
iTrader: (15)

Joined: Feb 2006
Posts: 879
Likes: 3
From: Austin, Texas
Originally Posted by Alex Rodriguez
Note the barb fittings where changed to 3/8 instead of the big 1/2 ones
