Wiring Harness -soldering?
#1
Wiring Harness -soldering?
I'm in the process of replacing my 2nd reman with a third reman (yeah, just like an airplane engine ... preventive maintainence).
My original wiring harness looks like it's been to Afghanistan, Iraq and back in the last 10 years. I have a spare wiring harness but there's a catch. The guy who sold me the wrecked car removed the harness by cutting it at the firewall. It's a nice clean cut though and the harness is in great shape (sitting in storage since 1996 too).
For me to use this spare harness will require soldering about 55 wires. Anyone did this? I'm competent in soldering, having done a couple of 2 channel solid state amps, alarms etc.
I would rather use this spare harnes cause I don't feel like spending $1000 for a new wiring harness.
My original wiring harness looks like it's been to Afghanistan, Iraq and back in the last 10 years. I have a spare wiring harness but there's a catch. The guy who sold me the wrecked car removed the harness by cutting it at the firewall. It's a nice clean cut though and the harness is in great shape (sitting in storage since 1996 too).
For me to use this spare harness will require soldering about 55 wires. Anyone did this? I'm competent in soldering, having done a couple of 2 channel solid state amps, alarms etc.
I would rather use this spare harnes cause I don't feel like spending $1000 for a new wiring harness.
#6
Senior Member
Join Date: Dec 2002
Location: Indianapolis, IN
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by pomanferrari
Great inputs!!
Question on the conductive foil, how do I do that?
Great inputs!!
Question on the conductive foil, how do I do that?
Trending Topics
#9
Something like this would make your life a lot easier:
http://www.amazon.com/Delphi-Packard.../dp/B0017NR110
Only has 22 connections, though are there really 55 wires in the harness?
IMHO, crimping (with proper tools and connectors) is far superior to soldering for automotive applications.
http://www.amazon.com/Delphi-Packard.../dp/B0017NR110
Only has 22 connections, though are there really 55 wires in the harness?
IMHO, crimping (with proper tools and connectors) is far superior to soldering for automotive applications.
#10
Thats one of those things where I'd just spend the $800 and get a new harness from Mazda.
I'd also agree with moconnor, if you ARE going to patch the harness, use sealed/bulkhead connectors and crimp with the tools designed for the pins/sockets. I've seen a bunch of solder joins fail on racecars due to vibration.
I'd also agree with moconnor, if you ARE going to patch the harness, use sealed/bulkhead connectors and crimp with the tools designed for the pins/sockets. I've seen a bunch of solder joins fail on racecars due to vibration.
#12
Tenseiga
iTrader: (1)
Join Date: Apr 2003
Location: Iowa
Posts: 2,252
Likes: 0
Received 0 Likes
on
0 Posts
I used milspec type connectors (mine was for a stand alone but same concept)
My friend used that connector above and is nice but there is a bolt on the other side so you can't completely close it off like a cable and not nearly enough.
Just do what you're comfortable with.
My friend used that connector above and is nice but there is a bolt on the other side so you can't completely close it off like a cable and not nearly enough.
Just do what you're comfortable with.
#14
Tenseiga
iTrader: (1)
Join Date: Apr 2003
Location: Iowa
Posts: 2,252
Likes: 0
Received 0 Likes
on
0 Posts
Digi-key
Milspec is evil.
It is actually complex and adds up very fast.

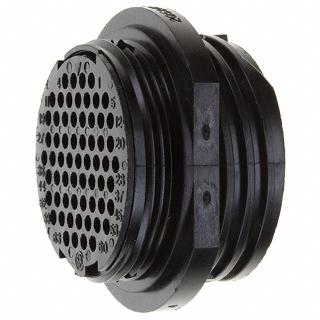

Those are the shells (i went with the pigtail - not the wall mount).
Then u order the ends to them and the pins.
You even choose the level of gold plating on the connectors.
I went with Tyco parts (thermal Plastic instead of aluminum b/c price).
Full out milspec is a bit over board imo.
Just google that part number and there will be tons of sites selling milspec connectors.

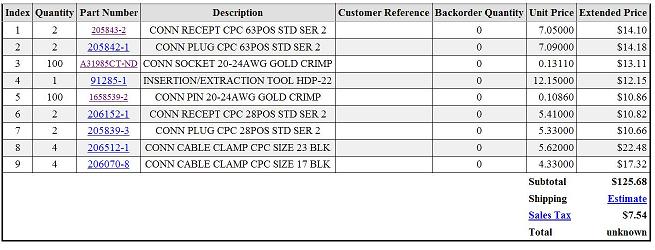

I have included my order so that you can get an Idea of what it consists of.
