Why do they hate me (oil pan sealing saga)?
#31
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
yeah definitely need something to support the engine. Were I live we have a place we can go and rent a bay and lift to work on our cars for a decent fee. The first time I went to do this (ran out of time at the shop) we had the car on a lift and a transmission lift to hold the engine and trans up. Worked pretty well I think.
#32
Full Member
Join Date: Jan 2003
Location: Gardena, CA
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
I used this to support my engine when I removed my subframe: http://www.harborfreight.com/cpi/cta...emnumber=96524
It holds the engine up from the top by hooking onto the engine hoist loops, that way you don't have anything supporting from the bottom so you have all the room you could ever want to re-seal the oil pan.
Also, it's been mentioned before, but I'm just going to stress that you have to clean, clean, and clean all the old stuff off. I used a gasket scraper, a razor blade, gasket remover, and a tap (for the holes) to get all the old stuff off.
+1 for "The Right Stuff", Garfinkle Oil Pan Brace, and Moroso studs.
It holds the engine up from the top by hooking onto the engine hoist loops, that way you don't have anything supporting from the bottom so you have all the room you could ever want to re-seal the oil pan.
Also, it's been mentioned before, but I'm just going to stress that you have to clean, clean, and clean all the old stuff off. I used a gasket scraper, a razor blade, gasket remover, and a tap (for the holes) to get all the old stuff off.
+1 for "The Right Stuff", Garfinkle Oil Pan Brace, and Moroso studs.
#34
Turd Ferguson
iTrader: (1)
Join Date: Jul 2006
Location: Sherman Oaks, California
Posts: 2,047
Likes: 0
Received 1 Like
on
1 Post
a block of wood & a floor jack under the transmission will work. There's a little flat place for it. Just jack it up until the weight is off the engine mounts... remove the bolts on the mounts.... then jack it up til it bottoms out on the transmission tunnel (be sure the hood is open).
There's plenty of room under there. You won't have a problem with it interfering. I did mine with this method as have numerous other unfortunate souls to attempt the process with the engine in the car.
There's plenty of room under there. You won't have a problem with it interfering. I did mine with this method as have numerous other unfortunate souls to attempt the process with the engine in the car.
#35
Formerly widebodyseven
iTrader: (17)
Join Date: Jul 2009
Location: Garage
Posts: 1,799
Likes: 0
Received 0 Likes
on
0 Posts
I use the same method as grimple1 but if i had to do it again i would get that engine support thing posted above because its more safe if the jack or wood slips something dangerous is going to happen.
EDIT: When i did mines my car was on the lift and was 8 feet above the floor but most of you would probably be doing this when the car is on jack stands so theres less possibility of the the wood and jack slipping
EDIT: When i did mines my car was on the lift and was 8 feet above the floor but most of you would probably be doing this when the car is on jack stands so theres less possibility of the the wood and jack slipping
Last edited by widebodyseven; 01-26-10 at 05:05 AM.
#38
Racecar - Formula 2000
Here, again, is a related thread with some useful tips and info: https://www.rx7club.com/showthread.p...easier+oil+pan
#39
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
So revival time.
Finally got my friend to give me his engine hoist now that he isn't using it, so its time to get her back up and running. Got the hoist yesterday and hooked it up today and got to work. I will say that there is not a lot of room to work with if you go this route because the legs stick so far under the car. So if I ever have to do anything like this again, Im probably going to invest in one of those support bars.
I also took the advice given here and dropped the crossmember, there is soooo much more room to work with it dropped. The hardest part was removing the bolts holding it on lol. I used a combination of an impact wrench, normal wrench with a mallet, and a torque wrench (for the extra leverage). Finally after PB blasting it and the torque wrench, I was finally able to get them off. I then removed the oil pan while getting soaked by the rest of the oil in there lol.
I got a friends birthday to go to so decided to stop there and let the pan leak the rest out over night. Tomorrow comes the cleaning
Finally got my friend to give me his engine hoist now that he isn't using it, so its time to get her back up and running. Got the hoist yesterday and hooked it up today and got to work. I will say that there is not a lot of room to work with if you go this route because the legs stick so far under the car. So if I ever have to do anything like this again, Im probably going to invest in one of those support bars.
I also took the advice given here and dropped the crossmember, there is soooo much more room to work with it dropped. The hardest part was removing the bolts holding it on lol. I used a combination of an impact wrench, normal wrench with a mallet, and a torque wrench (for the extra leverage). Finally after PB blasting it and the torque wrench, I was finally able to get them off. I then removed the oil pan while getting soaked by the rest of the oil in there lol.
I got a friends birthday to go to so decided to stop there and let the pan leak the rest out over night. Tomorrow comes the cleaning
#40
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts

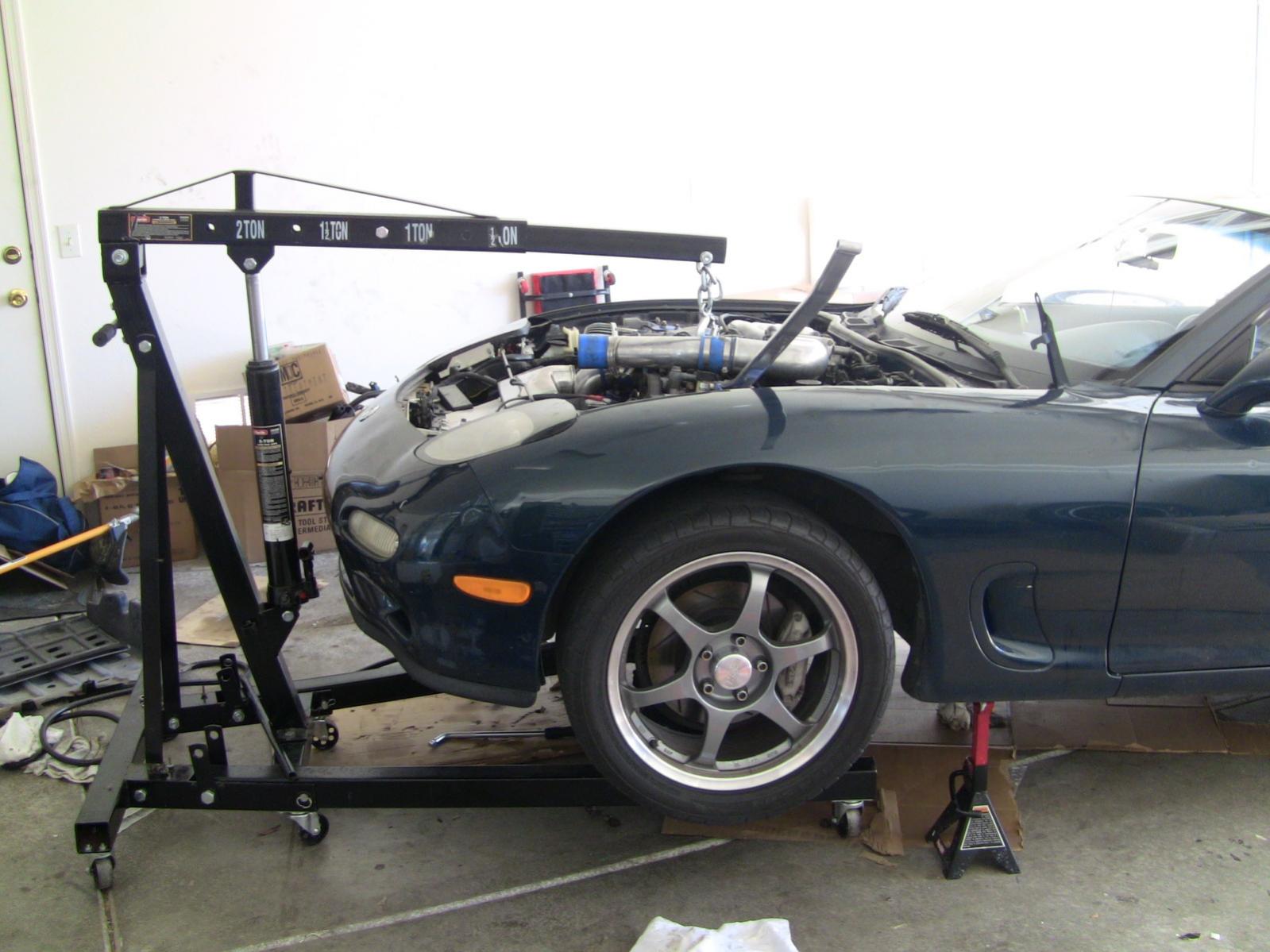

1. Hoist installed

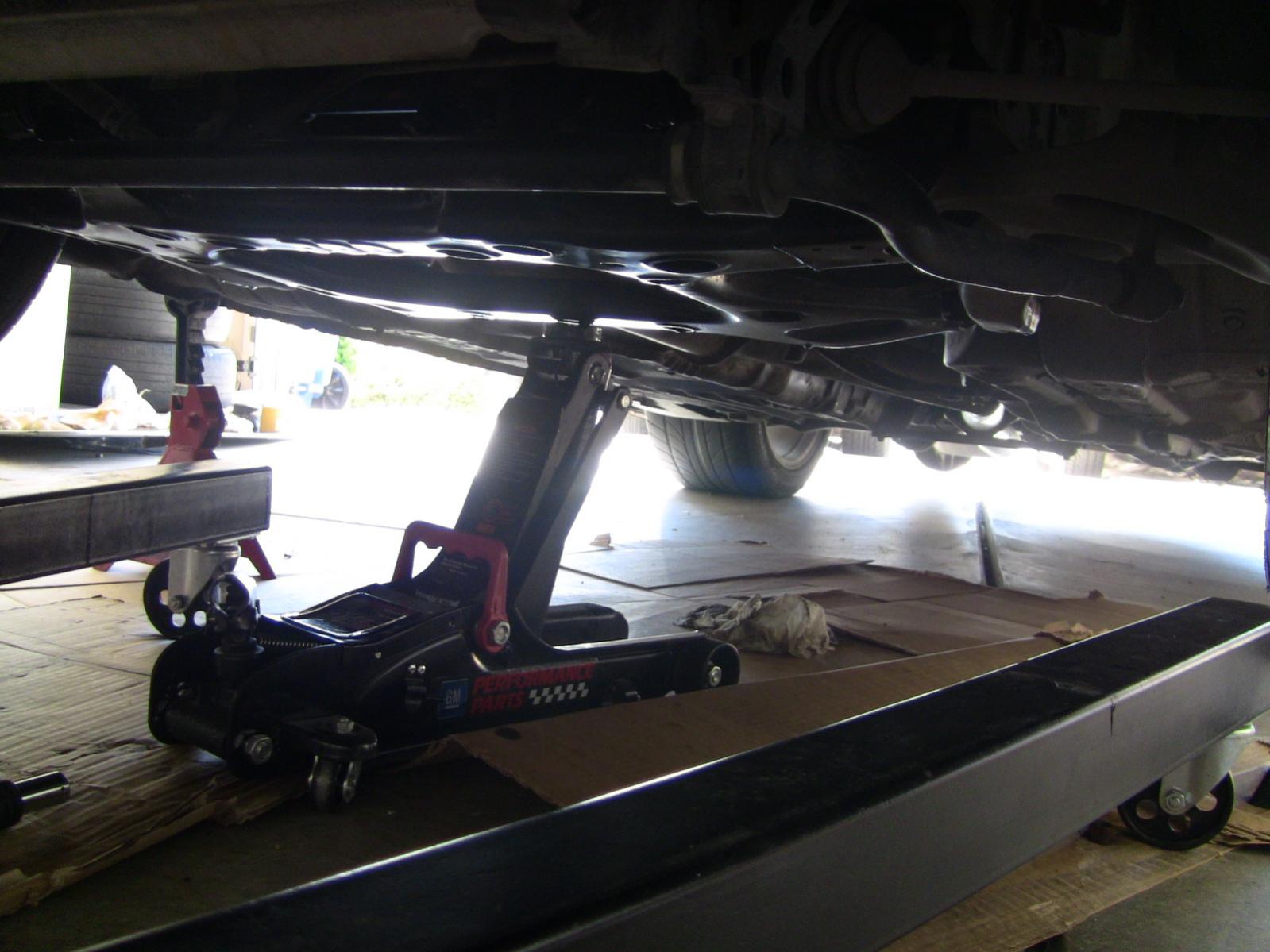

2. No room to move lol (removed jack after lowering crossmember. Didnt know how it was going to react to removing the bolts.)

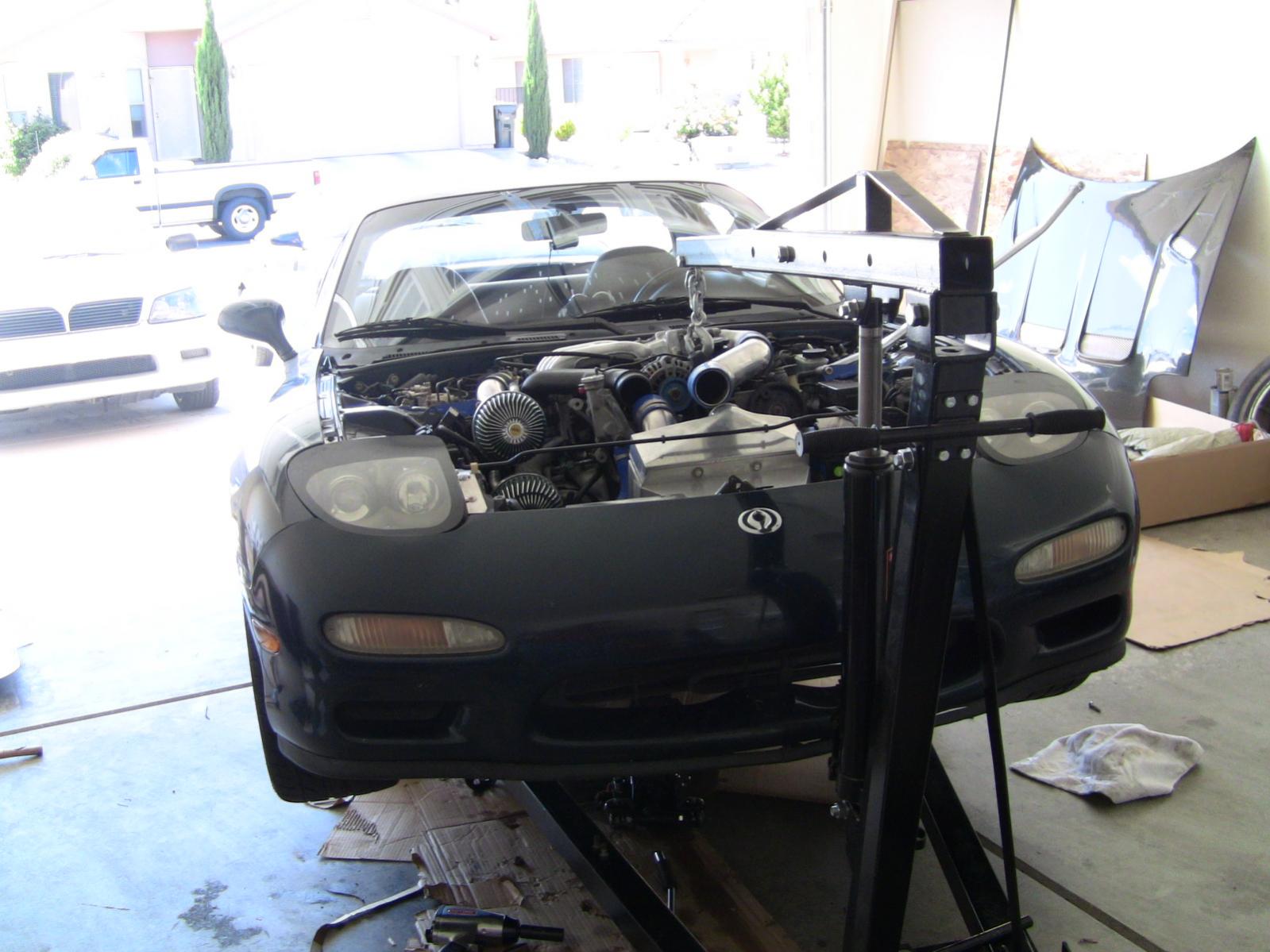

3. Front view.
4. Broc wondering what the hell I'm doing lol.
2. No room to move lol (removed jack after lowering crossmember. Didnt know how it was going to react to removing the bolts.)
3. Front view.
4. Broc wondering what the hell I'm doing lol.
#41
All Spooled Up
iTrader: (7)
1. Drop subframe
2. Remove pan and clean the hell outta the sealing surface
3. Run a tap thru all stud holes
4. Clean again
5. Check the flange for straightness on the pan
6. Clean again - install studs
7. Apply the RIGHT STUFF on the block
8. Install pan/brace
9. Torque all nuts
10 run a finger all around the pan/block surface
11 install the MM/subframe
12 let sit for 24 hors without any oil in it to cure
13. Add oil
14. warmup and check for leaks
later
2. Remove pan and clean the hell outta the sealing surface
3. Run a tap thru all stud holes
4. Clean again
5. Check the flange for straightness on the pan
6. Clean again - install studs
7. Apply the RIGHT STUFF on the block
8. Install pan/brace
9. Torque all nuts
10 run a finger all around the pan/block surface
11 install the MM/subframe
12 let sit for 24 hors without any oil in it to cure
13. Add oil
14. warmup and check for leaks
later
#43
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Yeah I know I have to clean it like crazy to get it to bond. I'm not going to re-tap the stud holes since I did that when I first installed it. The only reason I would back those back out and re-tap them is if I have issues getting the engine mounting surface as clean as I want it.
I'm spending all of today and probably tomorrow cleaning the pan and the under surface with some simple green a scraping tool and I might use some brake fluid since I hear that works pretty well. Also I'm going to hit up NAPA or Autozone to get some Right Stuff lol.
I'm spending all of today and probably tomorrow cleaning the pan and the under surface with some simple green a scraping tool and I might use some brake fluid since I hear that works pretty well. Also I'm going to hit up NAPA or Autozone to get some Right Stuff lol.
#45
Racecar - Formula 2000
Correct on the brake fluid - brake fluid will leave a residue that will impair sealing. Also, brake cleaner (many varieties available) will clean well and leave no residue. If you did use brake fluid, use brake cleaner to remove the brake fluid's residue.
Dave
#46
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
Yeah I did, I'm an idiot lol. i meant cleaner. Sorry, dog did something to really **** me off when I was writing it so I kinda rushed.
I had a mechanic that I used to go to college with tell me that break cleaner is all he uses to degreese stuff. Its cheaper then most cleaning agents and usually does a better job according to him.
I had a mechanic that I used to go to college with tell me that break cleaner is all he uses to degreese stuff. Its cheaper then most cleaning agents and usually does a better job according to him.
#47
BE CAREFUL with Brake Cleaner:
Non-Chlorinated is not so harsh on rubber/plastic parts or the environment, it's all I use
USE IN WELL VENTILATED AREAS FAR FAR FAR FAR AWAY FROM ANYTHING RESEMBLING A HEAT SOURCE!!!!!!
It was my own fault but I had my engine catch fire TWICE because the damn cleaner is so volatile! First time I accidentaly touched the positive terminal of the batt making it spark and the whole engine bay catched fire. The second time it was from a lit citronella candle that was at least 10ft away, somehow the fumes got there and I dumbfoundedly watched as the fire ran from the candle to my car!! I got lucky both times that I had a water hose near and the fire consumed the cleaner before anything else so my car had no major damage apart from a couple wires here and there.
Non-Chlorinated is not so harsh on rubber/plastic parts or the environment, it's all I use
USE IN WELL VENTILATED AREAS FAR FAR FAR FAR AWAY FROM ANYTHING RESEMBLING A HEAT SOURCE!!!!!!
It was my own fault but I had my engine catch fire TWICE because the damn cleaner is so volatile! First time I accidentaly touched the positive terminal of the batt making it spark and the whole engine bay catched fire. The second time it was from a lit citronella candle that was at least 10ft away, somehow the fumes got there and I dumbfoundedly watched as the fire ran from the candle to my car!! I got lucky both times that I had a water hose near and the fire consumed the cleaner before anything else so my car had no major damage apart from a couple wires here and there.
#48
Preheated Badger
Thread Starter
Join Date: Apr 2008
Location: Sierra Vista, AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
DAMN! I would have had a heart attack if I watched that happen. Maybe ill just stick to simple green and a lot of scrubbing... I never thought cleaning my car would be so dangerous... lol
#49
Racecar - Formula 2000
BE CAREFUL with Brake Cleaner:
Non-Chlorinated is not so harsh on rubber/plastic parts or the environment, it's all I use
USE IN WELL VENTILATED AREAS FAR FAR FAR FAR AWAY FROM ANYTHING RESEMBLING A HEAT SOURCE!!!!!!
It was my own fault but I had my engine catch fire TWICE because the damn cleaner is so volatile! First time I accidentaly touched the positive terminal of the batt making it spark and the whole engine bay catched fire. The second time it was from a lit citronella candle that was at least 10ft away, somehow the fumes got there and I dumbfoundedly watched as the fire ran from the candle to my car!! I got lucky both times that I had a water hose near and the fire consumed the cleaner before anything else so my car had no major damage apart from a couple wires here and there.
Non-Chlorinated is not so harsh on rubber/plastic parts or the environment, it's all I use
USE IN WELL VENTILATED AREAS FAR FAR FAR FAR AWAY FROM ANYTHING RESEMBLING A HEAT SOURCE!!!!!!
It was my own fault but I had my engine catch fire TWICE because the damn cleaner is so volatile! First time I accidentaly touched the positive terminal of the batt making it spark and the whole engine bay catched fire. The second time it was from a lit citronella candle that was at least 10ft away, somehow the fumes got there and I dumbfoundedly watched as the fire ran from the candle to my car!! I got lucky both times that I had a water hose near and the fire consumed the cleaner before anything else so my car had no major damage apart from a couple wires here and there.
Dave
#50
ive just done my sump and all seems well soo far
i took the engine out to do it though, far easier for me and i knew i could get both surfaces clean. i used petrol to clean and then sand paper and then another clean, i also tapped flat the grooves in the pan as i fitted a sump brace at the same time.
i didnt use a gasket, just loctite 518
i took the engine out to do it though, far easier for me and i knew i could get both surfaces clean. i used petrol to clean and then sand paper and then another clean, i also tapped flat the grooves in the pan as i fitted a sump brace at the same time.
i didnt use a gasket, just loctite 518
