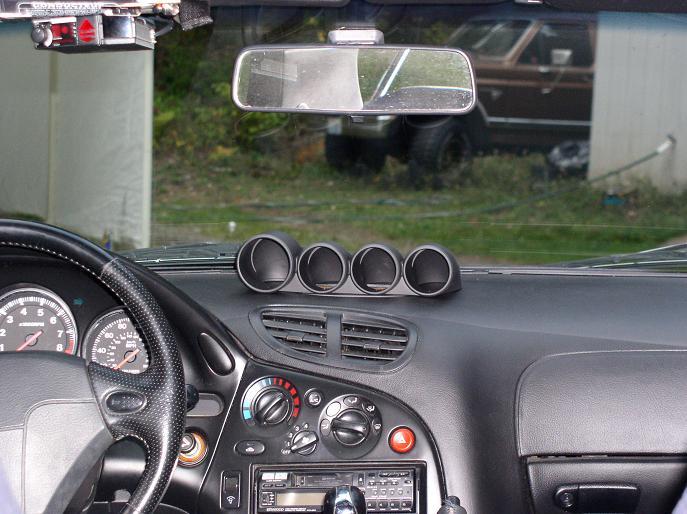

Ok, kinda rice, I know, but I have this 60mm Defi Link tach I want to hook up to my gauge system. I'm thinking of making myself a pod, kinda' like the one below, or just putting it in my glove box. I really only want it for playback and/or peak values. Basically, I've taken my FD to 2 shops for service, one was for a windshield, one to get my faded hood painted. Both of them took my car (without permission) for 3-4 mile "test/joy" rides. If I EVER have to go back to another shop (my windshield IS cracked again) I want to be able to monitor peak values and point them out to them. Of course, I do have the PFS PMC now, so I can limit them to 4k RPM.
So, anyhow, the question is, where do I hook up for the Defi link tach and how do I set the control modual up, for 3,4,6,8 cylinder operation? All the instructions say is to splice into the negative side of the coil, but I'd figure I'd better research it a little first. Any pointers?

Frank


I know there isn't any gauges in them, as I was in a hurry to take pics, but you get the idea.

cewrx7r1

iTrader: (2)

Connect to the leading coil trigger wire going to or from the ignitor. This will give two firing pulses per rpm like a 4 cyclinder engine.

Flyrx7

iTrader: (1)

Cool, thanks Chuck.
So would this mean I could just tap into the Green wire of my J&S Ultrasafeguard (igniter input from ECU, leading coil)? I'll double check my wiring diagrams though.
