What causes the secondary turbo to dump boost?
#1
Ronald..
Thread Starter
iTrader: (1)
Join Date: Aug 2005
Location: Fairfax/Manassas VA
Posts: 2,013
Likes: 0
Received 0 Likes
on
0 Posts
What causes the secondary turbo to dump boost?
Ive been playing with my HKS boost controller for some time now and I have got my primary turbo hitting a solid 10psi but on the transition I dip to around 7-8psi and dint reach a full 10psi until much later in the rev range. The problem is I don't hold that 10psi to 8k, more like at 6ish I hear something on the passenger side of the engine bay dumping a good deal of air. Would my assumption in my Charge Relief Valve is going bad and needs to be replaced? Or maby there is a setting in the HKS EVC 5 that I should look into.
#2
Wastegate John
iTrader: (13)
Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes
on
9 Posts
It could be the CRV I believe you can switch it with the BOV and just plug the line for the BOV. This is assuming you have the stock BOV to switch it with. Or check the hose to the CRV that might be bad.
John
John
#3
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Ive been playing with my HKS boost controller for some time now and I have got my primary turbo hitting a solid 10psi but on the transition I dip to around 7-8psi and dint reach a full 10psi until much later in the rev range. The problem is I don't hold that 10psi to 8k, more like at 6ish I hear something on the passenger side of the engine bay dumping a good deal of air. Would my assumption in my Charge Relief Valve is going bad and needs to be replaced? Or maby there is a setting in the HKS EVC 5 that I should look into.
Thats usually a split/loose coupler at the y-pipe to crossover pipe connection. Sometimes the cross over pipe itself will develop a crach that's not noticable until it's pressurized or sees boost.
Typically if you're hearing dumped air it's a boost leak from that section but could be a split or loose connection anywhere but I'd start at the Y pipe.
#5
Wastegate John
iTrader: (13)
Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,979
Likes: 0
Received 9 Likes
on
9 Posts
The CRV is the charge relief valve. It is the "second" blow off valve located towards the fire wall on the passenger side of the car. Looks just like the stock blow off valve just further back from it. If you view this link ( https://www.rx7club.com/3rd-generation-specific-1993-2002-16/vacuum-diagrams-stock-simplified-sequential-non-sequential-single-turbo-749702/#post8113663 ) on the first diagram look at the lower section by the turbos and the CRV has the yellow hose coming off of it.
Fritz Flynn, The reason why I did not sudgest the Y pipe coupler is because he has 10 pounds of boost on the primary turbo. So that indicates to me, it is not blown and the leak has to be behind the charge control actuator.
John
Fritz Flynn, The reason why I did not sudgest the Y pipe coupler is because he has 10 pounds of boost on the primary turbo. So that indicates to me, it is not blown and the leak has to be behind the charge control actuator.
John
#6
Who say's i need a Van
iTrader: (18)
Join Date: Feb 2009
Location: Whatsittoya
Posts: 609
Likes: 0
Received 0 Likes
on
0 Posts
Check the turbo connections first

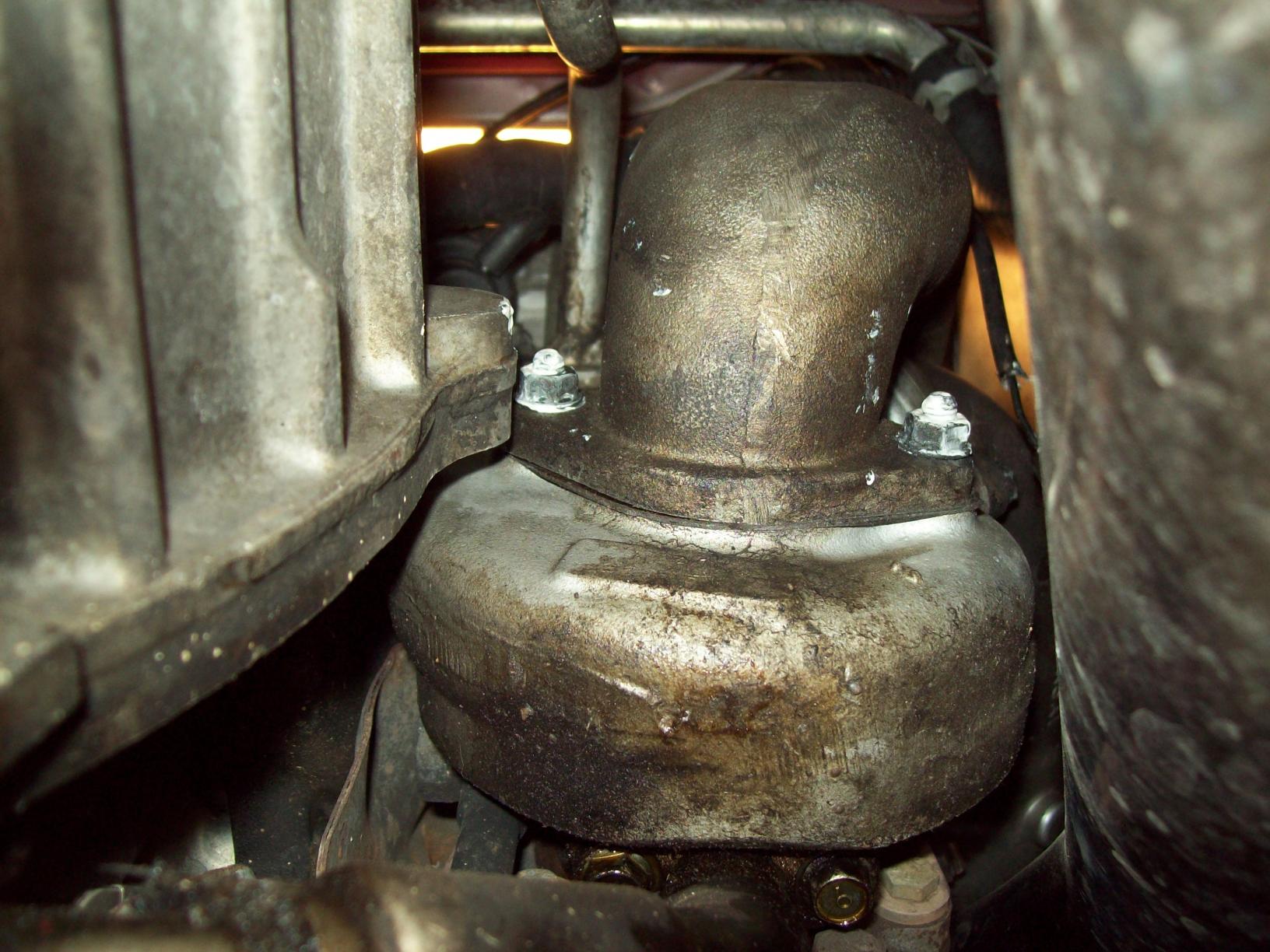

I had the same exact problem and sound as you describe. Full boost on the primary turbo but **** boost during and after the transition. Until i pulled the rear turbo's inlet pipe off to view the y-pipe connection to the secondary turbo and found that the y-pipe to secondary turbo bolts were almost off the studs. I bolted them down with thead sealer and i have'nt had any problems since. I know my problem is pretty rare but if your engine has ever been rebuilt its worth checking first. If i would have checked this first i would have saved months of obsessing over finding the problem.
#7
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
I had the same exact problem and sound as you describe. Full boost on the primary turbo but **** boost during and after the transition. Until i pulled the rear turbo's inlet pipe off to view the y-pipe connection to the secondary turbo and found that the y-pipe to secondary turbo bolts were almost off the studs. I bolted them down with thead sealer and i have'nt had any problems since. I know my problem is pretty rare but if your engine has ever been rebuilt its worth checking first. If i would have checked this first i would have saved months of obsessing over finding the problem.
On serious note most leaks you can hear will be a boost leak starting there and ending at the elbow.
Could be the CRV but I doubt it. Not something that usually fails and his car has about 50k miles or so on the engine and most accessories etc....
For the record it's common to make good boost with the primary and fading boost on the secondary when there's a leak in the system.
Trending Topics
#8
Senior Member
iTrader: (1)
I had a similar problem, turned out to be the reference line going to the CRV was bad. So when I made boost the little line going into the CRV did not put pressure on the valve inside so it would pop open and dump all my boost. I found it by trying to apply a small amount of air pressure to the vac line on the top of the CRV (going towards the car) and found my problem. Also another thing to look into is a pressure tester for the intake. Arghx recommended one for my issues and I have found all my leaks and what not.
Mike
http://www.fighters-garage.com/rx7.html
Down near the bottom
Mike
http://www.fighters-garage.com/rx7.html
Down near the bottom
Last edited by MSilk; 05-29-10 at 09:41 AM.
#9
Ronald..
Thread Starter
iTrader: (1)
Join Date: Aug 2005
Location: Fairfax/Manassas VA
Posts: 2,013
Likes: 0
Received 0 Likes
on
0 Posts
I'm picking up another crv from a local member this week. I took off the coupler to the y pipe and everything seemed to be ok. I think this must be something to do with the crv or hose going to it, but at this point I'm believing it could be anything.
#11
Rotary Enthusiast
iTrader: (28)
Join Date: Aug 2008
Location: Miami, FL
Posts: 1,149
Likes: 0
Received 0 Likes
on
0 Posts
I needed to bring this back for a CRV question, I didn't understand the testing instructions very clearly. When testing the CRV with a mityvac, the "big" ports should not allow air to pass through the CRV until the correct amount of vacuum is applied to the smaller nipple. What my question is, when you apply vacuum to the small nipple to open the "big" ports, is the vacuum supposed to leak out of the small nipple, or is it supposed to hold?
I was under the impression that the CRV is supposed to hold the vacuum you apply to the small nipple. However I've tested now like 4 CRV's, and they all leak out the vacuum after I apply it with the mityvac on the smaller nipple. So idk which is right??
I was under the impression that the CRV is supposed to hold the vacuum you apply to the small nipple. However I've tested now like 4 CRV's, and they all leak out the vacuum after I apply it with the mityvac on the smaller nipple. So idk which is right??
