Turbos to Manifold studs
11-29-12 | 10:40 PM
#1
Turbos to Manifold studs
Hello, I keep looking through the FSM and the parts manual and their very vague. I need to order one of the smaller studs, is there only one of the small ones? Are the rest of the studs the same size? I need 2 of the regular ones.
Im looking for part numbers too for the small and big ones, going to be ordering from Atkins.
Thanks.
Im looking for part numbers too for the small and big ones, going to be ordering from Atkins.
Thanks.
11-29-12 | 11:09 PM
#2
The smaller stud is N391-13-456 and there is only one. MSRP from Mazda is $17.14. The larger studs are NF01-13-708A and there are a total of 5. They are $18.25 each. Hopefully Atkins has a good deal on them. The parts can be found on page 1-C4 in the parts catalog.
11-29-12 | 11:12 PM
#3
And theres like a big bolt in the middle right?
Also would any of the turbo to downpipe studs work? Their just a tad bit shorter.
Also would any of the turbo to downpipe studs work? Their just a tad bit shorter.
Last edited by jayscoobs; 11-29-12 at 11:31 PM.
11-30-12 | 01:06 AM
#5
Im looking at atkins and it says theres 2 of the small studs and the part number is same for downpipe and the turbo ones. But the downpipe ones are shorter on the ones I have. 93-95 Rx7 Turbo to Down Pipe & Turbo to...
11-30-12 | 10:31 AM
#6
Try searching next time: https://www.rx7club.com/3rd-generati.../#post10669635
I've gotten a few PMs from people due to my build thread asking for stud sizes and where I got them. Just wanted to update the thread with a follow up that includes everything in one post.
Here is everything you'll need to re-stud the stock turbo stuff:

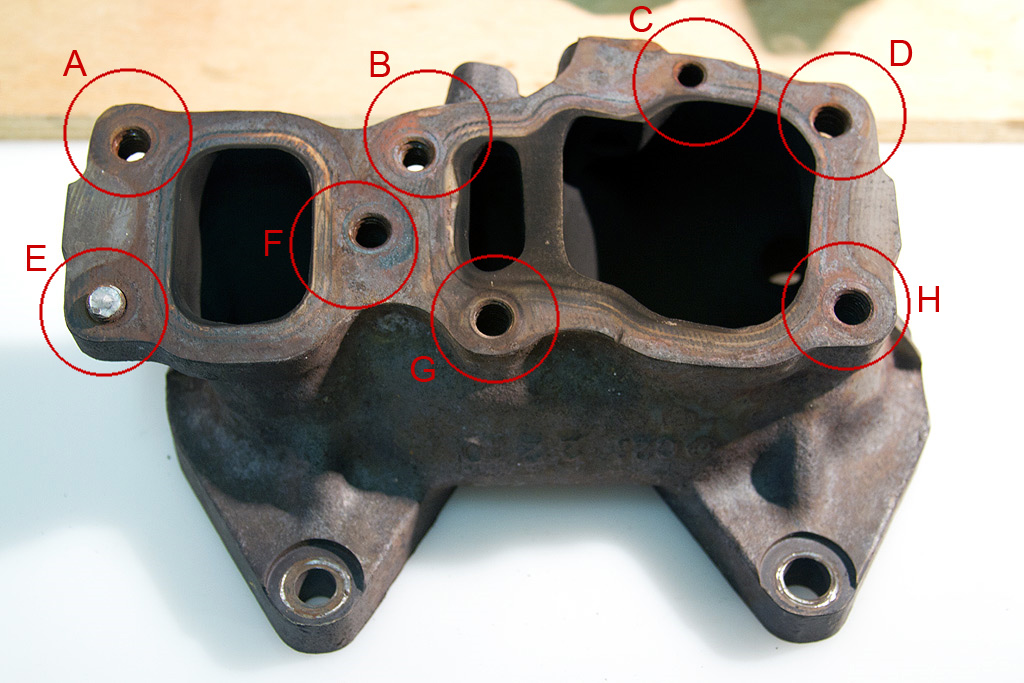

For the brick. See the photo in the 1st post for letter codes:
For the 4 studs that bolt the brick to the engine block:
For the downpipe:
You can use 4 of the M10x1.5 that are 37mm long (same as A,D,E,F,H on the brick). Part number 98867A350
You'll also want washers. I used these (sold by the bag):
For the copper lock nuts I used:
My brick all re-studed (I actually had to use one different stud because my brick had been heli-coiled, but you get the idea...):
Here is everything you'll need to re-stud the stock turbo stuff:
For the brick. See the photo in the 1st post for letter codes:
- A,D,E,F,H | 98867A350 | Metric Black Class 8.8 Steel Spacing Stud M10 Size, 37mm Overall Length, 1.5mm Pitch | Quantity 5 | $0.81 Each
- B,G | 98867A360 | Metric Black Class 8.8 Steel Spacing Stud M10 Size, 72mm Overall Length, 1.5mm Pitch | Quantity 2 | $1.28 Each
- C | 98867A315 | Metric Black Class 8.8 Steel Spacing Stud M8 Size, 35mm Overall Length, 1.25mm Pitch | Quantity 1 | $0.48 Each
For the 4 studs that bolt the brick to the engine block:
- 98867A355 | Metric Black Class 8.8 Steel Spacing Stud M10 Size, 62mm Overall Length, 1.5mm Pitch | Quantity 4 | $1.18 Each
For the downpipe:
You can use 4 of the M10x1.5 that are 37mm long (same as A,D,E,F,H on the brick). Part number 98867A350
You'll also want washers. I used these (sold by the bag):
- 91166A280 | Din 125 Zinc-plated Class 4 Steel Flat Washer, M10 Screw Size, 20mm Od, 1.8mm-2.2mm Thick | $3.98 per pack of 100
For the copper lock nuts I used:
- PM33629 | M10-1.5 Exhaust Lock Nut Copper Plated Steel 14mm Hex | $12.30 per pack of 25
- PM33627 | M8-1.25 Exhaust Lock Nut Copper Plated Steel 12mm Hex | $15.82 per pack of 25
My brick all re-studed (I actually had to use one different stud because my brick had been heli-coiled, but you get the idea...):
