Tomorrow is the big day ;o)
#126
Thanks Rob, I'm not sure I knew that. I've got all sorts of other great ideas for implementation with other people's money. :-)
Car looks great!!!
Car looks great!!!
Originally Posted by wanklin
FYI: I forgot to give credit to Peter Hahn for sparking the metal work idea in place of the vulnerable fiberglass flares; he was definitely the master mind behind that idea. Thanks Peter.
#127
I'd like to hear some more of these ideas...
I'm still playing around with the titanium or carbon header/exhaust idea. I can get the titanium tubes and hyrdo-cut plate for next to nothing, finding someone to fab it is another story....
I priced the full carbon headers and it was around 10K. It's great that they don't get hot, but 10k is a bit more than I was hoping to spend. lol
I'm still playing around with the titanium or carbon header/exhaust idea. I can get the titanium tubes and hyrdo-cut plate for next to nothing, finding someone to fab it is another story....
I priced the full carbon headers and it was around 10K. It's great that they don't get hot, but 10k is a bit more than I was hoping to spend. lol
#129
Originally Posted by gracer7-rx7
What are your plans for the engine? Just curious.
03 LS6 out of a Z06 w/ only 3K miles mated to a steel fork/carbon synchro upgraded T56 via Spec stage 3+ w/ lightened pressure plate and aluminum FW. Custom drive shaft, t2 hybrid diff, 4.11 gear, 300m axles.
The drivetrain is already installed.
The front cover and oil pan were powdercoated high-gloss black and I installed a K-teck black anodized tensioner with black pulley and ATI dampner.
Dedicated MSD coils installed (the red ones made for the LS1)- do little but look nice
The only belt driven accessory will be the black powdercoated high output alt which I had built; the WP is electric. P/S is eliminated with a Maval-converted manual rack in its place.
I plan on running a near-stock Z06 tune on the LS1 PCM to keep everything smooth.
I bought an 78MM LSX TB which I had powdercoated and sent back to the manufacturer to be reassembled to spec with new parts.
All bolts Mazda and GM bolts are new as are the the GM brackets, sensors, clips, harnesses, fuse box covers etc.
Everything under the sun is powdercoated varying textures of black, and all and connectors and wires have been inspected, cleaned, rewrapped etc to look like new. I think Nick will vouch that the engine bay looks pretty much like new, and very black ;o). The bay paint is clean, in fact, the fire wall is probably just as glossy as the roof of the car.
I may add a procharger later down the road if I need more power, but I suspect that my current setup will be plenty.
I'll snap some pics once I'm done wiring up the engine bay.
#133
here's another monster truck pic from the front. The painted lip is coming off (got painted due to a mix-up) and is going to be replaced by a CF Mazdaspeed lip. CF Feed side skirts will also be installed.
The front end still needs a hood latch assembly, and the hood, fenders, lights and bumper need to be flushed and gapped.
The front end still needs a hood latch assembly, and the hood, fenders, lights and bumper need to be flushed and gapped.
#134
Original Gangster/Rotary!
iTrader: (213)
I'll tell ya what Rob, in that shot above the car looks good as hell. Once she's on the road I'll definitely take a road trip down to see that beauty in person. Oh, and don't forget to let me know about the bushings
#137
Nearing Completion...
iTrader: (473)
Join Date: Aug 2006
Location: Chicago
Posts: 4,735
Likes: 0
Received 0 Likes
on
0 Posts
Damn, that's one SHINY and CLEAN engine bay! It's sooooo black, I love it .
Anyways, any idea on when everything will be completed? Looks like you're well on your way aside from the interior . Keep up the great work and keep us all posted. I'm definitely following this thread.
Anyways, any idea on when everything will be completed? Looks like you're well on your way aside from the interior . Keep up the great work and keep us all posted. I'm definitely following this thread.
#138
Originally Posted by str8ryd
Damn, that's one SHINY and CLEAN engine bay! It's sooooo black, I love it .
Anyways, any idea on when everything will be completed? Looks like you're well on your way aside from the interior . Keep up the great work and keep us all posted. I'm definitely following this thread.
Anyways, any idea on when everything will be completed? Looks like you're well on your way aside from the interior . Keep up the great work and keep us all posted. I'm definitely following this thread.
The bay will look clean once I install one fo these, that is assuming that I can make it fit; may require trimming over the TB. Should clean her up nicely ;o)
#140
Originally Posted by zkeller
Trying to one-up me Rob? Looking good. Can I attempt to swing down, again, and give you a hand?
I could definitely use your hand getting the wiring finished up and checked, programming the ECU, and firing her up/ working out bugs.
PS: Did that Canadian IRS GB ever happen?

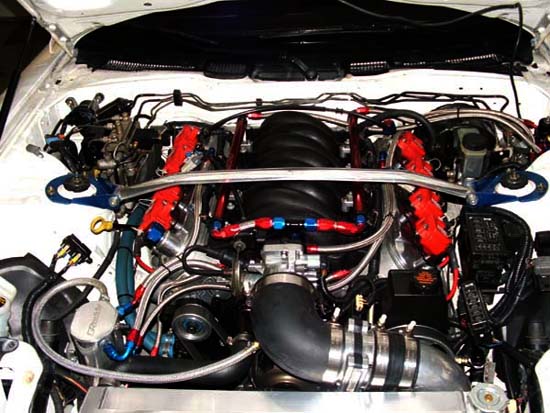

FYI: Zach has helped me a ton with this project. I drove up to PA to check house his car and took tons of pics and notes. He's been giving me a lot of little pointers along the way that have saved me time and hassle. Ohh, and that's his fuel rail in the pics ;o) Thanks again Zach.
#142
Looking good!
I don't think that cover will clear the hood if you are running hinsons mounting equipment.
You should relocate your fuses on the drivers side and the fan relays on the passenger side. Plus you should run a shroud over the entire front radiator. Here are some threads on torque central to check out.
http://www.torquecentral.com/showthread.php?t=39816
http://www.torquecentral.com/showthread.php?t=39760
The cover will be polished and anodized black.
I don't think that cover will clear the hood if you are running hinsons mounting equipment.
You should relocate your fuses on the drivers side and the fan relays on the passenger side. Plus you should run a shroud over the entire front radiator. Here are some threads on torque central to check out.
http://www.torquecentral.com/showthread.php?t=39816
http://www.torquecentral.com/showthread.php?t=39760
The cover will be polished and anodized black.
#143
Originally Posted by wickedrx7
Looking good!
I don't think that cover will clear the hood if you are running hinsons mounting equipment.
You should relocate your fuses on the drivers side and the fan relays on the passenger side. Plus you should run a shroud over the entire front radiator. Here are some threads on torque central to check out.
http://www.torquecentral.com/showthread.php?t=39816
http://www.torquecentral.com/showthread.php?t=39760
The cover will be polished and anodized black.
I don't think that cover will clear the hood if you are running hinsons mounting equipment.
You should relocate your fuses on the drivers side and the fan relays on the passenger side. Plus you should run a shroud over the entire front radiator. Here are some threads on torque central to check out.
http://www.torquecentral.com/showthread.php?t=39816
http://www.torquecentral.com/showthread.php?t=39760
The cover will be polished and anodized black.
I like what you've done there. Nice work! and keep it up
As far as my project is concerned, I've placed the fuses where they are because I want them to be away from the front opening as well as easliy accessible. I have tons of room so I'm in no practical need of relocation. With the new covers that I have purchased the current fuse box placement should provide a nice and clean OEM feel to the engine bay.
My current shroud is nothing more then a temporary solution. To be honest, what I have in my car right now looks like something that I could have made in 8th grade metal shop. Whatever I do have made will, as you suggested, cover the entire rad, and it will be curved and molded in a manner as to flow with the lines of the car. The shroud will most likely be made of CF as I'm trying to avoid that sheet metal race car look.
You can see one of the "R06" badges that I had made in the pic above ;o)
Last edited by wanklin; 01-13-07 at 03:25 PM.
#145
Rotary Enthusiast
iTrader: (47)
Rob, I am free next Saturday, going to FL for the week of the 22nd, then will be back Friday.
We'll flash your PCM with my HP Tuners.
My subframe is at Paul's place right now. I bet you can get in on the deal. He is setting the gig up and I think plans to have them done in the next couple weeks. I am surpised that more people did not get in on his GB. Holler at him, he's a great guy. My subframe got to him in two days from here in PA.
I cannot wait to do burnouts with no wheel-hop!
On a side note Rob, did they paint under the hood yet? Becuase you have to cut some of the metal out on the hood above the throttle body. I think I showed that to you when you were up.
We'll flash your PCM with my HP Tuners.
My subframe is at Paul's place right now. I bet you can get in on the deal. He is setting the gig up and I think plans to have them done in the next couple weeks. I am surpised that more people did not get in on his GB. Holler at him, he's a great guy. My subframe got to him in two days from here in PA.
I cannot wait to do burnouts with no wheel-hop!
On a side note Rob, did they paint under the hood yet? Becuase you have to cut some of the metal out on the hood above the throttle body. I think I showed that to you when you were up.
#147
Problem is that I am out of the country at the moment. I would need to pick up a rear subframe and have it shipped to Paul and stored their until I return. How much did you pay to ship your subframe to Paul, just out of curiosity? And how much was it to get in on the GB?
#149
Rotary Enthusiast
iTrader: (47)
I only cost 75 bucks via UPS from the Harrisburg, PA hub, so from VA I can assume that it will not cost much more. Does Fritz have any laying around that he could ship for you? Here's a link to the tread for anyone that wants to take a look at what Paul is doing: http://www.swapcartech.com/forum/showthread.php?t=884
Originally Posted by wanklin
Problem is that I am out of the country at the moment. I would need to pick up a rear subframe and have it shipped to Paul and stored their until I return. How much did you pay to ship your subframe to Paul, just out of curiosity? And how much was it to get in on the GB?
#150
Originally Posted by wanklin
I'd like to hear some more of these ideas...
I'm still playing around with the titanium or carbon header/exhaust idea. I can get the titanium tubes and hyrdo-cut plate for next to nothing, finding someone to fab it is another story....
I priced the full carbon headers and it was around 10K. It's great that they don't get hot, but 10k is a bit more than I was hoping to spend. lol
I'm still playing around with the titanium or carbon header/exhaust idea. I can get the titanium tubes and hyrdo-cut plate for next to nothing, finding someone to fab it is another story....
I priced the full carbon headers and it was around 10K. It's great that they don't get hot, but 10k is a bit more than I was hoping to spend. lol
i like titanium b/c it's lightweight and all, but it's impossible to find somebody that can weld it on.
