Speedhut Gauge Install: How to (DIY)
I have done a full conversion to speedhut gauges, and thought I would share my process. I was able to retain all the factory housings and bezels for a complete stealth look. I did all of this in about 3 hours, and no major fabrication was necessary for an OE look. First of all, you will need to order these sizes:
4.5" Tachometer
4" Speedometer
2-1/16" Oil pressure
2-1/16" Water temp
2-1/16" Fuel gauge
I have seen a lot of people order the smaller 4inch tach, or get the 3-3/8 speedo. Dont do this. I actually measured the holes, and the 4.5" tach and 4" speedo work perfect. They actually measure out almost identical to the diameter of factory gauges. Trust me.
So for those of you that dont know, the speedhut gauges include their own bezel (usually aluminum) and their own rings to mount them. They also have a button (if programmable) and their own plexi-glass window. We will be ditching the plexi-glass window and aluminum bezel in order to make the factory mazda pieces work.

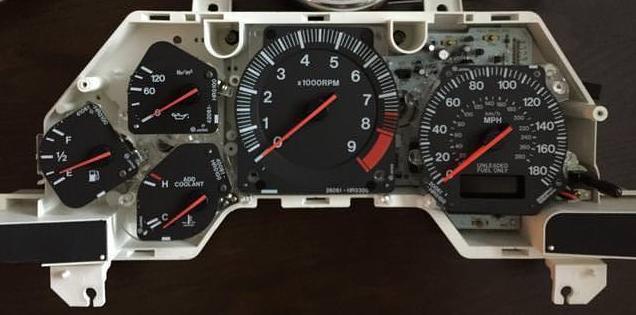

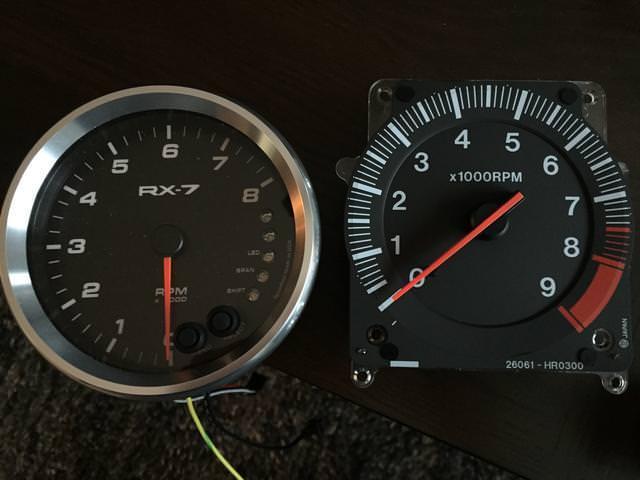

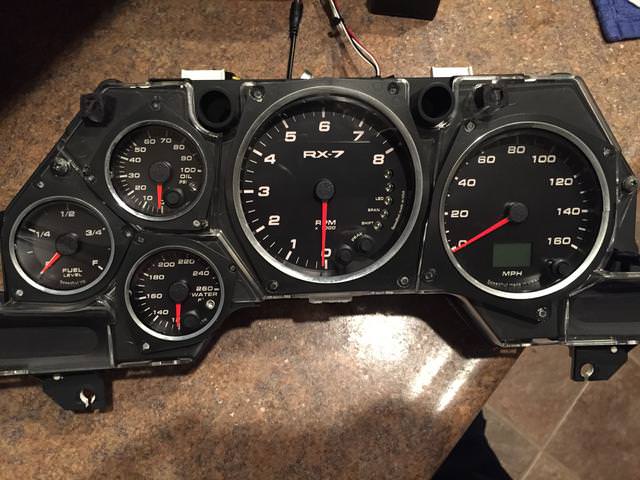

So here is how the speedhut gauges look compared to the stock ones:
I went with the Revolution style gauge with white font. I also had the custom lettering put on to say "RX-7" ($10 option)
First step is to remove the cluster obviously and unclip the clear lens cover and the black plastic backing from the cluster assembly.
You will be left with this:

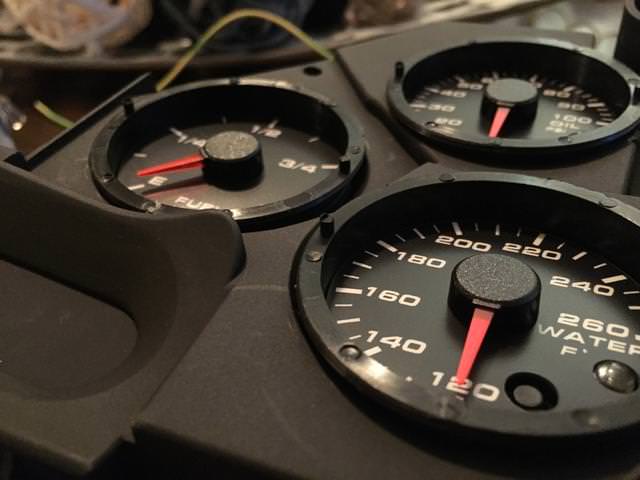

The stock gauges themselves unbolt from the back. There are about 3 bolts per each of the gauges. Go ahead and remove them so that you have an empty piece of white plastic (don't mess with the circuit board paper on back, we need to retain this for the turn signals) but you can go ahead and start removing the larger bulbs that screw in from the back.

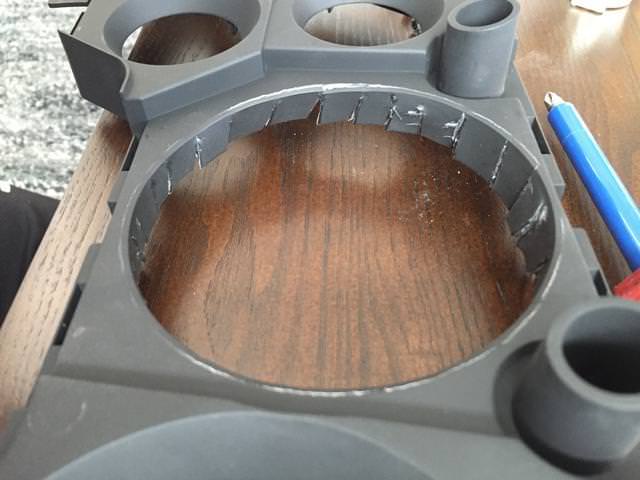

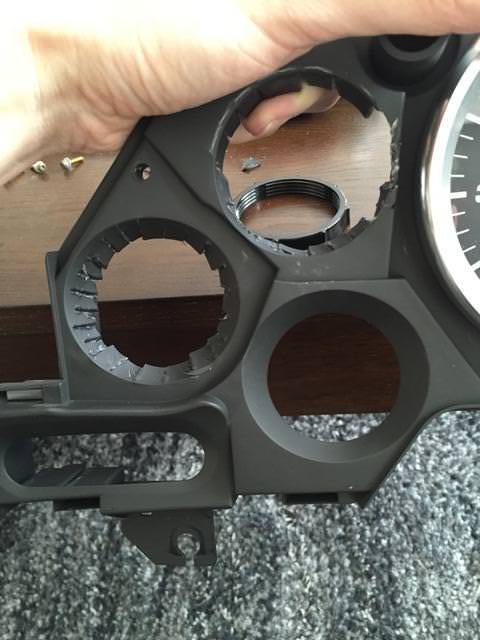

Now looking at the black plastic gauge housing, you will notice that these holes are way to small for our large gauges. I used some side cuts and started making cuts into the edges of the housing. This effectively opens up the holes for the larger gauges. Then I literally threaded the gauge body into the housing. bottom them out until they sit flush at the front.
Dont worry about being neat, this cant be seen. Gauge will "press/thread" in:

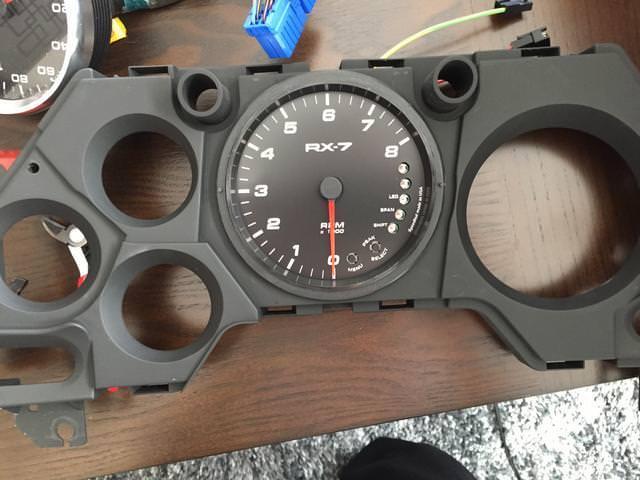

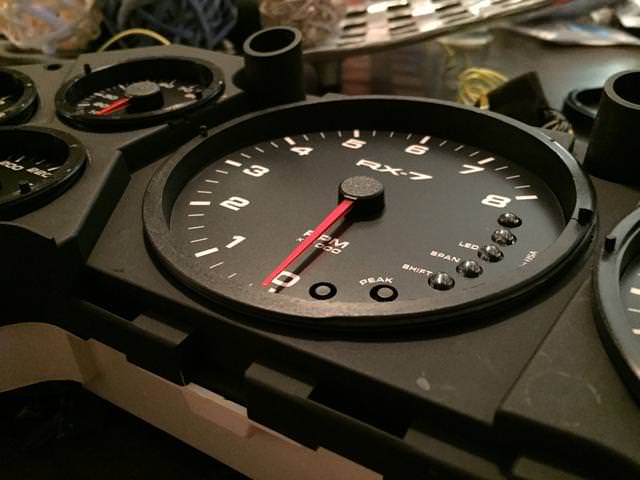

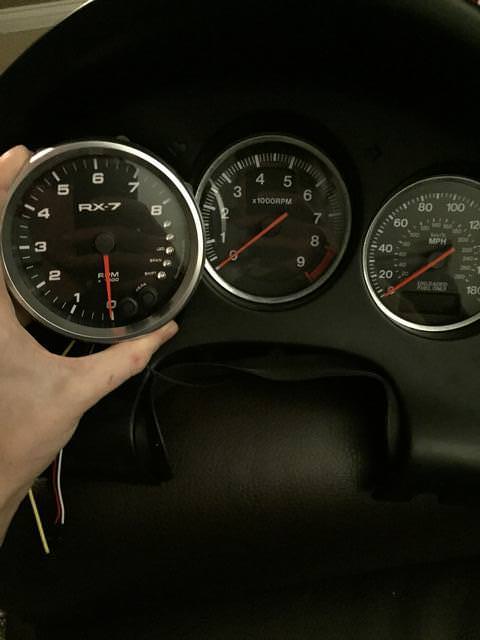

Tach installed: notice the alumium bezel is removed and the slider ring on the back is also ditched.
4.5" Tachometer
4" Speedometer
2-1/16" Oil pressure
2-1/16" Water temp
2-1/16" Fuel gauge
I have seen a lot of people order the smaller 4inch tach, or get the 3-3/8 speedo. Dont do this. I actually measured the holes, and the 4.5" tach and 4" speedo work perfect. They actually measure out almost identical to the diameter of factory gauges. Trust me.
So for those of you that dont know, the speedhut gauges include their own bezel (usually aluminum) and their own rings to mount them. They also have a button (if programmable) and their own plexi-glass window. We will be ditching the plexi-glass window and aluminum bezel in order to make the factory mazda pieces work.
So here is how the speedhut gauges look compared to the stock ones:
I went with the Revolution style gauge with white font. I also had the custom lettering put on to say "RX-7" ($10 option)
First step is to remove the cluster obviously and unclip the clear lens cover and the black plastic backing from the cluster assembly.
You will be left with this:
The stock gauges themselves unbolt from the back. There are about 3 bolts per each of the gauges. Go ahead and remove them so that you have an empty piece of white plastic (don't mess with the circuit board paper on back, we need to retain this for the turn signals) but you can go ahead and start removing the larger bulbs that screw in from the back.
Now looking at the black plastic gauge housing, you will notice that these holes are way to small for our large gauges. I used some side cuts and started making cuts into the edges of the housing. This effectively opens up the holes for the larger gauges. Then I literally threaded the gauge body into the housing. bottom them out until they sit flush at the front.
Dont worry about being neat, this cant be seen. Gauge will "press/thread" in:
Tach installed: notice the alumium bezel is removed and the slider ring on the back is also ditched.
Last edited by Esser; 12-18-17 at 02:00 PM.
The following 4 users liked this post by Esser:
Popular Reply
12-18-17, 01:42 PM
Remove any interferring white plastic standoffs on the base of the cluster. These will be obvious when piecing it together.

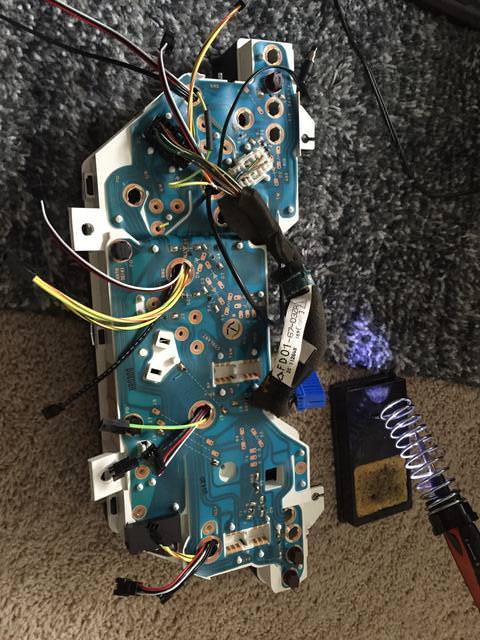

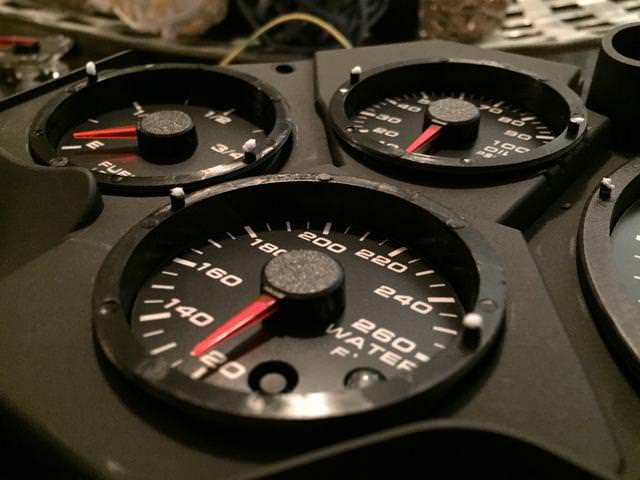

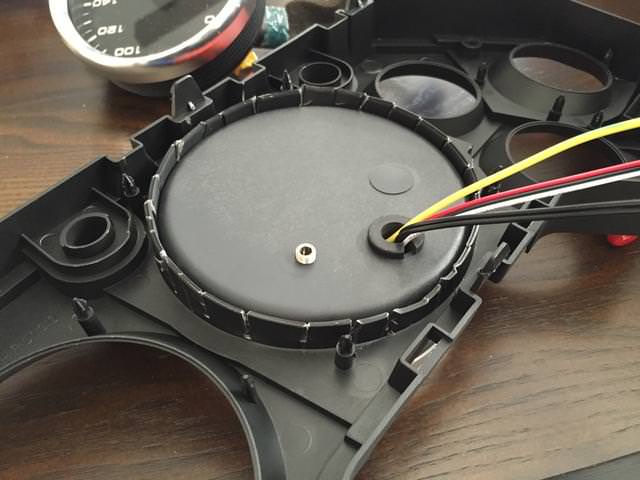

Run the wires through the (now) un-used bulb holes:
Once all the gauges are pressed in, I noticed that there are stubs on the edges of each gauge. I will need to drill out the clear lens to accept these protrusions. I put a bit of toothpaste on the tip of edge stub and then lined up the lens so I could see where I needed to drill:

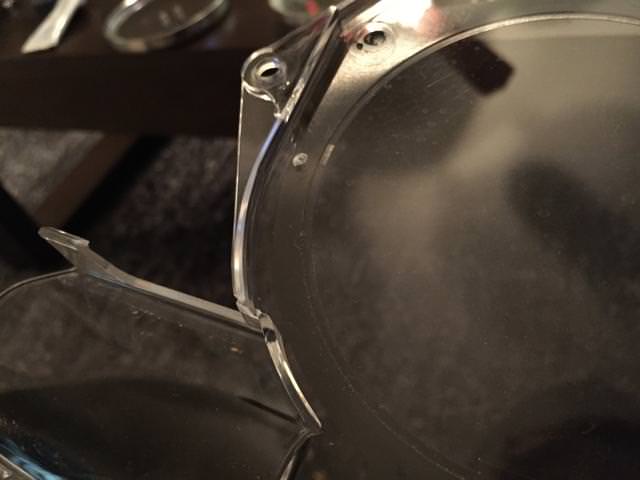

The "drill here" mark it made on the lens:
At this point you can re-install the lens and see that everything fits and lines up like OE
But then you will realize that you can't push the buttons on the programming for each gauge. I marked "eye-balled" where each of the buttons were with a sharpie, then removed the bezel and drilled it out to accept the speedhut rubber buttons and standoffs.
Drill slowwlllyyyyyy:
Buttons installed:

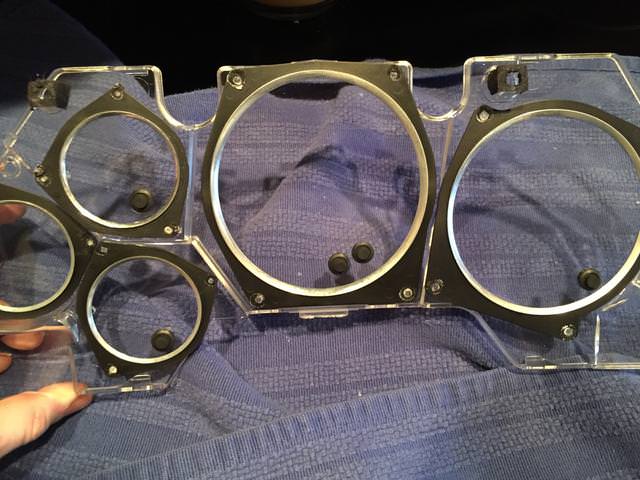

Standoffs put in place to reach the button on the gauge:

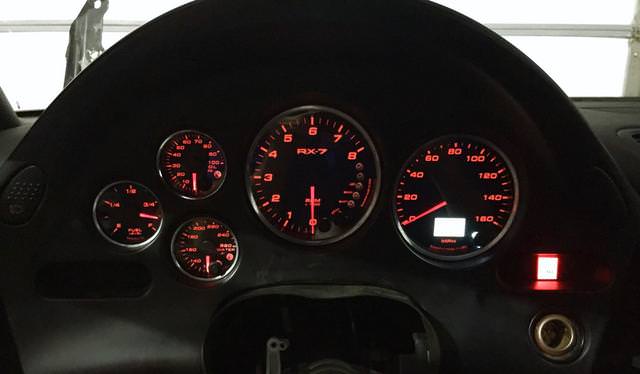

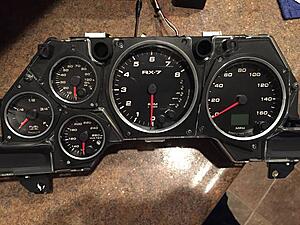

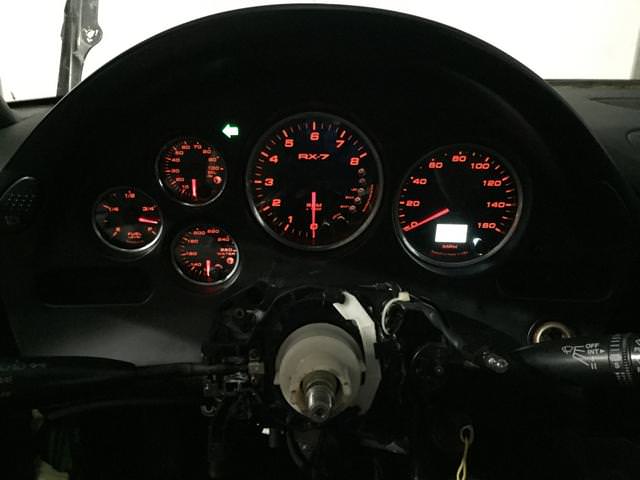

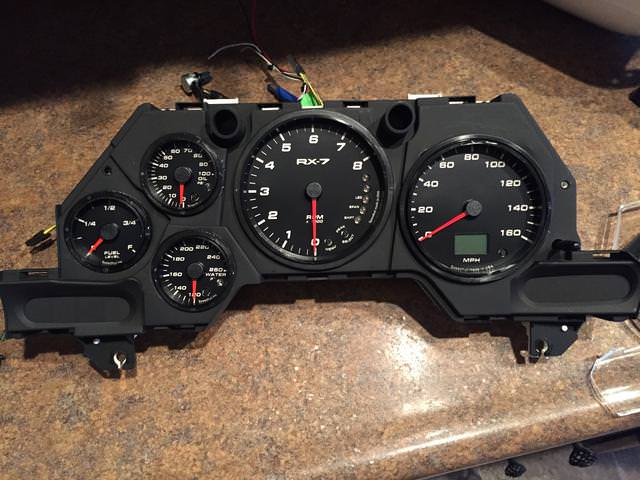

Screw all the items back together and you now have a fancy factory looking gauge setup with programmable shift lights and alarms:
Run the wires through the (now) un-used bulb holes:
Once all the gauges are pressed in, I noticed that there are stubs on the edges of each gauge. I will need to drill out the clear lens to accept these protrusions. I put a bit of toothpaste on the tip of edge stub and then lined up the lens so I could see where I needed to drill:
The "drill here" mark it made on the lens:
At this point you can re-install the lens and see that everything fits and lines up like OE
But then you will realize that you can't push the buttons on the programming for each gauge. I marked "eye-balled" where each of the buttons were with a sharpie, then removed the bezel and drilled it out to accept the speedhut rubber buttons and standoffs.
Drill slowwlllyyyyyy:
Buttons installed:
Standoffs put in place to reach the button on the gauge:
Screw all the items back together and you now have a fancy factory looking gauge setup with programmable shift lights and alarms:
#2
Remove any interferring white plastic standoffs on the base of the cluster. These will be obvious when piecing it together.
Run the wires through the (now) un-used bulb holes:
Attachment 750459
Once all the gauges are pressed in, I noticed that there are stubs on the edges of each gauge. I will need to drill out the clear lens to accept these protrusions. I put a bit of toothpaste on the tip of edge stub and then lined up the lens so I could see where I needed to drill:
Attachment 750460
The "drill here" mark it made on the lens:
Attachment 750461
At this point you can re-install the lens and see that everything fits and lines up like OE
Attachment 750462
But then you will realize that you can't push the buttons on the programming for each gauge. I marked "eye-balled" where each of the buttons were with a sharpie, then removed the bezel and drilled it out to accept the speedhut rubber buttons and standoffs.

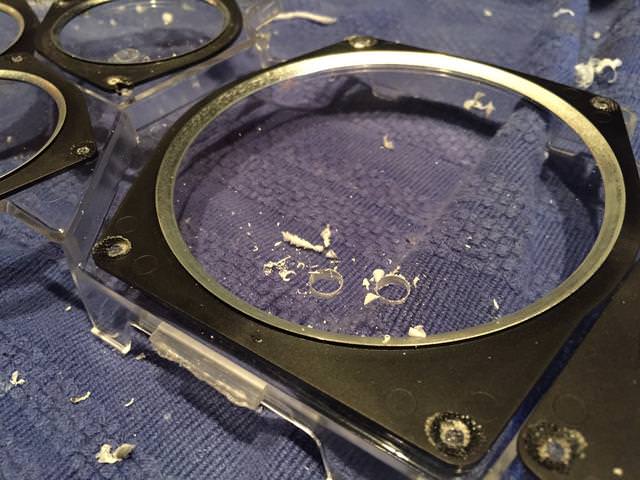

Drill slowwlllyyyyyy:
Attachment 750463
Buttons installed:
Attachment 750464

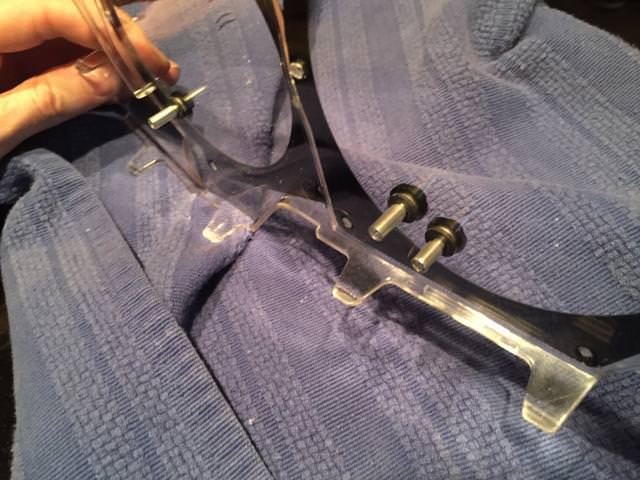

Standoffs put in place to reach the button on the gauge:
Attachment 750465

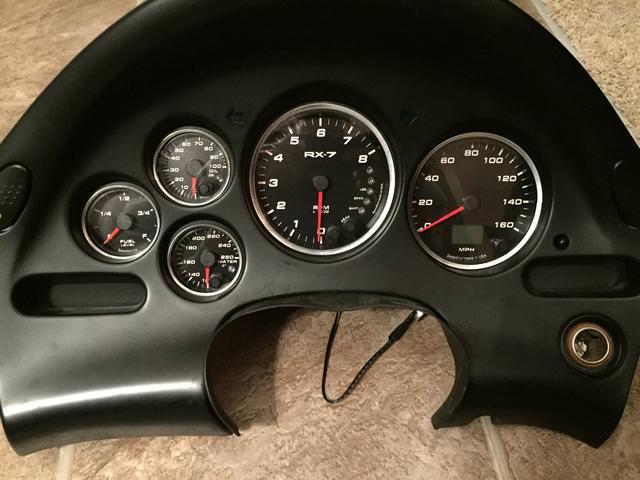

Screw all the items back together and you now have a fancy factory looking gauge setup with programmable shift lights and alarms:
