Should I remove stock IC flow cover/box?
08-30-05, 10:16 PM
#1
Should I remove stock IC flow cover/box?
Should I remove the stock IC flow cover/box? I see some others take it off. To be quite honest, I think I'm the only one that still has it on!

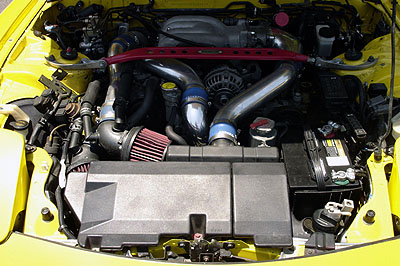

I've included a photo of my engine with it on. See link of what I'm talking about with it off: http://www.rx7store.net/PhotoGallery...pexi+Intake+FD
I've included a photo of my engine with it on. See link of what I'm talking about with it off: http://www.rx7store.net/PhotoGallery...pexi+Intake+FD
08-30-05, 10:49 PM
#2
Rotary Enthusiast
Join Date: Mar 2001
Location: Edwards, CA
Posts: 1,023
Likes: 0
Received 0 Likes
on
0 Posts
Absolutely! BUT, you need to open up your stock airbox and make a shield so it sucks cold air from between the radiator on pax side frame rail. Also, be sure and seal the holes left on intercooler duct and top of the airbox. Finally, seal the hole in the duct leading to the battery. This will keep air moving through your intercooler unlike the stock arrangement.
Reason being, the stock intake routing will actually suck air backwards through the intercooler at high rpms!
Reason being, the stock intake routing will actually suck air backwards through the intercooler at high rpms!
08-30-05, 11:04 PM
#3
Originally Posted by Marshall
Absolutely! BUT, you need to open up your stock airbox and make a shield so it sucks cold air from between the radiator on pax side frame rail. Also, be sure and seal the holes left on intercooler duct and top of the airbox. Finally, seal the hole in the duct leading to the battery. This will keep air moving through your intercooler unlike the stock arrangement.
Reason being, the stock intake routing will actually suck air backwards through the intercooler at high rpms!
Reason being, the stock intake routing will actually suck air backwards through the intercooler at high rpms!
Yes, I would suggest that you remove it and cover the hole that will be exposed in the IC duct.
08-31-05, 07:28 AM
#5
I see. I will remove the box with the top opening covered or modded. I could've remembered Racing Beat made a stock-mounted (or least it looked stock) IC flow duct...I can't find it on their site now. I'll try to look again and other places. Thanks again everyone. =D
08-31-05, 07:49 AM
#6
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Here's my duct with the cover that comes from Pettit racing. Let me know if you want one of the covers. Jack
Last edited by CantGoStraight; 08-31-05 at 07:55 AM. Reason: add picture
08-31-05, 08:44 AM
#7
Junior Member
Join Date: Aug 2005
Location: Somerset - England
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Is it safe to cover the hole infront the battery, thought battery had to be kept coolish?

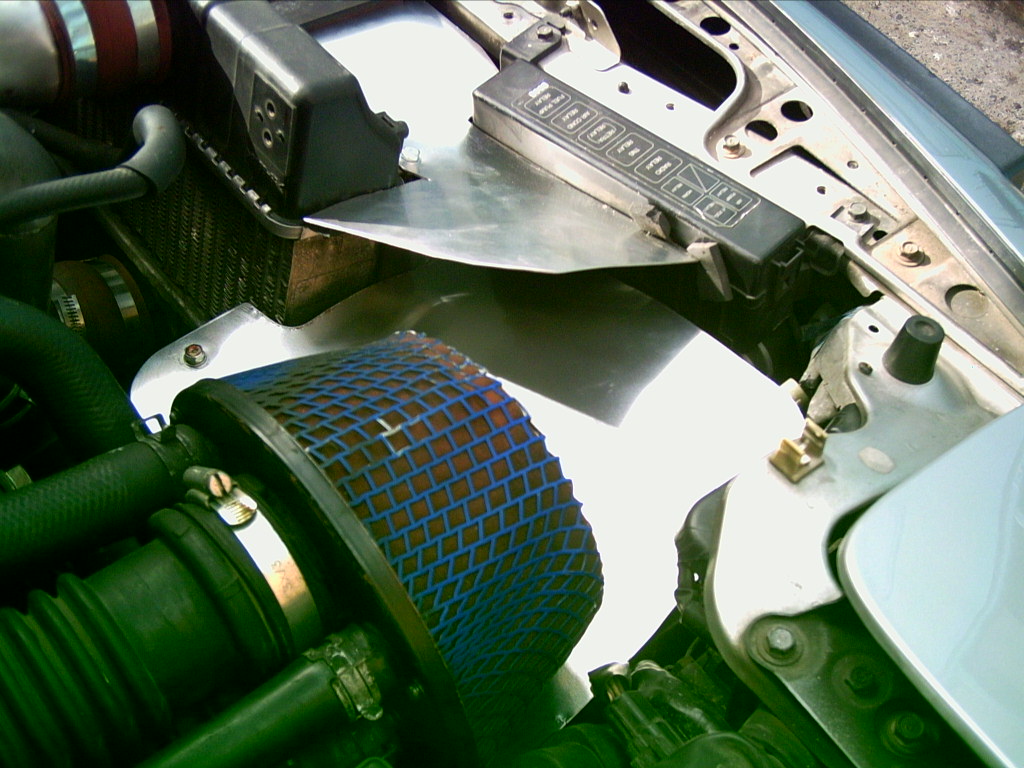

Here's what I did last week, vast improvement from sucking in hot air from the coolant rad. Covered top hole and cut a hole down the side too. Holds boost better when it's hot now.
Here's what I did last week, vast improvement from sucking in hot air from the coolant rad. Covered top hole and cut a hole down the side too. Holds boost better when it's hot now.
Trending Topics
08-31-05, 08:53 AM
#8
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
I don't know about your battery but mine sits up againt the opening any way so I doubt any air gets by it any way. If there's clearance between the battery and the opening then it probably helps some
08-31-05, 09:05 AM
#9
My battery currently sits right next to the AST and intercooler..almost touching. Anyhow, will look into aftermarket ducts for my stock IC until I get a real deal IC from Apexi or Greddy. I'm not a fan of "too much CF" but I've seen CF IC ducts too which could be something I look into. Corksport carries a CF stock airbox integrated into the IC duct combined for $1500.....eh, a lil' too much.
I'm not a fan of "too much CF" but I've seen CF IC ducts too which could be something I look into. Corksport carries a CF stock airbox integrated into the IC duct combined for $1500.....eh, a lil' too much.
08-31-05, 12:18 PM
#10
Full Member
Join Date: Sep 2002
Location: Indiana
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
I've also been looking to see what kind of things are available to cover up the square hole left on top of the stock intercooler shroud after stock intake is removed. I currently have it covered up with tape..but want something better! I plan on getting an ASP Med IC soon...but until then I need to cover up the hole.
08-31-05, 12:30 PM
#11
Full Member
iTrader: (3)
Join Date: Jul 2004
Location: IL
Posts: 221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by redbase
I've also been looking to see what kind of things are available to cover up the square hole left on top of the stock intercooler shroud after stock intake is removed.
See if you can get your hands on one of these plates. They are very cheap and can seal up the square hole fairly well with some foam single sided tape.
https://www.rx7club.com/showthread.php?t=424184
08-31-05, 05:47 PM
#12
Junior Member
Join Date: Aug 2005
Location: Somerset - England
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Before I joined here I was thinking of ways to reduce intake temps without changing the stock IC. I tried covering the top hole with tape, to force the cold air thru the IC and not escape thru the hole, didn't realise it was popular!
Anyway, it was a slight improvement on having the hole open but not much.
So next I made up the alloy plates as in photo above and cut out the side of the plastic box, now that gives a noticeable improvement - when the engines hot I dont feel any lag thru heat soak hardly at all.
Boost at WOT in 4th was upto 0.8 from 0.7bar.
Anyway, it was a slight improvement on having the hole open but not much.
So next I made up the alloy plates as in photo above and cut out the side of the plastic box, now that gives a noticeable improvement - when the engines hot I dont feel any lag thru heat soak hardly at all.
Boost at WOT in 4th was upto 0.8 from 0.7bar.
08-31-05, 08:44 PM
#13
Originally Posted by C's-7
See if you can get your hands on one of these plates. They are very cheap and can seal up the square hole fairly well with some foam single sided tape.
https://www.rx7club.com/showthread.php?t=424184
https://www.rx7club.com/showthread.php?t=424184
FDZ
08-31-05, 10:00 PM
#14
Jinx
Join Date: Mar 2001
Location: Raleigh, NC
Posts: 1,260
Likes: 0
Received 0 Likes
on
0 Posts
I wonder how much that piece helps to direct air thru the intercooler as opposed to over the top of it. might be worth keeping. If you have a PFC you could roughly test the air intake temps.
09-01-05, 05:37 AM
#15
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by technonovice
I wonder how much that piece helps to direct air thru the intercooler as opposed to over the top of it. might be worth keeping. If you have a PFC you could roughly test the air intake temps.
09-01-05, 06:57 AM
#16
Jinx
Join Date: Mar 2001
Location: Raleigh, NC
Posts: 1,260
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CantGoStraight
It's not going be much help at all in dirrecting the air through the intercooler if your not running the stock air box. The resistance of the stock air box is what helps the air go through the intercooler as the air through the duct is shared buy the intercooler and airbox intake. If you remove the stock airbox you need to block off the duct going to the stock airbox.
Having proper ducting would reclaim the effect of the intercooler that is lost. Without ducting it becomes another version of the infamous interheater. The stick IC is not so great on the track, but is functional for a acceleration run or two before heat soak occurs. Without good ducting, well, it just heats the air until the heat radiates off.
09-01-05, 07:31 PM
#17
Just got an e-mail response from seller. The seller is still selling those duct covers if anyone is interested to know: https://www.rx7club.com/showthread.php?t=424184
