Re-assembly Question
#1
Re-assembly Question

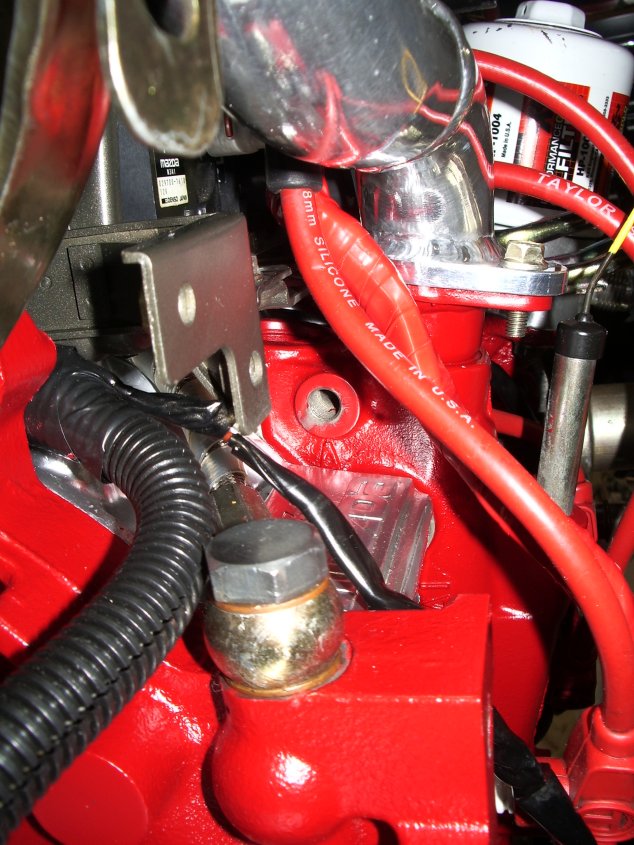

I'm getting the engine back together after a rebuild and I so far have only one hole that is missing a bolt of some sort. It is just below and to the pass. side of the oil filler neck in the intermediate housing (see image). Does anything go in this hole?
#2
RX-7 Bad Ass
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (55)
Nope. Looks like that may be an FC center iron (which I've seen a number of times on FD builds) and that's the hole the knock sensor screws into on an FC.
Make sure the hole doesn't go through to the oil fill neck - if it doesn't, you're OK.
Dale
Make sure the hole doesn't go through to the oil fill neck - if it doesn't, you're OK.
Dale
