Here's one for $1000
http://cgi.ebay.com/ebaymotors/ws/eB...RK%3AMEWA%3AIT

I picked one up about 6+ years ago for $300 one eBay Business/Industrial section....had to but the Mazda specific sofware and cable for another $300 new. It was worth it. In California we have a lot of smog regulations. At the time I was spending thousands modifying my car, then beating the hell out of the car till it begged for mercy...the tool really helped with identifying the problems without taking things apart...time is money, so is replacing things that you think are suspect. It worked with the PowerFC but it probably won't if you went to single turbo and/or simplified vacuum solenoid setup etc...which are not legal in California.



thanks for the feedback Dale

Do you think the Snap-on tool will even do the off-on solenoid testing?

Given me an example of a "data stream" test? If you can't read the data stream, does that mean you can't even do things like read the sensors, etc?

I was really hoping to find a $300 scanner that would do this - not a $1000 scanner - especially one that only works on FORDS (and RX7s) - we try not to say the F word in our house...

Jim



I researched this back in 95-96 when my first FD fell out of warranty. The biggest problem with diagnostic tools for the FD is that the FD's aren't ODBII compliant, so only 2 companies Kowa Seiki and Hickok invested in developing tools with functionality for like "on-off solenoid testing". Maybe one of these wizards hacking the PowerFC can figure it out.



Dudes i think we've got a winner here. check out the latest offering from Techtom. FD3S specific diagnostics tool. www.technosquareinc.com. Its available in the STATES too.

LINK: http://www.technosquareinc.com/mdmmaz.htm
check out PDF brochure. Someone please find out if its compatible with PFC??



costs $399

http://www.autovation.net/products/T...azda/main.html

Table of Supported Engine Sensor Parameters:

DisplayDescriptionUnit
BATT Battery Voltage V
RPM Engine RPM rpm
SPD Speed km/h
SPD Speed M/h
WTMP Water Temperature C
WTMP Water TemperatureF
IGNL IGN Timing Leading deg
IGNT IGN Timing Trailing deg
ITMP Intake Air Temp C
ITMP Intake Air Temp F
TPSN TPS Partial Throttle V
TPSF TPS Full Throttle V
INJP Primary Injector m s
INJS Secondary Injector m s
ISC Idle Speed Control Valve %
O2S Oxygen Sensor V
BPRS Vacuum Sensor k P a
BPRS Vacuum Sensor P S I
MOP Metering Oil Pump Position V
TPC Turbo Pre-Control Valve %
WGC Wastegate Control Valve %
FTMP Fuel Temp C
FTMP Fuel Temp F
CRFSV Charge Relief Valve ON . OFF
CCNTSV Charge Control Valve ON . OFF
TCNTSV Turbo Control Valve ON . OFF
RAD-FAN1 Radiator Fan Relay 1 ON . OFF
RAD-FAN2 Radiator Fan Relay 2 ON . OFF
RAD-FAN3 Radiator Fan Relay 3 ON . OFF
AC-SW AC Switch ON . OFF
AC-RLY AC Relay ON . OFF
PRCSV Pressure Regulator Control Valve ON . OFF
DTCNTSV Double Throttle Control Valve ON . OFF
FP-RLY Fuel Pump Relay ON . OFF
Diagnostic Code OK.NG CODE



Congrats, you just reposted what was already one Page 1 of this thread.



ok but that link of where to buy it is not on the thread nor the list of sensors it will read...



The PDF does have the list of sensors which is basically everything the stock ECU sees (and there are several places that sell it or can get it). I've been eye'ing this unit for years.



I think it would be reasonable to "decode" the diagnostic port protocol if someone had an MDM-100Z available for debugging. At a minimum we should be able to replicate what the MDM-100Z is doing.

I have some microcontrollers capable of implementing the interface if someone can make a trace of the MDM communicating with the diagnostic port. It would be incredibly cool to build something like a "$99 full system data logger" for the RX-7.

Anybody who has an MDM-100Z want to work on this with me?



Will the Techtom device work with the a Power FC or would even be beneficial with a Power FC



if you've got a Power FC, then just buy a commander and/or datalogit

this thread is about a scanner for the Stock ECU

in summary -

there's a $400 techtom scanner that will read the ECU data stream/parameters (but can't send commands to the stock ECU)

or there's a $1000 to $2400 universal Ford/Mazda scan tool (Hickok) that will do two way communication - just like the Factory Mazda DT-1000 tool

or there's the factory DT-1000 tool - at some TBD (likely OMG high) price

that sound about right, Dale ?



The "dts1000" only worked on the fd and 95-96 millenia, it seems like it was abandoned for obdII

in case you're wondering, it was very expensive new ($10,000), and as such out of the 5-6 dealers in the area here none of em ever bought one

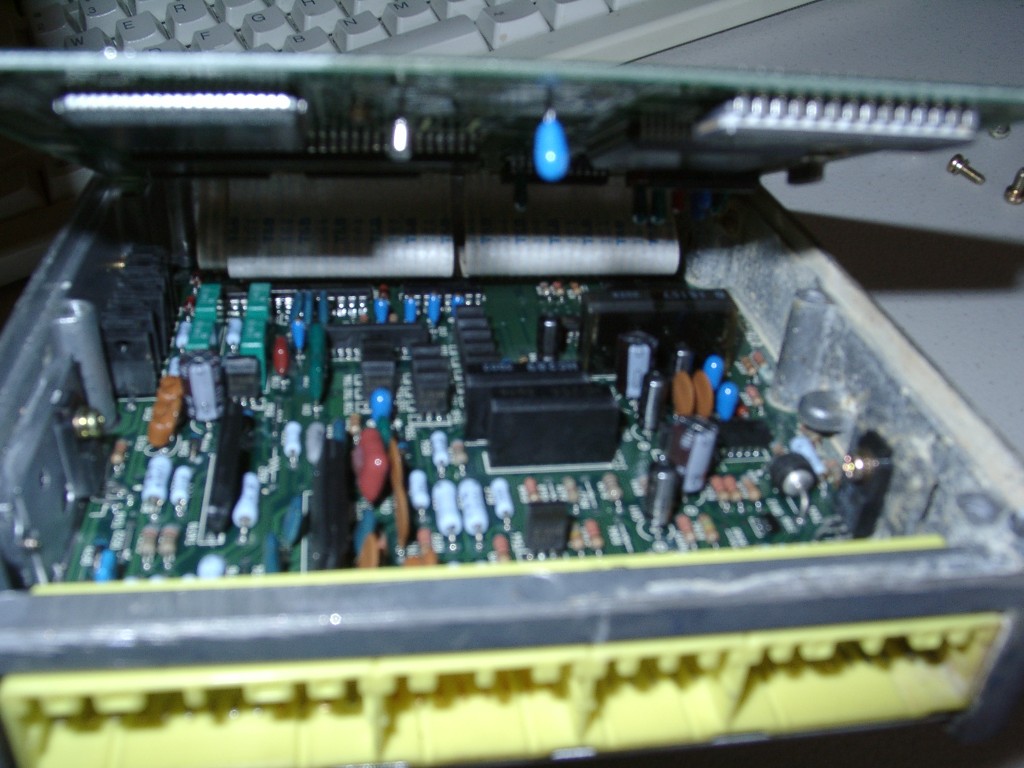

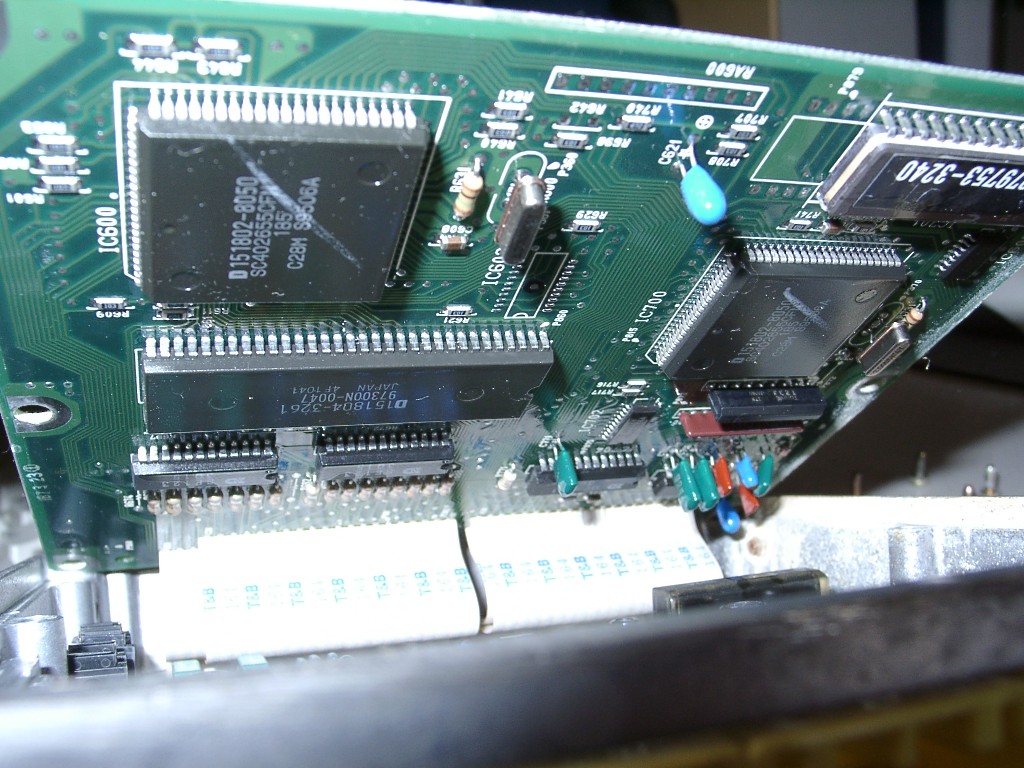

I didn't notice any headers inside, but I wasn't looking for them either. It is pretty easy to dissasemble. The only thing to watch out for is that the two PCBs are connected with a ribbon cable. The PCBs must be removed together.



I just bought a data-acquisition unit, so if I can get ahold of a system monitor, I should be able to capture the serial transfer. I'll warn you guys that this isn't very high on my list of things to do, but I'll look around for a dealership that will let me play with their tools.

Personally, I think our time and efforts would be better spent getting a Megasquirt EFI system to control the FD's stock twin-turbo system.

-s-



Well I hate to dig this up but...

What have we learned so far? in terms of logging, it doesn't look like the TechTom tool allows any type of logging what so ever. Has there been any progress since '06?



I'm making my first attempt at rebuilding my motor. Much of my wire harnesses are brittle and some spots have broken up altogether.

I figure this is an opportunity to put my software/electronics skills to good use by creating a full data acquisition system for the car, instead of focusing on the ECU. This way, not only can I see what all of the sensors are doing but how the ECU responds to the inputs (taking a black-box approach).



How are you approaching that?



I've been contemplating something like that also. I'm interested in monitoring the various system values and displaying to a small LCD screen and also having the ability to either log the values to a memory card or at least display peak values.

PLX offers a pretty cool option to capture data and Innovate has their MTS (?) system. I've also seen some other generic boxes to read data from various sensors but haven't explored further.

Anyone want to collaborate on something?



The first stage involves tapping into all of the sensors/signals and using microcontrollers (I have a PIC programmer) via a serial port interface. RS-232 is much easier to implement and USB-to-serial devices are cheap, at least, until I sit and finalize the USB interface.

I'll have more info on my progress here: https://www.rx7club.com/3rd-generation-specific-1993-2002-16/thinking-options-rebuild-835977/
